2011 Hyundai Tucson Serpentine Belt Diagram and Routing Guide
If you’re experiencing issues with the serpentine belt in your 2011 Hyundai Tucson, understanding the belt’s routing is the first step to resolving them. The serpentine belt plays a critical role in powering various engine components, such as the alternator, power steering pump, and air conditioning compressor. Incorrect routing or a worn-out belt can lead to engine malfunction, so knowing the correct diagram is key.
The diagram for the 2011 Tucson’s serpentine belt is relatively simple but varies slightly depending on the engine model. The most common configuration features a single continuous belt loop, which goes around the pulleys of the engine accessories. It’s crucial to ensure the belt follows the correct path through each pulley. Misalignment can cause premature wear or even complete failure.
Consulting the serpentine belt diagram before you replace or inspect the belt can save you time and hassle. In general, the belt should be tightened to the appropriate tension, as either too loose or too tight will lead to poor performance. Double-check that the tensioner is functioning correctly, as a faulty tensioner is one of the most common causes of serpentine belt issues.
For a clear, step-by-step guide, always refer to the specific diagram that matches your Tucson’s engine type. This diagram will outline the correct path, direction, and pulleys involved, ensuring you’re set up for a proper repair or maintenance task.

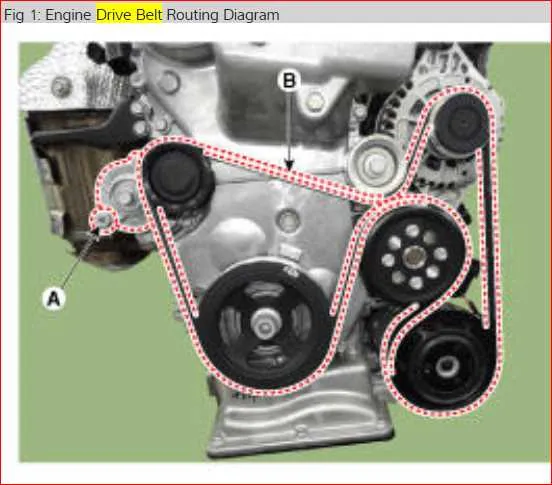

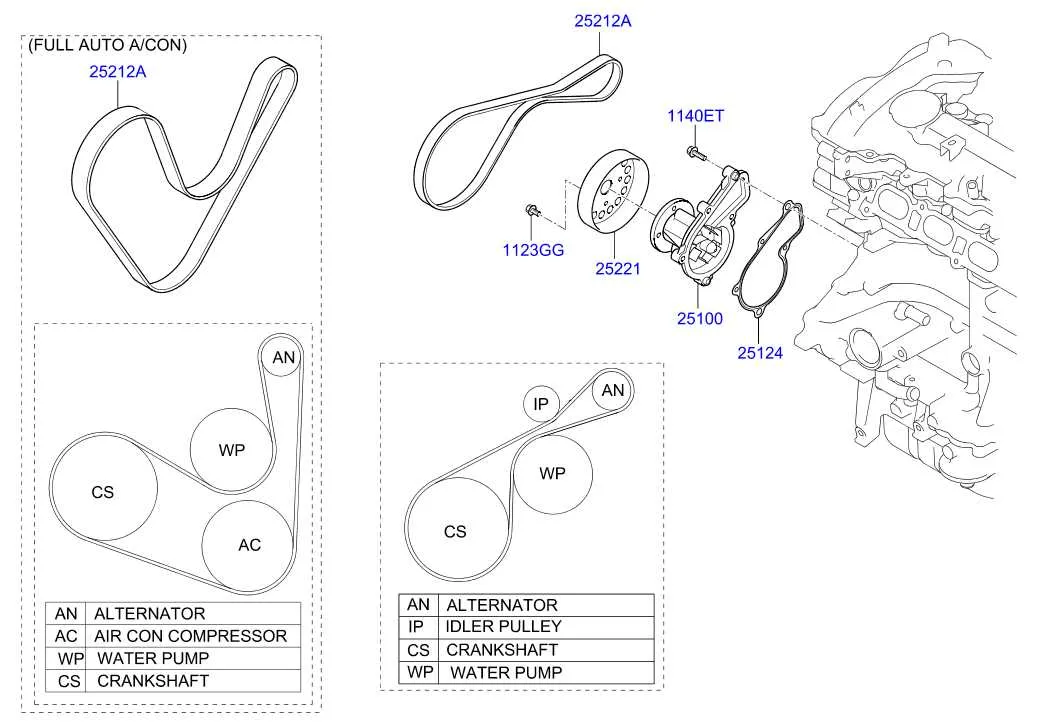

2011 Hyundai Tucson Serpentine Belt Diagram
For proper maintenance and troubleshooting, it’s important to have a clear view of the serpentine belt layout on the 2011 Hyundai Tucson. This belt plays a critical role in driving multiple accessories, such as the alternator, power steering pump, and air conditioning compressor. Below is a basic diagram and a guide to ensure proper installation and tensioning of the serpentine belt.
The serpentine belt routing for the 2011 Hyundai Tucson is straightforward, and it uses a single belt system. The components powered by the belt include:
- Alternator
- Power Steering Pump
- Air Conditioning Compressor
- Crankshaft Pulley
Follow these steps to ensure the serpentine belt is installed correctly:
- Start by loosening the tensioner pulley using a wrench or serpentine belt tool.
- Remove the old serpentine belt carefully, noting the routing path for reference.
- Place the new belt over the pulleys according to the diagram.
- Ensure the belt fits snugly in the grooves of each pulley.
- Tighten the tensioner pulley to apply the correct tension to the new belt.
If the belt appears worn or damaged, it should be replaced promptly to avoid further damage to components or engine failure. Always check the belt for cracks, fraying, or glazing before installation.
Refer to the vehicle’s manual for specific details, or consult a mechanic if you’re unsure about the installation or tensioning process.
How to Locate the Serpentine Belt on a 2011 Hyundai Tucson
To locate the serpentine belt on a 2011 Hyundai Tucson, open the hood and stand in front of the vehicle. The serpentine belt runs across the front of the engine and can be found on the passenger side of the engine bay. It is a long, continuous belt that wraps around several pulleys, such as the alternator, power steering pump, and air conditioning compressor.
Start by locating the engine’s drive belt tensioner. This is usually located near the top or side of the engine block. It’s a spring-loaded pulley that keeps the belt tight. To get a clearer view, you may need to remove the plastic cover or other components blocking access. Once the tensioner is visible, follow the path of the belt around the pulleys.
The serpentine belt is typically marked with a diagram on the front of the engine, which shows the correct routing path. If the diagram is missing or unclear, you can consult the vehicle’s service manual for the exact routing details. The belt itself is made of durable rubber and is a critical part of the engine’s functioning, so make sure it is intact and properly aligned when inspecting it.
If you need to replace the belt, use a wrench or socket on the tensioner pulley to release tension and remove the old belt. Install the new belt following the same routing as the old one. Ensure it fits securely and that the tensioner properly tightens it.
Step-by-Step Guide to Replacing the Serpentine Belt in a 2011 Hyundai Tucson
To replace the serpentine belt on your 2011 Hyundai Tucson, follow these steps to ensure the job is done right.
1. Gather the Tools and Parts
You’ll need a 3/8″ drive ratchet, a serpentine belt tool, a new serpentine belt, and a socket set. Make sure the replacement belt matches the size and specifications for your Tucson model.
2. Disconnect the Battery
For safety, disconnect the negative terminal of the battery before working on the engine. This prevents any electrical issues while you’re replacing the belt.
3. Locate the Serpentine Belt and Tensioner
Open the hood and locate the serpentine belt. It’s routed around various pulleys. Find the tensioner pulley, which is spring-loaded and keeps the belt tight. You will need to release the tension to remove the old belt.
4. Release the Tension on the Serpentine Belt
Insert the serpentine belt tool into the tensioner pulley. Rotate the tool counterclockwise to relieve tension on the belt. While holding the tensioner in place, slide the belt off the pulleys.
5. Remove the Old Belt
Carefully remove the old serpentine belt from the engine. Take note of its routing pattern, as you’ll need to install the new belt the same way.
6. Install the New Belt
Position the new serpentine belt around the pulleys, following the exact routing as the old belt. Make sure the belt sits properly in the grooves of each pulley.
7. Tension the New Belt
Using the serpentine belt tool, rotate the tensioner pulley again to apply tension to the new belt. Ensure the belt is tight and properly aligned with all pulleys.
8. Double-Check the Installation
Inspect the belt to confirm it’s correctly routed and tightly secured. The belt should sit firmly in all grooves, with no visible slack.
9. Reconnect the Battery
Reconnect the negative terminal of the battery and close the hood.
10. Start the Engine
Start the engine and watch the belt in operation. Make sure it runs smoothly without any unusual noise or slipping.
Replacing the serpentine belt on your 2011 Hyundai Tucson is a straightforward process. With the right tools and attention to detail, you can keep your engine running smoothly for miles to come.
Common Issues with the Serpentine Belt and How to Diagnose Them
Serpentine belt problems can be diagnosed by paying attention to a few key symptoms. A worn-out belt may show cracks, fraying, or shiny, smooth spots where it has slipped over pulleys. If you hear squealing noises, it could indicate the belt is slipping due to improper tension or excessive wear. Inspect the belt for signs of glazing, a condition caused by overheating. This is common when the belt becomes too tight or when pulleys are misaligned.
If the belt looks loose, check the tensioner. A failing tensioner may cause the belt to slacken, affecting the vehicle’s performance. The tensioner spring can weaken over time, and you may notice a decrease in its ability to maintain proper tension. To check, try to move the belt by hand–if it’s too easy to move, the tensioner may be the culprit.
Another issue to look for is belt misalignment. Inspect the pulleys to see if they are damaged or misaligned. Misalignment can cause the belt to wear unevenly, and eventually, it may snap. If you notice this happening, make sure the pulleys are seated properly and not damaged. You may need to replace them or check the mounting points for damage.
Vibrations or erratic engine performance can also be signs of a failing serpentine belt. If the belt is slipping or not running properly, it could affect components like the alternator, air conditioning, or power steering. Check for abnormal noises when the engine is running, as this could signal belt-related issues.
To prevent further damage, inspect the belt regularly and replace it as needed. A healthy serpentine belt is essential for the proper functioning of many engine systems, so stay ahead of the wear and tear to avoid costly repairs.
