2007 Hyundai Sonata 2.4 Belt Diagram and Routing Guide

To correctly maintain your 2007 Hyundai Sonata 2.4, understanding the belt diagram is key. The diagram provides precise details on how the serpentine belt routes through the various pulleys, ensuring proper engine performance. Refer to it when replacing or inspecting the belt to prevent damage to the engine components.

First, locate the belt tensioner, which helps maintain the correct belt tension. The routing diagram will show the exact path the belt follows, starting from the crankshaft pulley and moving through components such as the alternator, water pump, and power steering pump. Pay close attention to the direction of the grooves on the belt, as they must align with the pulleys for optimal performance.

It’s important to replace the belt if there are any visible signs of wear, such as cracking or fraying. An improperly routed or worn belt can cause engine failure, leading to costly repairs. The belt should be inspected periodically as part of routine maintenance. Refer to the official Hyundai service manual for specific details regarding tension and replacement intervals.

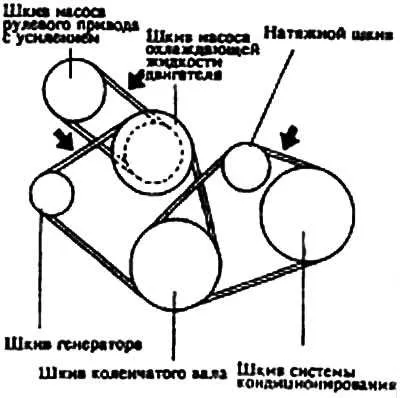

2007 Hyundai Sonata 2.4 Belt Diagram

Refer to the following diagram for the proper routing of belts in the 2007 Hyundai Sonata 2.4. It is important to install the serpentine belt correctly to ensure proper engine function and prevent premature wear.

• Ensure the engine is off and cool before beginning work.
• Locate the alternator, power steering pump, and air conditioning compressor, as these components are typically connected by the serpentine belt.
• Use a belt tensioner tool to release the tension from the belt, which will allow you to remove the old belt and replace it with a new one.
• Check the belt for any signs of wear such as cracks or fraying before installation.
• Once the new belt is in place, verify its alignment on the pulleys and adjust the tension as needed.

Consult the owner’s manual for exact specifications on belt tension and routing. Proper installation is crucial for ensuring smooth engine operation and preventing damage to the accessories connected by the belt system.

Understanding the Belt Routing for 2007 Hyundai Sonata 2.4

For proper belt routing on the 2007 Hyundai Sonata 2.4, start by confirming the location of the crankshaft pulley. The serpentine belt should loop over this pulley, then pass under the alternator and over the power steering pump. Make sure it moves over the air conditioning compressor, and finally, around the idler pulley before returning to the crankshaft pulley.

The tensioner pulley plays a key role in keeping the belt tight. When replacing the belt, release tension on the tensioner to easily slide the old belt out and fit the new one. Ensure that the belt tracks in a straight line and is seated correctly in all pulleys to avoid slipping or uneven wear.

Double-check the alignment of the belt after installation by rotating the engine by hand. If the belt doesn’t sit correctly or makes unusual noises, recheck the routing and pulley positions. This step is crucial for preventing further issues and ensuring long-term performance.

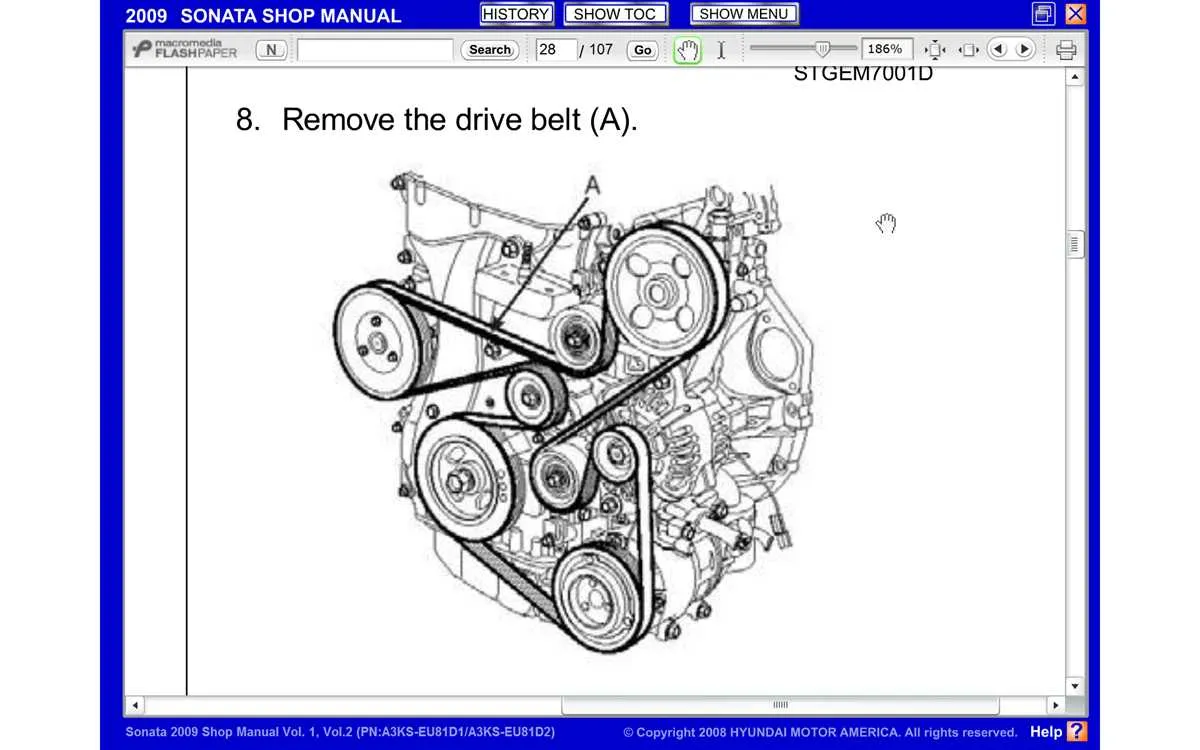

How to Replace the Serpentine Belt on 2007 Hyundai Sonata 2.4

To replace the serpentine belt on your 2007 Hyundai Sonata 2.4, start by securing the vehicle. Raise the hood and disconnect the negative terminal of the battery to ensure safety.

Locate the serpentine belt routing diagram, usually found near the radiator or on the engine bay. This diagram will help you understand the belt path and positioning.

Use a wrench or socket set to release tension from the tensioner pulley. Turn the pulley clockwise or counterclockwise (depending on the model) to relieve tension, then remove the belt from the pulleys. Note the belt’s route before removing it completely.

Check the condition of the old serpentine belt for any wear signs, such as cracks or fraying, before installing the new one. Compare the new belt with the old one to ensure it’s the correct size.

Install the new belt by following the routing diagram. Make sure the belt fits correctly on each pulley. Slowly release the tensioner pulley and allow it to apply tension to the new belt.

Once the belt is securely in place, check its alignment and tension. Start the engine to verify that the belt is running smoothly without any slipping or noise.

Reconnect the negative battery terminal and close the hood. Your serpentine belt replacement is complete.

Common Issues with Belt Tension and Alignment on 2007 Hyundai Sonata 2.4

Ensure the belt tension is correct. A loose belt can slip, reducing the effectiveness of engine components, while a tight belt puts excessive strain on pulleys and bearings.

Inspect the tensioner pulley. If it’s damaged or worn, it may not apply proper tension, causing misalignment or belt slippage. Replace the tensioner if it shows signs of wear.

Check pulley alignment. Misaligned pulleys cause the belt to rub unevenly, leading to noise, premature wear, or even belt failure. Confirm that all pulleys follow the correct routing and are aligned properly.

Look for debris on the pulleys. Dirt, oil, or grease can reduce friction, causing the belt to slip. Clean the pulleys regularly to maintain proper belt performance.

If the belt shows cracks, fraying, or glazing, replace it. These issues indicate excessive wear that can lead to belt failure or poor engine performance.
