Husqvarna Z242F Drive Belt Diagram and Maintenance Guide
The Husqvarna Z242F is a reliable and efficient lawn mower, but like any machinery, its drive belt system can wear out over time. Understanding the belt layout is critical for proper maintenance and troubleshooting. The drive belt connects various components of the mower, ensuring smooth operation of the cutting blades and drive wheels. Knowing the exact routing and tensioning of the belt helps prevent common issues, such as slippage or breakage.
Step one: Always refer to the official Husqvarna Z242F service manual for the most accurate diagram. The manual includes precise details on belt installation, including its route and proper tension settings. If you don’t have the manual, locating a reliable online diagram is the next best step. This ensures you follow the correct steps and avoid unnecessary repairs or damage.
Step two: Ensure that you inspect the drive belt regularly for signs of wear. Look for cracks, frays, or any visible damage. If any issues are found, replace the belt immediately to avoid further complications. A well-maintained belt will improve the overall performance of the mower, increasing its lifespan and reducing the risk of mechanical failures.
Step three: When replacing the drive belt, take care to follow the diagram precisely. The belt should be routed correctly through the pulleys and tensioners, maintaining proper alignment. Incorrect installation can lead to premature wear or even failure of the new belt.

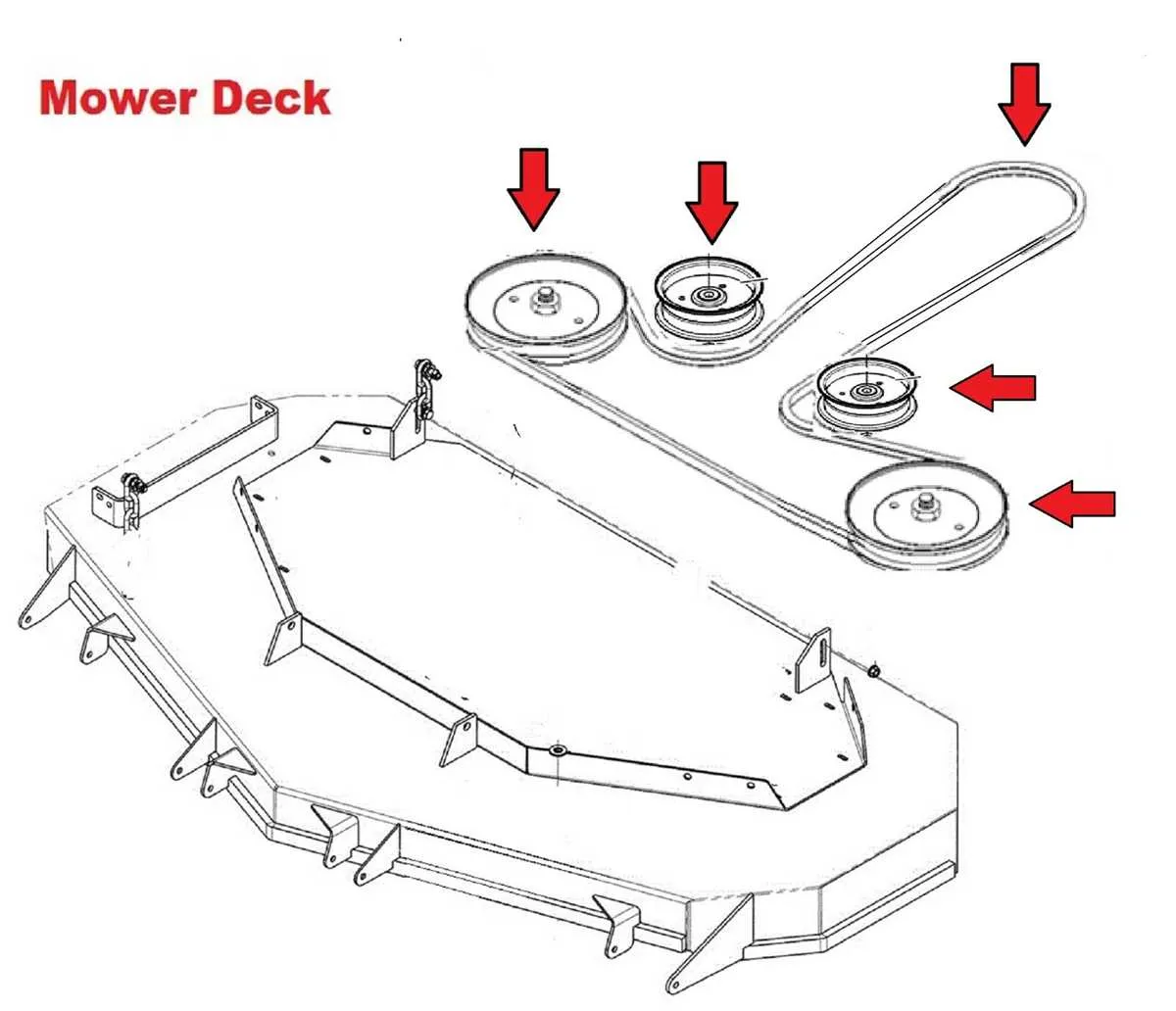

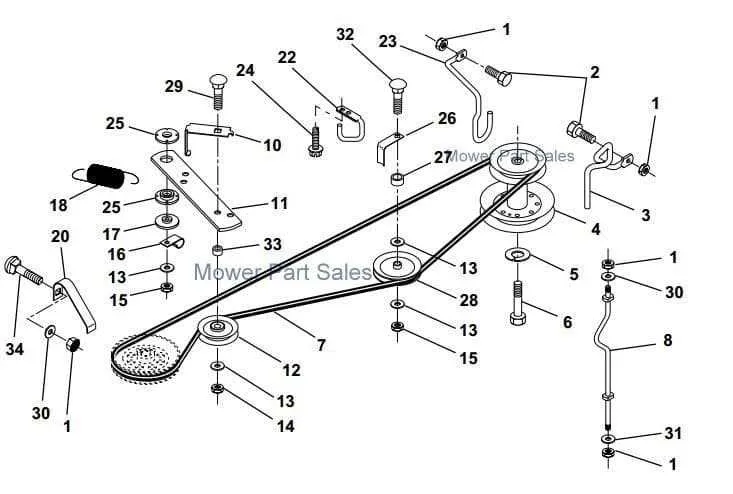

Husqvarna Z242F Drive Belt Diagram
To accurately replace or adjust the drive belt on the Husqvarna Z242F, refer to the diagram for the proper routing and belt placement. First, ensure the mower is off and disconnected from any power source. The drive belt should follow a specific path around the pulleys and idler arms. Start by locating the primary drive pulley on the engine and tracing the belt’s path to the deck pulleys. Make sure the belt fits securely into the grooves of each pulley, with no slack or tension on the system.
The diagram will show you the placement of each component: from the primary engine pulley to the idler pulleys and tensioner. Pay close attention to the routing through the tensioner spring and idler arm, as incorrect installation can lead to premature wear or belt slippage. The drive belt should align perfectly with the idler arm and maintain a consistent tension throughout its travel.
Check the belt for wear before installation. If any signs of cracking, fraying, or significant stretching are present, replace the belt immediately. Installing a damaged or worn belt will lead to poor performance and could damage the mower’s drive system. Once in place, rotate the pulleys by hand to verify smooth movement and proper tension before securing the components back into place.
Step-by-Step Process to Replace the Drive Belt on Husqvarna Z242F
Before starting, ensure that the mower is turned off and the engine is cool. Disconnect the spark plug to avoid accidental starting.
- Lift the Mower: Use a jack or lift to raise the mower. Ensure the mower is stable before proceeding.
- Remove the Deck Belt: To access the drive belt, first remove the deck belt. Disconnect the deck belt from the pulley system. Refer to your user manual for specific steps.
- Loosen the Drive Pulley: Locate the drive pulley on the rear of the mower. Use a wrench to loosen and remove the bolt securing the pulley.
- Remove the Old Belt: Carefully remove the old belt from its path. Take note of how it is routed for easier installation of the new belt.
- Install the New Belt: Begin threading the new drive belt through the pulley system. Ensure the belt follows the correct routing path, as shown in the diagram.
- Reattach the Pulley: Once the belt is in place, reattach the drive pulley. Tighten the securing bolt to hold it in place.
- Reconnect the Deck Belt: Reinstall the deck belt around the pulleys and ensure it is properly tensioned.
- Test the Belt: Manually rotate the belt to ensure it moves freely and is correctly aligned. Reconnect the spark plug.
- Lower the Mower: Lower the mower back to the ground and perform a test run to confirm everything is functioning smoothly.
If the belt is not properly aligned or is slipping, recheck the installation steps and ensure the belt is tight enough.
Common Issues with Husqvarna Z242F Drive Belt and How to Fix Them
Drive Belt Slipping: A slipping drive belt can cause poor performance and inconsistent power transfer. Check for worn or stretched belts. If the belt has stretched beyond its useful life, replace it with a new one. Ensure the tension is correctly adjusted, as a loose belt can also lead to slippage. You can adjust the tension by turning the adjustment bolt located near the drive pulley.
Frayed or Broken Belt: Fraying or breakage indicates damage or excessive wear. Examine the belt for visible signs of fraying or tears. If you find any, replace the belt immediately. Additionally, inspect the pulleys for damage or sharp edges that could cause the belt to wear prematurely.
Pulley Misalignment: Misaligned pulleys can lead to the belt slipping off or wearing unevenly. Ensure all pulleys are aligned properly and are free of debris. Adjust the pulleys as necessary by loosening their mounting bolts and repositioning them before tightening them again.
Excessive Belt Tension: Over-tightening the belt can strain the engine and drive components. Check the belt tension regularly, ensuring it’s neither too tight nor too loose. A properly tensioned belt will have slight deflection when pressed with moderate force.
Incorrect Belt Routing: If the belt is not routed according to the Husqvarna Z242F’s specifications, it may cause friction or fail to transfer power efficiently. Refer to the belt diagram to ensure proper routing and check that all components are in their correct positions.
Debris or Obstruction: Dirt, grass clippings, or other debris can get stuck in the belt system, causing friction and premature wear. Regularly clean the area around the pulleys and drive belt to prevent buildup. Use compressed air or a brush to remove any debris.

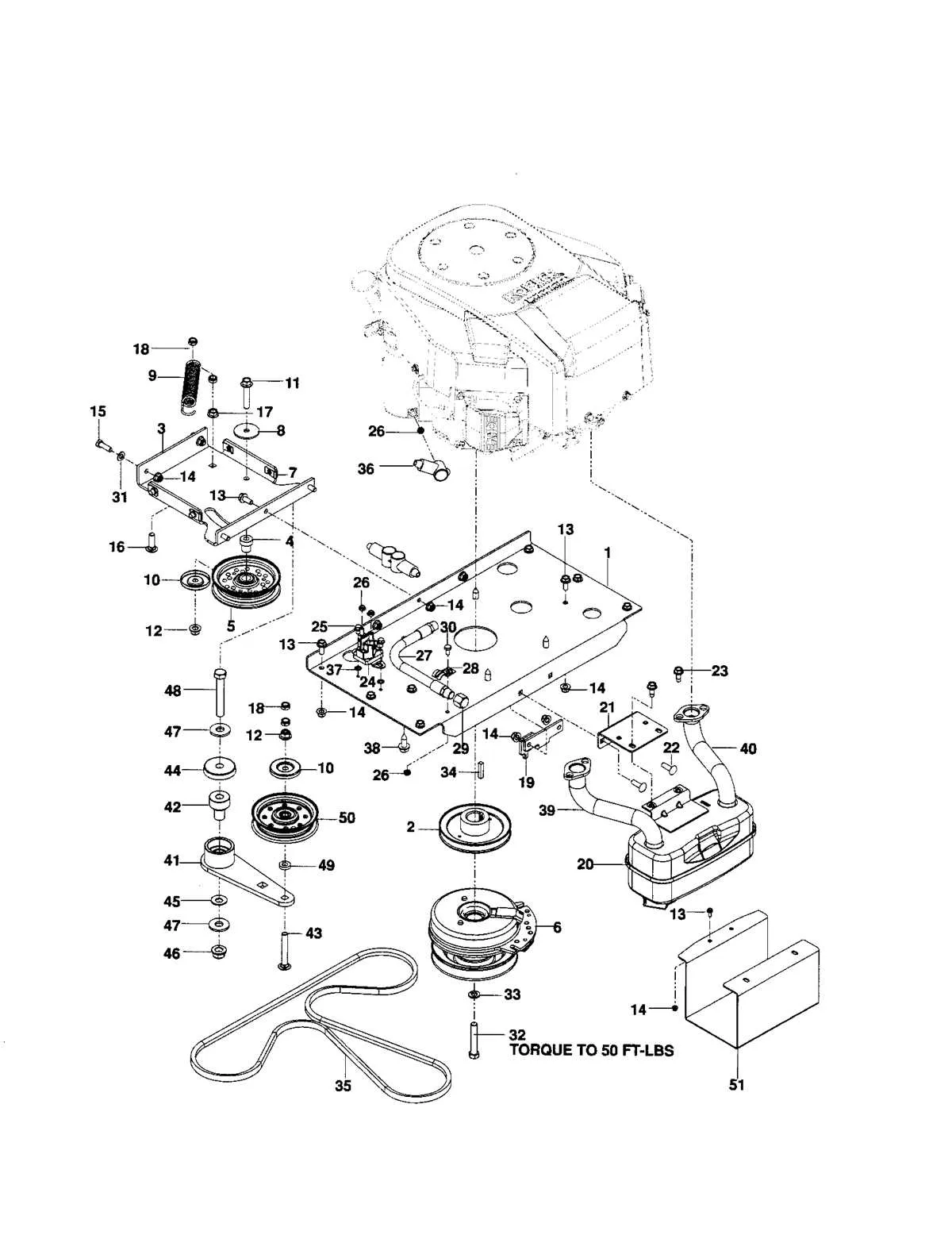

Understanding the Layout and Configuration of Husqvarna Z242F Drive Belt
The drive belt on the Husqvarna Z242F plays a critical role in transferring power from the engine to the wheels. This layout involves a series of components working in unison, including pulleys, tensioners, and the drive belt itself. Familiarity with these parts can help you maintain, troubleshoot, or replace the belt effectively.
The drive belt follows a path from the engine’s output shaft to the rear axle. It runs through a series of pulleys, ensuring smooth power transmission. Each pulley has a specific function: the engine pulley drives the belt, while the idler pulley provides tension. The configuration of these parts ensures that the drive belt remains in place, preventing slippage during operation.
Proper belt tension is vital for optimal performance. Too tight, and it could cause unnecessary wear or damage to the components. Too loose, and the belt may slip, reducing efficiency and putting stress on the engine. The belt should sit snugly but not over-tightened within the pulleys, with the tensioner properly adjusted to maintain the right level of pressure.
The layout includes several key points for monitoring and maintaining belt performance: check the pulleys for wear, ensure the belt’s alignment is straight, and verify that the tensioner is functioning correctly. Keep the area around the belt clean and free of debris to avoid unnecessary friction and damage.
When replacing the belt, follow the outlined configuration in the user manual, making sure to route the new belt in the same pattern as the original. Pay close attention to the orientation of each pulley to avoid improper installation. After replacement, test the mower’s function and inspect the belt for any signs of misalignment or slippage.
