Husqvarna YTH18542 Belt Diagram and Troubleshooting Guide
Understanding the belt diagram for the Husqvarna YTH18542 is vital for maintaining and repairing your mower. This diagram provides a clear representation of how the drive belts are routed, ensuring smooth operation. Correctly identifying and following the belt path is crucial for avoiding belt damage and maintaining peak performance.
For belt replacement, make sure to check the condition of each belt before proceeding. Over time, belts can wear out or slip, which may affect the mower’s efficiency. Be sure to replace worn belts promptly to prevent further damage. The diagram will guide you on how to disassemble and reassemble the mower’s components without any confusion.
Proper alignment is key when reinstalling the new belts. Follow the diagram’s instructions to ensure the belts are aligned correctly to avoid unnecessary wear. Incorrect belt placement can cause excessive friction, leading to quicker deterioration.

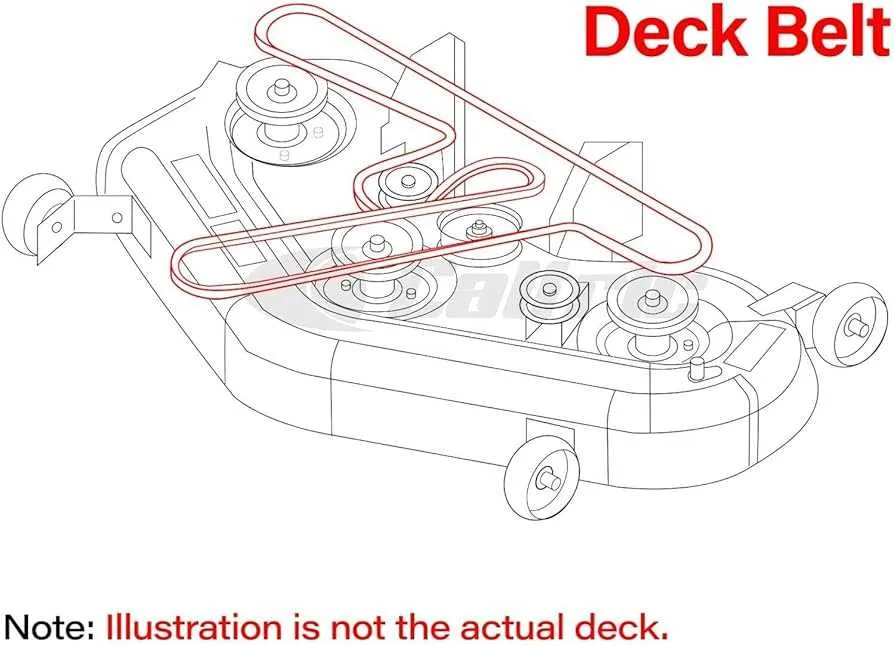

Husqvarna YTH18542 Belt Diagram
To ensure smooth operation of your Husqvarna YTH18542 lawn tractor, proper installation and maintenance of the belt system is crucial. The diagram for the YTH18542 provides a visual representation of how the drive belt should be routed through the various pulleys and components. This is key for maintaining proper function and extending the lifespan of the machine.
The drive belt on the YTH18542 is responsible for transferring power from the engine to the transmission and other parts of the tractor. To identify the correct routing, follow these steps:
- Engine Pulley: Start by routing the belt around the engine pulley. Ensure the belt fits snugly and rotates without slipping.
- Transmission Pulley: Next, pass the belt over the transmission pulley, making sure it remains taut and properly aligned.
- Idler Pulley: The idler pulley serves to maintain the correct tension on the belt. Make sure the belt is correctly tensioned as per the diagram.
- Deck Pulley: The final step involves routing the belt around the deck pulley, ensuring the belt stays securely in place during operation.
Refer to the diagram provided by Husqvarna for exact belt routing and specifications. If the belt shows signs of wear or damage, replace it with the recommended part to avoid breakdowns.
By following the belt diagram, you can ensure your YTH18542 operates efficiently and reliably. Regular inspection and maintenance of the belt system will prevent unnecessary repairs and keep your mower running smoothly.
How to Identify the Correct Belt Path on Husqvarna YTH18542

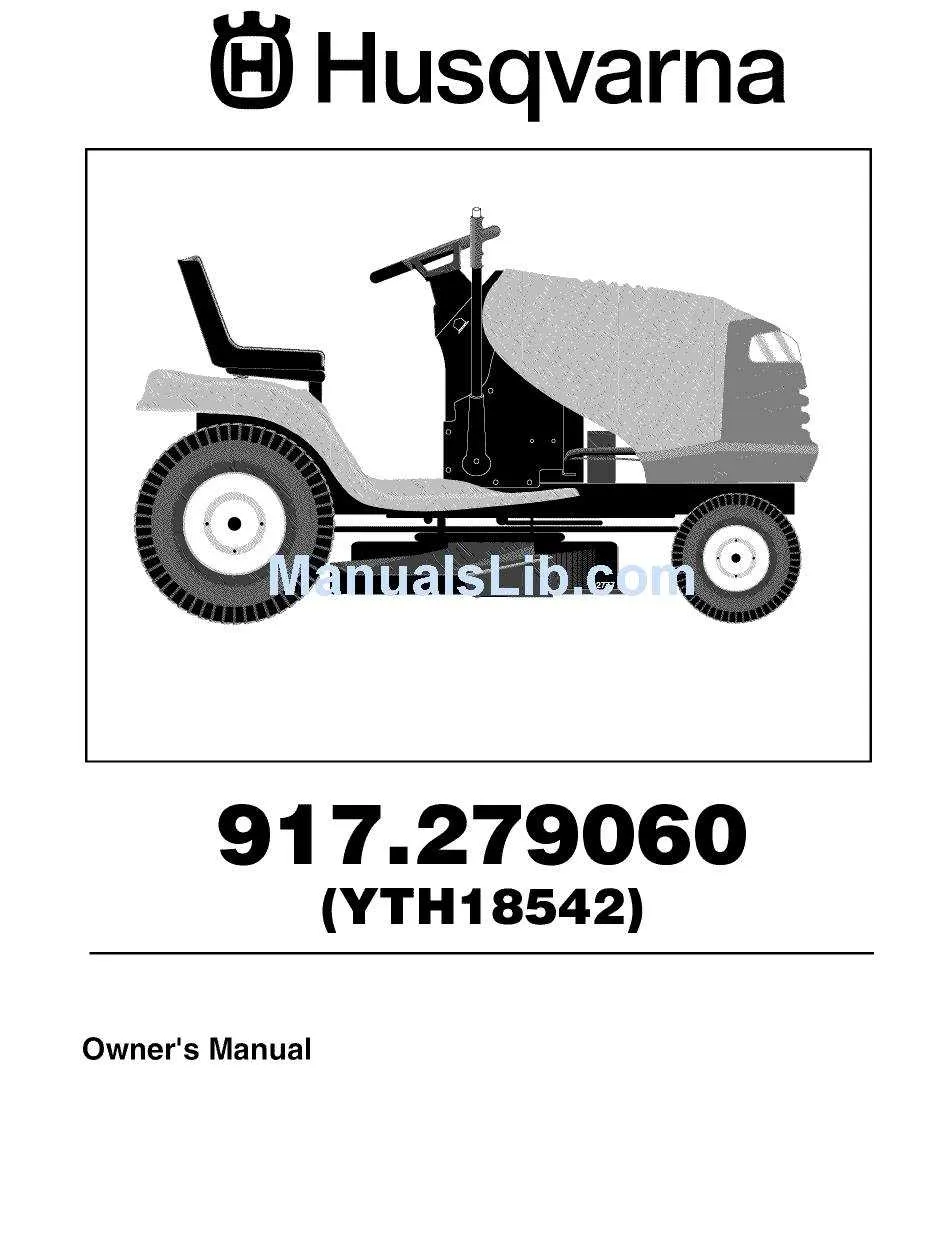

Start by referencing the owner’s manual for the correct belt diagram. The diagram will provide a detailed layout of how the belt should run through the pulleys, ensuring proper tension and operation. It is critical to follow this diagram precisely to avoid misalignment, which can cause excessive wear or breakage.
Inspect the mower’s deck and transmission areas. The belt path typically runs around the engine pulley, idler pulley, and the mower deck pulleys. Ensure each pulley is free of debris and operating smoothly. A common mistake is incorrectly routing the belt around the pulleys, which can cause issues such as slippage or overheating.
When installing the belt, ensure it fits snugly into the grooves of each pulley. If the belt is too loose, it can slip, reducing performance. On the other hand, a belt that is too tight can put unnecessary stress on the engine and the components, leading to premature failure.
Use the belt path diagram to double-check your work. The diagram highlights key areas where the belt should be routed, including the direction of rotation for each pulley. Pay attention to the direction of the engine’s drive shaft and ensure the belt runs in the same direction, preventing reverse movement that can damage the mower’s components.
After securing the belt in place, manually rotate the pulleys to verify the belt moves smoothly and doesn’t jump off the path. If everything operates correctly, you’re good to go.
Steps to Replace the Drive Belt on Husqvarna YTH18542
1. Prepare the Tools – Ensure you have a socket wrench, pliers, and a new drive belt for replacement. Additionally, wear gloves for safety.
2. Lift the Mower – Use a jack or lifting equipment to raise the front of the mower. Secure it with jack stands to prevent any movement.
3. Remove the Deck – Disconnect the mower deck by removing the retaining pins and bolts. Carefully slide the deck out from underneath the mower. Be sure to note the position of any components for reassembly.
4. Locate the Drive Belt – Find the drive belt running from the engine to the rear wheels. Inspect the belt’s routing before removing it, as you’ll need to install the new belt in the same way.
5. Loosen the Tension – Use the wrench to loosen the tension on the drive belt. Depending on the model, this may involve removing the tensioner pulley or releasing the spring tension.
6. Remove the Old Belt – Once the tension is released, slide the old belt off the pulleys. Take note of the belt’s position as you remove it, as this will help with the installation of the new one.
7. Install the New Belt – Carefully place the new drive belt on the pulleys, ensuring it follows the same routing as the old one. Make sure the belt sits properly in the grooves of the pulleys.
8. Apply Tension – Tighten the tension on the new belt using the tensioner pulley or spring mechanism. Ensure the belt has the correct amount of tension to prevent slipping during operation.
9. Reassemble the Mower Deck – Slide the mower deck back under the machine and secure it with the previously removed pins and bolts.
10. Test the Mower – Lower the mower and start the engine. Test the operation of the new belt by driving the mower forward and backward. Check for any unusual noises or belt slippage.
Common Belt Issues and Solutions for Husqvarna YTH18542
Worn or damaged belts are a common issue with the Husqvarna YTH18542. If the drive belt is slipping or not functioning properly, it may cause the mower to lose power or fail to start. Inspect the belt for signs of wear, such as fraying, cracking, or excessive stretching. Replacing a worn belt will restore proper functionality and prevent further damage.
One common problem is misalignment of the belt. This often occurs when the pulleys are not correctly aligned. Check that the pulleys are in their proper position and that the belt is seated correctly in the grooves. Misalignment can cause uneven wear and premature failure of the belt, so realigning the components can solve the issue.
Another issue is a loose or tight belt. A loose belt can slip off the pulleys, while a tight belt may cause excessive strain on the engine or other components. Adjust the tension of the belt by following the manufacturer’s guidelines for proper tension settings. Use the tension adjustment bolts to make any necessary adjustments to keep the belt in optimal condition.
Overheating of the belt can lead to premature wear. This can happen if the mower is used continuously for extended periods or if there is too much load on the belt. Allow the machine to cool down regularly, and avoid overworking the mower beyond its rated capacity. This will help prevent overheating and extend the life of the belt.
Lastly, always use the correct replacement belt for your Husqvarna YTH18542. Using an incorrect belt can lead to improper fit and performance issues. Check the model specifications to ensure you are using the correct size and type of belt for your mower.
