Husqvarna LGT2554 Drive Belt Diagram and Installation Guide

The drive belt diagram for the Husqvarna LGT2554 lawn tractor is a key tool for troubleshooting and maintenance. Understanding the correct routing of the drive belt ensures smooth operation and reduces wear and tear on the components. If your lawn tractor is having trouble moving or the belt keeps slipping, a proper diagram can save time and frustration during repairs.

Start by identifying the drive belt’s path. It runs through pulleys that connect the engine to the wheels, transferring power for movement. Check the diagram carefully for any deviations or misalignments that could cause slipping or unusual noises. Make sure all pulleys are in good condition and properly positioned. If you’re replacing the belt, use the diagram to ensure you select the correct replacement for your model.

The diagram provides a visual guide, showing the exact placement of each component. With it, you can verify if the belt is properly tensioned and aligned. If the belt has worn out or is damaged, a replacement may be necessary to restore optimal performance. Always double-check the routing of the new belt with the diagram before reassembling your tractor.

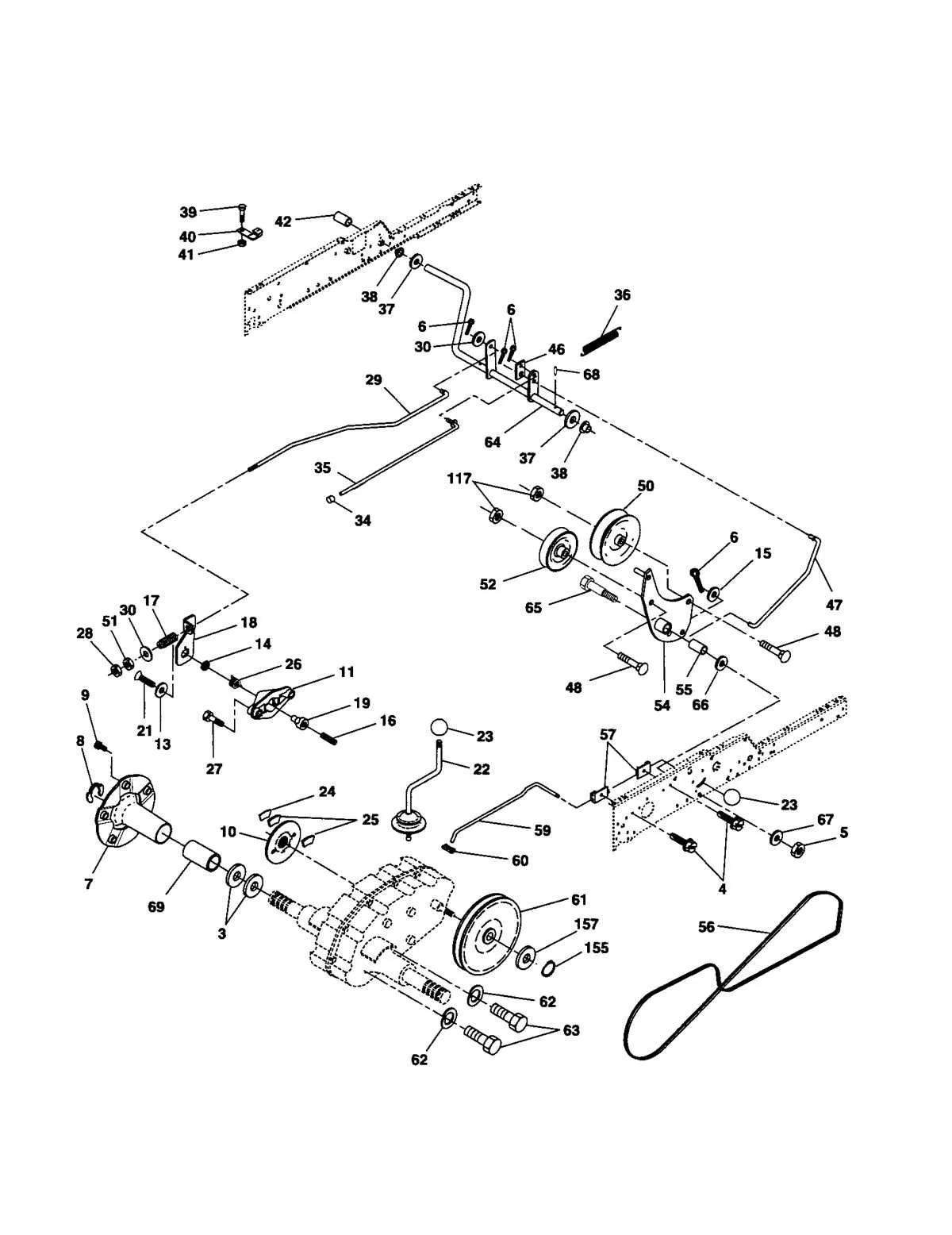

Husqvarna LGT2554 Drive Belt Diagram

To replace or adjust the drive belt on the Husqvarna LGT2554, understanding its layout is crucial. The drive belt transfers power from the engine to the transmission, and its correct installation ensures smooth operation of the mower. The belt routing diagram shows the exact path the belt should take to properly engage all pulleys.

Locate the drive belt diagram on your mower. It’s often found on the frame near the engine or underneath the footrest area. If it’s missing or unclear, refer to the user manual for a detailed illustration.

The diagram typically shows the following steps:

• The belt runs from the engine pulley to the transmission pulley.
• A tension pulley is positioned to maintain proper belt tension.
• The idler pulley assists with belt routing, ensuring that the belt stays in place during operation.

Before starting the installation, make sure the mower is turned off, and disconnect the battery to avoid accidents. Begin by removing the deck, which provides better access to the drive belt. Once the deck is off, remove any debris or dirt around the pulleys.

Check for wear or damage to the belt before installing a new one. If the belt shows signs of fraying, cracking, or excessive wear, replace it immediately. Place the new belt following the diagram, ensuring it is aligned correctly with the pulleys and that the tension pulley is in the proper position to maintain belt tension.

After installation, manually rotate the engine to ensure that the belt is moving freely and without obstruction. Test the mower to ensure the belt is functioning properly by engaging the transmission and checking for smooth operation.

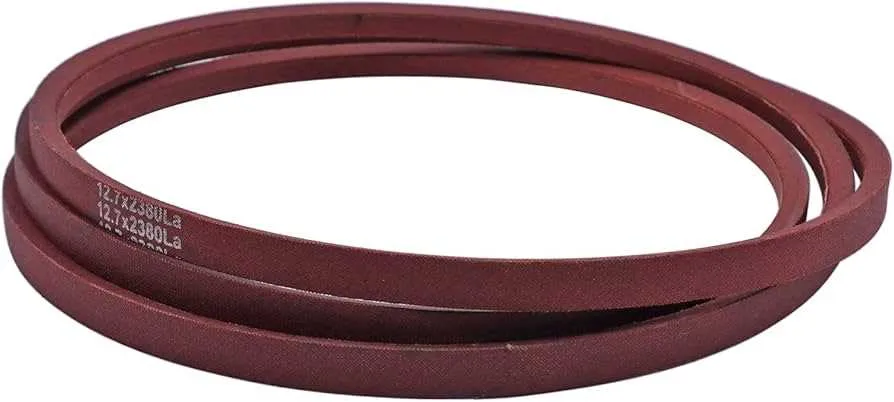

How to Identify the Correct Drive Belt for Your Husqvarna LGT2554

Check the model number of your Husqvarna LGT2554 first. This ensures you are looking for the correct drive belt size and specifications. The LGT2554 model typically uses a 54-inch cutting deck and requires a specific belt length for optimal performance.

Consult the owner’s manual for exact belt measurements and part numbers. The manual provides detailed information about the belt’s dimensions, including length, width, and thickness. If you don’t have the manual, visit the Husqvarna website or contact their customer support for this information.

Look for the belt’s part number printed on the old belt itself, if it is still intact. This will give you a direct reference to find a replacement. However, if the belt is damaged or worn out, the part number may no longer be visible, requiring you to rely on the manual or an online parts database.

Make sure the replacement belt matches not just in length but also in material and construction. Husqvarna belts are often made of durable rubber with reinforced fibers, so ensure the replacement belt is made of similar materials to avoid premature wear.

Consider visiting an authorized Husqvarna dealer or using an online parts finder tool to confirm you are purchasing the right drive belt for your model. Using an OEM (Original Equipment Manufacturer) belt ensures compatibility and longevity.

Once you have the correct part number, compare the new belt’s length and width to the old belt. A belt that is too long or too short can cause malfunction or damage to the mower’s drive system.

When installing the new drive belt, double-check that it fits properly around the pulleys and that it is tensioned correctly. Incorrect installation can lead to slippage or premature wear of the belt.

Step-by-Step Guide to Replacing the Drive Belt on the Husqvarna LGT2554

Begin by disconnecting the battery to avoid any electrical hazards. This step ensures safety while working on the mower.

Lift the front of the mower with a jack or ramps to gain access to the underside. Place the mower on a flat, stable surface for better control.

Locate the drive belt. On the Husqvarna LGT2554, it typically runs from the engine pulley to the transaxle. Identify the path of the belt and make a mental note of how it is routed before removal.

Use a wrench to remove the bolts securing the engine and transaxle covers. This gives you better access to the belt and pulleys.

Loosen the tension on the drive belt by moving the idler pulley. Use a socket wrench to rotate the pulley, releasing the tension. Once relaxed, carefully remove the belt from the pulleys.

Inspect the belt for any wear or damage. A damaged or frayed belt should be replaced immediately to prevent further issues.

Install the new drive belt by carefully routing it around the pulleys, ensuring it follows the same path as the original. Double-check that the belt is aligned properly on each pulley.

Reapply tension to the idler pulley to secure the belt in place. Tighten the bolts and covers you removed earlier.

Lower the mower and reconnect the battery. Start the mower to check that the belt is functioning smoothly without any slipping or unusual noise.

If everything runs as expected, your drive belt replacement is complete!

Troubleshooting Common Drive Belt Issues on the Husqvarna LGT2554

If your Husqvarna LGT2554 lawn tractor is experiencing issues with the drive belt, checking for these common problems is a great place to start.

• Slipping Belt: If the belt is slipping, check for wear on the drive pulley or the tension pulley. Also, ensure that the belt is properly aligned. Excessive wear on the belt can cause it to lose grip, leading to slippage. Replace the belt if it appears stretched or frayed.
• No Power to the Wheels: This may be caused by a damaged or broken drive belt. Inspect the belt for visible cracks, breaks, or wear. If the belt is intact, verify that the tension is correct by checking the spring mechanism that controls the belt’s tightness.
• Noise from the Belt Area: A noisy drive belt often indicates it is rubbing against other components or has become misaligned. Check the belt’s path, pulleys, and bearings for any signs of damage or obstruction. Also, inspect for any debris that may be causing friction.
• Belt Off the Pulley: If the belt falls off, it could be due to a misaligned pulley or a stretched belt. Reinstall the belt properly, ensuring it sits correctly in the grooves of each pulley. Adjust the pulley alignment if necessary.
• Broken or Frayed Belt: A belt that is visibly damaged needs immediate replacement. Always use a genuine Husqvarna replacement part to ensure proper fit and function. Before replacing, inspect the pulleys to ensure they are not causing excessive wear on the new belt.

Regular maintenance and prompt attention to issues can extend the life of the drive belt and ensure smooth operation of your Husqvarna LGT2554. Keep the belt clean and check tension periodically to avoid unexpected failures. Always follow the manufacturer’s guidelines for adjustments and replacements.
