Husqvarna LGT2554 Belt Diagram and Maintenance Guide
For optimal performance, ensure the proper installation and maintenance of the belt system in your Husqvarna LGT2554 mower. Start by confirming the correct positioning of the drive and deck belts. Refer to the specific belt diagram to avoid any errors during installation.
To replace a worn or damaged belt, follow the detailed diagram for precise routing. The belt diagram provides a clear representation of the path, ensuring all components align correctly. Pay attention to belt tension; improper tension can lead to premature wear and inefficiency.
For troubleshooting, check the belt’s condition regularly. Signs of wear include cracks, fraying, or stretching. If you notice any of these, consult the belt diagram to confirm the required specifications and replace the belt promptly to avoid further damage to the mower’s system.
Husqvarna LGT2554 Belt Diagram

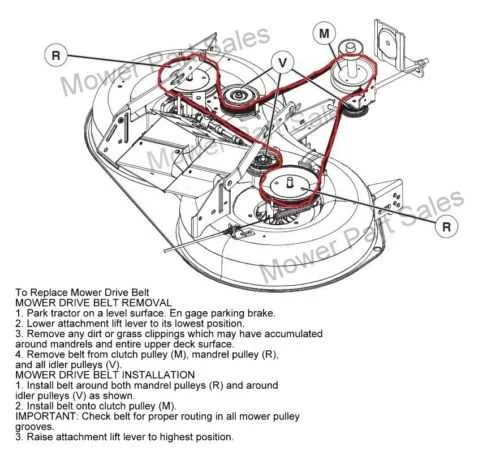

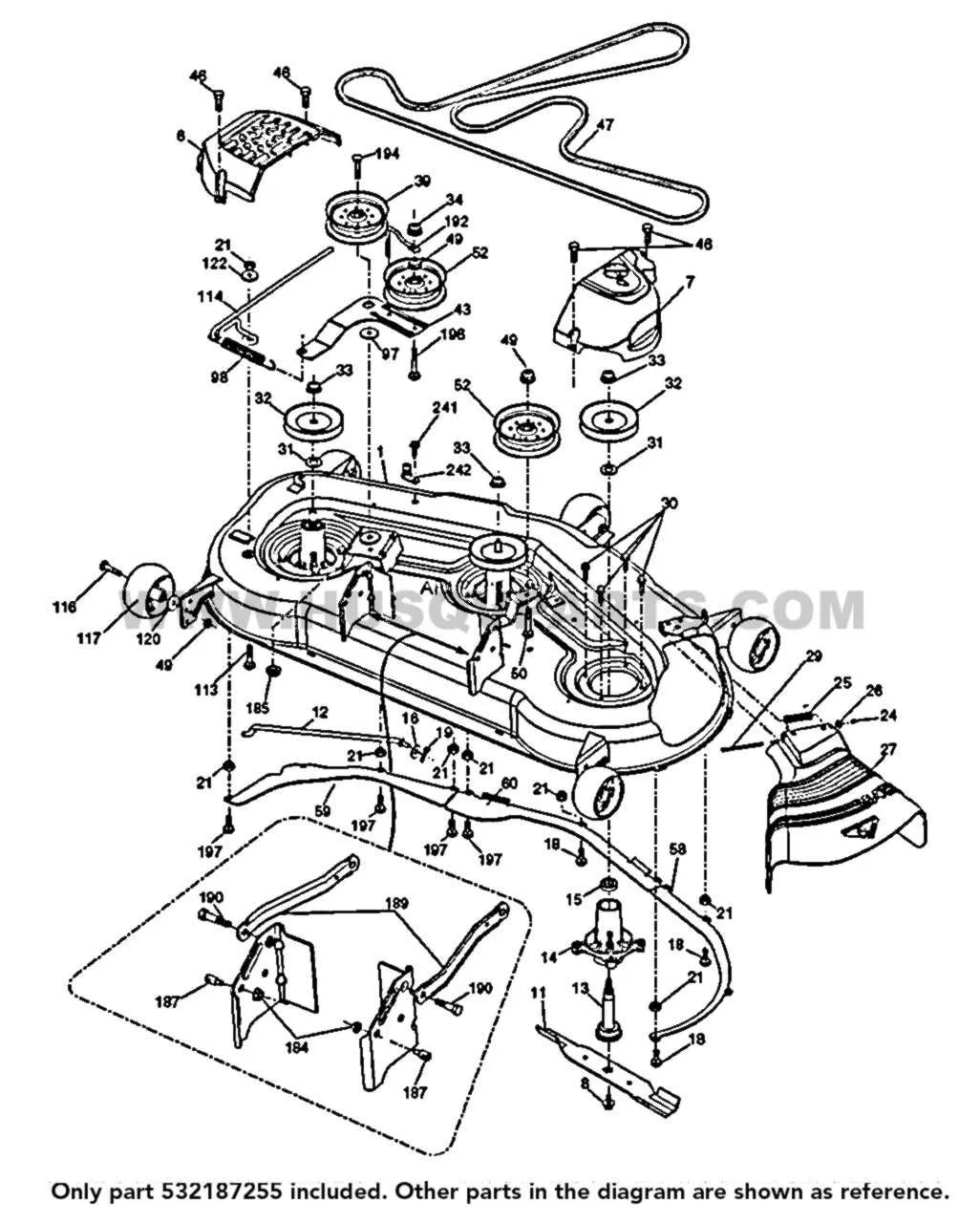

The Husqvarna LGT2554 is a lawn tractor that uses a specific belt arrangement for its drive system. The diagram below illustrates the belt routing and its connection to various components of the machine. Understanding this diagram is key to maintaining or replacing the belt efficiently.
The belt system consists of the following components:
- Drive Belt: Connects the engine’s pulley to the transmission.
- Idler Pulley: Keeps the tension on the belt to ensure smooth operation.
- Deck Pulley: Transfers power from the engine to the cutting deck.
- Transmission Pulley: Helps transfer power from the engine to the wheels.
To replace or repair the belt, first make sure the machine is off and the ignition is turned to the “off” position. Always use the correct replacement belt with the specified dimensions. Incorrect belt sizes can cause improper operation, leading to further damage.
Follow these steps for installation:
- Lift the mower deck to expose the drive components.
- Remove the old belt by releasing the tension on the idler pulley.
- Route the new belt according to the diagram, ensuring it fits tightly over all pulleys.
- Check that the belt runs smoothly along the path without any twists or slack.
- Reattach any parts you removed and lower the deck back into place.
Be sure to inspect the belt regularly for wear and replace it when necessary to maintain optimal performance. Keeping the belt properly tensioned will prolong the life of the tractor’s drive system.
How to Replace the Drive Belt on Husqvarna LGT2554
To replace the drive belt on your Husqvarna LGT2554, begin by ensuring the engine is off and the mower is on a stable surface. Disconnect the battery to avoid any electrical accidents.
Next, remove the mower deck. This involves loosening the bolts that secure the deck to the frame. Once the deck is detached, set it aside. This will give you access to the belt and pulleys.
Locate the old drive belt. It is typically situated around several pulleys. Take note of the belt’s routing as you’ll need to install the new belt in the same way. If necessary, consult your user manual for the exact belt diagram.
Loosen the tension on the old belt by releasing the tensioner pulley. You may need to use a wrench to loosen the bolt that holds the pulley in place. With the tension released, carefully slide the belt off the pulleys.
Install the new drive belt by following the same path as the old one. Start by threading the belt around the first pulley and work your way around the other pulleys, ensuring the belt sits correctly in the grooves.
Once the belt is in place, check the tensioner pulley to ensure it’s properly aligned with the new belt. Tighten the pulley’s securing bolt, making sure the belt is snug but not overly tight.
Reattach the mower deck, securing it with the previously removed bolts. Double-check that the belt is properly installed and that there is no slack.
Finally, reconnect the battery, start the engine, and test the mower’s operation. Listen for any unusual sounds and make sure the belt is running smoothly without slipping.
Common Issues with the Husqvarna LGT2554 Belt System
Frequent belt slippage is a common issue with the Husqvarna LGT2554. This can occur due to improper tensioning or worn-out pulleys. To fix this, check the tension of the drive belt and adjust it accordingly. Ensure the pulleys are clean and free of debris that could cause slipping.
Another issue is premature wear of the belt. The belt can wear out faster if it is exposed to excessive heat or if the mower is used too frequently under heavy load. Inspect the belt regularly for cracks or fraying, and replace it as needed to avoid further damage to the system.
If you notice poor performance or a loss of power, the problem may be due to a misalignment of the drive system. This can cause uneven wear on the belt and reduce its effectiveness. Inspect the alignment of the pulleys and replace any worn or damaged components.
Occasionally, the belt may become misrouted, which can lead to malfunction. Verify that the belt is installed in the correct configuration as specified in the owner’s manual. Re-routing the belt correctly can prevent further issues and restore the mower’s performance.
Lastly, belt snapping can occur if there’s excessive stress on the system, often caused by debris getting caught in the mechanism. Clear the area around the belt and pulleys, ensuring nothing obstructs their movement. Regular maintenance and inspection can significantly reduce the likelihood of these issues.
Step-by-Step Guide for Identifying Belt Wear on the Husqvarna LGT2554
Inspect the belt for visible cracks, fraying, or glazing. These signs indicate excessive wear and reduce the belt’s effectiveness.
Check for uneven wear patterns. If one side of the belt appears more worn than the other, the alignment might be off or the tension might be incorrect.
Examine the belt for signs of stretching. A belt that has stretched out may not maintain proper tension, leading to slipping or reduced performance. Measure its length against the manufacturer’s specifications to confirm if it has stretched.
Inspect the pulleys for wear or debris. Worn pulleys can cause the belt to wear prematurely. Clean the pulleys and check for any visible damage or misalignment that could cause abnormal wear.
Listen for unusual noises during operation. A squealing or squeaking noise may indicate that the belt is slipping or rubbing against the pulleys due to wear.
If you detect any of these issues, consider replacing the belt to avoid further damage to the system.
