Husqvarna GT2254 Drive Belt Diagram and Installation Guide

If you’re facing issues with your Husqvarna GT2254 mower’s drive belt, checking the belt diagram is an efficient first step. The drive belt is a critical component that ensures smooth operation between the engine and the wheels. Understanding the layout can save you time during repairs or replacements. The Husqvarna GT2254 uses a specific routing system for its drive belt, and having a clear diagram helps avoid common mistakes.

The diagram typically shows how the belt should be threaded through pulleys and tensioners. This ensures proper tension and smooth operation. Incorrect routing can lead to belt slippage, wear, or even breakage, causing additional damage and expensive repairs. Referencing the diagram is a straightforward way to ensure the belt is correctly positioned and functioning properly.

Take note of the tensioner settings as well. These are crucial to maintaining the right amount of pressure on the belt, preventing premature wear. A simple visual check, combined with the diagram, allows you to spot potential issues before they escalate, keeping your mower in peak condition. The correct belt tension also contributes to improved power transmission, leading to better efficiency and overall performance.

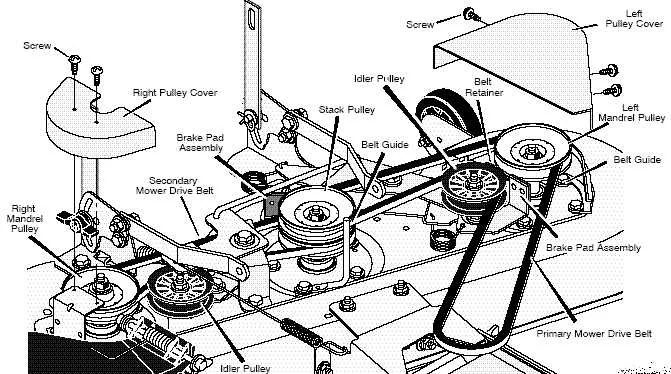

Husqvarna GT2254 Drive Belt Diagram

To replace or adjust the drive belt on your Husqvarna GT2254, having a clear diagram can save you time and effort. Here’s how you can understand and follow the drive belt system for optimal performance.

Begin by ensuring the mower is on a stable, level surface and the engine is off. Disconnect the battery to avoid any accidents while working on the drive belt.

The drive belt system connects several key components: the engine pulley, the transmission pulley, and the deck pulleys. The belt itself runs over these pulleys, transferring power from the engine to the wheels and cutting deck.

The drive belt is routed through a specific sequence of pulleys. Here’s a breakdown of the primary components in the Husqvarna GT2254 drive belt system:

• Engine Pulley: Located on the engine crankshaft, this pulley powers the belt.
• Transmission Pulley: This pulley drives the wheels when the belt is engaged.
• Deck Pulley: Found on the cutting deck, it is connected to the mower blades.
• Idler Pulley: This component keeps the belt tensioned properly for smooth operation.

Consult the diagram for proper belt routing, ensuring that the belt fits tightly over all pulleys. If the belt is worn or damaged, replace it with a genuine Husqvarna belt to maintain proper function. When installing the new belt, make sure it is aligned properly and fully engaged with each pulley groove.

For maintenance, regularly inspect the belt for signs of wear or debris buildup. Tightening or replacing the idler pulley can help extend the belt’s life.

How to Locate the Drive Belt on a Husqvarna GT2254

To locate the drive belt on a Husqvarna GT2254, first lift the mower deck using the height adjustment lever. Then, move to the rear of the mower and find the engine compartment. The drive belt is typically visible under the body of the tractor, running from the engine pulley to the transmission pulley.

Begin by removing the belt guard or cover to expose the belt. This may require unscrewing a few bolts or using a wrench to remove any fasteners securing the cover in place. Once the cover is removed, you’ll be able to clearly see the belt routing around the pulleys.

If the belt is not immediately visible, follow the tension springs and idler pulleys, which are part of the system that guides the belt. The drive belt is usually black, with ridges, and may be covered in dust or dirt, so cleaning the area first can improve visibility.

In case of difficulty locating it, consult the owner’s manual for a detailed diagram, which will show the exact positioning of the belt, including the routing around pulleys and any tensioning mechanisms involved.

Step-by-Step Guide for Replacing the Drive Belt on a Husqvarna GT2254

Begin by turning off the engine and disconnecting the spark plug wire to avoid accidental starts. Engage the parking brake to prevent movement during the repair process.

Next, raise the front of the mower using a suitable lift or jack to gain access to the underside of the machine. Make sure the mower is stable before proceeding with the next steps.

Locate the belt guard on the right-hand side of the mower deck. Use a wrench to remove the bolts securing the guard and set it aside. This will expose the drive belt assembly.

Take note of how the old belt is positioned around the pulleys before removing it. This will serve as a reference when installing the new belt. Gently slide the belt off the pulleys, starting from the engine pulley and moving towards the rear of the mower.

Inspect the pulleys for wear or damage. If any pulley shows signs of excessive wear, replace it before installing the new belt.

Install the new belt by looping it over the engine pulley first, ensuring it is correctly aligned with all pulleys and idlers. Refer to your mower’s belt diagram for the correct routing. Double-check that the belt sits properly in the grooves of each pulley.

Reattach the belt guard by securing it with the bolts you removed earlier. Make sure the guard is aligned correctly and tightened securely.

Lower the mower and reconnect the spark plug wire. Start the engine and engage the drive to test the new belt. Listen for any unusual sounds and check for smooth operation.

If everything is functioning correctly, you’re finished! Keep an eye on the belt during the first few uses to ensure it’s properly seated and doesn’t show any signs of premature wear.

Common Issues with Husqvarna GT2254 Drive Belts and How to Fix Them

If your Husqvarna GT2254 mower is experiencing sluggish performance or the drive belt seems to be slipping, it’s likely due to wear, misalignment, or tension problems. Addressing these issues early can save you time and prevent further damage to the mower.

1. Drive Belt Slipping

Slipping belts can result from improper tension or worn-out components. To fix this, first check the belt tension by measuring the distance between the pulleys when the mower is off. If the belt feels loose, you may need to adjust the tension by using the tensioning mechanism or replace the worn belt. Ensure the belt is aligned properly with the pulleys to prevent unnecessary wear.

2. Worn-Out or Broken Belt

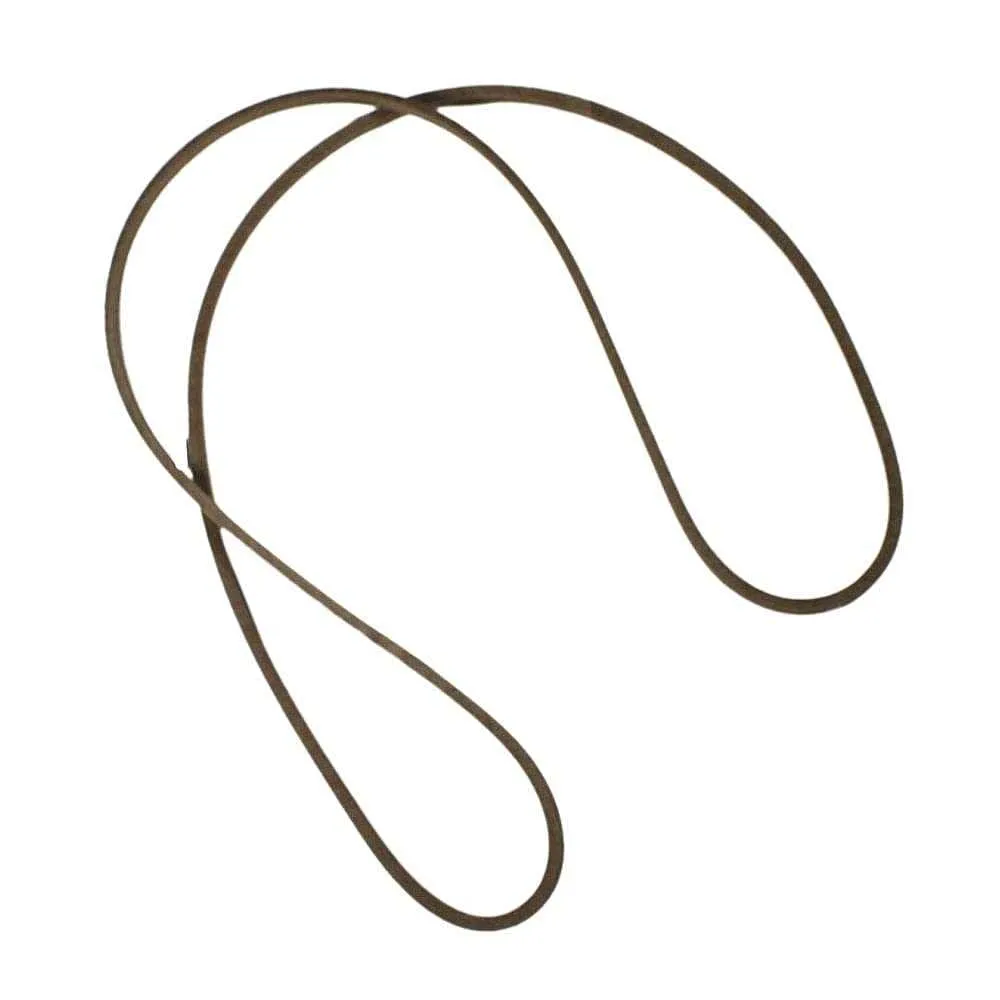

Over time, drive belts wear down or snap, which affects the mower’s operation. Inspect the belt for visible cracks, frays, or signs of wear. Replacing the drive belt with a high-quality, compatible part will resolve this issue. Be sure to follow the manufacturer’s diagram for proper installation to avoid incorrect tension or misalignment.

3. Misaligned Pulleys

Misalignment between pulleys can cause uneven wear and belt slippage. To fix this, carefully inspect the pulleys for any signs of damage or misalignment. Realign them if needed and ensure they rotate freely. If any pulley is bent or damaged, replace it immediately to prevent further issues.

4. Debris Buildup

Debris such as grass, leaves, and dirt can accumulate on the belt, causing it to slip or get stuck. Periodically clean the belt area, ensuring there’s no build-up between the pulleys and belt. Use a brush or compressed air to remove debris, and check that nothing is obstructing the movement of the belt.

5. Incorrect Belt Size

Using the wrong size belt can lead to improper functioning, including slipping or excessive tension. Always double-check the part number and specifications before purchasing a replacement. A belt that’s too short or too long will not perform properly and could damage other components of the drive system.

Regular maintenance, such as checking belt tension, cleaning pulleys, and inspecting for wear, will help keep your Husqvarna GT2254 operating smoothly for longer. If in doubt, consult your user manual for specific guidelines or reach out to a professional technician for assistance.
