Step by Step Guide for Replacing Husqvarna Drive Belt with Detailed Diagram
Replace your Husqvarna drive belt by following the diagram specific to your model. Locate the belt path, noting the position of the idler pulleys and tensioner, which control proper alignment and prevent slipping.
Inspect the belt for cracks, fraying, or glazing before installation. Position the new belt along the pulleys exactly as shown in the diagram, ensuring the teeth engage correctly with grooved pulleys.
Adjust the tensioner to apply moderate pressure, allowing smooth rotation without binding. Rotate the mower deck manually to verify the belt runs along the correct path and remains centered on each pulley.
Secure all hardware, including the tensioner and idler bolts, after confirming alignment. Regularly check belt wear and tension to maintain optimal performance and prevent unexpected breakdowns.

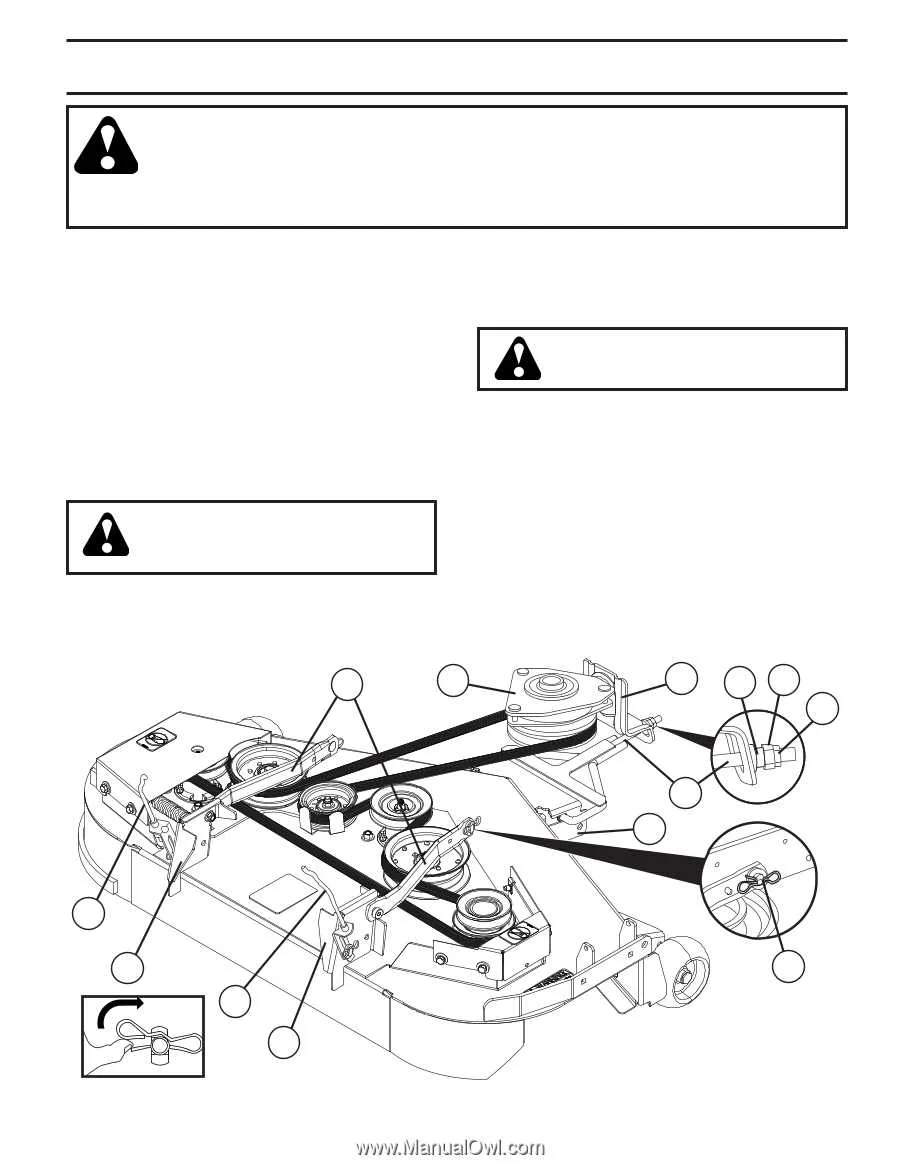

Husqvarna Drive Belt Replacement Diagram
Follow the diagram to replace your Husqvarna drive belt correctly. Begin by disengaging the mower deck and removing any debris around the pulleys. Loosen the tensioner spring to release belt tension, then carefully slide the old belt off the pulleys.
Use the diagram to identify each pulley’s position: the engine pulley, deck spindle pulleys, and idler pulley. Route the new belt according to the path shown, ensuring it sits fully in each pulley groove without twisting.
After placing the belt, reattach the tensioner spring and rotate the pulleys by hand to check alignment. Make sure the belt moves smoothly and stays centered during rotation. Adjust the tensioner if needed before running the mower.
| Pulley | Position | Notes |
|---|---|---|
| Engine Pulley | Top-left | Drives main belt; ensure correct rotation direction |
| Deck Spindle Pulley | Center | Connects directly to blades; belt must fit groove tightly |
| Idler Pulley | Right-side tensioner | Keeps belt tension; check spring connection |
| Tensioner Pulley | Near idler | Adjust spring to maintain proper tension |
Test the mower at low speed to confirm the belt operates correctly. Recheck pulley alignment and tension after initial use to prevent slipping or premature wear.
Identifying the Correct Drive Belt for Your Model
Check your Husqvarna model number on the chassis or operator’s manual and match it with the manufacturer’s parts list. Each model has specific belt dimensions and tooth profiles; using a mismatched belt can cause slippage or premature wear.
Measure the old belt if available. Note its length, width, and type–V-belt, synchronous, or flat. Compare these measurements with Husqvarna’s replacement chart to ensure a precise fit.
Look for part numbers stamped on the existing belt. These codes directly correspond to replacement options and eliminate guesswork. If the belt shows signs of fraying or cracking, replace it regardless of mileage.
Consult the drive belt diagram in the operator’s manual. Identify the belt’s routing and orientation, as some models require a specific side facing the pulleys. Incorrect installation can reduce cutting performance and increase wear.
Purchase belts from authorized Husqvarna dealers or verified online suppliers. Avoid generic belts unless specifications exactly match the original part number, including tooth pitch and material type.
Step-by-Step Guide to Removing the Old Belt
Disconnect the spark plug to prevent accidental startup. This ensures safety before handling any moving parts.
-
Raise the mower deck to its highest position using the height adjustment lever.
-
Remove the deck belt guard by loosening the mounting bolts with a wrench or socket set. Keep the bolts for reassembly.
-
Locate the idler pulley that maintains tension on the drive belt. Press the tensioner arm to release pressure and slide the belt off the pulley.
-
Trace the belt along all pulleys, noting the routing. Take a photo or draw a diagram to make installation of the new belt easier.
-
Carefully lift the belt off the mower blade pulleys, ensuring it does not snag on any sharp edges.
-
Remove the belt completely from the engine pulley, checking for wear marks or damage on surrounding components.
Inspect the pulleys and tensioner for debris, dirt, or rust. Clean or lubricate if needed before installing the new belt.
Installing the New Belt Using the Diagram
Position the mower on a flat surface and secure it to prevent movement. Refer to the diagram to identify the correct routing path, starting from the engine pulley. Slide the new belt over the engine pulley first, ensuring it sits fully in the groove.
Guide the belt around the tensioner pulley next, maintaining slight tension with your hand. Follow the diagram closely to loop the belt around the deck pulleys, checking that the ribbed side matches the pulley grooves. Avoid twisting or crossing the belt during installation.
Once the belt is fully seated on all pulleys, adjust the tensioner according to the diagram’s specifications. Rotate the pulleys manually to confirm smooth movement and proper alignment. If the belt slips or rubs against the housing, reposition it using the diagram as a reference.
After verifying correct placement, lower the mower to its normal position. Engage the drive or blades slowly while observing the belt’s operation. Make small tension adjustments as needed, ensuring the belt tracks precisely along the illustrated path without rubbing edges or misaligning pulleys.
