Husqvarna 48 Inch Deck Belt Diagram Guide for Accurate Installation and Maintenance
Check the belt routing before removing the old belt to prevent incorrect installation. The Husqvarna 48 inch deck uses a standard V-belt layout connecting the engine pulley, idler pulleys, and blade spindles. Ensuring the belt follows the exact path reduces wear and maintains consistent blade speed.
Inspect all pulleys for damage or excessive play before fitting a new belt. Replace any worn or bent idlers to avoid belt slippage and uneven mowing. Align each pulley properly and tension the belt according to the manufacturer’s specification to maintain optimal performance.
Use the deck belt diagram as a visual guide for installation. Each pulley should match the diagram’s orientation, and the belt should sit fully in the grooves. Regularly review the diagram during maintenance to verify routing, especially after cleaning or blade replacement, ensuring smooth operation and extending belt life.
Husqvarna 48 Inch Deck Belt Diagram Practical Guide for Maintenance and Replacement
Check the belt tension before each mowing session. A properly tensioned belt prevents slipping and uneven cutting. Locate the idler pulleys and spring tensioner to adjust the belt correctly according to the diagram for your 48-inch deck model.
Inspect the belt for cracks, fraying, or missing chunks. Replace any worn belt immediately to avoid damage to pulleys or blades. Use the diagram to identify the correct routing, ensuring the belt wraps around all spindles and pulleys as shown.
Release the deck from the mower frame before removing the belt. Lift the deck to access the top of the spindles and idlers. Loosen the spring tensioner and carefully slide the old belt off the pulleys following the diagram’s path.
Position the new belt on the engine pulley first, then follow the routing diagram to loop it around each spindle and idler. Make sure the belt sits properly in all pulley grooves. Check that the spring tensioner applies appropriate pressure to maintain belt tension.
After installation, rotate the blades by hand to confirm smooth movement and correct belt alignment. Start the mower and engage the deck to verify proper operation. Adjust tension slightly if the belt slips or squeals during operation.
Perform periodic inspections every 25 hours of mowing. Clean debris from pulleys and spindles to prevent premature wear. Replace the belt immediately if any signs of damage appear to maintain cutting performance and avoid costly repairs.

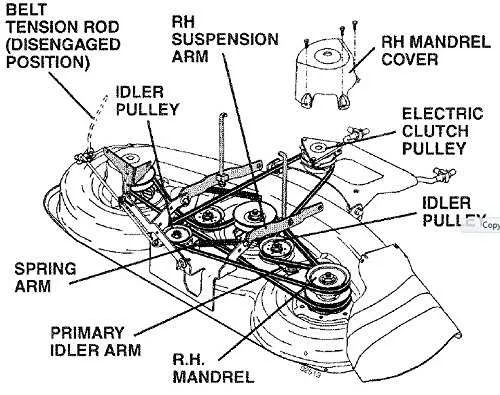

Identifying Belt Routing and Pulley Locations on a 48 Inch Deck
Follow the belt path closely to ensure correct installation and smooth operation of the 48-inch Husqvarna deck. Start by locating the main engine pulley, which drives the belt system. From there, trace the belt to the tensioner pulley and then to each blade spindle pulley.
Use the deck’s layout to identify all pulleys in sequence. Typically, a 48-inch deck includes:
- Main engine pulley at the center front of the deck
- Idler/tensioner pulley positioned near the engine pulley to maintain proper belt tension
- Three blade spindles arranged evenly across the deck width
- Additional guide pulleys or anti-slip idlers to prevent belt misalignment
When routing the belt, ensure the V-shaped side of the belt aligns with the grooved side of each pulley. Start by placing the belt on the engine pulley, loop it around the center spindle, then each outer spindle, and finally the tensioner. Adjust the tensioner to secure the belt without slack.
Check each pulley for wear, cracks, or wobble before completing installation. Proper alignment reduces noise, prevents belt slipping, and extends the life of both the belt and pulleys.
Keep the routing diagram handy for reference, marking the belt path with chalk or tape if needed during installation. Confirm that all pulleys rotate freely and the belt runs smoothly across the deck when manually turning the spindles.
Step-by-Step Belt Removal and Installation Procedures
Begin by ensuring the mower is off and the spark plug wire is disconnected to prevent accidental start-up. Raise the deck to its highest position and secure it with the deck lift or a block for stability.
Locate all pulleys along the deck, including the idler pulleys, spindle pulleys, and the drive pulley connected to the engine. Take note of the belt path or take a photo for reference.
Release tension from the idler pulley by sliding the tensioner arm away from the belt. Carefully slip the belt off the idler and spindle pulleys, then remove it from the drive pulley. Remove the belt completely from the deck.

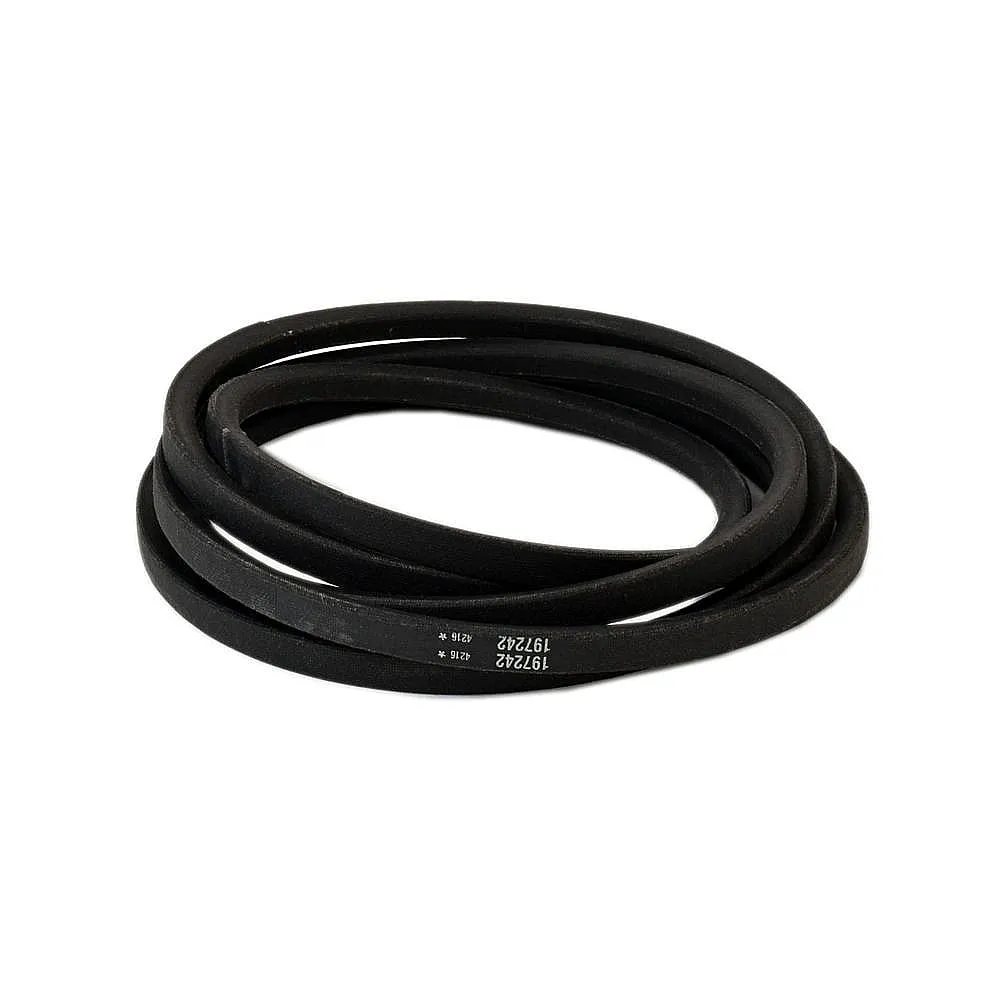

Compare the new belt with the old one to ensure length and rib configuration match. Position the new belt around the drive pulley first, then route it along the spindle pulleys according to the original path.
Apply pressure to the idler pulley to engage the tensioner, ensuring the belt seats fully into all pulley grooves. Rotate the pulleys by hand to verify smooth movement and correct alignment.
Lower the deck, reconnect the spark plug wire, and perform a test run at low throttle. Observe the belt for proper tracking and check for unusual noises or slipping.
| Step | Action |
|---|---|
| 1 | Disconnect spark plug and secure deck |
| 2 | Identify all pulleys and note belt path |
| 3 | Release idler pulley tension and remove old belt |
| 4 | Compare new belt and place on drive pulley |
| 5 | Route belt around spindle pulleys following original path |
| 6 | Engage idler pulley to tension belt and check alignment |
| 7 | Lower deck, reconnect spark plug, and test run |
Troubleshooting Belt Wear and Preventing Common Malfunctions
Check your Husqvarna 48-inch deck belt for cracks, fraying, or glazing along the inner surface. Replace any belt showing significant wear to avoid slippage or breakage during operation.
Inspect pulleys and idlers for debris, rust, or misalignment. Misaligned pulleys create uneven wear patterns and can cause premature belt failure. Adjust or replace pulleys as needed.
Maintain proper belt tension. A belt that is too tight stresses bearings and shortens belt life, while a loose belt slips and reduces cutting performance. Use the tensioning mechanism specified in your deck manual.
Clean the deck regularly. Grass buildup and dirt increase friction and accelerate wear. Remove clippings, dirt, and grease from the pulleys and belt path before each mowing session.
Rotate the belt periodically if the deck design allows. Rotating helps distribute wear evenly across the belt’s surface, extending its lifespan.
Replace worn idler arms, springs, and tensioners. Weak components reduce tension consistency, increasing the risk of belt misalignment and breakage. Check these parts at each belt inspection.
Monitor cutting performance. Uneven cuts, unusual noises, or visible wobbling indicate belt or pulley issues. Address these signs immediately to prevent further damage to the deck system.
