Husqvarna 2348 Belt Diagram and Assembly Instructions

If you’re experiencing issues with the belt system on your Husqvarna 2348 lawnmower, it’s important to refer to the belt diagram for accurate troubleshooting and replacement. This diagram provides a clear representation of how the belts should be routed, ensuring smooth operation and preventing unnecessary wear on the components.

The Husqvarna 2348 uses a combination of drive belts that connect the engine, transmission, and mower deck. A properly routed belt ensures that power is transferred efficiently to the blades, allowing your mower to perform optimally. If the belt has worn out or slipped off, using the correct diagram will save you time and frustration during reassembly.

Pay close attention to the direction of belt installation and tension. Improper routing can cause uneven cutting, loss of power, or premature belt wear. If you’re unfamiliar with the process, it’s helpful to lay out the belt components and double-check each step against the diagram. Refer to your mower’s manual for specific model details, as slight variations can exist depending on the production year.

To replace the belt, you’ll first need to disconnect the battery and remove any obstructions around the deck. Once the old belt is off, follow the diagram’s precise path to install the new one. Ensure the belt is correctly tensioned to prevent slipping and ensure long-term reliability.

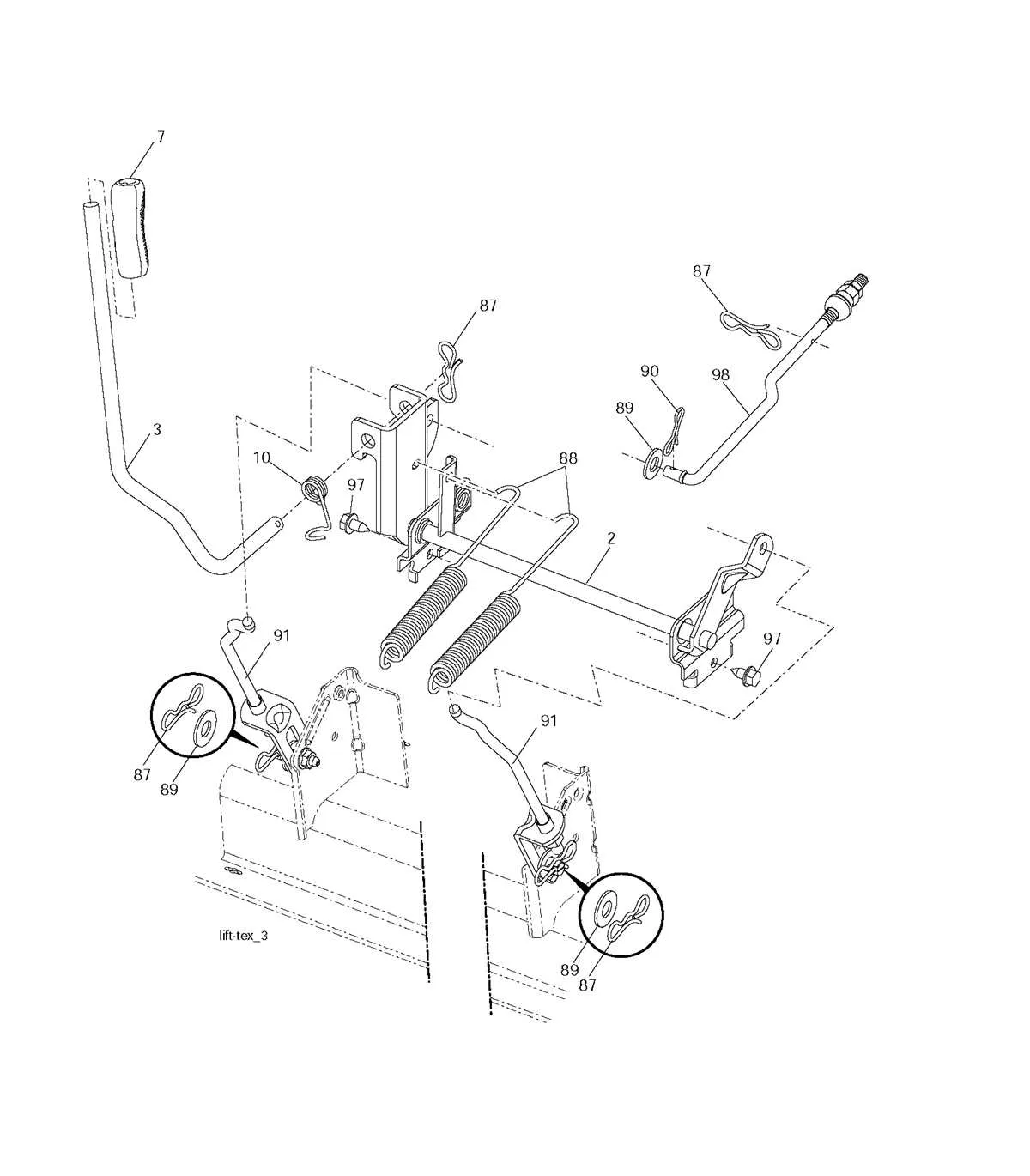

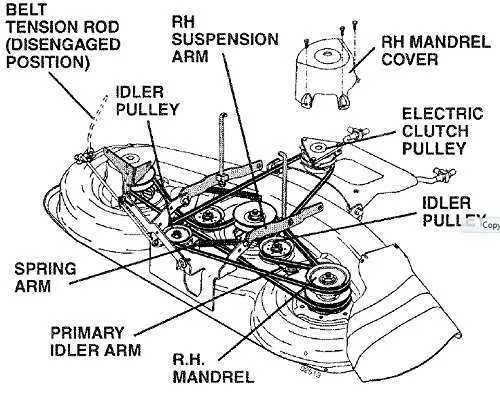

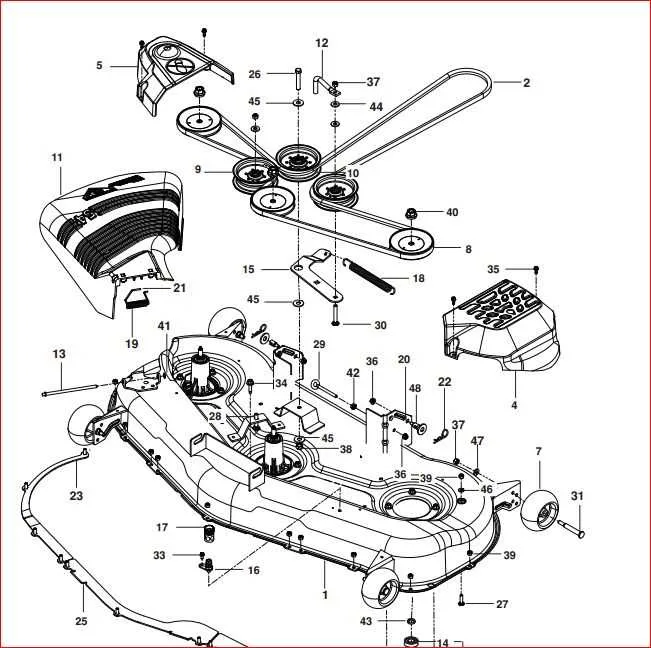

Husqvarna 2348 Belt Diagram

When replacing or inspecting the drive belts on your Husqvarna 2348, having an accurate belt diagram is crucial. The correct positioning of each belt ensures smooth operation and prevents unnecessary wear. The diagram shows the layout of the drive belt system, helping you avoid misalignment or improper routing.

The diagram is divided into two main parts: the engine belt and the transmission belt. The engine belt connects the engine pulley to the transmission, while the transmission belt connects the transmission pulley to the wheels. The tension of each belt must be adjusted correctly for optimal performance. Incorrect tension can lead to slipping or damage over time.

Before starting, disengage the blades and ensure the mower is turned off. It’s also helpful to have the mower on a level surface for better access. Begin by locating the two primary belts: one running from the engine to the transmission and the other running from the transmission to the wheels.

Check the tension of each belt; they should have some slack but should not be too loose. If the belts are worn or damaged, replace them with OEM parts designed for the 2348 model. Follow the belt diagram to route the new belts properly. Make sure the grooves on the belts align with the pulleys to avoid skipping.

Once the new belts are in place, check the alignment by rotating the pulleys by hand. They should turn freely without resistance. Finally, adjust the tension as needed, making sure both belts are evenly tight to ensure balanced performance.

How to Identify the Correct Belt for Husqvarna 2348

To find the correct belt for your Husqvarna 2348, check the model and serial number of your lawn mower. These details are typically located on a plate or sticker near the engine. Once you have this information, refer to the owner’s manual or visit the Husqvarna website to find the specific belt model number. The correct belt size ensures proper tension and efficient operation of the mower’s cutting system.

If the manual is unavailable, use the belt’s length and width to determine the right match. Measure the old belt if it’s still intact, or look for the belt’s part number printed on its surface. You can also visit a local authorized dealer with the model and serial number for assistance in ordering the right belt.

Pay attention to the belt’s material. Most Husqvarna 2348 belts are made from high-quality rubber with a fabric reinforcement to handle the stresses of lawn mower operation. When replacing the belt, avoid using generic belts that might not offer the same durability or performance as the original part.

Check the belt routing diagram provided by Husqvarna, either in the manual or online, to ensure proper installation. Incorrect routing can cause excessive wear or damage to both the belt and the mower’s components.

Step-by-Step Guide to Replacing the Belt on Husqvarna 2348

Start by disconnecting the spark plug to prevent accidental starts while working on the mower. Set the parking brake and ensure the mower is on a flat surface for stability.

Next, raise the mower deck to its highest position. This will give you more room to access the belt and other components beneath the deck.

Using a wrench, remove the deck from the mower. Typically, there are four bolts securing the deck. Take note of the orientation of the deck for easier reinstallation.

Once the deck is removed, locate the belt cover. This is usually attached with a few screws or bolts. Remove them to expose the drive belt.

Inspect the routing of the existing belt. Take a picture or make a note of its path, as this will help you route the new belt correctly.

Loosen any tension on the belt by adjusting the tensioning arm or pulley. If your model has a spring-loaded tensioner, carefully remove the spring to relieve the pressure on the belt.

Remove the old belt from the pulleys, idler arms, and any other components it runs over. Carefully slide it off each pulley, keeping the tensioner and pulleys in place.

Install the new belt by following the same path as the old one. Begin by looping the belt over the pulleys, ensuring it fits snugly and runs through the correct path. Double-check that the belt is properly seated in all grooves.

Reattach the tensioning arm or pulley and reapply the correct amount of tension to the new belt. Ensure that the belt moves freely but is not too loose.

Once the belt is properly tensioned, reinstall the deck onto the mower and secure it with the bolts removed earlier.

Finally, reconnect the spark plug, start the mower, and test the belt’s operation. If the belt runs smoothly without slipping or making noise, the replacement is complete.

Common Belt Issues and Troubleshooting Tips for Husqvarna 2348

If your Husqvarna 2348 mower is experiencing belt-related issues, focus on these common problems and practical solutions.

1. Belt Slipping or Losing Tension

When the belt begins to slip, check the tensioner spring. Over time, the spring can weaken, causing the belt to lose tension. Replacing the tensioner spring or adjusting the belt tension can resolve this issue. Ensure the belt is routed correctly, as an improper routing can cause it to slip.

2. Belt Fraying or Wearing Out Quickly

Fraying often results from a misaligned pulley or debris buildup. Inspect the pulleys for wear and alignment. Clean any debris from the system and ensure the belt is properly installed with no sharp bends. If the belt is excessively worn, replace it with a high-quality replacement designed for your model.

3. Noisy Belt Operation

A noisy belt can indicate a misaligned pulley, worn-out bearings, or a damaged belt. Inspect the pulleys for damage and ensure they spin freely. Check the belt for signs of wear or glazing. If the noise persists, consider replacing the belt and pulleys as needed.

4. Belt Off-Track

If the belt falls off the pulleys, check for proper pulley alignment and ensure that the belt is routed correctly according to the manual. A loose tensioner or a worn-out idler pulley can also cause the belt to slip off. Tighten any loose components and replace damaged pulleys.

5. Sudden Stopping or Lack of Power

A sudden stop or lack of power could be due to a loose or broken belt. Inspect the belt for any visible damage or breakage. If the belt appears intact but power delivery is an issue, check the clutch assembly and pulleys for wear.

Regular maintenance, including checking for wear, cleaning, and proper adjustment, is key to preventing belt issues. By addressing these common problems early, you can keep your Husqvarna 2348 running smoothly and efficiently.
