Detailed Guide to Understanding the Belt Diagram of Husqvarna YTH2348 Lawn Tractor
Locate the correct belt routing quickly by using the detailed diagram for the Husqvarna YTH2348. This diagram shows the exact path for the drive belt, including idler pulleys, spindle pulleys, and the transmission pulley, which reduces the risk of installation errors and belt slippage.
Follow the tension points carefully indicated on the diagram to maintain optimal performance. Proper tension prevents premature wear and ensures smooth deck engagement, keeping your mower operational without unnecessary strain on the engine or transmission.
Compare your belt against the diagram before replacement. Confirming alignment with the idler arms and deck pulleys saves time and prevents repeated adjustments. The visual reference helps identify missing or misaligned components, improving maintenance accuracy.
Use the diagram during seasonal maintenance to check for signs of wear, fraying, or stretching. Replacing the belt before it fails reduces downtime and avoids potential damage to pulleys and spindle bearings, protecting your investment in the mower.
Keep the diagram accessible in your workshop or garage. Referencing it each time the deck or belt is removed ensures consistent setup, helping maintain cutting performance and extending the life of the belt and mower components.
Belt Diagram Husqvarna YTH2348
Position the drive belt around the engine pulley first, ensuring the V-grooves align with the pulley grooves. Route the belt through the idler pulleys, maintaining proper tension on both the mower deck and transmission sides. Check the spring-loaded idler to confirm it applies consistent pressure without binding.

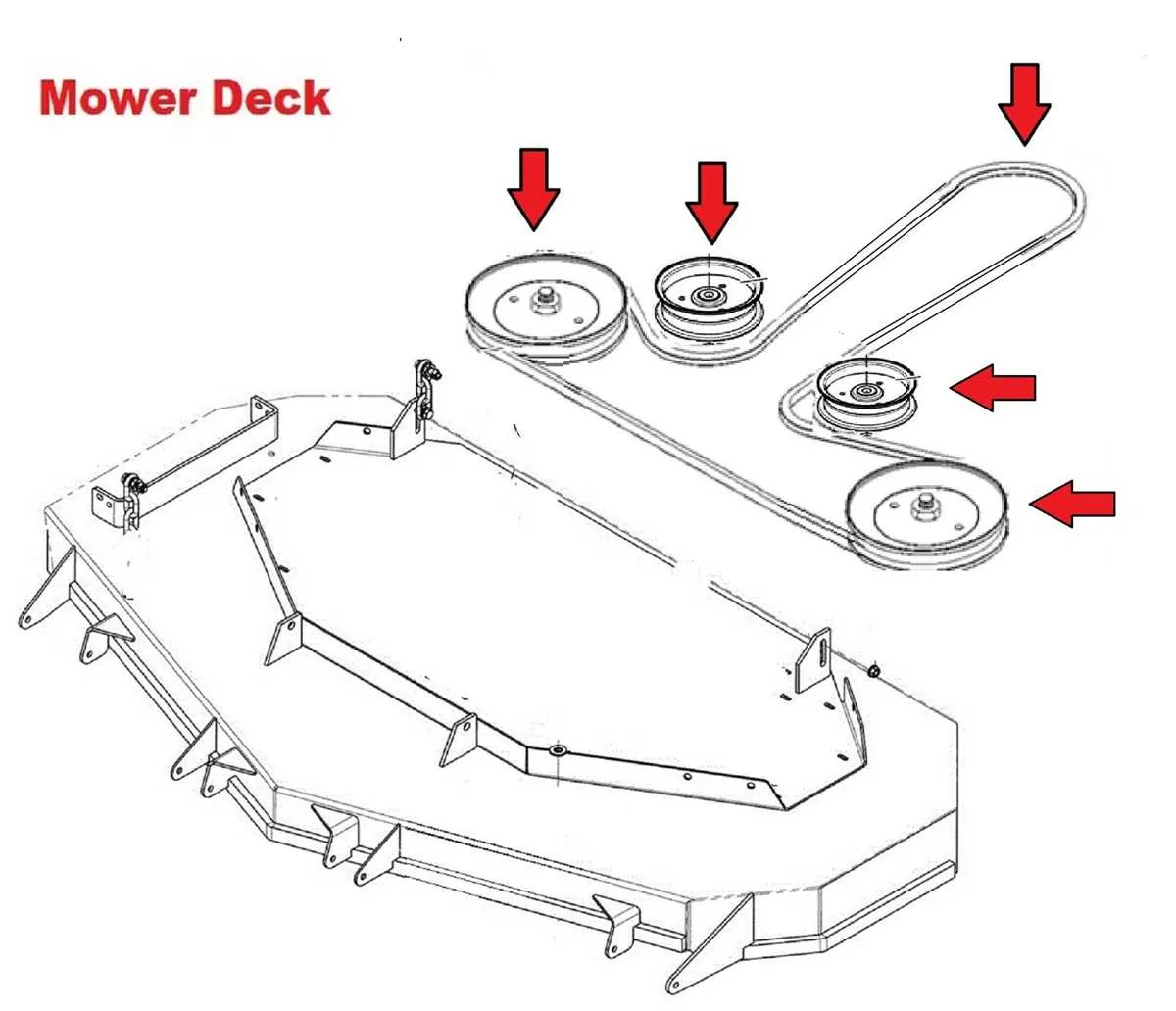

Loop the belt under the mower deck spindles following the stamped deck routing diagram. Confirm that the belt sits squarely on each spindle pulley to prevent slipping or uneven wear. Tighten any tension adjustment bolts gradually, observing the belt alignment throughout.
Inspect the belt path for sharp bends or contact with frame edges. Adjust pulleys slightly if the belt rubs metal surfaces, as even minimal friction can reduce belt lifespan. Rotate the pulleys by hand to verify smooth movement and correct seating of the belt on all components.
Replace the belt if you notice fraying, cracking, or glazing on the contact surfaces. Lubricate pivot points on idlers to maintain consistent tension, avoiding contamination of the belt itself. After installation, operate the mower at low speed to ensure the belt engages all pulleys correctly before full operation.
Identifying Each Belt and Pulley on YTH2348
Locate the drive belt first: it wraps around the engine pulley and the transmission pulley. This belt controls the mower’s forward motion and engages when you release the brake. Check for part numbers stamped on the belt edges for accurate identification.
Next, identify the deck belt. It runs from the engine pulley to the mower deck spindles. The belt powers the blades, and its path usually passes through one or more idler pulleys that maintain tension. Trace the belt carefully along the pulleys to ensure correct routing.
Examine the engine pulley closely. It is the largest on the engine, often grooved for the belts. Compare its diameter to the deck and idler pulleys to avoid confusion. A misidentified pulley can lead to improper belt tension and uneven blade operation.
Locate the idler pulleys between the engine and deck pulleys. These smaller pulleys guide the belt and keep it taut. Press lightly to confirm smooth rotation; resistance or wobble indicates wear or misalignment.
Finally, check the transmission pulley. It sits on the mower’s drive system and may have a flat or slightly grooved surface. Ensure the drive belt aligns properly with this pulley to prevent slipping and ensure consistent traction during operation.
Label each belt and pulley physically or with a diagram before removal. This practice avoids routing errors and simplifies maintenance or replacement of worn components.
Step-by-Step Belt Replacement Procedure
Disconnect the spark plug to prevent accidental starts. Lower the mower deck to its lowest position to access the belt system easily.
- Remove the mower deck by loosening the deck lift pins and sliding the deck away from the tractor frame.
- Locate the idler pulleys and note their routing path using a diagram or a phone photo for reference.
- Release tension from the idler pulleys by pushing the spring-loaded arm outward. Carefully slide the old belt off the pulleys and drive pulley.
- Inspect all pulleys for wear or damage. Replace any that show cracks, chips, or excessive wobble.
- Position the new belt along the same routing path as the old belt, starting with the drive pulley and then the mower deck pulleys.
- Pull the idler arm to apply tension to the new belt, ensuring it sits correctly in all pulley grooves without twisting.
- Reattach the mower deck by aligning it with the lift pins and securing it in place.
- Manually rotate the drive pulley to confirm smooth belt movement and correct tracking. Adjust if necessary.
- Reconnect the spark plug and test the mower under a safe environment to verify the belt engages and disengages properly.
Keep a spare belt and a small tool kit in the shed for quick replacements. Regular inspection prevents slipping and extends the life of the mower deck components.
Troubleshooting Common Belt Alignment Issues
Check the belt tension first: a belt that is too loose will slip on the pulleys, while an overly tight belt can strain bearings. Use a tension gauge or apply moderate finger pressure to measure deflection; it should move about 1/2 inch under firm pressure.
Inspect pulleys for wear or debris. Even small nicks or dirt buildup can cause misalignment. Clean the pulleys with a brush and replace any that show grooves or warping.
Verify that all mounting bolts on the mower deck and engine are fully tightened. Loose components shift the belt path and create uneven tension. Tighten bolts to the manufacturer’s torque specifications listed in the Husqvarna YTH2348 manual.
Align the belt on each pulley according to the belt diagram. Ensure the belt sits in the center of the pulley grooves. Adjust deck height or pivot points if the belt tracks toward one side.
Check for worn idler pulleys or tensioners. A damaged or seized pulley can tilt the belt and cause squealing or premature wear. Rotate each pulley by hand; replace any that feel rough or resist movement.
After adjustments, run the mower briefly to observe belt movement. The belt should track smoothly without jumping or rubbing. Recheck tension and alignment after a few minutes of operation, as minor shifts can occur during initial use.
