42 Inch Husqvarna Belt Replacement Diagram PDF for Easy Maintenance

To replace the belt on your 42-inch Husqvarna mower, first gather the necessary tools and a replacement belt compatible with your model. This guide will provide clear, step-by-step instructions to make the process straightforward and efficient.

The replacement belt must be properly routed to ensure the mower operates smoothly. Use the belt diagram provided in this PDF to verify the correct placement. Follow the diagram carefully to avoid misalignment, which could cause damage to the mower’s components.

Before starting, ensure the mower is off and the engine is cool. Disconnect the spark plug to prevent accidental start-up during the replacement. Remove any obstacles around the mower’s deck and access panel for a clearer working area.

Once the old belt is removed, compare it with the new one to make sure the sizes match. Using the diagram, route the new belt through the pulleys as shown. Tighten it to the right tension to avoid slippage, which could reduce the mower’s efficiency.

Finally, test the mower by running it briefly and checking the functionality of the new belt. If it operates smoothly, the replacement is complete.

42 Inch Husqvarna Belt Replacement Diagram PDF

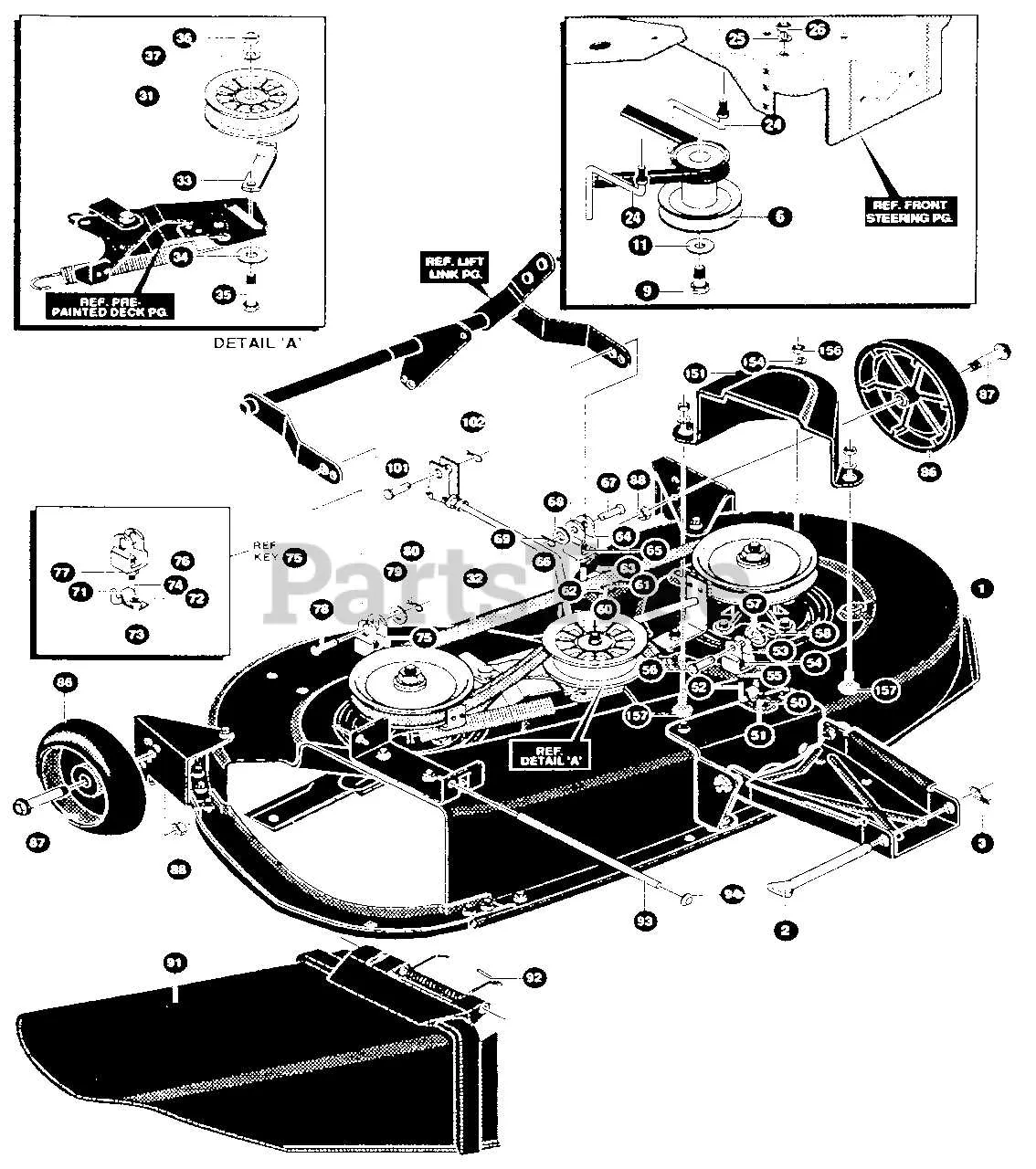

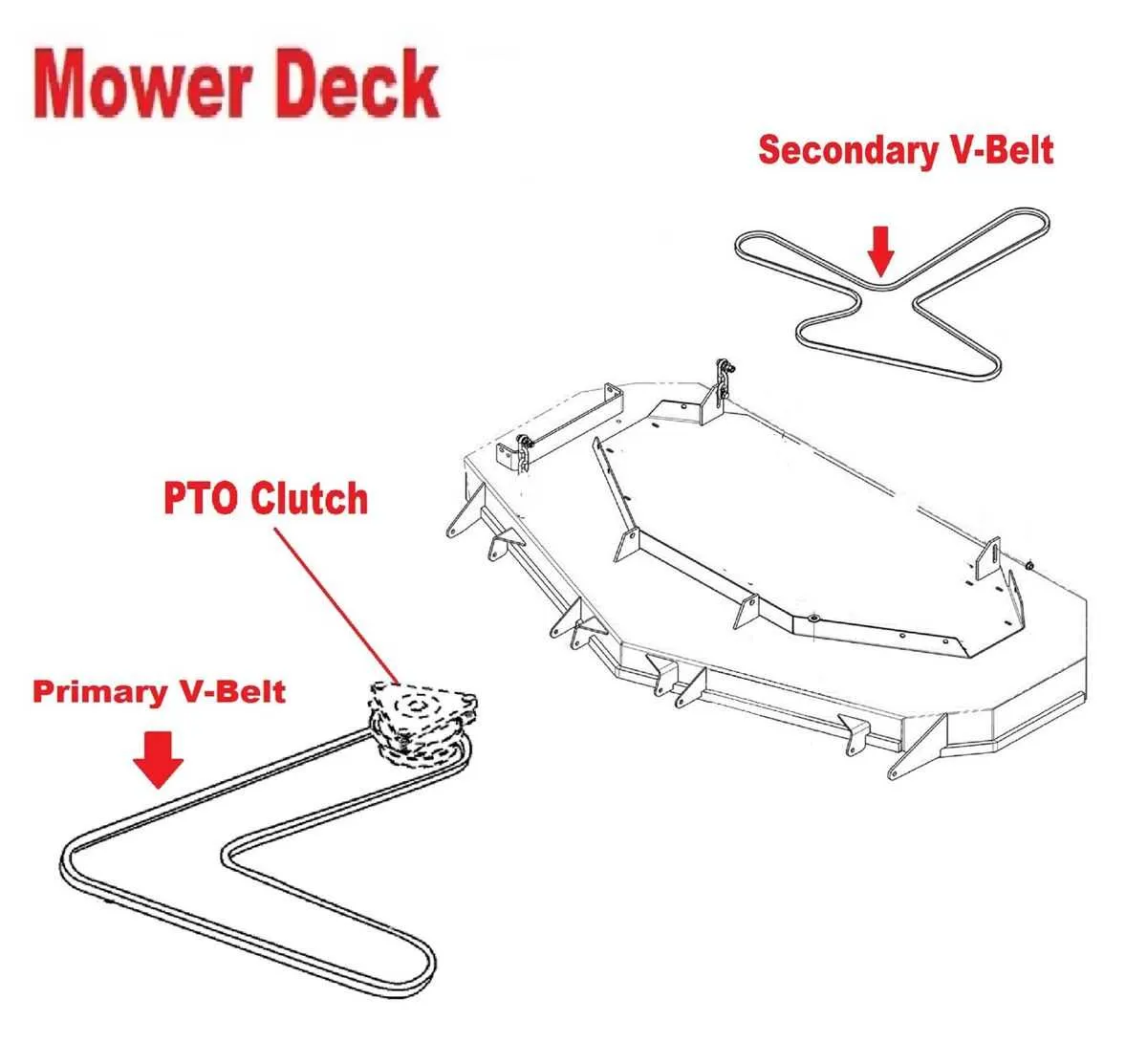

To replace the belt on a 42-inch Husqvarna mower, begin by referring to the replacement diagram for precise guidance. This diagram illustrates the exact path the belt should follow around the pulleys, ensuring proper installation. Download the PDF for a detailed view and step-by-step instructions on the belt configuration.

Here’s a quick checklist to follow when replacing the belt:

• Ensure the mower is off and the spark plug is disconnected to prevent accidental starts.
• Lift the mower deck to access the belt area. This may require removing the deck depending on the model.
• Examine the diagram to understand the belt’s path through the pulleys, ensuring correct routing.
• Remove the old belt by loosening tension on the idler pulleys and sliding it off.
• Install the new belt following the diagram’s routing instructions, ensuring it fits properly over each pulley.
• Once installed, manually rotate the belt to ensure smooth movement and correct tension.

Be sure to keep the diagram close as a reference during the installation process. Using the PDF will make the task simpler, as it offers a clear visual guide for the belt configuration.

How to Identify the Correct Replacement Belt for Your 42 Inch Husqvarna Mower

Check the model number of your Husqvarna mower to identify the correct replacement belt. It’s typically located on the frame or under the seat, near the engine. This number will provide the specifications needed to find the exact belt for your machine.

Consult the mower’s manual for the specific part number of the belt. If you don’t have the manual, visit the Husqvarna website or call their customer support to get the correct information based on your mower model.

Ensure the replacement belt matches the size and type of the original. Measure the length, width, and thickness of the current belt, if possible, using a tape measure. You can also refer to the belt diagram in the manual to confirm the correct dimensions.

When purchasing a replacement, choose a belt made from high-quality materials, such as reinforced rubber, designed for heavy-duty use. This will ensure better performance and longevity.

Double-check the compatibility of the belt with your specific mower. Even though most mowers of the same size use similar belts, slight variations in part numbers or model years can affect fitment.

Step-by-Step Instructions for Replacing the Belt on a 42 Inch Husqvarna Mower

Begin by lifting the mower deck to provide easy access to the belt. Use a jack or lifting tool to raise the mower, ensuring stability throughout the process.

Next, disconnect the spark plug wire to prevent accidental engine starts. This is a critical safety step to ensure no electrical engagement during the repair.

Remove the belt cover by unscrewing the fasteners holding it in place. Use a socket wrench to loosen any screws securing the cover to the mower deck.

Once the cover is removed, examine the belt routing to ensure you understand how the belt fits around the pulleys. Make a note or take a picture of the belt’s path for easy reference when installing the new belt.

Loosen the tension on the old belt by releasing the spring-loaded idler pulley. This will provide enough slack to remove the belt from the mower’s components.

Carefully remove the old belt from the pulleys, taking care not to damage any parts. If the belt is worn or broken, check for any debris or foreign objects that may have contributed to the damage.

Install the new belt by threading it around the pulleys in the same manner as the old belt. Be sure to align it correctly with the grooves on each pulley to avoid misalignment or slipping.

Reinstall the spring-loaded idler pulley to tension the new belt. Ensure the belt is taut but not overly tight. Double-check the belt’s alignment on each pulley to confirm it’s correctly positioned.

Replace the belt cover and tighten the screws to secure it back in place. Make sure the cover is fully fitted to prevent the belt from slipping out of place during operation.

Lower the mower deck back to its normal position, reconnect the spark plug wire, and test the mower. Start the engine and run it briefly to check if the new belt functions correctly without slipping or making excessive noise.

Common Issues When Replacing the Belt on a 42 Inch Husqvarna Mower and How to Avoid Them

Incorrect Belt Installation is a frequent problem. If the belt isn’t routed properly, it can cause slipping or wear. Refer to the diagram and double-check the belt path to ensure it matches the specifications. Always follow the mower’s manual for correct belt placement.

Choosing the Wrong Belt Size can lead to poor performance or even damage. Verify the belt length and width before purchasing a replacement. Cross-reference with the mower’s model number to avoid mistakes.

Improper Tension often causes premature belt wear. If the belt is too tight or too loose, it will not function correctly. Adjust the tension according to the manufacturer’s guidelines to maintain optimal performance.

Neglecting to Inspect Other Components is another common mistake. Worn pulleys or damaged spindles can cause the new belt to fail prematurely. Inspect these parts while replacing the belt to ensure they’re in good working condition.

Forgetting to Lubricate Pulleys can increase friction and reduce belt lifespan. Apply the recommended lubricant to pulleys during the replacement process for smoother operation.

Incorrect Belt Type can also be a source of issues. Always use the correct belt type as specified in the manual. Using an aftermarket or incompatible belt might cause uneven wear or damage to the mower’s parts.
