Honda CRV Drive Belt Diagram and Installation Guide

To maintain your Honda CRV’s performance, understanding the drive belt layout is key. A drive belt system powers various components like the alternator, power steering, and air conditioning. If your CRV is experiencing unusual sounds or performance issues, a worn or misaligned belt might be the cause. Knowing how to identify and diagnose these problems is crucial for effective repair.

First, locate the drive belt diagram in your vehicle’s manual or on a label in the engine bay. This diagram serves as a visual guide, showing the correct routing and positioning of each belt. When replacing the drive belt, be sure to follow this diagram to prevent installation errors that could lead to more severe engine damage.

Ensure that the belt is properly tensioned according to manufacturer specifications. Incorrect tension can lead to premature wear or even belt failure. Check for any signs of wear, cracks, or fraying on the belt itself. If any of these issues are found, it’s time to replace the belt and consider inspecting related components like the pulleys and tensioner.

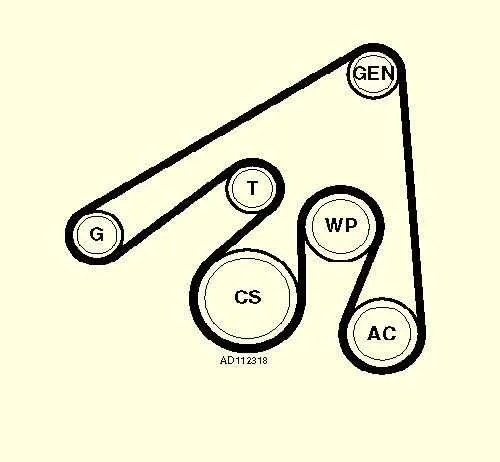

Honda CRV Drive Belt Diagram

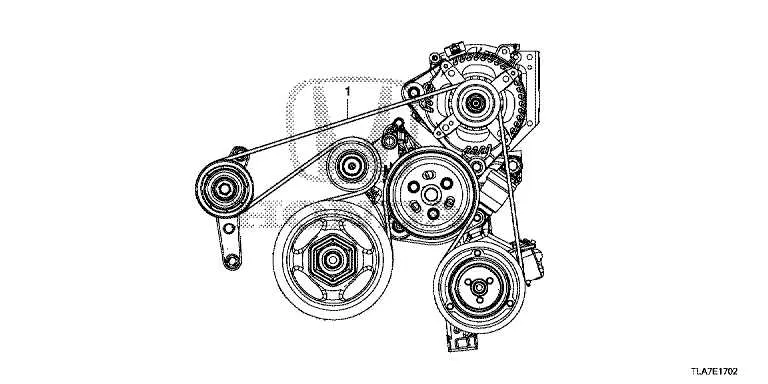

The Honda CRV uses a serpentine belt system to drive various components, including the alternator, air conditioning compressor, power steering pump, and water pump. Identifying the correct routing and position of the drive belt is key to maintaining proper engine function. The diagram provides a clear illustration of the belt’s path and shows how it interacts with pulleys and accessories.

Start by locating the tensioner pulley, which keeps the belt tight and adjusts its position when necessary. It is typically positioned near the top of the engine and requires a special tool to release tension for belt removal. Pay close attention to the routing of the belt around the crankshaft, alternator, and other components. In some models, the alternator may be the last component in the loop, while in others, it could be positioned further along the belt’s path.

Refer to the vehicle’s manual or the engine bay diagram for the exact routing based on the year and model of your Honda CRV. It is important to replace the serpentine belt at regular intervals, usually every 60,000 to 100,000 miles, to prevent premature wear and tear. Look for visible cracks, glazing, or signs of fraying on the belt, as these are clear indicators that a replacement is due.

Proper belt alignment is also important to prevent unnecessary strain on the engine components. When installing the new belt, ensure it fits snugly into the grooves of the pulleys. After installation, check for any misalignment by manually rotating the engine with the belt in place to make sure it tracks correctly.

How to Read the Honda CRV Drive Belt Diagram

Start by identifying the layout of the serpentine belt system. The diagram shows the route of the belt, connecting various components like the alternator, power steering pump, and air conditioning compressor. Pay attention to the direction of the arrows, as they indicate how the belt wraps around the pulleys.

Locate the tensioner pulley on the diagram. This part maintains proper tension on the belt. The diagram should clearly mark this pulley, often with a special symbol, as it plays a crucial role in preventing slippage or damage to the belt.

Next, note the component labels. These labels help identify the position of each part that the belt drives. For example, look for the alternator, which typically appears at the top of the diagram, and check the routing around other accessories like the water pump or air conditioning system.

Make sure to confirm the belt length, often indicated in the diagram’s specifications. If your Honda CR-V requires a replacement belt, compare this length with the new part to ensure a correct fit.

Lastly, examine the tensioning method. Some models may have automatic tensioners, while others require manual adjustments. Check if the diagram includes a specific reference to how the tension should be adjusted or whether it’s automatic. This detail will help avoid improper installation, which can lead to premature wear.

Common Issues with the Honda CRV Drive Belt System

The Honda CRV drive belt system can encounter several issues, which may affect its performance. Regular checks are key to preventing major problems. Here are the most common issues:

• Worn Out Belts: Over time, the drive belts in your Honda CRV will naturally wear down due to friction. Check the belt for cracks, fraying, or glazing. If the belt shows signs of wear, replace it immediately to avoid system failure.
• Misalignment: A misaligned drive belt can cause uneven wear, leading to belt slippage and potential damage to other components. Inspect the pulleys and adjust them if necessary.
• Loose Belts: Loose drive belts can result in slipping, causing the alternator, power steering, or air conditioning to malfunction. Check the tension regularly and adjust it according to the manufacturer’s specifications.
• Noisy Belt: A squealing or chirping noise can indicate a loose or worn-out belt. It may also suggest that the belt is misaligned or the pulleys are damaged. A thorough inspection of the belt and pulleys can pinpoint the source of the noise.
• Damaged Pulleys: Pulleys can wear out or get damaged, which could cause the drive belt to slip. Examine the pulleys for damage or rough spots. If any pulley is damaged, replace it to avoid further damage to the belt.

Regular maintenance and early detection of issues can significantly extend the lifespan of your CRV’s drive belt system. Always use high-quality replacement parts when necessary to ensure optimal performance.

Step-by-Step Guide to Replacing the Drive Belt on a Honda CRV

First, gather the necessary tools: a socket wrench, a belt tensioner tool, and a new drive belt. Ensure the vehicle is parked on a flat surface and the engine is cool.

1. Locate the drive belt. On a Honda CRV, it is typically visible from the front of the engine, running across multiple pulleys. Check the owner’s manual for the exact location and belt diagram.

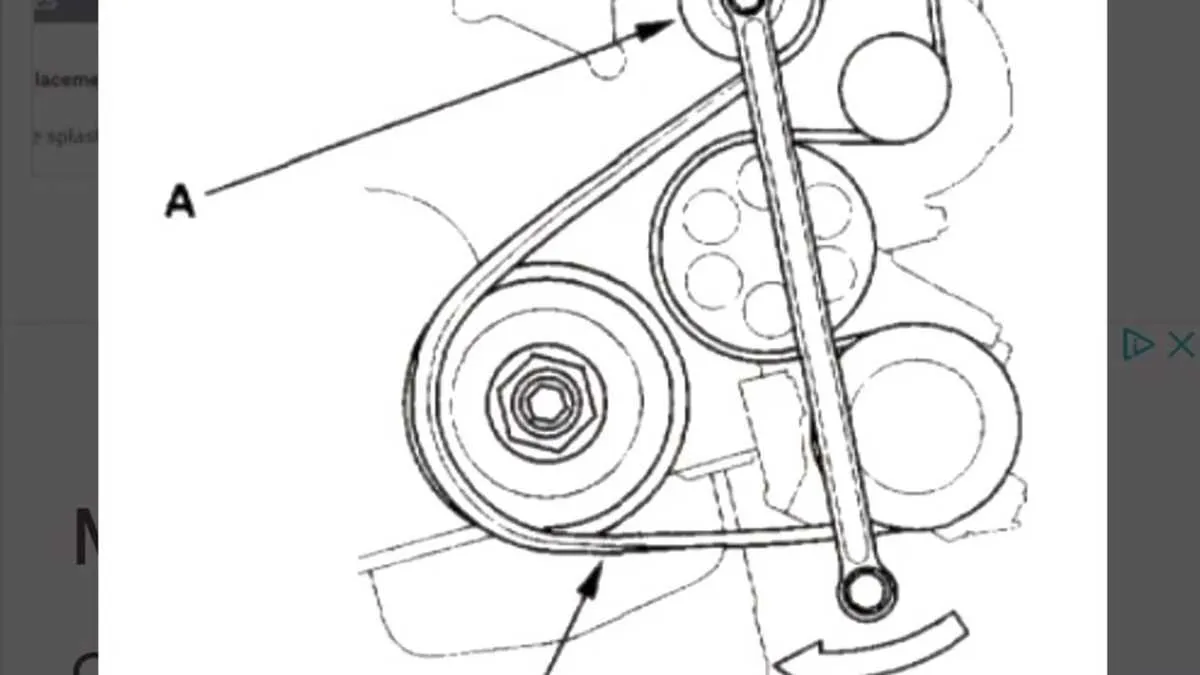

2. Loosen the tension on the drive belt. Use the belt tensioner tool to release the tension from the belt. Rotate the tensioner pulley counterclockwise to relieve the tension, allowing the belt to slip off the pulleys.

3. Remove the old belt. Once the tension is released, slide the belt off the pulleys. Be careful not to damage other components while removing it.

4. Inspect the pulleys. Before installing the new belt, check the pulleys for any signs of wear, cracks, or damage. Ensure they are properly aligned and in good condition.

5. Install the new belt. Place the new drive belt over the pulleys following the correct routing as per the diagram. Ensure the belt sits properly on each pulley without twisting.

6. Reapply tension. Use the tensioner tool to return the tension to the belt. Make sure the belt is tight enough to avoid slipping, but not overly tight.

7. Check the belt alignment. Rotate the engine manually by hand to ensure the belt is correctly aligned and moving smoothly over the pulleys.

8. Test the system. Start the engine and observe the belt in operation. Listen for any unusual noises, and check the belt’s movement to ensure it’s functioning correctly.

9. Final check. Once you confirm the belt is operating smoothly, turn off the engine and double-check the tension and alignment one more time.
