Honda 2.4 Engine Belt Diagram and Maintenance Guide
Understanding the belt configuration in your Honda 2.4L engine is key to maintaining its performance. If you’re looking to replace the timing belt or inspect the accessory belts, it’s crucial to follow the correct diagram to ensure everything aligns properly. The Honda 2.4L engine uses a specific setup that includes the timing belt, serpentine belt, and various pulleys. Each of these components must be installed in the right order to prevent costly engine damage.
Start by locating the timing marks on the crankshaft and camshaft pulleys. These marks should align with the reference points on the engine block or timing cover. When installing the timing belt, double-check that the tension is correct to avoid slipping or stretching over time. The diagram for the Honda 2.4L engine clearly shows the path the belt should follow, ensuring proper timing and belt engagement.
For the serpentine belt, ensure the routing follows the diagram, taking into account the alternator, power steering pump, and other accessories. Misrouting this belt can lead to malfunctioning components or belt failure. Pay special attention to the belt tensioner, as an improperly adjusted tension can lead to premature wear.
Using the correct belt diagram and installation process will extend the life of your engine and reduce maintenance issues. Double-check the diagram before proceeding with the belt replacement or inspection to avoid any unnecessary headaches down the road.
Honda 2.4 Belt Diagram: Practical Guide

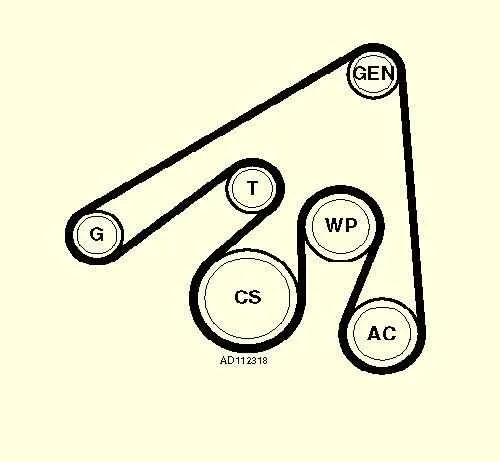

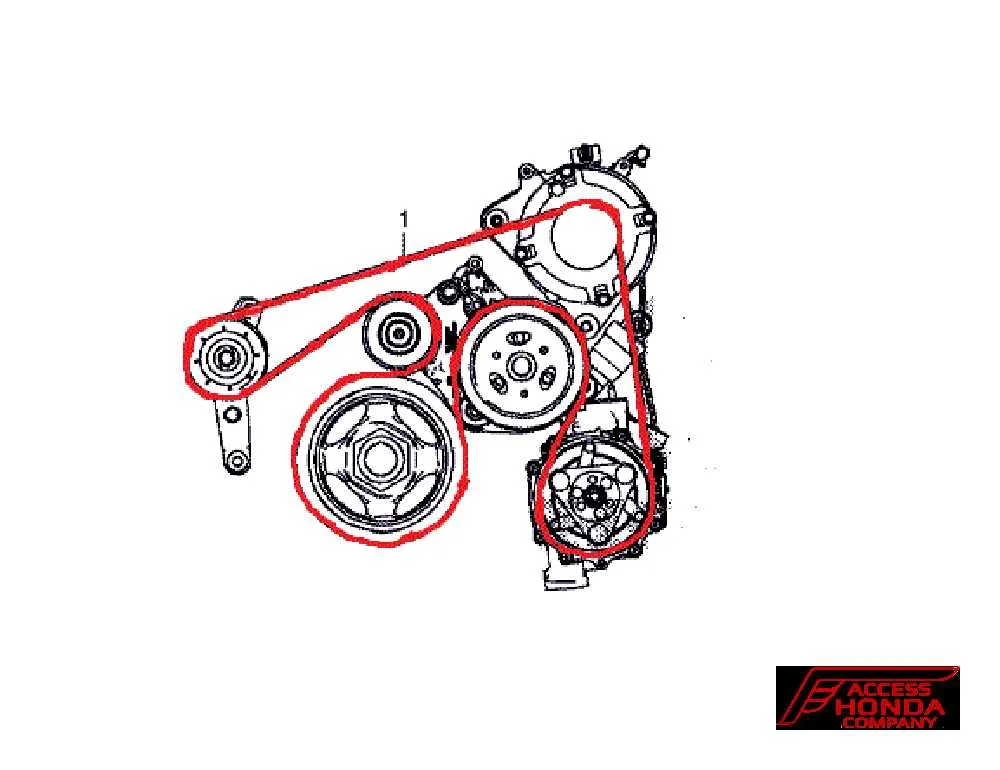

For accurate timing and smooth engine operation, follow the Honda 2.4 belt diagram carefully. The serpentine belt should align with the crankshaft, alternator, power steering pump, water pump, and air conditioning compressor. Pay attention to the correct routing of the belt around each pulley to avoid slippage and wear.
Start by placing the belt around the crankshaft pulley, ensuring it fits snugly. From there, route it over the alternator pulley, then around the power steering pump. Make sure it moves to the water pump and, if applicable, to the air conditioning compressor before finishing back at the crankshaft. The tensioner pulley plays a key role in keeping the belt tight, so verify its positioning to avoid improper tension.
When replacing the belt, check for wear signs like cracking, fraying, or glazing. A worn-out belt can lead to engine overheating or even failure of vital components. Double-check the alignment of all pulleys to ensure the belt remains on track and doesn’t slip off during engine operation.
Keep the tensioner in good condition. If it’s not applying the right pressure, the belt may lose tension and cause irregular performance. Regularly inspect and replace the belt as part of routine maintenance to prevent unexpected issues on the road.
Understanding the Timing Belt Routing for Honda 2.4 Engine
The timing belt routing for the Honda 2.4L engine is straightforward once you familiarize yourself with the component layout. For precise timing, the belt must be installed correctly to avoid engine damage. Here’s a breakdown of the belt routing and key components for the Honda 2.4L engine:
| Component | Description |
|---|---|
| Crankshaft Pulley | The timing belt loops around the crankshaft pulley, driving the engine’s rotation. |
| Water Pump | The belt drives the water pump, ensuring coolant circulation throughout the engine. |
| Camshaft Pulley | The belt engages with the camshaft pulley, controlling valve timing to synchronize with the crankshaft. |
| Tensioner | The tensioner ensures the timing belt is held tightly in place, preventing slippage. |
| Idler Pulley | The idler pulley redirects the belt path for smoother operation. |
Start by placing the timing belt around the crankshaft pulley. Then, route it over the water pump and around the camshaft pulley. Ensure the tensioner is positioned correctly, keeping the belt taut. Double-check the alignment of the camshaft and crankshaft pulleys to guarantee proper valve timing. Be sure to follow the manufacturer’s torque specifications when tightening the pulleys and tensioner.
When installing or replacing the timing belt, inspect the pulleys for wear. Replace any worn components to prevent belt misalignment. After installation, rotate the engine by hand to ensure the timing belt runs smoothly and there’s no resistance or misalignment.

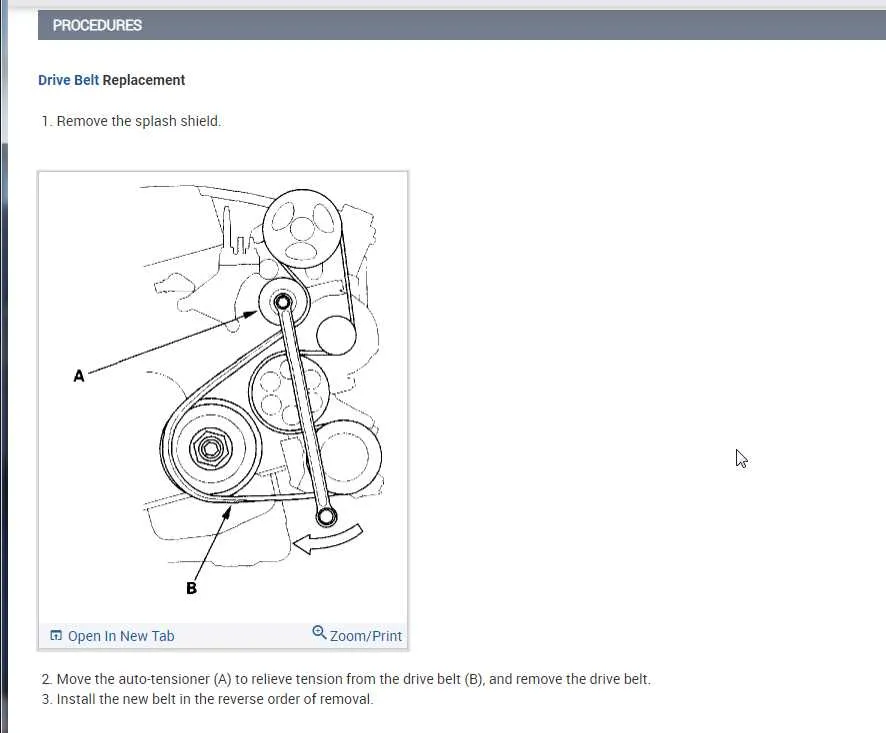

How to Replace the Serpentine Belt on a Honda 2.4 Engine
First, disconnect the negative battery terminal to avoid any electrical issues. Then, locate the serpentine belt by removing any covers or components blocking access. You’ll need a ratchet and socket set to release tension from the belt tensioner.
Use the socket wrench to rotate the tensioner pulley counterclockwise. This will relieve the pressure on the belt, allowing you to remove it. Pay attention to the belt’s routing and take a photo if necessary, so you can reinstall the new belt correctly.
Once the belt is off, inspect the pulleys for any signs of wear or damage. This is a good time to check the tensioner and idler pulleys, as they can wear out and cause premature belt failure. If the pulleys seem fine, install the new serpentine belt by following the routing diagram or your reference photo.
Carefully position the new belt over the pulleys, making sure it fits snugly in place. Rotate the tensioner pulley again to allow the belt to slip into place. Double-check the belt’s alignment and ensure it’s securely seated on all pulleys.
Finally, reconnect the battery and run the engine for a few minutes to verify the belt is operating correctly. Listen for any unusual noises or squeaks, which may indicate an issue with the belt or pulleys. If everything looks good, you’re done.
Troubleshooting Common Belt Issues in Honda 2.4 Engines
Inspect the timing belt and serpentine belt for cracks or wear. Look for any signs of fraying, missing teeth, or stretching. If any of these issues are present, replace the belt immediately to avoid engine damage.
If you notice squealing or chirping noises coming from the engine, it may indicate a misaligned or worn-out belt. Check the belt tensioner and pulleys for proper alignment and wear. A loose or worn-out tensioner can cause the belt to slip or misalign, leading to inefficient performance.
Examine the pulleys for smooth rotation. If they feel rough or seize, they may need to be replaced. Faulty pulleys can cause excessive wear on the belt and disrupt the engine’s performance.
For timing belt issues, pay close attention to any engine misfires or performance drops. A stretched or worn timing belt can lead to incorrect timing, which affects engine efficiency and may result in engine damage. If you experience any irregular engine behavior, inspect the timing belt for signs of wear.
If the serpentine belt is squealing under load, this could point to a failing alternator, water pump, or power steering pump. Check each component to ensure they are operating correctly. If the belt shows signs of wear but the components are functioning well, the belt may simply need replacement.
Ensure that the belt tension is within manufacturer specifications. A belt that is too tight can cause excessive wear on both the belt and the pulleys, while a belt that is too loose may slip, causing poor engine performance.
- Timing belt: Check for teeth wear or cracks, especially if the belt is due for replacement.
- Serpentine belt: Ensure proper alignment and check tension for squealing issues.
- Check pulleys: Ensure they rotate smoothly without resistance.
Regularly check the belts during maintenance intervals to ensure smooth operation and prevent major engine failures. Early detection of belt issues saves both time and money in the long run.
