2013 Honda Pilot Serpentine Belt Routing Diagram for Accurate Installation and Maintenance

Replace the serpentine belt on a 2013 Honda Pilot by following the correct routing diagram to avoid misalignment and premature wear. The belt drives the alternator, power steering pump, and air conditioning compressor, making proper installation critical for smooth engine operation.

Locate the diagram near the radiator support or inside the engine compartment cover. Verify that the belt matches the ribbed grooves of each pulley exactly, starting at the crankshaft and working through the tensioner and accessory pulleys.

Release tension using a 14mm wrench on the automatic tensioner. Carefully slip the old belt off and route the new belt according to the diagram. Ensure the belt sits properly in each pulley groove and rotates freely before starting the engine.

Double-check alignment after installation. Misrouted or loose belts can produce squealing noises, reduce alternator output, and damage the tensioner. Keeping a clear, accurate diagram on hand during replacement minimizes mistakes and extends belt life.

2013 Honda Pilot Serpentine Belt Diagram

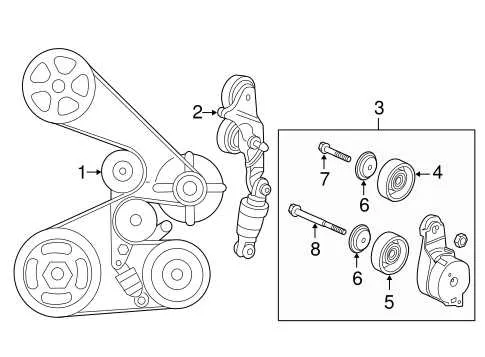

Install the serpentine belt following the routing shown in the 2013 Honda Pilot diagram to ensure proper tension and alignment. The belt wraps around the crankshaft pulley, alternator, power steering pump, water pump, and air conditioning compressor in a continuous loop. Pay attention to the tensioner pulley, which maintains correct belt pressure; releasing it improperly can damage the belt or pulleys.

For models with the 3.5L V6 engine, route the belt clockwise from the crankshaft pulley to the alternator, then down to the power steering pump, across the air conditioning compressor, and over the tensioner before returning to the crankshaft. Check the diagram stamped on the engine cover or in the owner’s manual to confirm exact positioning and avoid misalignment.

Inspect each pulley for wear or misalignment before installation. Replace the tensioner if it shows excessive play or noise. Proper alignment prevents premature wear, slipping, or squealing. Tighten the belt by slowly releasing the tensioner, ensuring it seats fully against the belt without twisting. Recheck the belt path after initial engine start to confirm smooth operation and correct routing.

Use a high-quality replacement belt that matches OEM specifications. Compare part numbers: the factory belt for the 2013 Honda Pilot 3.5L V6 is typically 38920-RCA-A01. Avoid using a shorter or incorrect belt, as it can lead to engine overheating or loss of accessory function.

Maintain periodic inspection every 30,000 miles. Look for cracks, fraying, or glazing on the belt surface. Replacing the belt at the first sign of wear preserves the performance of the alternator, AC compressor, and other driven components, preventing unexpected breakdowns.

Locating the Serpentine Belt and Pulleys on a 2013 Honda Pilot

Access the serpentine belt by opening the hood and focusing on the front of the engine. The belt wraps around several key pulleys that drive the alternator, power steering pump, AC compressor, and water pump.

Follow these steps to identify each component:

• Alternator Pulley: Positioned near the top of the engine on the passenger side, easily recognized by its metallic housing and electrical connections.
• Power Steering Pump Pulley: Located below and slightly to the left of the alternator, featuring a smooth, wide surface.
• AC Compressor Pulley: Found at the lower front corner of the engine on the passenger side, often larger in diameter and connected to the AC lines.
• Crankshaft Pulley: The largest pulley at the bottom center of the engine, driving the entire belt system.
• Tensioner Pulley: Positioned near the center, slightly to the driver’s side, equipped with a spring-loaded arm to maintain belt tension.
• Idler Pulley: Mounted above the tensioner, guides the belt along the correct path without driving any accessory.

Trace the belt’s route from the crankshaft pulley upward, looping around each accessory. A belt routing diagram sticker usually sits on the radiator support or the underside of the hood; cross-check each pulley’s placement with this diagram before removing or replacing the belt.

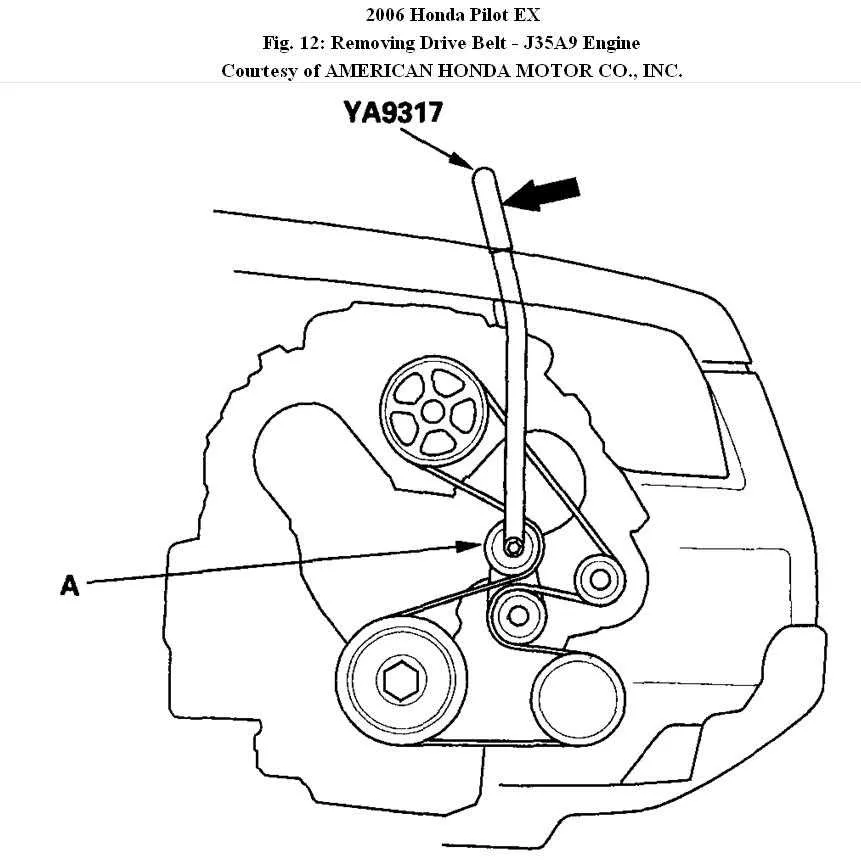

Use a wrench on the tensioner pulley to release belt tension. Slowly rotate the tensioner clockwise to slip the belt off the pulleys, keeping track of its path for reinstallation. Confirm that the belt sits squarely on each pulley groove before tightening the tensioner back into place.

Double-check alignment visually, ensuring no pulley grooves are skipped and the belt sits flush on every surface. Proper alignment prevents noise, premature wear, and accessory malfunction.

Step-by-Step Replacement Using the 2013 Honda Pilot Belt Diagram

Locate the serpentine belt routing diagram under the hood or in the owner’s manual to ensure correct installation. Identify the tensioner pulley and rotate it clockwise using a 3/8-inch ratchet to relieve tension. Carefully slide the old belt off each pulley, noting the position of each loop along the crankshaft, alternator, power steering, and A/C pulleys.

Compare the new belt to the old one to confirm matching length and rib pattern. Begin routing the new belt around the crankshaft pulley first, then follow the diagram to loop it around the idler and accessory pulleys. Keep the belt slightly loose while positioning it on all pulleys except the tensioner.

Rotate the tensioner again and slip the belt over its pulley. Slowly release the tensioner, allowing it to apply proper pressure. Double-check each pulley to verify the belt sits in the grooves correctly without twisting or misalignment.

Start the engine for a brief period and observe the belt movement. Listen for any unusual squealing or slipping noises. Turn off the engine and inspect tension once more, ensuring the belt maintains proper contact on all pulleys. Adjust if necessary to maintain smooth operation.

Troubleshooting Common Serpentine Belt Issues with Diagram Reference

Check the belt for visible cracks, fraying, or glazing along the ribs immediately. Use the 2013 Honda Pilot serpentine belt diagram to verify correct routing before any adjustments. Misalignment often causes squealing or premature wear.

If the belt slips on pulleys, inspect the tensioner for smooth movement and proper pressure. Replace a weak tensioner to restore consistent belt tension. Confirm pulley alignment using the diagram to prevent rubbing or uneven wear.

Look for unusual noises such as chirping or squeaking during engine operation. These can indicate worn bearings in idler pulleys or alternator misalignment. Cross-reference each pulley with the diagram to identify the source accurately.

Oil or coolant contamination can degrade the belt material. Clean the affected area thoroughly and replace the belt if contamination is severe. Use the routing diagram to ensure the new belt follows the exact path without twists.

Inspect belt length against the diagram’s specifications. Stretching over time can reduce performance and cause the belt to jump teeth on the pulleys. Adjust or replace as needed, checking the routing once installed to confirm proper engagement with all pulleys.

Regularly rotate the engine by hand and observe belt movement across all pulleys using the diagram as a guide. Smooth, consistent motion without wobble confirms proper installation and tension. Address irregular movement immediately to prevent damage to connected components.
