2012 Honda Accord V6 Serpentine Belt Routing Diagram and Installation Guide

For a smooth and reliable drive, understanding the serpentine belt system in your 2012 Honda Accord V6 is key. The serpentine belt is responsible for powering several critical components, including the alternator, power steering pump, and air conditioning compressor. A worn or damaged belt can lead to loss of power in these systems, causing performance issues and potential engine damage.

To ensure proper installation or replacement, refer to the 2012 Honda Accord V6 serpentine belt diagram, which clearly shows the correct routing. This will help avoid unnecessary complications during repairs and prevent issues that could arise from incorrect belt placement. The diagram is straightforward and should be used to match the exact routing path, considering the belt tensioner and other system components.

When replacing the serpentine belt, make sure to check the condition of related parts such as the tensioner and pulleys. A tight and properly routed belt is crucial for maintaining the optimal performance of the engine’s accessory systems. If unsure, consult the diagram for a visual guide to ensure all components are aligned correctly.

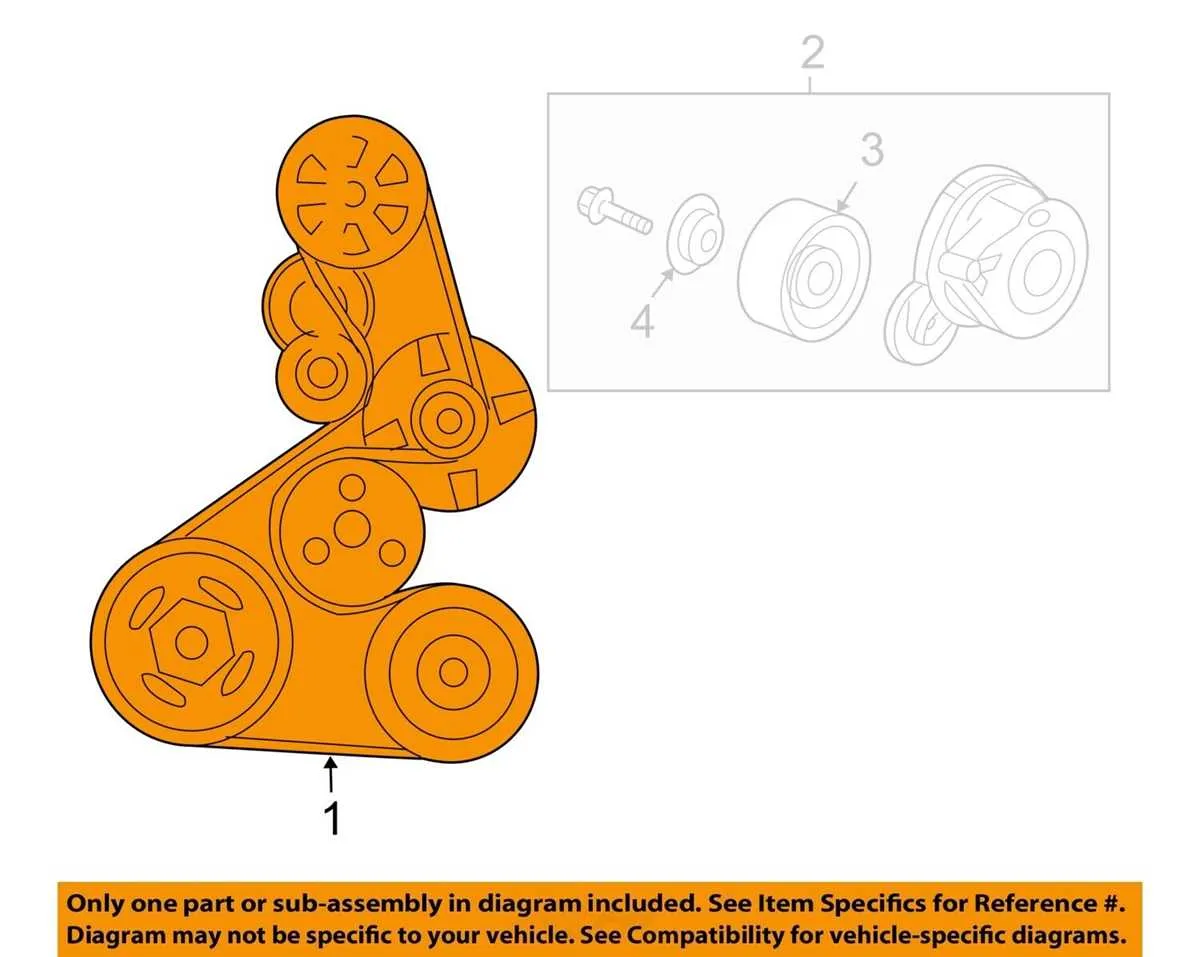

2012 Honda Accord V6 Serpentine Belt Diagram

To replace the serpentine belt on a 2012 Honda Accord V6, it’s crucial to follow the correct routing. The belt powers several components, including the alternator, power steering pump, water pump, and air conditioning compressor. Misrouting can cause damage or poor performance.

Here’s how the belt should be routed:

• The belt starts at the crankshaft pulley, moving up to the alternator.
• From the alternator, the belt loops around the power steering pump.
• It then moves toward the air conditioning compressor.
• Next, the belt goes around the tensioner and idler pulleys, ensuring proper tension.
• Finally, it wraps around the water pump pulley before returning to the crankshaft pulley.

For precise installation, check the diagram located under the hood of your vehicle, typically on a sticker near the engine compartment. The diagram will show the correct routing, and ensure the belt’s tension is set correctly with the tensioner. A belt that’s too tight or too loose can lead to premature wear or failure.

If you need to replace the serpentine belt, it’s best to use a high-quality replacement belt that matches the specifications for your 2012 Honda Accord V6 model.

How to Locate the Serpentine Belt Routing on a 2012 Honda Accord V6

Check the engine compartment near the front of the vehicle. You will find the serpentine belt routing diagram on a sticker or label attached to the radiator support or the engine bay’s inner surface. The diagram shows the path the serpentine belt takes around the pulleys and accessories like the alternator, power steering pump, and air conditioning compressor.

If the diagram is missing or hard to read, refer to the vehicle’s service manual for detailed routing instructions. The manual typically includes diagrams with the exact layout for the serpentine belt system. Alternatively, you can also find digital diagrams from Honda’s official website or trusted automotive repair platforms.

Ensure the belt is routed correctly to avoid misalignment, which can cause excessive wear or damage to the belt and pulleys. If in doubt, a quick visual check against the diagram will confirm the belt’s proper positioning.

Step-by-Step Guide to Replacing the Serpentine Belt on a 2012 Honda Accord V6

To replace the serpentine belt on your 2012 Honda Accord V6, gather the following tools: socket wrench set, torque wrench, serpentine belt tool, and a new serpentine belt. Start by securing the vehicle with the parking brake on a flat surface.

1. Locate the Serpentine Belt and Tensioner: Open the hood and find the serpentine belt routing diagram on the engine bay. It helps you visualize the belt path for proper installation. Identify the serpentine belt tensioner, which keeps the belt tight.

2. Loosen the Tensioner: Use a serpentine belt tool or a socket wrench to relieve tension on the belt. Fit the tool into the square hole on the tensioner, then rotate the tensioner clockwise or counterclockwise, depending on the vehicle design. This will loosen the belt, allowing you to remove it easily.

3. Remove the Old Serpentine Belt: Once the tension is released, slide the belt off the pulleys. It’s helpful to take note of the belt’s routing for reinstallation. If necessary, refer to the diagram you located earlier.

4. Inspect the Pulley System: Before installing the new belt, inspect the pulleys and the tensioner for any wear or damage. Check that each pulley spins freely without resistance, and ensure the tensioner operates smoothly.

5. Install the New Serpentine Belt: Carefully route the new serpentine belt around the pulleys according to the diagram. Make sure the belt sits properly in the grooves of each pulley. Pay special attention to the alignment on the tensioner.

6. Reapply Tension: Use the serpentine belt tool to rotate the tensioner back into place, applying the right amount of tension to the belt. Ensure the belt is snug but not overly tight.

7. Double Check the Installation: After securing the belt, inspect the entire setup to ensure the belt is routed correctly and sits firmly on each pulley. Rotate the tensioner manually to confirm the belt’s movement and check for any irregularities.

8. Test the Engine: Start the engine and observe the serpentine belt while it operates. Listen for any unusual noises or squeaks, which may indicate a misalignment. If everything runs smoothly, the installation is complete.

Troubleshooting Common Serpentine Belt Issues on a 2012 Honda Accord V6

If your serpentine belt is squeaking or showing signs of wear, it’s time to inspect it carefully. Check for cracks, fraying, or glazing on the surface. These are all indicators that the belt might need replacing. A cracked or damaged serpentine belt can lead to poor engine performance and may even cause the belt to break, resulting in the loss of power steering, alternator function, and air conditioning.

Another common issue is a loose or slipping belt. If the belt is not tight enough, it can fail to drive components properly. You can check belt tension by pressing down on it with your thumb. If it deflects more than half an inch, the tension is too low. Tightening the belt or replacing a worn tensioner will usually solve this problem.

If the belt shows signs of wear but isn’t broken or slipping, the problem could lie in the pulleys. Inspect the pulleys for any signs of misalignment or damage. A misaligned pulley can cause the belt to rub and wear out more quickly, leading to premature failure. You can check alignment by visually inspecting the pulley positions and checking for any wobble or abnormal movement when the engine is running.

Examine the belt for any signs of oil or coolant contamination. Leaks from the engine can drip onto the belt, causing it to slip and degrade faster. If there’s evidence of leakage, fix the source of the leak and replace the serpentine belt. Contaminated belts cannot be saved, and continuing to drive with a dirty belt can cause further engine damage.

If you’re hearing a screeching noise when starting the car, it could indicate that the belt is loose or worn out. This noise typically occurs when the belt can’t grip the pulleys properly. Replacing the serpentine belt and checking the tensioner should resolve this issue.

When replacing the serpentine belt on your 2012 Honda Accord V6, ensure the new belt matches the original in size and specification. An incorrect belt can cause premature wear or damage to the engine components. Always follow the correct routing diagram for the belt to ensure it is installed properly.
