2011 Honda Accord Serpentine Belt Diagram and Routing Guide
The serpentine belt in the 2011 Honda Accord is a critical component, responsible for driving multiple engine accessories such as the alternator, air conditioning compressor, and power steering pump. Knowing the correct routing and tension of this belt is vital for ensuring proper engine performance and preventing premature wear. To maintain smooth engine operation, make sure the serpentine belt is properly aligned and tensioned according to the manufacturer’s specifications.
Locate the Diagram: The serpentine belt routing diagram for the 2011 Honda Accord can usually be found on a sticker near the front of the engine bay. If the sticker is missing or unreadable, refer to the service manual for an accurate diagram. The belt routing varies slightly depending on the engine configuration, so be sure to check that you’re using the correct diagram for your model.
Check Belt Condition: Before replacing or adjusting the belt, inspect it for visible wear such as cracks, fraying, or glazing. A worn belt can lead to engine performance issues, such as slipping or noise. If any damage is found, it’s best to replace the belt to avoid more severe engine problems.
Installation Tips: When replacing the serpentine belt, ensure that it is installed with the correct tension. An under-tightened belt can slip, while an over-tightened belt can cause strain on the accessories. Use a belt tensioner tool to adjust the belt properly, and always verify the belt’s alignment with the diagram before tightening it.

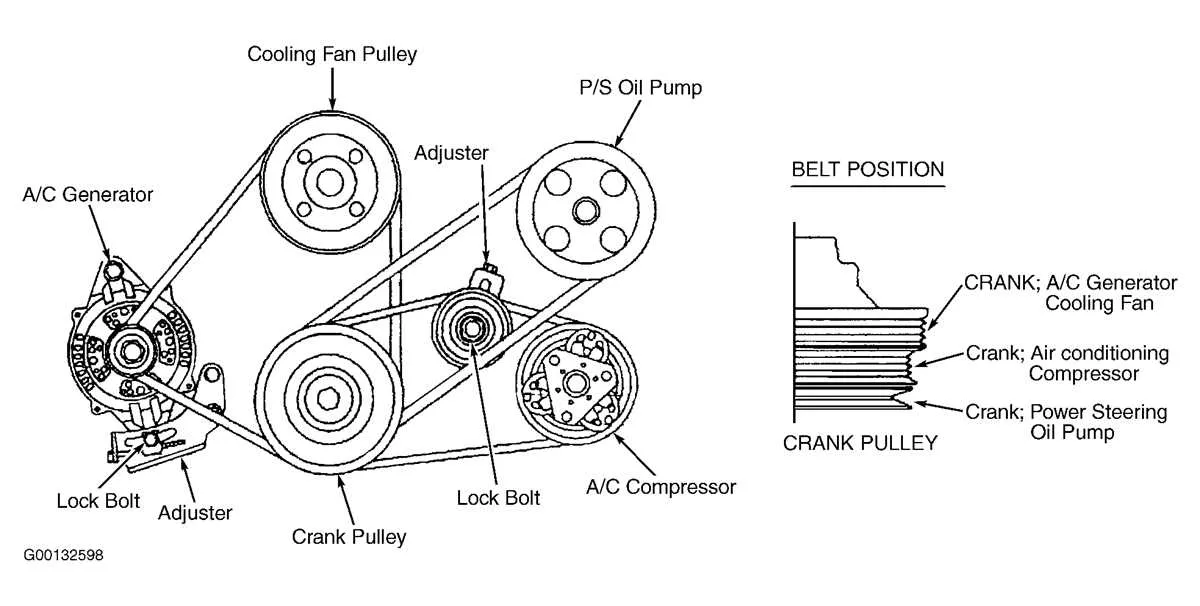

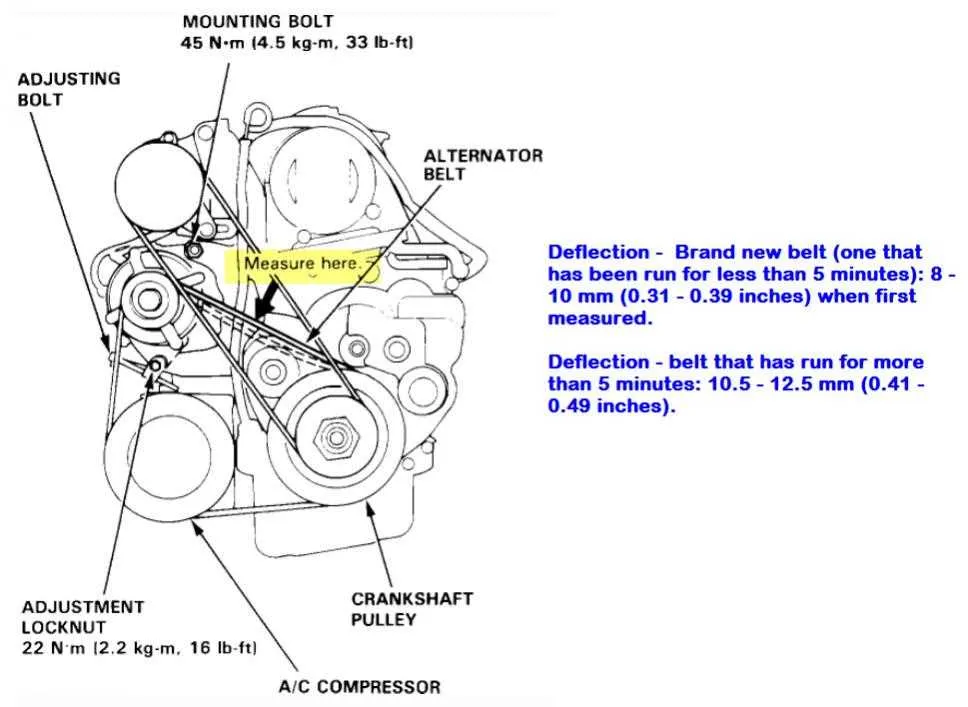

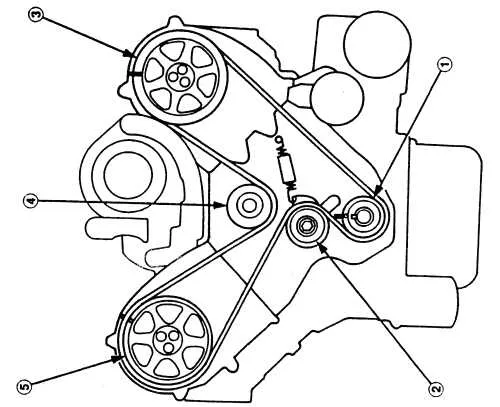

2011 Honda Accord Serpentine Belt Diagram
The serpentine belt in a 2011 Honda Accord plays a crucial role in powering several engine components, including the alternator, air conditioning compressor, and power steering pump. Understanding the correct path and positioning of the belt is essential when replacing or troubleshooting it.
For a precise replacement, refer to the diagram specific to your Accord model. Typically, the diagram is located near the engine bay or within the vehicle’s service manual. This visual guide helps identify the route the serpentine belt takes, ensuring it is installed in the correct position to avoid malfunctions.
The serpentine belt should be installed with the smooth side facing the pulleys, while the ribbed side should contact the components it drives. Ensure that the tensioner is correctly positioned and that the belt has the right tension. A loose or overly tight belt can cause premature wear or malfunction of engine accessories.
If you experience squealing noises, visible wear, or difficulty steering, these are common signs that the serpentine belt may need replacement. Regular inspection is key to preventing sudden belt failures that could lead to engine damage.
How to Locate the Serpentine Belt in a 2011 Honda Accord
To locate the serpentine belt in a 2011 Honda Accord, follow these steps:
- Open the hood and secure it with the prop rod.
- Find the engine compartment’s main components: the alternator, power steering pump, air conditioning compressor, and the tensioner pulley.
- Look towards the front of the engine, where the serpentine belt runs along these components. It should be visible on the front of the engine block.
- If needed, use a flashlight to get a clearer view, especially around the lower pulley area.
- The belt should be routed around several pulleys. The tensioner pulley is the key part that helps keep the belt taut. It can be moved with a wrench to release tension and remove the belt if necessary.
Once you’ve located the belt, inspect it for any visible wear or damage, such as cracks or fraying. If the belt looks worn, it’s time to replace it.
Step-by-Step Guide to Understanding the Serpentine Belt Routing
To begin, locate the serpentine belt on the front of the engine. You’ll typically find it running over the pulleys and various components like the alternator, power steering pump, and air conditioning compressor. This diagram shows the path the belt takes across all these components.
First, inspect the path for any visible signs of wear, such as cracking or fraying. If the belt looks damaged, it may be time to replace it. Next, follow the belt’s routing according to the manufacturer’s specifications, which should be clearly marked in the engine bay or available in the owner’s manual.
Ensure that the belt is properly aligned with the pulleys. If it’s not, it could slip off during operation, causing damage to the belt or surrounding components. Tighten the tensioner pulley to maintain the correct tension, which prevents the belt from becoming too loose or too tight.
When replacing the belt, make sure to match the new belt’s length and width with the original one. A belt that’s too short or too long can cause improper routing and lead to malfunction. Once the new belt is in place, rotate the crankshaft pulley by hand to verify the belt moves smoothly without slipping off the pulleys.
Check the alignment again after running the engine for a few minutes to ensure the belt remains in place and doesn’t show signs of wear. Regular maintenance and inspection of the serpentine belt can prevent premature failures and extend the life of your engine components.
Common Issues with the Serpentine Belt and How to Fix Them
Cracking and Fraying: Over time, serpentine belts can develop cracks or fray due to wear. Inspect the belt for any visible damage, especially around bends or high-stress areas. If cracks or fraying are present, replace the belt immediately to prevent failure.
Squeaking or Squealing Noise: A loud squeaking or squealing noise can indicate that the belt is slipping or misaligned. Check for signs of wear on the pulleys or tensioner, which could be causing the belt to slip. Tightening the tensioner or replacing worn components should fix the issue.
Excessive Tension: If the belt is too tight, it may cause excessive wear on both the belt and pulleys. This can lead to premature damage. Check the tensioner to ensure it’s properly calibrated and not applying too much pressure. Adjust or replace the tensioner as needed.
Burnt Rubber Smell: A burning rubber odor is often a sign that the belt is overheating due to excessive friction. Inspect the belt for misalignment or damaged pulleys that may be causing unnecessary friction. Correct any misalignment or replace the pulleys to resolve the issue.
Visible Wear on the Pulley: If the pulley grooves are worn or damaged, it can cause the belt to slip or wear out prematurely. Inspect the pulleys for wear and replace them if necessary. Properly aligned pulleys will help maintain the belt’s lifespan.
Unusual Vibration: A vibrating serpentine belt is a clear indicator of an issue with the belt or one of its components. Check for loose or damaged pulleys, as well as any issues with the belt tensioner. Replacing worn pulleys or adjusting the tensioner should fix the problem.
