2009 Honda Civic Si Serpentine Belt Diagram and Installation Guide
For a quick overview of the serpentine belt setup on your 2009 Honda Civic Si, refer to the diagram below. This belt is a key component, driving multiple accessories, including the alternator, power steering pump, and air conditioning compressor. Replacing or adjusting it requires precision, so having a clear understanding of its routing is essential for efficient repairs.
Serpentine Belt Routing: The serpentine belt on the 2009 Honda Civic Si runs through a series of pulleys, ensuring smooth operation of the engine’s accessories. The diagram clearly outlines the path the belt follows around the crankshaft, idler pulleys, and tensioner. Pay attention to the direction of rotation, as any misalignment could cause improper function or premature wear.
Checking Tension and Condition: It’s crucial to inspect the belt for any signs of wear, cracks, or fraying. The tension should be consistent; too much slack can lead to slipping, while excessive tightness can damage the pulleys. Adjust the tension using the tensioner pulley, and replace the belt if you notice any signs of damage.
Important Considerations: Always replace the serpentine belt with a high-quality OEM or recommended part to ensure compatibility. If you’re unfamiliar with the process, consulting a repair manual or seeking professional help can prevent errors during installation.

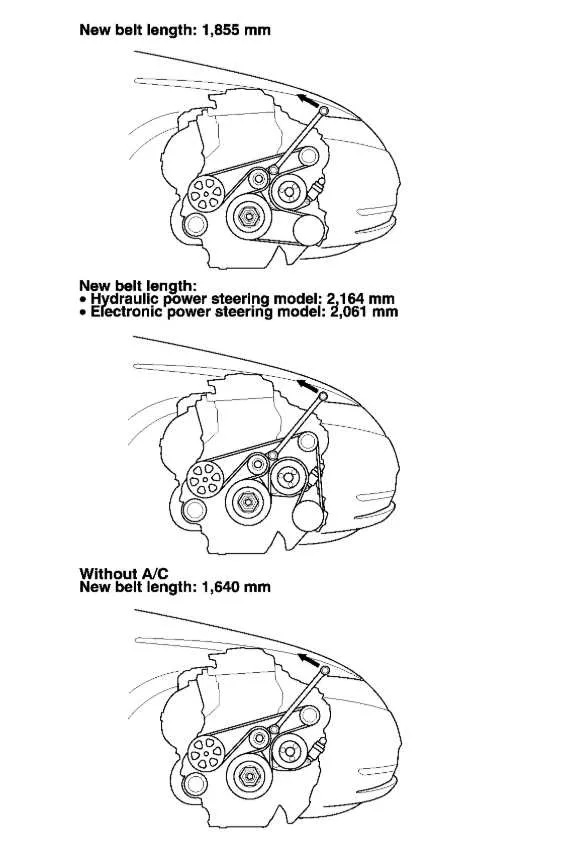

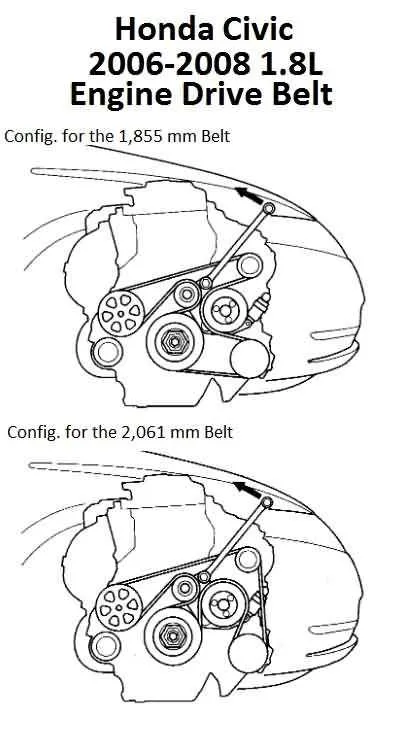

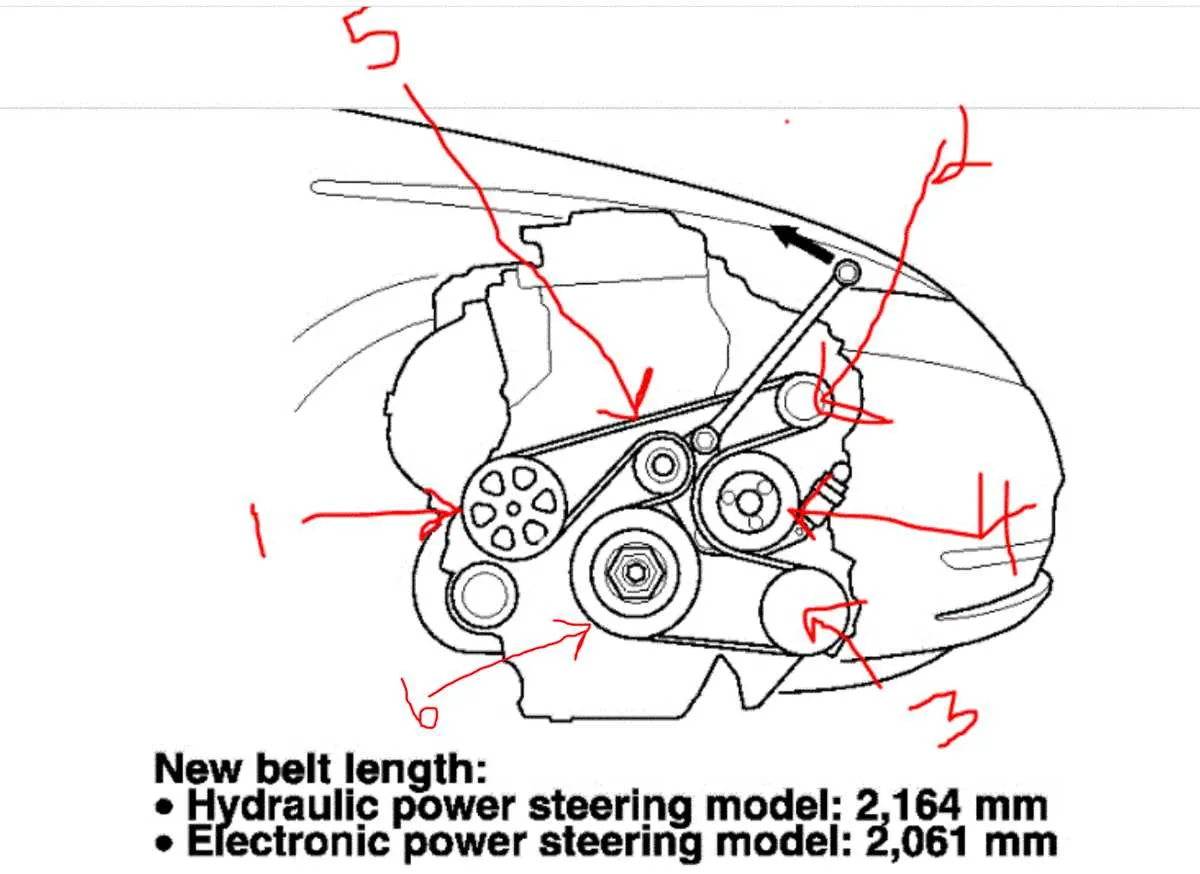

2009 Honda Civic Si Serpentine Belt Diagram
If you’re looking to replace or inspect the serpentine belt on your 2009 Honda Civic Si, knowing the exact routing is key. The serpentine belt runs through various components, driving the alternator, power steering pump, and air conditioning compressor.
For the 2009 Civic Si, the serpentine belt routing starts at the crankshaft pulley. It loops around the tensioner pulley, then passes over the alternator pulley, down to the power steering pump, and loops back around the AC compressor. The belt finally returns to the crankshaft pulley.
Key Points to Check:
- Ensure the belt is routed correctly along the pulleys, as a wrong installation could cause damage.
- Check the belt tension. If the belt is too loose, it can slip, causing poor performance.
- Inspect for cracks, fraying, or wear. A damaged serpentine belt can lead to multiple system failures.
If you need a visual reference, refer to a detailed serpentine belt diagram that can be found in your vehicle’s manual or through online resources specific to the 2009 Civic Si model. Regular inspection and maintenance will prevent breakdowns.
How to Locate the Serpentine Belt on a 2009 Honda Civic Si
To locate the serpentine belt on your 2009 Honda Civic Si, pop the hood and stand in front of the vehicle. The serpentine belt runs across multiple pulleys, including the alternator, power steering pump, and air conditioning compressor. It is located on the front of the engine, near the passenger side. To make it easier to spot, look for the long rubber belt that loops around these components, typically situated near the engine block.
The serpentine belt is secured in place by a tensioner pulley. This pulley keeps the belt tight and in position as it drives multiple accessories. The tensioner is adjustable and can be released using a wrench or a ratchet tool to relieve the tension on the belt if needed.
If you’re replacing the serpentine belt, or just inspecting it, make sure to check the belt’s condition. Look for any visible cracks, fraying, or wear that could indicate it’s time for a replacement.
Serpentine Belt Diagram for 2009 Honda Civic Si
| Component | Location |
|---|---|
| Alternator | Upper right side |
| Power Steering Pump | Middle right side |
| Air Conditioning Compressor | Lower right side |
| Crank Pulley | Front of the engine |
| Tensioner Pulley | Near the top left of the engine |
Step-by-Step Instructions for Removing and Replacing the Serpentine Belt
To replace the serpentine belt on a 2009 Honda Civic Si, follow these steps carefully.
- Prepare Your Tools and Equipment:
- Socket wrench with appropriate attachments
- Serpentine belt tool or a 3/8-inch drive ratchet
- New serpentine belt
- Locate the Tensioner Pulley:
The serpentine belt tensioner is usually positioned near the bottom of the engine. Use the serpentine belt diagram (found under the hood) to identify the exact location.
- Release Tension on the Belt:
Insert your tool into the tensioner pulley and rotate it counterclockwise to release tension. This will loosen the belt, allowing you to remove it.
- Remove the Old Belt:
Once the tension is released, slip the belt off the pulleys, starting from the idler pulley. Make sure to note the belt’s path for reinstallation.
- Inspect the Components:
Before installing the new belt, inspect the pulleys for any signs of wear or damage. If necessary, replace any damaged parts to prevent future issues.
- Install the New Serpentine Belt:
Place the new belt over the pulleys following the diagram. Ensure the belt is seated correctly on each pulley.
- Reapply Tension:
Use the serpentine belt tool to rotate the tensioner pulley again, allowing the belt to slip into place under tension.
- Double-Check Belt Placement:
Make sure the belt is aligned properly on all pulleys. A misaligned belt can cause excessive wear or damage.
- Test the Installation:
Start the engine and observe the belt in motion. Ensure it runs smoothly and there is no squealing or abnormal noise.
With these steps completed, the serpentine belt replacement is finished. The car should now run more efficiently and quietly.
Troubleshooting Common Issues with the Serpentine Belt on 2009 Honda Civic Si
If the serpentine belt on your 2009 Honda Civic Si shows signs of wear, address it before it causes further damage. A squealing sound while the engine is running is a common symptom of belt slippage. Inspect the belt for any visible cracks, fraying, or glazing. If you notice any of these issues, replace the belt immediately.
If the power steering or alternator starts acting up, check the tension of the serpentine belt. A loose belt may slip, leading to a decrease in performance of these components. To test this, press on the belt with your fingers–if it moves more than half an inch, it’s too loose and needs adjustment.
Another problem to watch out for is overheating. If the serpentine belt is broken, the water pump can’t function, which leads to a drop in coolant circulation. Overheating may happen quickly, so turn off the engine and inspect the belt as soon as possible. A visual check will help you confirm if it’s snapped or slipped off the pulleys.
When you replace the serpentine belt, ensure it aligns properly with the pulleys. A misaligned belt can cause excessive wear, leading to premature failure. Double-check the routing diagram to ensure proper installation. If the belt doesn’t fit correctly, consider inspecting the pulleys for misalignment or damage.
For persistent squeaking noises after replacing the belt, examine the pulleys and tensioner. A failing tensioner may not apply enough pressure on the belt, leading to slippage. Replacing a worn tensioner often solves this issue.
Lastly, keep in mind that using the wrong type of belt can also lead to issues. Ensure you replace the serpentine belt with one that matches Honda’s specifications for the 2009 Civic Si. Using incorrect parts can lead to poor performance or even damage to your engine components.
