2009 Honda Civic 1.8 Serpentine Belt Diagram and Routing Instructions
Understanding the serpentine belt layout on your 2009 Honda Civic 1.8 is key for keeping your engine running smoothly. A well-maintained serpentine belt ensures that critical components like the alternator, power steering pump, and air conditioning compressor operate efficiently. This diagram offers a clear guide for anyone looking to troubleshoot, replace, or inspect the belt setup without the need for professional assistance.
The serpentine belt on the 2009 Honda Civic 1.8 is routed through multiple pulleys, creating a compact, single-belt system that powers essential accessories. The belt must be correctly aligned to avoid wear and tear, preventing costly repairs down the line. The diagram provided below shows the precise routing, including tensioner and idler pulley positions, as well as the sequence of how the belt wraps around the pulleys. This ensures that each component gets the right amount of power while reducing strain on the engine.
If you’re looking to replace the serpentine belt, make sure to use a replacement belt that matches the size and specifications outlined in your owner’s manual. Following the diagram ensures that the new belt fits correctly and that all accessories receive optimal power. Regular inspection and proper tension adjustment also prevent premature failure, saving you from unnecessary headaches.

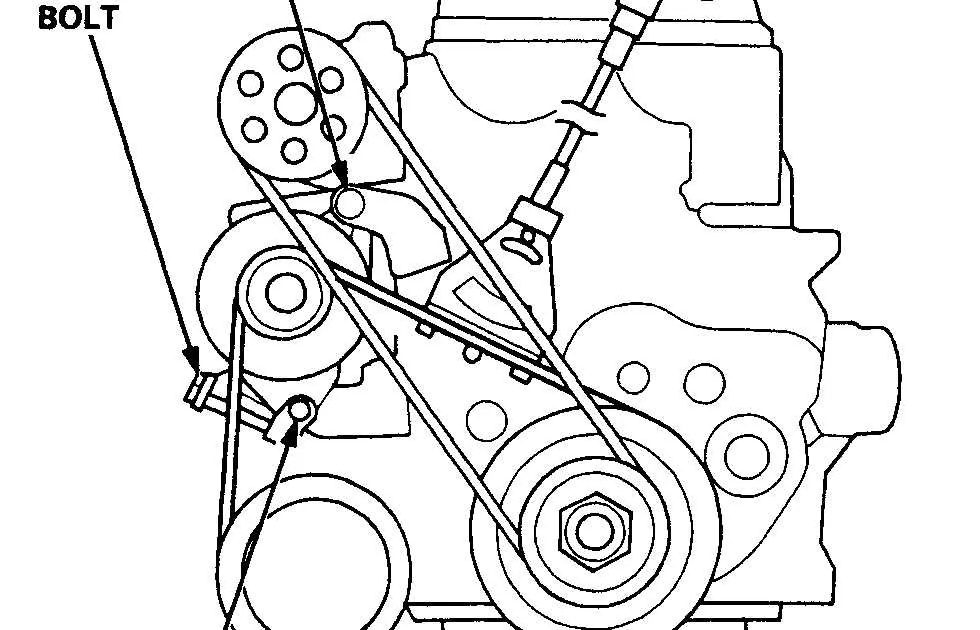

2009 Honda Civic 1.8 Serpentine Belt Diagram

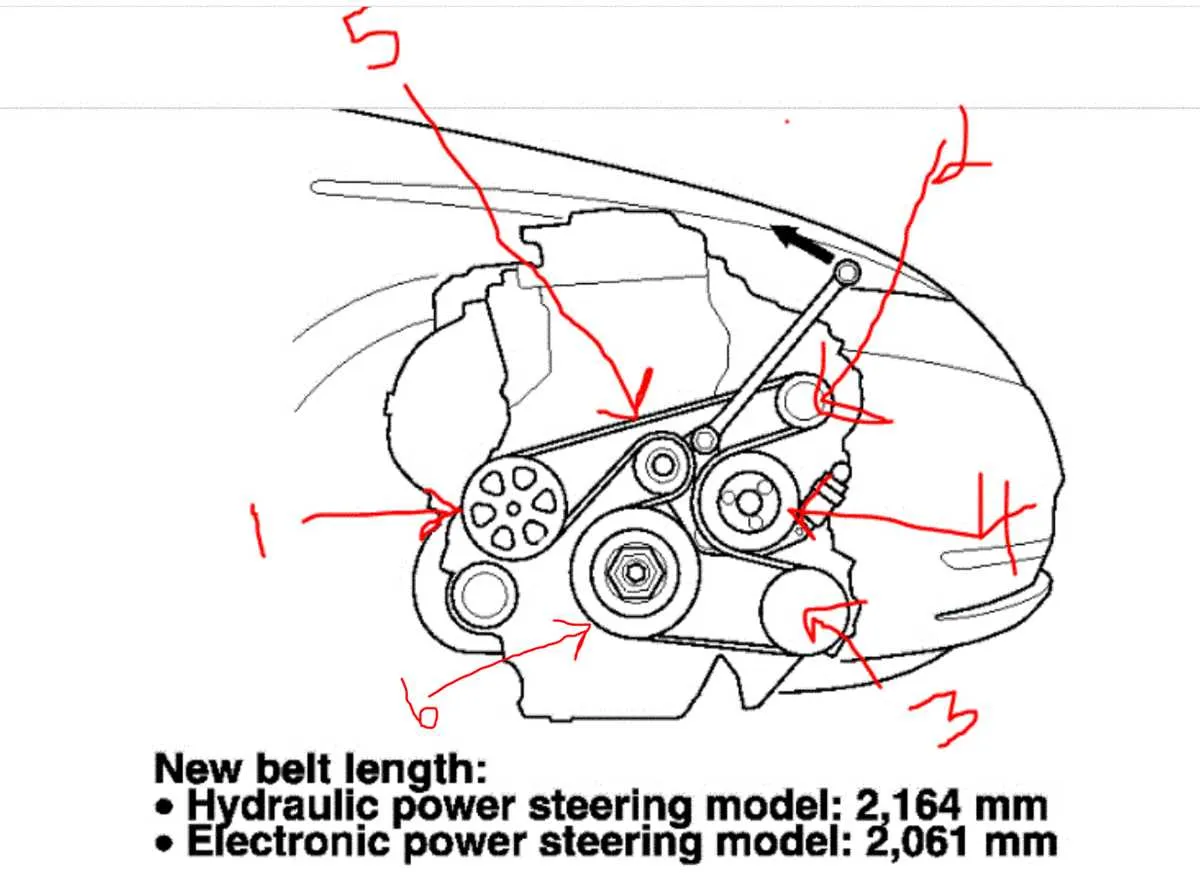

For the 2009 Honda Civic 1.8, the serpentine belt follows a specific path to power various accessories like the alternator, power steering pump, and air conditioning compressor. The diagram outlines the belt routing over several pulleys. Here’s how to properly install it:
The serpentine belt runs over the crankshaft pulley, up to the alternator pulley, then loops around the power steering pump, and finally goes around the air conditioning compressor. The tensioner pulley keeps the belt taut. Pay attention to the orientation of the belt on the tensioner to ensure proper tension. Additionally, check that the belt aligns correctly with all pulleys to avoid slipping or excessive wear.
Replacing the serpentine belt on a 2009 Honda Civic 1.8 requires loosening the tensioner to release the old belt, inspecting each pulley for wear, and installing the new belt according to the diagram. Always double-check the routing before starting the engine.
Identifying Components of the Serpentine Belt System in 2009 Honda Civic 1.8
The serpentine belt system in the 2009 Honda Civic 1.8 consists of several key components that work together to power various engine accessories. To properly identify and understand each part, it’s important to familiarize yourself with their roles and locations in the system.
Serpentine Belt: This long, continuous belt is the core of the system, connecting multiple accessories such as the alternator, power steering pump, air conditioning compressor, and the water pump. The belt runs across pulleys, transmitting power from the engine’s crankshaft.
Crankshaft Pulley: Located at the front of the engine, this pulley is driven directly by the engine. It serves as the starting point for the serpentine belt, which runs from here to other components.
Alternator Pulley: The alternator is responsible for generating electricity to recharge the battery. The pulley is mounted on the alternator and is turned by the serpentine belt to keep the electrical system running.
Power Steering Pulley: This pulley drives the power steering pump, enabling easy steering. It’s usually located near the front of the engine, alongside the other pulleys.
Air Conditioning Compressor Pulley: The A/C compressor is powered by the serpentine belt. Its pulley is typically situated near the front passenger side of the engine, allowing it to engage the compressor and circulate refrigerant for the air conditioning system.
Tensioner Pulley: The tensioner maintains proper tension in the serpentine belt. It is spring-loaded and automatically adjusts to ensure the belt remains tight, preventing slipping and wear.
Idler Pulley: This pulley guides the serpentine belt around the system. It helps maintain the correct routing and ensures the belt stays aligned with all the components.
Regular inspection of these parts is crucial for maintaining the belt’s functionality and the overall performance of your Honda Civic’s engine. Look for signs of wear such as cracks, fraying, or loss of tension in the belt, and check for any unusual noises or resistance from the pulleys that may indicate a problem.
Step-by-Step Guide for Replacing the Serpentine Belt on 2009 Honda Civic 1.8
Before replacing the serpentine belt, ensure the engine is off, and the car is on a flat surface. Gather the necessary tools: a wrench, socket set, and a new serpentine belt matching the vehicle’s specifications.
1. Locate the Serpentine Belt
The serpentine belt on the 2009 Honda Civic 1.8 is located at the front of the engine, running across various components like the alternator, power steering pump, and air conditioning compressor. Check the belt routing diagram, typically found on the engine bay or in the owner’s manual, to understand the current setup.
2. Release Tension from the Belt
Use a wrench to rotate the tensioner pulley counterclockwise. This will relieve tension on the belt. Once the tension is released, slide the belt off the pulleys. Be cautious, as the tensioner may snap back quickly when released.
3. Remove the Old Belt
Carefully remove the serpentine belt from the pulleys, noting the routing path. It’s helpful to take a photo or draw a diagram to remember the exact positioning for the new belt.
4. Inspect Pulley Condition
Before installing the new belt, inspect all pulleys and the tensioner for wear or damage. If any pulleys seem worn, it’s best to replace them at the same time to avoid future issues.
5. Install the New Serpentine Belt
Starting with the hardest-to-reach pulley, thread the new belt around the pulleys following the correct routing pattern. Make sure the belt sits properly in the grooves of each pulley.
6. Reapply Tension
Rotate the tensioner pulley again using the wrench to allow the belt to fit snugly. Double-check the belt’s alignment and tension to ensure it’s properly installed.
7. Test the Installation
Start the engine and let it idle for a few minutes. Check for any unusual noises or belt slippage. If everything sounds normal, turn off the engine and visually inspect the belt again to ensure it’s properly aligned.
By following these steps, the serpentine belt replacement on your 2009 Honda Civic 1.8 should be completed successfully, ensuring smooth engine operation.
Troubleshooting Common Issues with the Serpentine Belt on 2009 Honda Civic 1.8
If the serpentine belt on your 2009 Honda Civic 1.8 shows signs of wear, it can lead to several issues with the engine’s accessory systems. Start by inspecting the belt for cracks, fraying, or unusual wear patterns.
Common problem #1: Squealing or chirping noise. This often indicates a loose or misaligned belt. Check the tensioner and pulley alignment. If they are out of place, adjust or replace the faulty component.
Common problem #2: Belt slipping off. If the serpentine belt keeps slipping, inspect the condition of the belt tensioner. A worn-out tensioner may fail to maintain the proper tension, causing the belt to come off. Replace the tensioner if necessary.
Common problem #3: Loss of power steering or air conditioning. The serpentine belt drives several important components. If it breaks or becomes loose, you might lose power steering or AC functionality. In this case, replace the belt immediately, and check for any other related issues like damaged pulleys.
Common problem #4: Rapid wear or damage. If the belt is wearing out too quickly, it could be a sign of incorrect alignment or a misaligned pulley. Make sure all the pulleys and components are in proper working order. Misalignment can cause the belt to wear unevenly.
Common problem #5: Engine overheating. The serpentine belt drives the water pump, so if it’s not working properly, the engine can overheat. If you notice temperature gauge fluctuations, inspect the belt and related components. Replace the belt if it’s damaged or slipping.
To prevent these issues, inspect the belt regularly and replace it every 60,000 to 100,000 miles, depending on your driving habits. If you hear unusual noises or notice reduced performance, address the problem early to avoid more costly repairs down the line.
