2008 Honda Accord V6 Serpentine Belt Diagram and Routing Guide

Replacing the serpentine belt on your 2008 Honda Accord V6 is a straightforward task, but getting the routing right is key to preventing potential engine issues. If you’re about to tackle this job, the correct diagram is your best guide. It ensures the belt goes around the right pulleys and tensioners, maintaining proper alignment and function.

The serpentine belt on the 2008 Honda Accord V6 drives multiple engine components, including the alternator, power steering pump, water pump, and air conditioning compressor. A clear diagram provides the exact routing, showing where the belt should go in relation to the crankshaft pulley and other components. This makes installation much easier and ensures you don’t miss any vital connections.

Before replacing the serpentine belt, make sure to check the condition of the tensioner and pulleys. Worn-out components could lead to premature belt failure, causing costly damage. Also, ensure the new belt has the correct length and width, as specified by Honda, to guarantee smooth operation.

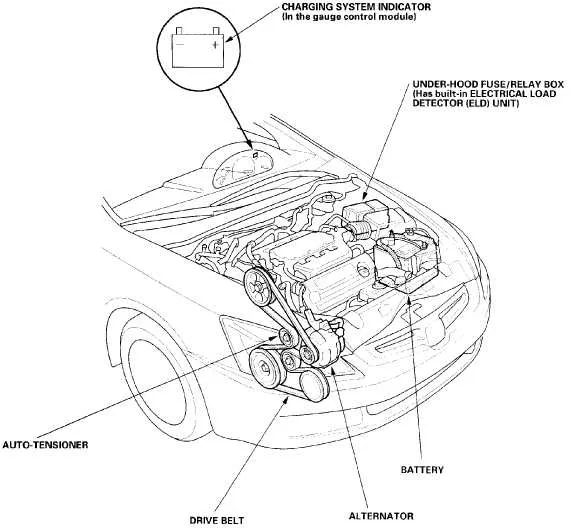

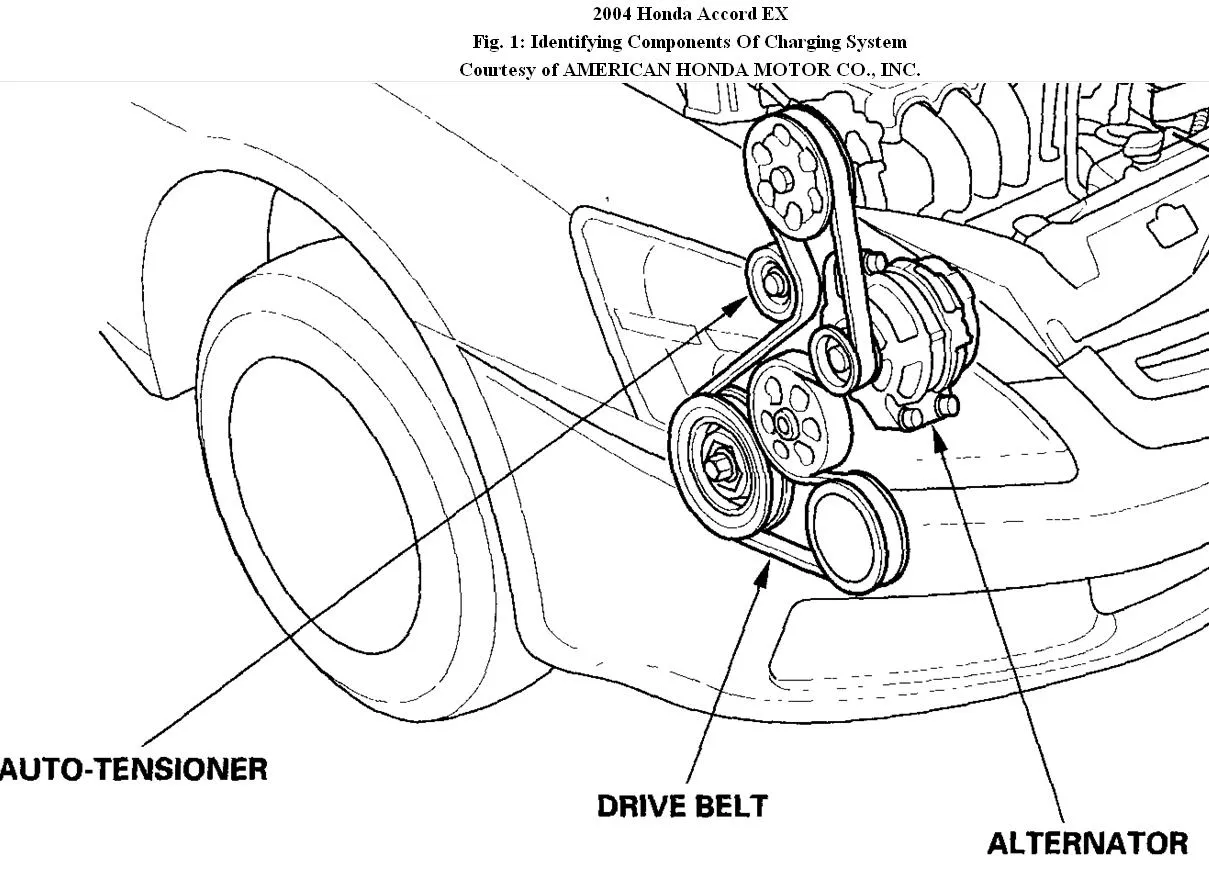

2008 Honda Accord V6 Serpentine Belt Diagram

For the 2008 Honda Accord V6, it’s important to follow the serpentine belt routing accurately to ensure all engine components receive proper power. The serpentine belt controls vital accessories like the alternator, power steering pump, air conditioning compressor, and water pump.

The serpentine belt on this model is a single continuous loop that is routed around multiple pulleys, with one primary tensioner keeping the belt tight. Begin by locating the belt tensioner, which is on the front of the engine near the crankshaft pulley. This is where you will apply a wrench or socket to relieve tension and remove the old belt.

The proper route for the belt starts from the crankshaft pulley, going up to the alternator pulley, down to the power steering pump, then over the air conditioning compressor pulley, and finally to the water pump. Ensure the belt aligns properly with each pulley and is not twisted or misaligned, as this can lead to excessive wear or failure.

Check for any signs of wear, such as cracks or fraying, on the belt before installation. After securing the belt on all pulleys, use the tensioner to apply the correct amount of tension. Double-check the belt’s path by verifying it matches the diagram available in your vehicle’s repair manual for confirmation.

How to Read the Serpentine Belt Diagram for 2008 Honda Accord V6

Begin by identifying the components in the serpentine belt diagram. The diagram shows the route the serpentine belt takes, illustrating its path over various pulleys and components such as the alternator, power steering pump, water pump, and air conditioning compressor. Pay attention to the arrows indicating the direction of rotation for the belt and pulleys.

The diagram will highlight the tensioner pulley, which controls the belt’s tightness. This is key to understanding how to replace or adjust the belt correctly. Look for markings indicating the belt routing as well as any references to the belt’s length or part number, as this can help you find the right replacement.

Notice if the diagram includes instructions for certain pulleys, such as the alternator or crankshaft pulley. They may require special attention when removing or installing the belt. For example, some pulleys may need to be manually rotated or moved to relieve tension before the belt can be removed or installed.

Finally, if there are multiple diagrams or variations depending on the specific model of your 2008 Honda Accord V6, make sure you’re looking at the one that matches your engine configuration (e.g., whether it has air conditioning or not). This ensures the belt routing matches your setup, avoiding installation mistakes.

Common Issues with Serpentine Belt Installation on 2008 Honda Accord V6

Incorrect routing of the serpentine belt is one of the most common problems during installation. Double-check the belt’s path by referring to the diagram under the hood. A misrouted belt can lead to improper tension, which may cause premature wear or failure.

Another frequent issue is improper tension adjustment. The 2008 Honda Accord V6 uses an automatic tensioner, but if it’s faulty or damaged, the belt may not have the correct tension. This can cause slippage, noise, and excessive wear. Always inspect the tensioner for any signs of wear or malfunction before installing a new belt.

The wrong belt size can also cause problems. If the replacement belt is too long or too short, it won’t fit properly, leading to issues such as slipping or misalignment. Ensure the belt matches the specifications in the vehicle’s manual or parts catalog.

Worn-out pulleys and accessories like the alternator, water pump, or power steering pump may also cause problems during installation. If any of these components have damaged bearings or are out of alignment, they can cause the belt to wear unevenly or even come off completely. Inspect each pulley for damage and replace as needed before installing the new belt.

Finally, ensure the belt’s surface is clean and free from oil or coolant. Contaminants on the belt or pulleys can lead to slippage and reduced performance. A thorough cleaning of the components before installation helps ensure a long-lasting, effective setup.

Steps to Replace the Serpentine Belt on a 2008 Honda Accord V6

1. Lift the vehicle and secure it. Use a jack to raise the car and place jack stands under the frame for safety.

2. Disconnect the negative battery cable. This prevents accidental electrical issues while working near components like the alternator.

3. Locate the serpentine belt. The 2008 Honda Accord V6 has the serpentine belt running across the front of the engine. You’ll find it near the alternator, power steering pump, and water pump.

4. Release tension on the belt. Use a wrench or a ratchet to turn the tensioner pulley counterclockwise. This will relieve pressure on the belt, allowing you to remove it easily.

5. Remove the old serpentine belt. Slide the belt off the pulleys, carefully noting its routing path. Take a picture of the belt’s current layout to make reinstallation easier.

6. Install the new serpentine belt. Route the new belt exactly as the old one, using the diagram for reference. Ensure the belt is properly seated on each pulley.

7. Check the tensioner. After the new belt is in place, release the tensioner slowly to apply tension to the belt. Make sure the belt is tight enough but not over-stretched.

8. Inspect the belt’s alignment. Turn the engine over briefly to check if the belt is running smoothly across all pulleys. Listen for any abnormal sounds or misalignment.

9. Reconnect the negative battery cable. Ensure everything is tightened and secure before you reconnect the battery.

10. Lower the vehicle. Once the new belt is properly installed and you’ve verified its function, lower the car and perform a quick test drive to confirm the belt is operating correctly.
