2007 Honda Odyssey Belt Tensioner Diagram and Installation Guide

Locate the belt tensioner on the 2007 Honda Odyssey by identifying the components around the serpentine belt system. The tensioner is crucial for maintaining proper belt tension, ensuring the engine components operate smoothly. If you notice unusual noise or performance issues, check this component first.

Inspecting the diagram will help you understand the exact placement of the tensioner. Typically, it’s located near the alternator and water pump. The diagram will indicate which bolts and pulleys need adjustment or replacement for maintenance tasks.

Replacing a faulty tensioner requires precision. Refer to the diagram for exact measurements and torque specifications. Improper installation may cause further damage to the belt system, leading to costly repairs.

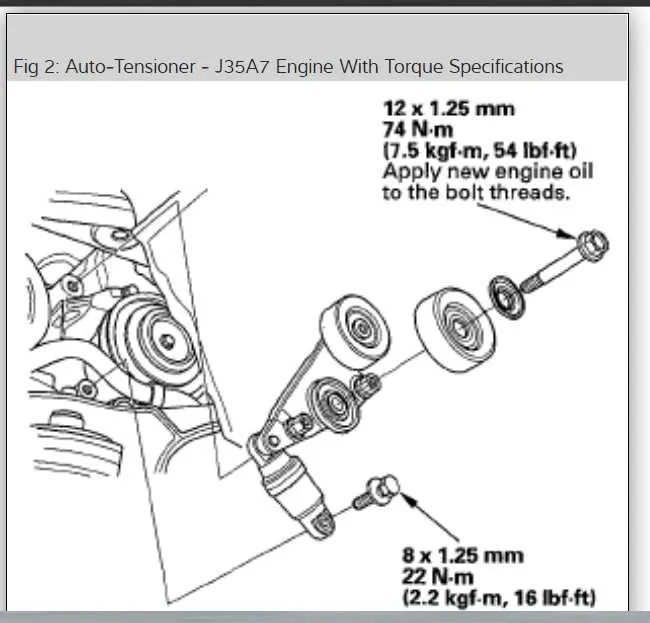

2007 Honda Odyssey Belt Tensioner Diagram

The 2007 Honda Odyssey belt tensioner system plays a key role in maintaining proper belt tension, ensuring smooth operation of the engine components. A malfunctioning tensioner can lead to slipping belts, misalignment, or damage to surrounding parts. To replace or adjust the tensioner, you must first identify its location and understand the specific routing of the serpentine belt.

In the 2007 Honda Odyssey, the belt tensioner is located on the front of the engine, near the alternator and power steering pump. It is spring-loaded and designed to automatically maintain the proper tension. For the correct routing diagram, the belt should run from the crankshaft pulley, through the alternator, power steering pump, air conditioning compressor, and idler pulleys, before returning to the tensioner. The tensioner itself should be positioned to ensure proper tightness of the belt without over-tensioning, which can cause premature wear.

Before adjusting or replacing the belt tensioner, ensure the engine is off and the ignition key is removed. Use a socket wrench to relieve tension on the tensioner by rotating it clockwise. This allows you to remove the serpentine belt easily. Once the belt is removed, inspect the tensioner for signs of wear, such as excessive play or rust. If the tensioner is faulty, replace it by loosening the mounting bolts and installing the new unit. After installation, adjust the tensioner to ensure the correct belt tightness before reattaching the serpentine belt.

Identifying the Components of the 2007 Honda Odyssey Belt Tensioner System

The 2007 Honda Odyssey belt tensioner system consists of key components that work together to ensure the proper functioning of the serpentine belt. The main parts include the tensioner pulley, the spring-loaded tensioner arm, and the tensioner assembly. These components are critical for maintaining the correct tension on the serpentine belt, preventing slippage, and avoiding wear.

The tensioner pulley is the most visible component. It applies pressure to the serpentine belt, helping to maintain the appropriate tension. Over time, the pulley can wear out, resulting in belt misalignment or slipping. The tensioner arm, which houses the spring mechanism, adjusts the pulley position as needed to maintain proper belt tension under different engine conditions. The spring mechanism in the tensioner arm is responsible for applying force to the pulley, adjusting the belt’s tightness.

Another vital part is the tensioner assembly, which includes the mounting bracket and the pivot mechanism. This assembly holds the entire system in place and allows for the movement of the pulley as required. Regular inspection of the tensioner assembly is necessary to detect any signs of damage or wear, which could lead to system failure and potentially cause engine damage.

Ensure that the belt tensioner system is regularly checked for proper function. Worn-out tensioners or pulleys can cause excessive belt wear or failure, which could result in engine power loss or damage to other components. Replacing these parts promptly prevents further issues and ensures the longevity of your vehicle’s engine system.

Step-by-Step Guide to Installing the Belt Tensioner on a 2007 Honda Odyssey

1. Disconnect the Battery

Before starting, disconnect the negative terminal of the battery to avoid accidental electrical shorts or injuries.

2. Locate the Belt Tensioner

Find the belt tensioner, typically located near the front of the engine on the driver’s side. It is attached to the engine block and connected to the serpentine belt.

3. Remove the Serpentine Belt

Use a ratchet and socket to relieve tension from the belt tensioner pulley. Move the tensioner clockwise to loosen the belt, then carefully remove the serpentine belt from the pulleys.

4. Unbolt the Tensioner

Locate the bolts securing the belt tensioner to the engine block. Use the appropriate socket size to remove the bolts and pull the tensioner off its mount.

5. Compare the New Tensioner

Before installation, compare the new tensioner with the old one to ensure proper fitment. Check that the new part matches in size and bolt placement.

6. Install the New Tensioner

Position the new belt tensioner in place and secure it with the bolts. Tighten the bolts to the manufacturer’s specifications to avoid any loosening over time.

7. Reinstall the Serpentine Belt

Route the serpentine belt around the pulleys according to the diagram specific to your 2007 Honda Odyssey. Ensure it is seated properly on each pulley.

8. Test the Tensioner

Use the ratchet to apply tension to the new belt tensioner. Check that the belt is tight and correctly aligned. Turn the engine over briefly to ensure proper operation.

9. Reconnect the Battery

Reconnect the negative battery terminal. Start the engine and verify that the belt tensioner is functioning properly by listening for any unusual noises or seeing if the belt remains taut.

Common Issues with the Belt Tensioner in 2007 Honda Odyssey and How to Resolve Them

Frequent wear and tear can cause the belt tensioner in the 2007 Honda Odyssey to malfunction. Below are the most common problems and solutions.

• Noise from the Tensioner: A squeaking or grinding noise may indicate that the pulley is worn or the spring is damaged. Inspect the tensioner for visible wear, and replace the component if necessary.
• Slipping Belt: If the belt is slipping off the tensioner, it may be due to a misalignment or a loose tensioner. Verify that the tensioner is properly installed and adjust it as needed. If the issue persists, consider replacing the tensioner.
• Stiff Tensioner: A stiff or unresponsive tensioner may not adjust the belt tension correctly, leading to engine performance issues. Check the pulley movement; if it doesn’t rotate freely, replace the tensioner.
• Broken Tensioner Spring: A broken or weak spring can cause improper tension and lead to belt failure. If the tensioner appears to be loose or sagging, replace the entire tensioner unit.
• Excessive Vibration: If you notice excessive vibration in the belt system, inspect the tensioner pulley for signs of wear or damage. Replace the pulley or the entire tensioner if necessary to restore smooth operation.

Regular inspection of the tensioner system is important to avoid major repairs. Addressing these issues early can save time and prevent further damage to other engine components.
