Belt Routing Diagram for 5.7 Hemi Serpentine Belt System

Understanding the serpentine belt routing on the 5.7 Hemi engine is vital for maintaining proper engine performance. The serpentine belt plays a key role in driving multiple engine accessories, including the alternator, power steering pump, and air conditioning compressor. A well-maintained belt routing ensures that all components work together smoothly and effectively.

For accurate belt installation, it’s important to follow the specific routing diagram for the 5.7 Hemi. Incorrect routing can lead to improper tension, slippage, or premature wear. You can usually find the diagram on a sticker under the hood or in the vehicle’s service manual. However, it’s helpful to consult online resources or forums for a clearer, detailed view of the routing path.

Ensure the belt is routed in the correct order, starting from the crankshaft pulley and looping around each accessory pulley. The belt must be tight enough to prevent slipping but not too tight to cause excess wear. It’s also a good idea to inspect the belt for signs of cracks, fraying, or glazing, as these can lead to failure and should be addressed before replacement.

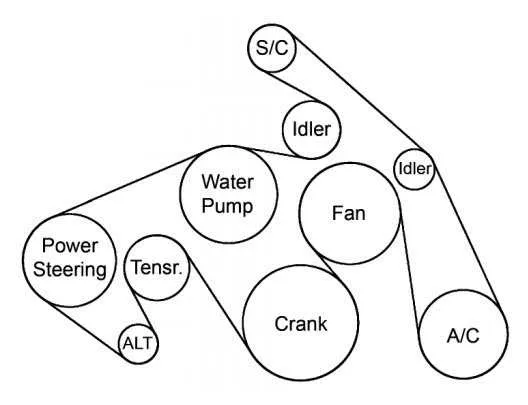

Belt Routing 5.7 Hemi Serpentine Belt Diagram

The serpentine belt routing on the 5.7 Hemi engine is designed to power multiple components, including the alternator, water pump, and power steering pump. Begin by ensuring the engine is off and the battery is disconnected before starting any work.

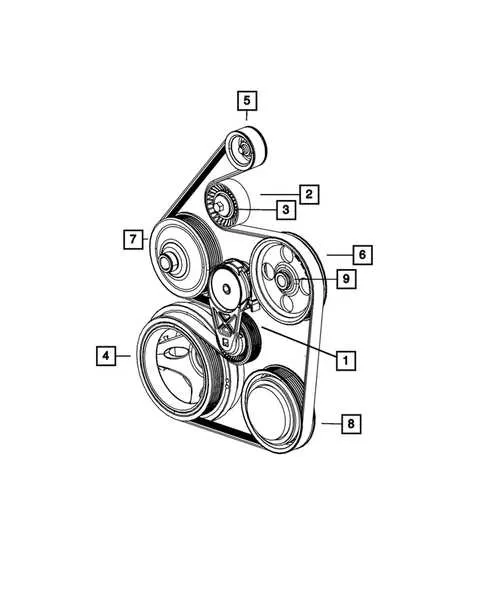

Refer to the specific diagram for the 5.7 Hemi model, which shows the exact path of the serpentine belt. Start from the crankshaft pulley and follow the belt’s path around the various pulleys and accessories. The belt should pass over the alternator, the water pump, and the power steering pulley, looping around the tensioner and idler pulleys as shown in the diagram.

Check the belt tension after installation. The tensioner should maintain proper tension without any slack or tightness. If the belt shows signs of wear, replace it immediately to avoid damage to the engine components.

Follow the diagram carefully, as incorrect routing can lead to excessive wear on the belt or failure of engine accessories. Always consult the manufacturer’s guide for specific details on the routing and maintenance schedules.

How to Interpret the 5.7 Hemi Serpentine Belt Diagram

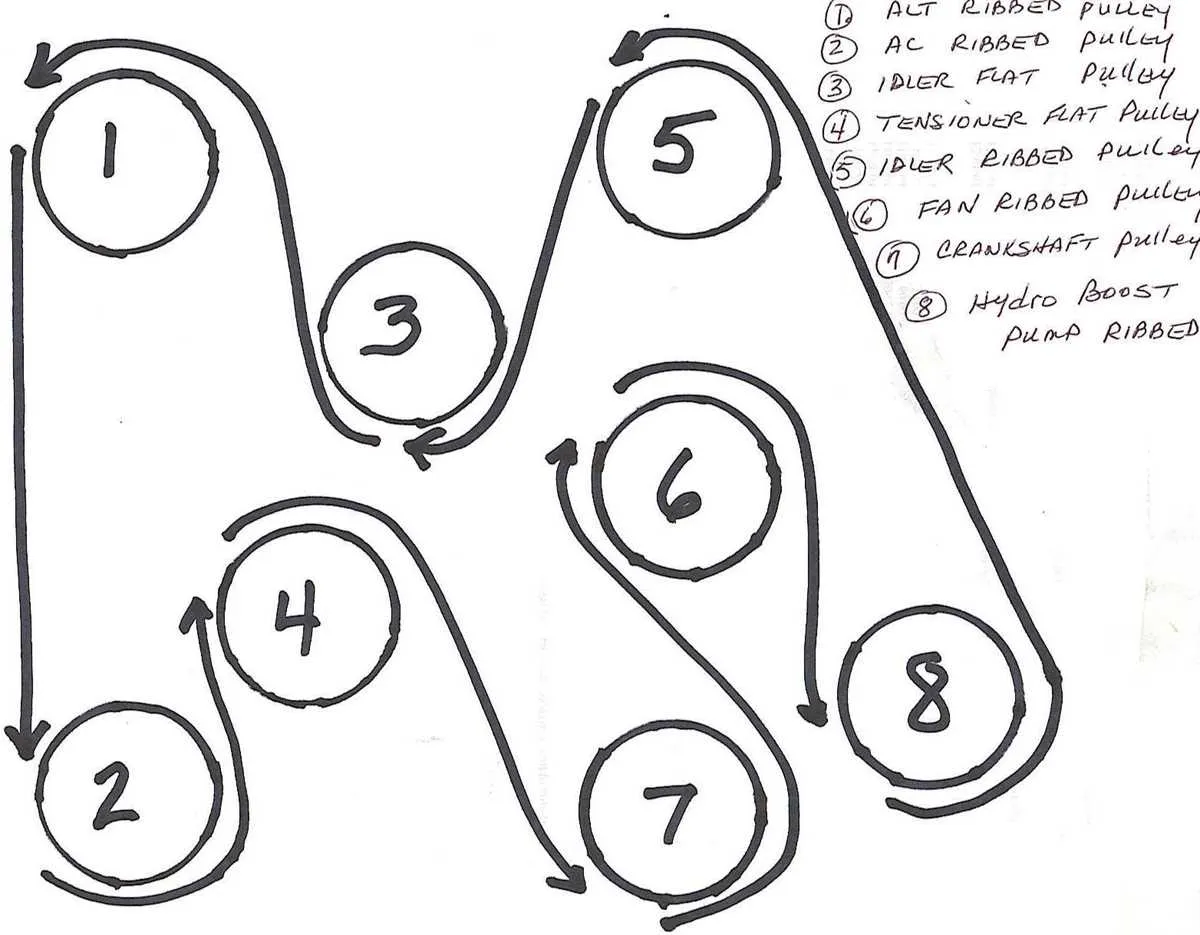

To interpret the 5.7 Hemi serpentine belt diagram correctly, begin by identifying the components. Look for the alternator, power steering pump, air conditioning compressor, and water pump on the diagram. These parts are connected by the serpentine belt and must be aligned as shown in the diagram for proper function.

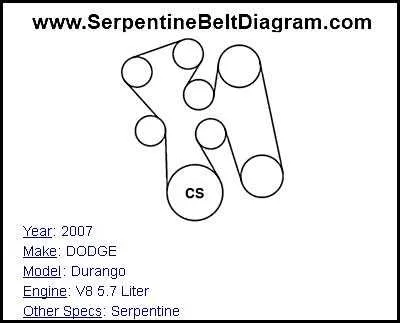

Next, focus on the routing direction indicated by the arrows. The diagram usually highlights the belt’s path around pulleys, ensuring proper tension and movement. Ensure the belt follows this route without crossing or misaligning the pulleys, which can lead to operational issues or wear on the components.

Pay attention to the tensioner placement, as it plays a key role in keeping the belt tight. The diagram should specify its exact position, typically near the top or bottom of the engine, where it maintains the required belt tension. Misadjustment here can cause slipping or premature wear of the belt.

Finally, check the belt’s routing around each pulley, especially the idler pulley and tensioner. These components guide the belt’s travel and keep it in place. If the diagram includes pulley sizes, note their order to ensure proper installation.

Steps to Correctly Install the Serpentine Belt on a 5.7 Hemi

Begin by ensuring that the engine is off and the keys are removed from the ignition. Disconnect the negative battery terminal to prevent any electrical issues while working.

Locate the serpentine belt tensioner. Use a wrench or socket to rotate it counterclockwise, which will release tension from the belt. Keep the tensioner held in place as you remove the old serpentine belt.

Examine the new belt and ensure it matches the old one in size and routing. Refer to the specific belt routing diagram for your 5.7 Hemi model to avoid errors during installation.

Start by placing the belt on the pulleys that are easiest to reach, following the correct path as indicated in the diagram. Ensure the belt is aligned properly on each pulley groove before proceeding.

Once the belt is mostly in place, rotate the tensioner back counterclockwise and slip the belt over the last pulley. Carefully release the tensioner to apply tension to the belt.

Double-check the belt to ensure it is seated correctly on all pulleys. Spin the belt manually to verify it moves smoothly without slipping or binding.

Reconnect the battery and start the engine. Listen for any unusual noises and observe the belt’s movement to confirm it operates correctly.

If everything is functioning smoothly, the installation is complete.

Common Problems with the Serpentine Belt on the 5.7 Hemi Engine

One of the most common issues with the 5.7 Hemi serpentine belt is premature wear. This often occurs due to high engine temperatures or exposure to oil and coolant leaks. A worn belt can lead to slippage, reducing the efficiency of the belt-driven components.

Misalignment of the serpentine belt is another frequent issue. Misalignment can be caused by a damaged or worn-out tensioner or pulley. If the belt isn’t running smoothly over the pulleys, it can cause excessive wear and tear, leading to further damage to the belt and other components.

Cracking or fraying along the edges of the serpentine belt indicates that it is nearing the end of its lifespan. This problem is typically the result of environmental factors such as heat, dirt, and friction. When this occurs, it’s important to replace the belt immediately to avoid the risk of it snapping while the engine is running.

One more issue is belt noise, which can be caused by a worn tensioner or damaged pulleys. If you hear squealing or whining noises, it’s crucial to inspect the tensioner and pulleys for wear. Ignoring these sounds could lead to more severe damage down the line.

Lastly, a slipping serpentine belt often results from an improper tension. This can happen if the tensioner is malfunctioning or if the belt has stretched over time. A loose belt can affect the performance of vital components such as the alternator, power steering pump, and air conditioning compressor.
