Gravely ZTX 52 Belt Diagram for Maintenance and Repair

For quick reference on how to replace or troubleshoot the belt system of your Gravely ZTX 52, start by reviewing the belt diagram. This diagram provides an accurate visual representation of how each belt interacts with the mower’s components, making the task of belt replacement straightforward.

Locate the diagram: The most reliable source for the belt diagram is the owner’s manual or the service manual of your Gravely ZTX 52. If you don’t have one, many manufacturers provide digital versions online. Knowing the exact routing of the belts ensures proper installation, so the mower operates efficiently after the repair.

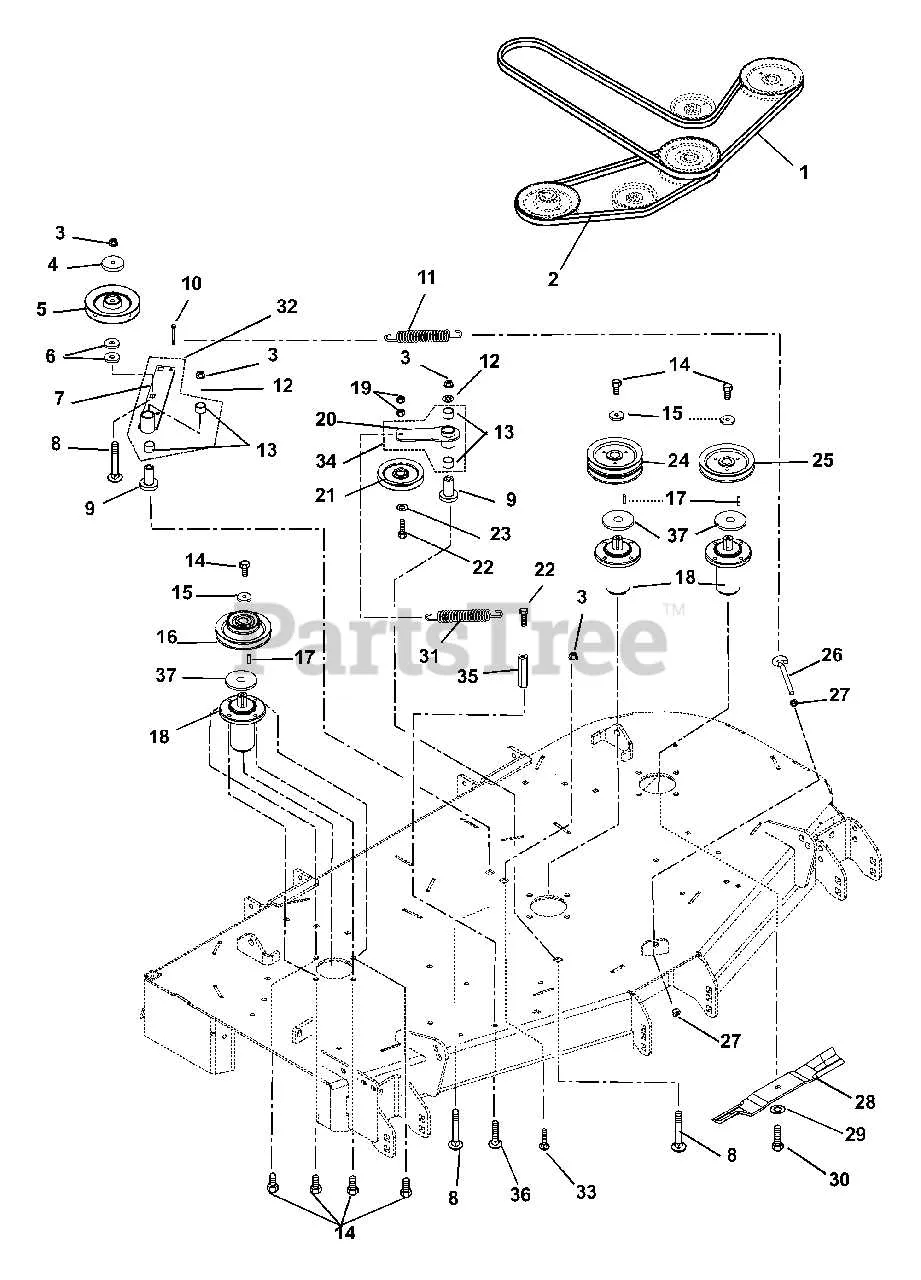

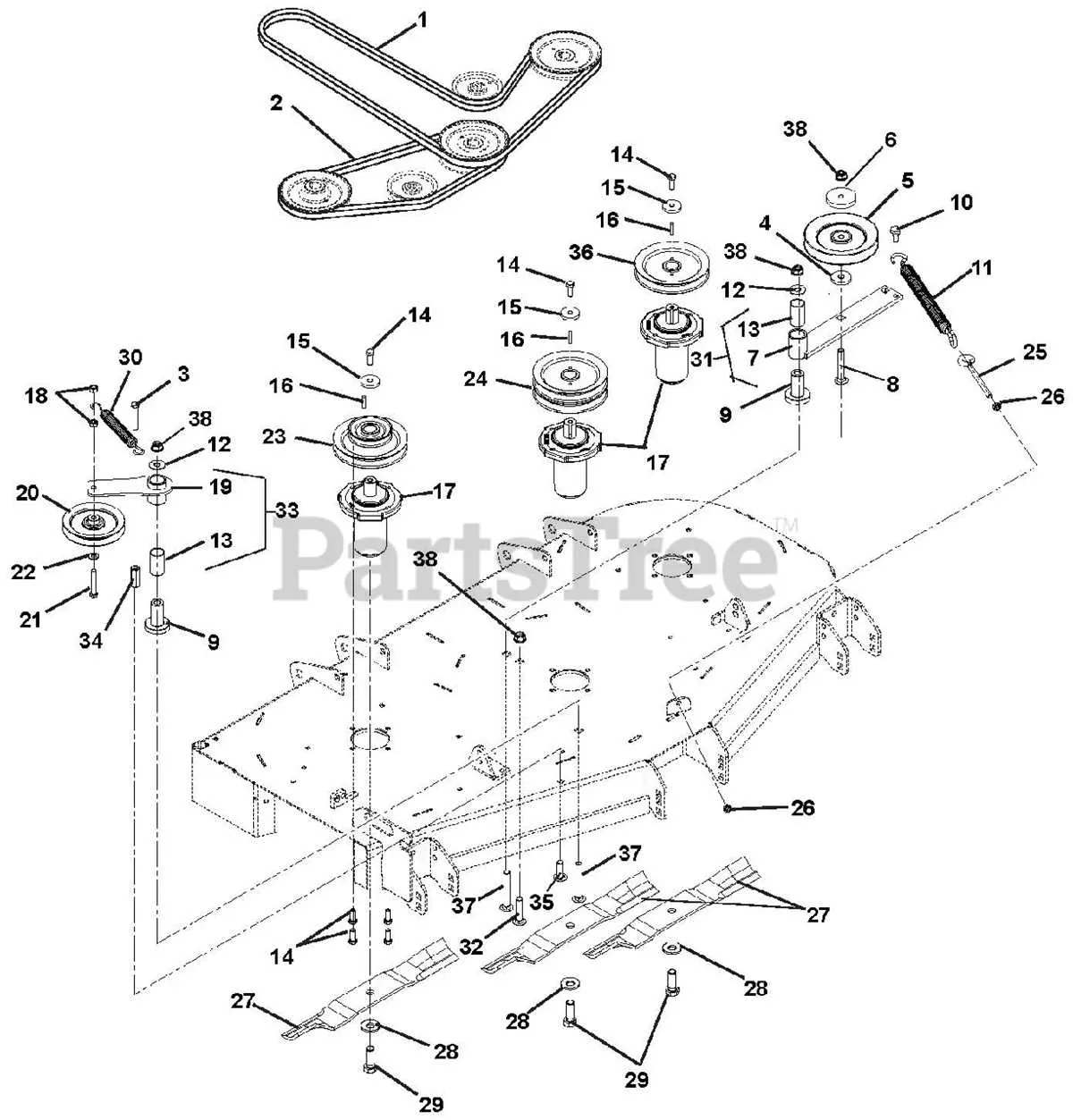

Key components to identify: The diagram will show the main drive belt, the deck belt, and the tensioner system. Pay attention to the path each belt follows, including where it loops around pulleys and spindles. Misrouting or improper tension can cause wear and reduce mower performance.

How to read the diagram: The diagram often uses color-coded lines to represent different belts, with arrows showing the direction of travel. Follow the belts’ paths closely, noting the pulley sizes and locations. Ensure all parts are aligned according to the diagram for smooth operation.

Double-check installation: After replacing the belts, take time to check each component’s alignment before operating the mower. A quick spin of the pulleys by hand can help identify any issues before you start the engine. Proper tension is key to keeping the belts from slipping or breaking prematurely.

Gravely ZTX 52 Belt Diagram: A Practical Guide

The Gravely ZTX 52 belt diagram serves as a reliable reference for anyone working on the mower’s drive system. To replace or maintain the belts, start by examining the diagram closely to identify the correct routing for each belt. Ensure that you have the right tools and replacement parts, including the correct belt size and type, as indicated in the manual.

First, locate the engine and deck belts in the diagram. The engine belt connects the engine’s pulley to the transmission system, while the deck belt powers the cutting blades. Pay attention to the tension settings shown in the diagram to avoid improper belt installation, which could lead to premature wear or malfunction.

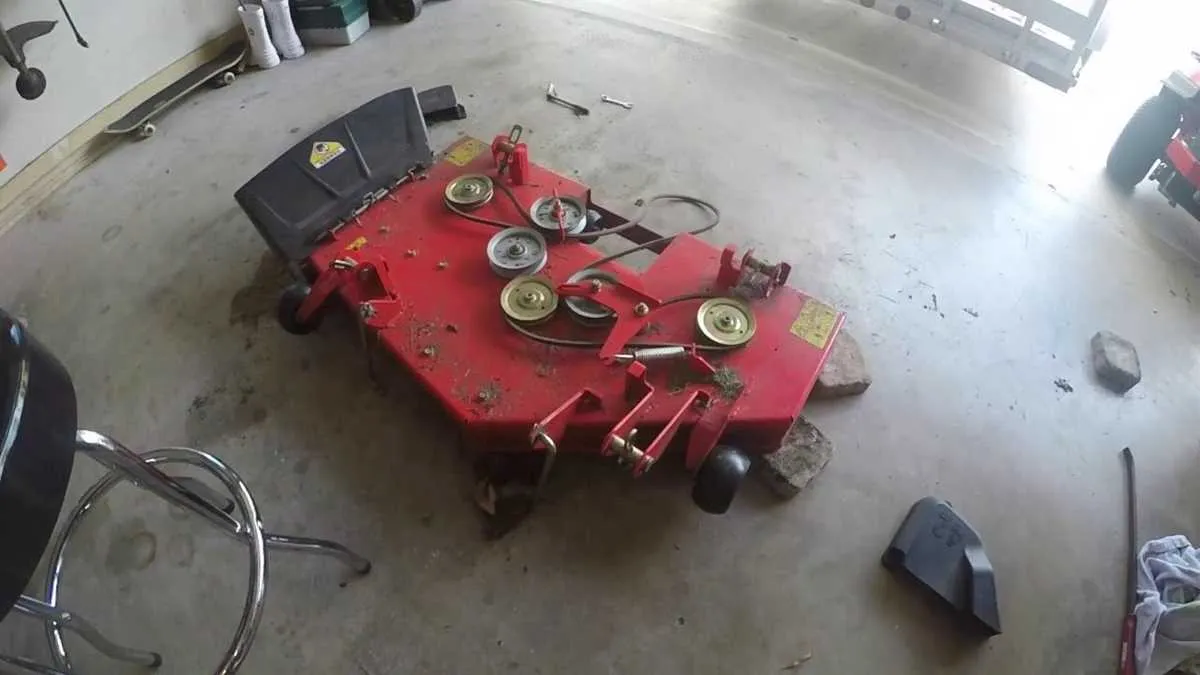

For the deck belt replacement, carefully remove the deck from the mower. This is usually done by disengaging the belt from the pulleys and lifting the deck off the mower chassis. Refer to the belt routing in the diagram to ensure proper installation. Misrouting the belt can cause it to slip or fail to engage the cutting blades properly.

After replacing the belts, double-check the alignment of the pulleys and tensioner. The belt should have just enough slack to allow for proper movement but should not be too loose. Ensure that the spring-loaded tensioner is functioning properly to maintain correct tension on the belts during operation.

When reassembling, make sure to follow the sequence outlined in the diagram. Start with securing the engine belt and then proceed to the deck belt installation. Afterward, test the mower by engaging the blades and checking for smooth operation. Any irregular noises or hesitation in blade movement should prompt a recheck of the belt installation.

By following the Gravely ZTX 52 belt diagram closely, you can ensure that your mower operates smoothly, efficiently, and with minimal maintenance requirements. Regular inspections and belt replacements will extend the life of your equipment and improve its performance.

Understanding the Belt Layout for Optimal Performance

For optimal performance of the Gravely ZTX 52, it’s crucial to maintain an accurate and well-aligned belt layout. Incorrect routing or misalignment can lead to poor performance, increased wear, or even system failure.

The first step in ensuring proper belt configuration is to follow the manufacturer’s belt diagram. Any deviation from this layout can affect tension and cause the mower to operate inefficiently.

Make sure the belt runs smoothly along the pulleys and is not twisted. When replacing the belt, verify that each pulley is aligned correctly and that the belt is routed through the proper channels. Double-check the direction of rotation on each pulley to avoid unnecessary strain.

Regularly inspect the belt for signs of wear, such as cracking or fraying. A worn-out belt can slip, leading to decreased power transmission and poor cutting performance. If the belt shows signs of wear, replace it immediately to avoid further damage to the system.

Keep the tension on the belt at the recommended level. Too much slack or excessive tension can both lead to issues like slippage or premature wear. Use the tension adjuster to make fine adjustments, ensuring the belt remains snug but not overly tight.

Lastly, after replacing or adjusting the belt, run the mower at low speed initially to check for any unusual noise or vibrations. This allows you to catch any potential issues before they escalate.

Step-by-Step Belt Replacement Procedure for the ZTX 52

Begin by ensuring the engine is off and the machine is on a flat, stable surface. Disconnect the spark plug wire to prevent accidental starts during the procedure.

Next, remove the deck for better access. Use a wrench to detach the deck, loosening the bolts on both sides. Once the deck is free, set it aside in a safe location.

Locate the belt covers. These are usually secured with screws. Remove the screws and gently lift the covers off. This will expose the old belt for replacement.

Examine the belt’s routing path before removing it. Take a picture or make a note of how the belt is threaded through the pulleys. This reference will help ensure correct installation of the new belt.

Release the tension from the belt by loosening the tensioner pulley. You may need to use a wrench or socket to relieve the pressure. Once the tension is off, slip the belt off the pulleys and discard it.

Install the new belt by following the same routing pattern. Start by threading it around the primary pulleys. Pay attention to the alignment as you go. Ensure the belt is properly seated on each pulley and tensioner.

Reapply tension to the new belt by adjusting the tensioner pulley. Check that the belt is snug but not overly tight, as this can lead to premature wear.

Once the belt is in place, replace the belt covers and secure them with screws. Reattach the mower deck to the frame, tightening the bolts to the proper torque specification.

Reconnect the spark plug wire and test the machine. Start the engine and engage the drive to check the belt’s function. Ensure everything runs smoothly without unusual noise or slippage.

Common Belt Issues and Troubleshooting for the Gravely ZTX 52

If your Gravely ZTX 52 is experiencing belt issues, start by checking for visible signs of wear or damage on the belt. Cracks, fraying, or missing chunks are clear indicators that the belt needs replacement. If the belt is slipping or not engaging properly, inspect the tensioner and pulleys for proper alignment. Misalignment can cause uneven wear or prevent the belt from gripping efficiently.

Another issue may be belt slack. If the belt appears loose, check the tensioner spring and adjust its tension if necessary. A loose belt can result in poor performance and even damage the mower’s drive system. Over-tightening the belt can also cause it to wear out prematurely, so aim for a balanced tension level.

In cases where the mower is making unusual noises, it’s possible that debris is caught in the belt area. Clear out any grass or dirt that might be affecting the pulleys or belt. Ensure the pulleys are spinning freely and there’s no obstruction or debris preventing smooth motion.

For consistent performance, inspect the condition of the pulleys themselves. Wear or rust can cause them to lose grip on the belt, leading to slippage or irregular movement. Replace any pulleys that appear damaged or rusted to ensure smooth operation.

If the belt continues to slip even after addressing the above issues, the problem may lie with the belt’s material quality or age. A worn-out belt will lose its ability to maintain proper friction, making it essential to replace it with a new one that meets the manufacturer’s specifications.

By staying on top of these maintenance steps, you’ll prolong the life of the ZTX 52’s belt system and ensure optimal mower performance. Regularly inspect the belt, pulleys, and related components to prevent minor issues from becoming bigger problems down the road.
