Gravely ZT XL 52 Drive Belt Diagram and Routing Guide for Accurate Maintenance
Check the drive belt tension regularly to maintain consistent mower performance. Incorrect tension can lead to slipping or accelerated wear, impacting the cutting efficiency and transmission lifespan. Use a reliable gauge or follow the manufacturer’s recommended deflection method for accurate adjustment.

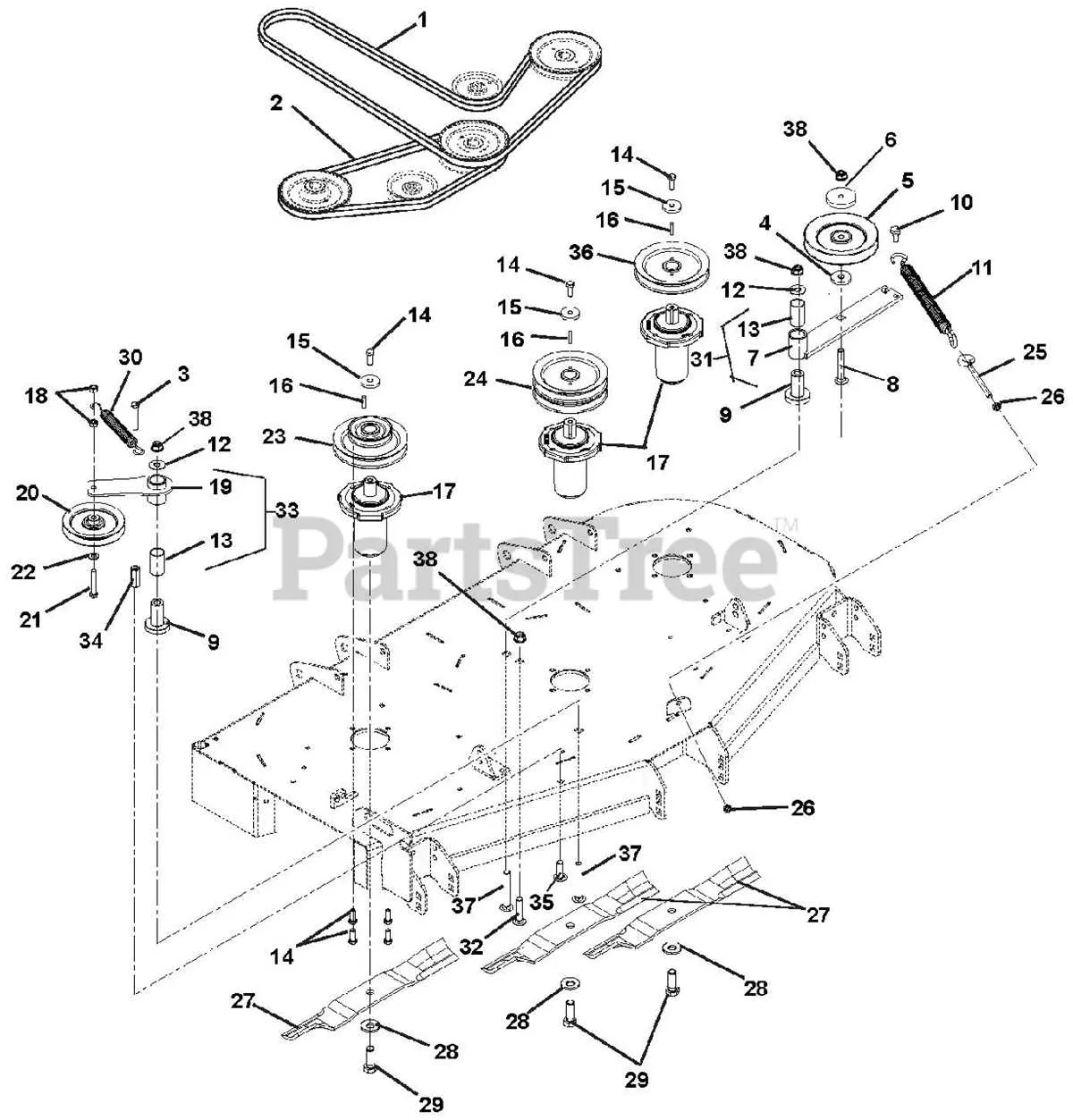

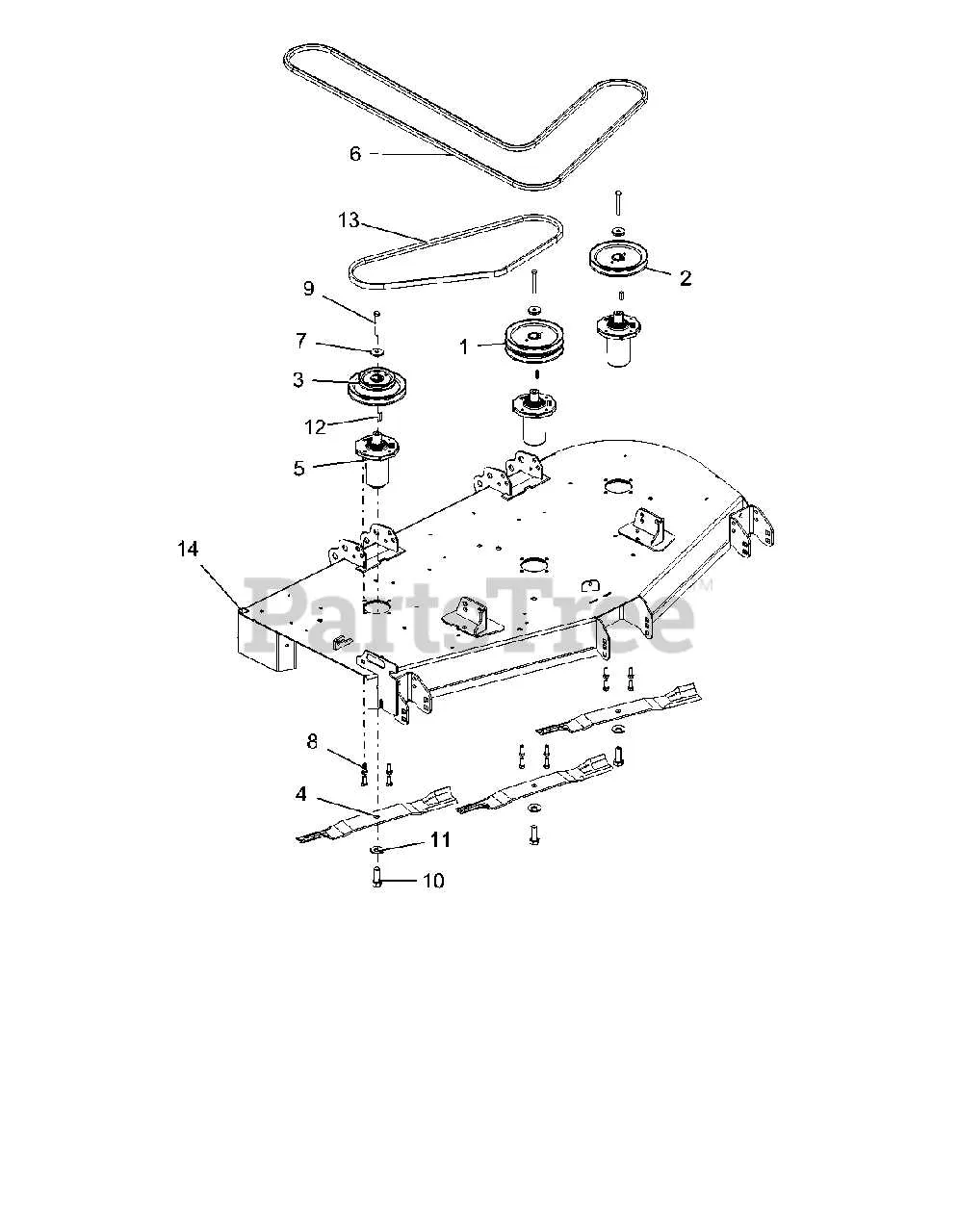

Identify all pulleys and routing paths using the Gravely ZT XL 52 drive belt diagram before attempting removal or replacement. Clear labeling of each pulley helps prevent misrouting, which can cause belt damage or mower malfunction. Keep the diagram accessible during any maintenance procedure.
Inspect the belt for cracks, fraying, or glazing at least every 25 operating hours. Replace the belt immediately if any damage is visible, as continued use may lead to sudden failure. Applying light lubricant to idler pulleys can reduce friction, but avoid over-lubricating to prevent belt slippage.
Align the mower deck and ensure all components are clean and free of debris. Proper alignment and cleanliness extend belt life and maintain consistent cutting quality. Tighten all mounting bolts and check for pulley wear to avoid uneven belt tracking and vibrations.
Comprehensive Guide to Gravely ZT XL 52 Drive Belt Diagram for Proper Maintenance
Inspect the drive belt routing on the Gravely ZT XL 52 before starting any maintenance. Correct alignment prevents slippage and prolongs belt lifespan.
Follow these steps to verify proper belt installation and tension:
- Locate the main engine pulley, idler pulleys, and mower deck pulleys according to the manufacturer’s diagram.
- Ensure the belt sits fully within each pulley groove without overlapping edges or twisting.
- Check tension by pressing the belt midway between pulleys; it should deflect approximately ½ inch under moderate pressure.
- Replace any worn or cracked belts immediately to avoid sudden failure during operation.
Regular inspection intervals of every 50 operating hours help maintain consistent performance. Dirt and debris accumulation on pulleys can accelerate wear, so clean all pulley surfaces during each inspection.
For deck engagement, verify that the belt properly engages the deck clutch pulley without misalignment. Misrouted belts can damage bearings and reduce cutting efficiency.
- Shut off the engine and disconnect the spark plug before handling the belt.
- Compare the current belt routing with the manufacturer’s diagram to detect any discrepancies.
- Remove tension using the idler pulley lever and carefully lift the belt off each pulley.
- Install the new belt following the exact routing path shown in the diagram, ensuring proper groove alignment on all pulleys.
- Reapply tension and rotate the pulleys manually to confirm smooth operation before starting the engine.
Maintaining accurate belt routing and tension reduces engine strain, prevents mower deck damage, and ensures reliable cutting performance throughout the season.
Understanding the Layout and Routing of the ZT XL 52 Drive Belt

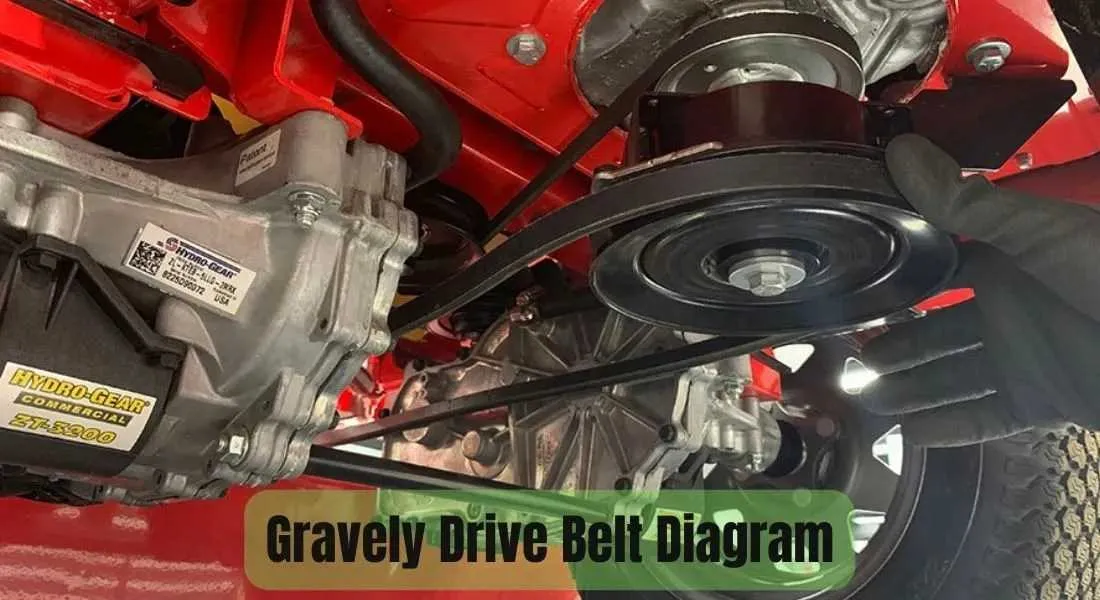

Position the mower on a flat surface and engage the parking brake before inspecting or adjusting the drive belt. The ZT XL 52 uses a dual-pulley system with a tensioner located near the front of the deck. Route the belt around the engine pulley first, ensuring it sits correctly in the pulley grooves to prevent slipping.
Guide the belt through the idler pulley, keeping the ribbed side against the pulley surface. Follow the routing path along the transmission input pulley, making sure it aligns without twists. The belt then moves over the deck drive pulley, which transfers power to the cutting blades.
Maintain proper tension by adjusting the idler pulley according to the manufacturer’s specifications. Check that the belt sits evenly across all pulleys and confirm there is no slack that could cause skipping. Reinspect alignment after rotating the deck manually to verify smooth movement.
Regularly clean debris from pulleys and belt surfaces. Inspect for cracks, fraying, or glazing, replacing the belt immediately if any damage appears. Correct routing and tension extend belt life and ensure consistent mower performance without unexpected slippage or wear.
Identifying Common Wear Points and Signs of Belt Damage
Inspect the drive belt on your Gravely ZT XL 52 regularly for visible wear, particularly along the ribbed side that contacts pulleys. Check for cracks, fraying, or missing chunks along the edges, which often indicate high-stress areas near tensioners and idler pulleys.
Examine the smooth side of the belt for glazing or shiny patches, as these are signs of slippage or overheating. Look closely at areas where the belt wraps around tight-radius pulleys; these spots are prone to accelerated wear and may develop micro-tears or edge separation.
Listen for unusual sounds during operation. A squealing or chirping noise often points to misalignment, contamination, or a partially worn belt. Check for uneven tension along the belt’s length; areas that feel looser or stiffer than others can signal internal breakdown of the belt material.
Inspect contact points with tensioners and pulleys for rubber residue or dust accumulation, which indicates belt degradation. Replace the belt immediately if you notice deep cracks across multiple ribs, significant fraying at edges, or consistent slippage during operation, as continued use can damage pulleys and reduce mower performance.
Step-by-Step Replacement and Adjustment Procedures for the Drive Belt
Begin by disengaging the mower’s parking brake and removing the key from the ignition to prevent accidental startup. Lift the mower deck and secure it in the raised position using the deck lock or support pins.
Locate the tensioning pulley on the ZT XL 52. Loosen the mounting bolt and rotate the pulley to release tension on the drive belt. Carefully slide the belt off the pulleys, noting its routing for accurate reinstallation.
Inspect all pulleys for wear, cracks, or debris before installing the new belt. Replace any damaged components to ensure smooth operation. Position the new belt according to the diagram, starting with the crankshaft pulley, then routing it over the idler and deck pulleys.
Reapply tension by rotating the tensioning pulley and securing the mounting bolt. Check that the belt sits correctly in all pulley grooves and has uniform tension across its entire length.
Manually rotate the drive system by hand to verify smooth movement and proper belt alignment. Lower the deck and start the mower briefly to ensure the belt engages correctly and operates quietly without slipping.
Recheck the tension after the initial run and make fine adjustments if necessary. Confirm that all bolts and components are tightened to specification to prevent premature wear or belt failure.
