Gravely ZT HD 60 Belt Diagram and Maintenance Guide for Smooth Operation
The belt diagram for the Gravely ZT HD 60 is a vital reference for anyone maintaining or repairing this powerful lawn mower. Proper understanding of the belt routing ensures smooth operation and prevents unnecessary wear on key components.
Start by confirming the correct belt size for your model, as variations may exist between different years or configurations. The belt should loop around the engine pulley, idler pulleys, and deck spindles in a precise manner, ensuring proper tension and function. Keep an eye on the direction of the belt’s routing to avoid installation errors that could damage the system.
Next, ensure that all pulleys and components are in good condition before replacing or adjusting the belt. Look for signs of wear such as cracking or fraying, which can indicate the need for a replacement. Regular inspections, including checking pulley alignment, will extend the lifespan of your mower and improve overall performance.
Lastly, after replacing the belt, test the system to confirm it operates smoothly. Listen for unusual sounds, and check for any slipping or misalignment. Performing these checks can help catch potential issues before they lead to more serious problems. Ensure the belt is properly tensioned for optimal performance during use.

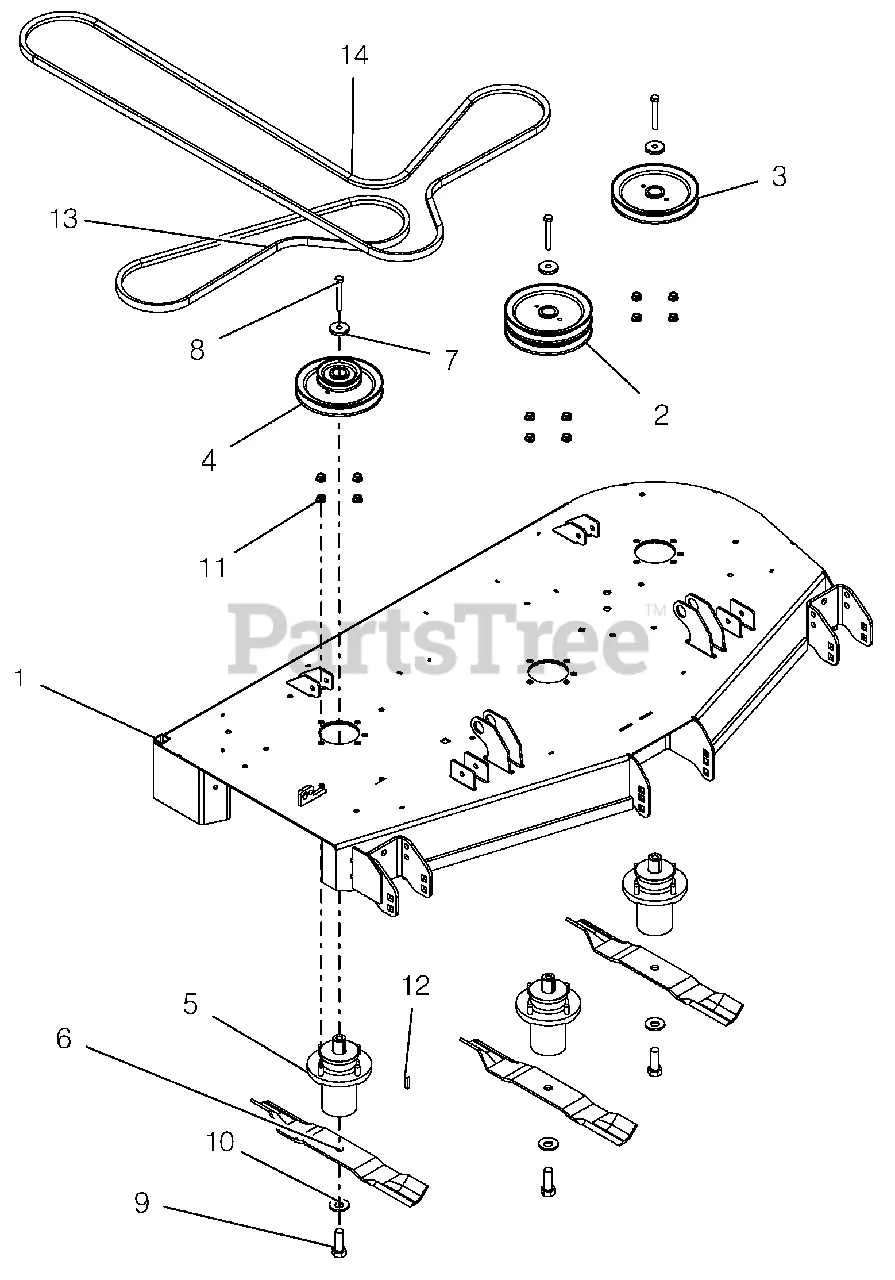

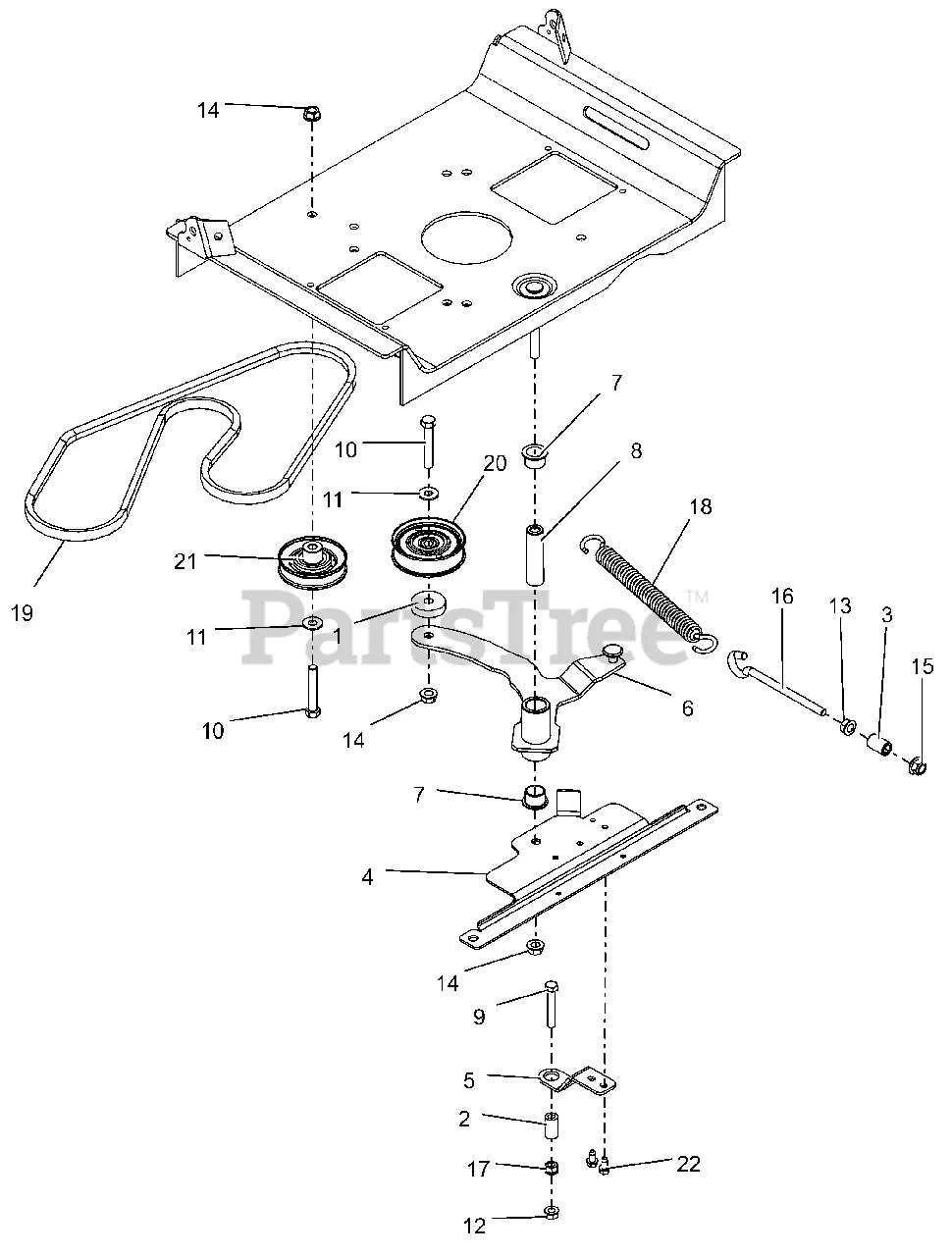

Gravely ZT HD 60 Belt Diagram
To replace or adjust the belt on your Gravely ZT HD 60, it’s crucial to follow the correct belt routing based on the diagram. The drive belt runs from the engine pulley, around the deck pulleys, and connects to the transmission. Ensure the belt is routed properly through all idlers and pulleys to maintain the correct tension.
Start by locating the engine pulley at the front of the mower. The belt should loop around this pulley and pass over the deck pulleys. Make sure it engages the transmission pulley properly. Check that the idlers are in the correct position for optimal tension. If the belt is loose or misaligned, adjust the tensioner accordingly.
If replacing the belt, verify that you are using the correct size. Use the diagram as a reference to confirm proper routing. Incorrect routing can lead to premature wear and may prevent the mower from working efficiently.
When reassembling, check for any obstructions or debris that could affect the smooth operation of the belt. Once in place, test the mower to ensure the belt runs smoothly and there’s no slipping.
Identifying Belt Components in the Gravely ZT HD 60
Start by locating the drive belt and understanding its path through the system. The main components include the primary drive belt, idler pulleys, and the deck pulleys. The primary drive belt connects the engine’s drive pulley to the mower deck pulleys, transferring power to the blades. Make sure the belt is properly tensioned to ensure smooth operation and avoid slippage.
The idler pulleys control the belt tension. They are adjustable, allowing for precise tightening or loosening to maintain optimal tension. Check the pulleys for any signs of wear, as they can affect the belt’s efficiency if they become misaligned or damaged.
The deck pulleys are attached to the mower deck and are responsible for rotating the blades. Inspect these pulleys for any buildup of debris or signs of rust. Keeping them clean ensures smooth blade rotation and reduces strain on the belt system.
Finally, always verify the condition of the belt itself. Over time, the belt can stretch or wear out, leading to reduced performance or even failure. Replace any worn belts promptly to avoid further damage to the system. Regular maintenance of these components will keep the Gravely ZT HD 60 operating efficiently.
Step-by-Step Instructions for Belt Replacement on the Gravely ZT HD 60
To replace the belt on your Gravely ZT HD 60, follow these steps to ensure a smooth and efficient process:
- Prepare the Equipment: Ensure the mower is off and the engine is cool. Disconnect the battery to prevent accidental starting.
- Lift the Mower: Use a jack or mower lift to elevate the front of the mower. This will provide better access to the deck and belts.
- Remove the Deck: Loosen the deck bolts and remove the deck from the mower. This step is necessary to access the drive system.
- Locate the Belt: Identify the belt routing. Use the belt diagram for the ZT HD 60 for reference. Take note of the position of the belt on the pulleys and any tensioning devices.
- Loosen the Tensioner: Use a wrench to relieve tension from the idler pulley. This will make it easier to remove the old belt.
- Remove the Old Belt: Carefully slide the old belt off the pulleys, starting from the largest pulley and working your way through the system. Keep track of how the belt is routed for reinstallation.
- Install the New Belt: Start by routing the new belt over the pulleys, following the belt diagram exactly. Ensure the belt is properly aligned and seated in each pulley groove.
- Reattach the Deck: After the new belt is in place, reattach the mower deck and tighten the bolts securely.
- Test the Mower: Reconnect the battery and lower the mower. Start the engine and check for proper belt operation. Look for any unusual noises or movement.
By following these steps, you will ensure the belt replacement on your Gravely ZT HD 60 is done properly, keeping your mower running smoothly. Make sure to replace the belt with the recommended part for optimal performance.
Troubleshooting Common Belt Issues in Gravely ZT HD 60
Check for loose belts first. If the drive belt is too loose, it can slip, causing poor performance. Adjust the tension by tightening the belt according to the manual’s instructions.
Inspect the belt for signs of wear. Cracks, frays, or uneven surface patterns often indicate that the belt needs replacing. A damaged belt should be swapped out immediately to avoid further damage.
Look for obstructions in the belt path. Twigs, grass clippings, or debris can interfere with smooth belt operation. Clean the area and ensure nothing is blocking the movement.
Examine the pulleys. Damaged or misaligned pulleys can cause the belt to wear prematurely. Check for wear and replace any faulty pulleys to maintain optimal belt performance.
If the belt continues to slip, inspect the clutch. A malfunctioning clutch can fail to provide enough force to keep the belt taut. Test the clutch and replace it if it shows signs of malfunction.
For persistent issues, verify the alignment of the belt. Misalignment often leads to uneven tension, causing premature wear. Adjust the components to ensure the belt runs straight.
Lastly, check the belt routing. An incorrectly routed belt will not operate as intended, leading to damage. Refer to the belt diagram and re-route the belt if necessary.
