Gravely ZT 60HD Belt Diagram for Maintenance and Repair Guide
Understanding the belt system of the Gravely ZT 60HD is key to maintaining optimal performance and preventing unnecessary wear. The belt diagram for this model provides a clear, visual map of how the various belts fit into the machine’s mechanism. This guide will walk you through the belt configuration, ensuring smooth operation and extending the life of your equipment.
Start by locating the drive and deck belts in the diagram. These are the heart of the mower’s power transmission. Follow the belt routing to ensure it is properly installed without twists or slack. Pay close attention to the tensioners that control belt tightness. Incorrect tension can lead to premature wear and even belt failure, causing costly repairs.
Next, check for any signs of wear on the belts themselves. Even with proper routing, belts can degrade over time due to environmental factors or extended use. Replace any frayed or cracked belts immediately to prevent further damage. Use the provided belt diagram to identify the specific replacement parts needed for your model. A quick reference to this diagram can save you time and prevent mistakes during the repair process.
Lastly, always double-check the belt alignment after installation. Misaligned belts can cause improper friction, leading to overheating and inefficient operation. By following the diagram and checking each belt’s condition, you’ll keep your Gravely ZT 60HD running smoothly for years to come.

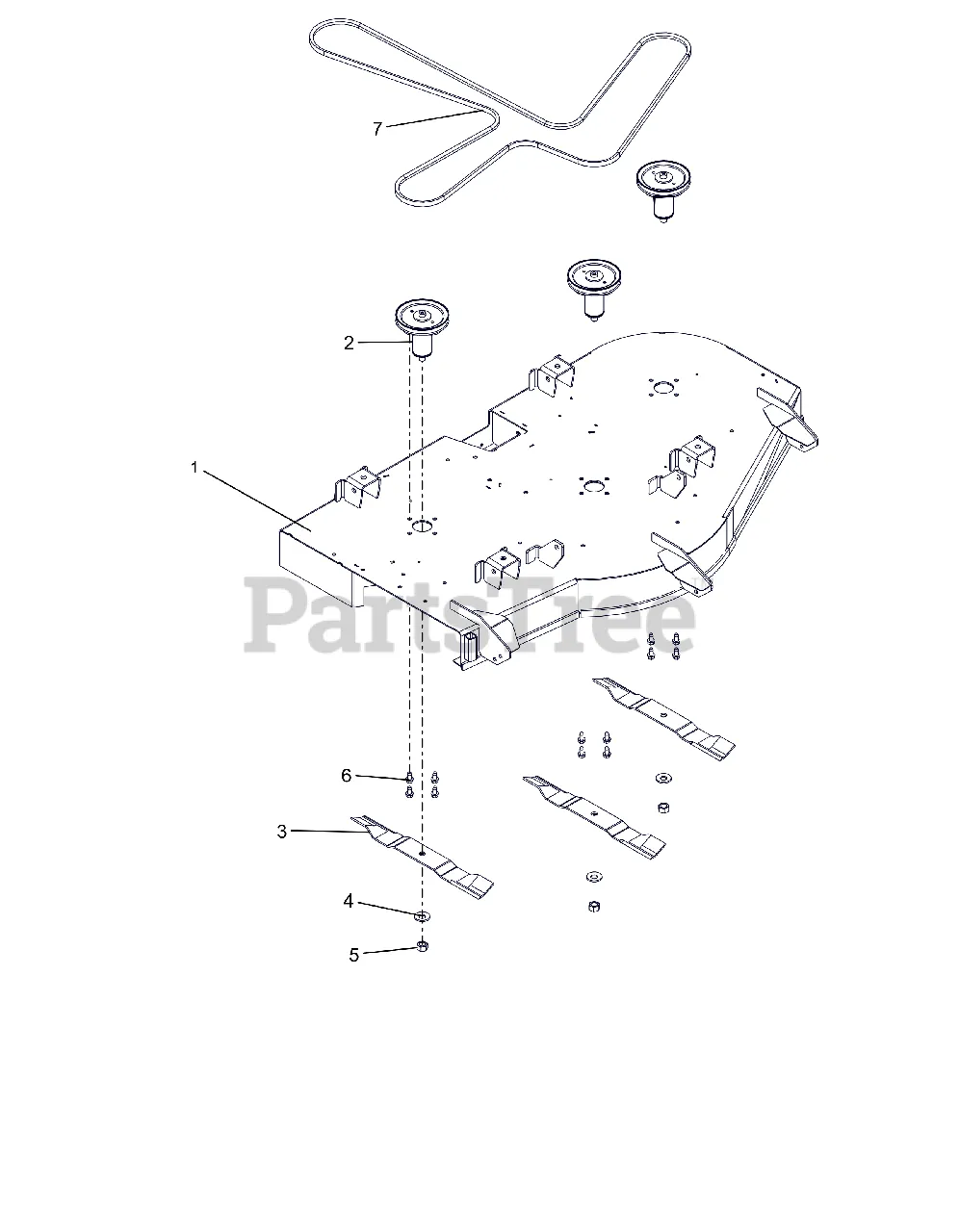

Gravely ZT 60HD Belt Diagram
To replace or troubleshoot the belt on a Gravely ZT 60HD, it’s crucial to have an accurate belt diagram. Here’s a step-by-step guide to understanding the layout:
- The primary drive belt connects the engine pulley to the transmission pulleys. This belt is responsible for power transfer from the engine to the wheels.
- The deck drive belt connects the engine to the mower deck, controlling the rotation of the blades. This belt needs to be tensioned properly to avoid slipping or wear.
- There are also secondary belts that may control additional functions, like the PTO (Power Take-Off) mechanism for activating the mower deck.
Here’s the order in which the belts run:
- Start by examining the engine pulley at the front of the machine. It serves as the central point where the primary drive belt attaches.
- The drive belt moves to the transmission pulleys on either side of the machine. The path should run under the tensioner idlers, ensuring the belt maintains the proper tightness.
- The deck drive belt runs from the engine pulley to the mower deck pulleys. This path is generally the most straightforward but can be challenging if the deck is obstructed by grass or dirt build-up.
- Ensure that all tensioners are adjusted properly to maintain the correct belt slack and prevent excessive wear.
If you’re replacing the belts, always double-check the part numbers and belt length. This ensures a snug fit and proper operation. Keep a maintenance log to track when belts were last replaced–this helps avoid premature failure.
For troubleshooting, inspect the belts for visible wear, cracks, or glazing. If you notice any issues, it’s best to replace the belts immediately. Regular cleaning and belt tension adjustments will extend the lifespan of your ZT 60HD.
How to Identify the Correct Belt Routing for Gravely ZT 60HD
Check the belt diagram located in the user manual or on the machine itself. It shows the exact path of the drive belts, ensuring proper alignment. Start by identifying the main drive belt, which connects the engine pulley to the transmission pulley.
Next, follow the routing of the smaller belts. The idler pulleys should be positioned according to the diagram, ensuring they maintain proper tension and prevent slippage. Make sure each belt is correctly threaded over the pulleys without twisting.
For the ZT 60HD, ensure the belt routing follows the specific pattern designed for optimal performance. Any deviations from the recommended routing can lead to belt wear, slippage, or damage to other components.
If the diagram is unavailable, visually inspect the routing by looking at the pulleys and comparing their placement with the belt’s path. Make sure there is no slack, and the belt maintains constant contact with the pulleys for smooth operation.
Double-check that the belt is properly tensioned. A loose belt can slip or fail to drive the mower efficiently, while a tight belt can cause excessive wear on the components. The correct tension ensures smooth and reliable operation of the mower.
Step-by-Step Guide to Replacing the Belt on a Gravely ZT 60HD
First, disconnect the battery to ensure safety while working with the mower. Use a wrench to remove the negative cable from the battery terminal.
Next, elevate the mower by lifting the front end using a jack. This will give you the clearance needed to access the belt area more easily.
Locate the belt cover on the mower. Use a socket wrench to remove the bolts securing the cover, and then take it off to expose the belt system.
Examine the old belt for any damage or signs of wear. It’s helpful to make a note of how the belt is routed around the pulleys before removing it. This will help you during reinstallation.

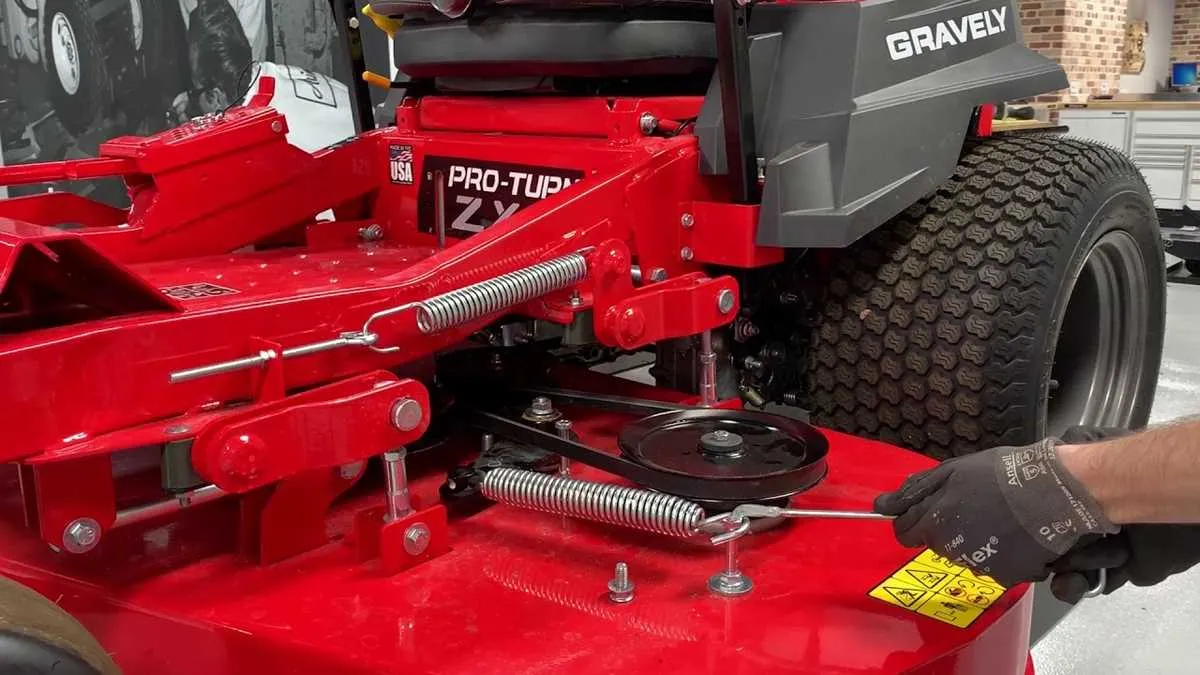

Release the tension on the belt by loosening the tensioner pulley. Use a wrench to rotate the pulley arm in the opposite direction to relieve tension. Once the tension is off, slide the belt off the pulleys.
Before installing the new belt, compare it to the old one to ensure the correct size and type. Route the new belt over the pulleys as per the routing diagram you noted earlier.
Once the belt is properly routed, reapply tension by adjusting the tensioner pulley. Ensure the belt is securely in place and there’s no slack.
Reattach the belt cover, securing it with the bolts you removed earlier. Double-check that all components are back in place and tightened properly.
Lower the mower back to the ground and reconnect the battery. Test the mower by running it briefly to ensure the belt is functioning correctly without any unusual noises or issues.
If everything runs smoothly, you’ve successfully replaced the belt on your Gravely ZT 60HD. Regular maintenance checks will help extend the life of your new belt.
Troubleshooting Common Belt Issues on the Gravely ZT 60HD
Check for proper tension if the belt slips or makes noise during operation. If the tension is too loose, adjust the tensioner spring or replace it if it’s worn. A loose belt will not transfer power effectively, leading to sluggish performance or uneven cutting.
Inspect the belt for any visible signs of wear, cracks, or fraying. A damaged belt must be replaced immediately to prevent further damage to the mower’s drive system. Always use the manufacturer’s recommended belt type to avoid compatibility issues.
If the belt keeps coming off, examine the pulleys for misalignment or damage. Misaligned pulleys can cause the belt to slip off during use. Ensure all pulleys are seated correctly and check for any debris that may obstruct their movement.
For belts that overheat, check for excessive friction. This can be caused by worn pulleys or a misaligned deck. Ensure that all components are clean, lubricated, and in good condition. If overheating persists, inspect the drive system for potential damage or wear.
Check the idler pulleys and bearings for proper function. A seized bearing can prevent the belt from running smoothly, leading to slipping or wear. Replace any faulty bearings to keep the belt operating efficiently.
