Gravely ZT 60 HD Belt Diagram and Maintenance Guide

The Gravely ZT 60 HD lawn mower uses a specific belt configuration to drive its cutting blades and wheels efficiently. Understanding the belt diagram is key for performing proper maintenance and making sure the mower operates smoothly. If you’re working on your mower, this diagram serves as the blueprint for reassembly and troubleshooting any belt-related issues.

When replacing or inspecting belts, be sure to follow the diagram closely. Each component is arranged in a precise order to ensure optimal performance and reduce wear. The belt system, including the drive belt, deck belt, and idler pulleys, plays a pivotal role in transferring power from the engine to the cutting blades and wheels. Misalignment or incorrect installation can cause excessive wear or even failure of the belts.

Before replacing a belt, always check for any signs of damage, such as fraying or stretching. The belt diagram indicates the correct path each belt should take, which is crucial for preventing issues down the road. If you ever find yourself confused about the installation or maintenance, referencing the belt diagram will ensure everything is in the right place, helping you avoid costly repairs or replacements.

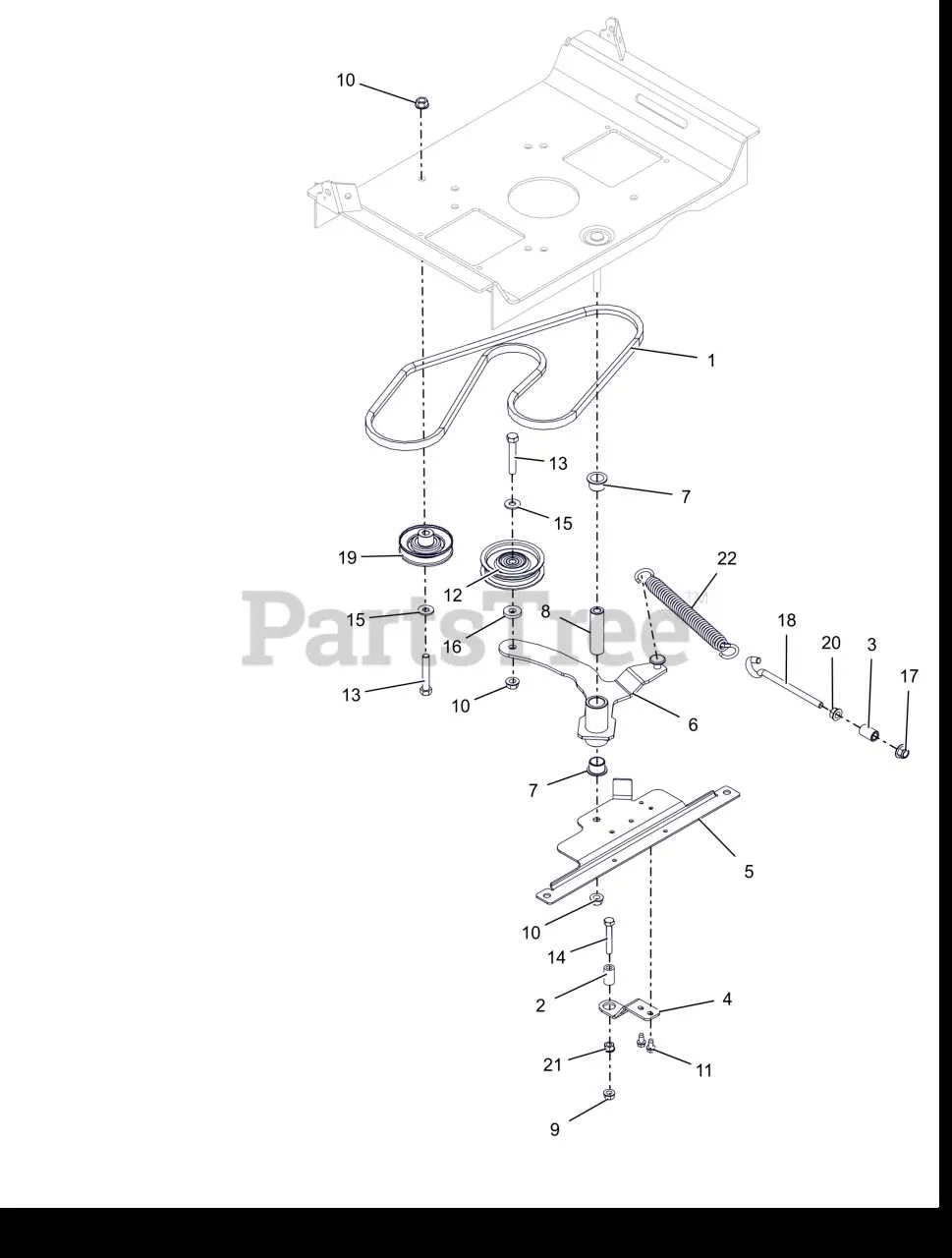

Gravely ZT 60 HD Belt Diagram

For smooth operation of your Gravely ZT 60 HD, understanding the belt system layout is key. A well-maintained belt ensures the mower runs efficiently, reducing wear and tear on critical components.

The belt diagram is crucial when performing maintenance or replacing the drive belts. Make sure you follow the path of the belt exactly as shown to avoid misalignment or tension issues.

Here’s a basic breakdown of the primary belts in the ZT 60 HD:

• Main Drive Belt: Connects the engine to the transmission, transferring power to drive the wheels.
• Deck Drive Belt: Runs from the engine to the deck, powering the mower blades.
• Idler Pulley Belt: Maintains tension on the drive belts, ensuring consistent operation of both drive and deck belts.
• Transmission Belt: Powers the transmission, allowing for variable speed control while mowing.

Always check belt tension during routine inspections. Loose or overly tight belts can cause inefficient operation and premature wear. Keep the pulleys clean, as dirt and debris can cause slippage, which in turn stresses the belts.

When replacing belts, ensure you match the size and routing of the original setup. Incorrect installation can lead to severe mechanical issues or even damage to the mower.

For precise installation, refer to the manufacturer’s service manual. A correct understanding of the belt routing and tensioning process will help keep your ZT 60 HD performing at its best.

Identifying the Key Components of the Gravely ZT 60 HD Belt System

The Gravely ZT 60 HD belt system relies on several key components that work together to ensure smooth operation. The primary elements include the drive belt, idler pulleys, tension springs, and the engine pulley. Understanding the role of each part helps with troubleshooting and maintenance.

The drive belt is the heart of the system, transferring power from the engine to the transmission. It is essential to inspect for wear, cracks, or stretching, as these can affect performance. The belt should have adequate tension, which is adjusted by the idler pulleys and tension springs. These components maintain proper belt tension and alignment, ensuring that the belt operates smoothly without slipping.

The engine pulley plays a critical role in driving the belt. Over time, it can wear down or become misaligned, causing issues with belt movement. Regular checks of the pulley for wear or misalignment can prevent more serious problems.

The idler pulleys guide the belt along its path, preventing it from veering off track. They should be regularly lubricated and checked for any signs of damage. A faulty idler pulley can cause uneven wear on the belt, leading to reduced efficiency and potential breakdowns.

Tension springs are responsible for maintaining the correct tension on the belt. Over time, springs may lose their effectiveness and require replacement. If the tension is too loose or too tight, it can strain the engine or transmission.

Lastly, it’s crucial to ensure all components are properly aligned. Misalignment of any part, particularly the drive belt or pulleys, can lead to premature wear, inefficient power transfer, or system failure. Regular inspection and maintenance of these parts will extend the life of the system and keep your Gravely ZT 60 HD running smoothly.

Step-by-Step Guide to Replacing the Drive Belt on Gravely ZT 60 HD

Begin by lifting the mower using a jack or lift to provide enough clearance for the underside. Make sure the engine is off and the parking brake is engaged for safety.

Remove the mower deck. This typically involves loosening the bolts that secure the deck to the frame. Keep the deck in a safe place once removed.

Next, locate the drive belt on the ZT 60 HD. The belt should be clearly visible after the deck is taken off. Note the routing of the existing belt as this will be crucial when installing the new one.

Loosen the tension on the belt. You’ll need to remove any tensioning components such as pulleys or spring-loaded parts. Carefully release the tension from the belt to make removal easier.

Once the tension is released, slip the old belt off the pulleys. Pay attention to how the belt fits around the different components to ensure the new belt fits properly.

Before installing the new belt, inspect all the pulleys for wear and tear. Replace any damaged parts to prevent future issues. Clean any debris or grass buildup around the pulleys as well.

Place the new belt around the pulleys, following the same routing path as the old belt. Make sure the belt is properly seated in all grooves to avoid slipping or uneven wear.

Once the new belt is in place, adjust the tension to match the manufacturer’s specifications. Tighten the pulleys and spring-loaded components to hold the belt in place.

Reinstall the mower deck, securing it back to the frame with the previously removed bolts. Double-check that everything is aligned properly and that there are no loose parts.

Lower the mower and test the new drive belt by running the mower for a few minutes. Ensure the belt is functioning smoothly and that there is no unusual noise or slipping.

Common Issues with the Gravely ZT 60 HD Belt and How to Troubleshoot Them

If the belt on your Gravely ZT 60 HD is slipping or wearing out too quickly, the problem is often linked to one of a few common issues. Start by inspecting the belt for wear and tear, as this is usually the first sign of a problem. A damaged or worn belt should be replaced immediately to prevent further complications.

Check the tension of the belt. If the belt is too loose, it won’t transfer power effectively, leading to reduced performance. Adjust the tension according to the manufacturer’s guidelines, ensuring it’s neither too tight nor too slack. If the tension is correct and the problem persists, inspect the pulleys for wear. Pulleys that are out of alignment or damaged can cause uneven belt wear and should be replaced or realigned.

Another issue to look out for is debris accumulation. Grass, dirt, or other debris can build up on the belt or pulleys, causing friction and preventing the belt from running smoothly. Clean both the belt and pulleys regularly to prevent this from happening. Keep an eye on the idler pulleys too, as a seized idler will disrupt belt movement and lead to poor performance.

Check the alignment of the belt. Misalignment can cause the belt to slip or wear out faster. Verify the pulleys are aligned properly and that the belt is running in the correct path. Adjust the components if needed to restore proper alignment.

If the engine is not running at full speed or the belt is not moving properly, inspect the engine’s drive system for any loose or damaged parts. A faulty engine pulley or tensioner can impact the belt’s efficiency and needs to be addressed quickly.

Lastly, keep an eye on the age of your belt. Over time, even a well-maintained belt will deteriorate. Replace belts every couple of years, or sooner if you notice any performance issues.
