Gravely ZT 50 Belt Diagram and Troubleshooting Guide
The Gravely ZT 50 belt system plays a critical role in maintaining the functionality of your mower. A properly routed and tensioned belt ensures smooth operation of the cutting deck and transmission. If you’re facing issues like unusual noises or reduced cutting efficiency, the belt may be misaligned, worn, or damaged.
To resolve these issues, begin by checking the belt routing according to the manufacturer’s diagram. This helps you identify any misalignments or wear points. Always replace the belt with a compatible part to avoid further damage to other components. Refer to the manual or online resources for an accurate diagram tailored to your specific ZT 50 model.
For anyone performing a replacement or maintenance, ensure the mower is turned off and the battery is disconnected to avoid accidental starts. After replacing the belt, check its tension and alignment before use. Regular maintenance can extend the life of the belt system, helping you avoid costly repairs and downtime.

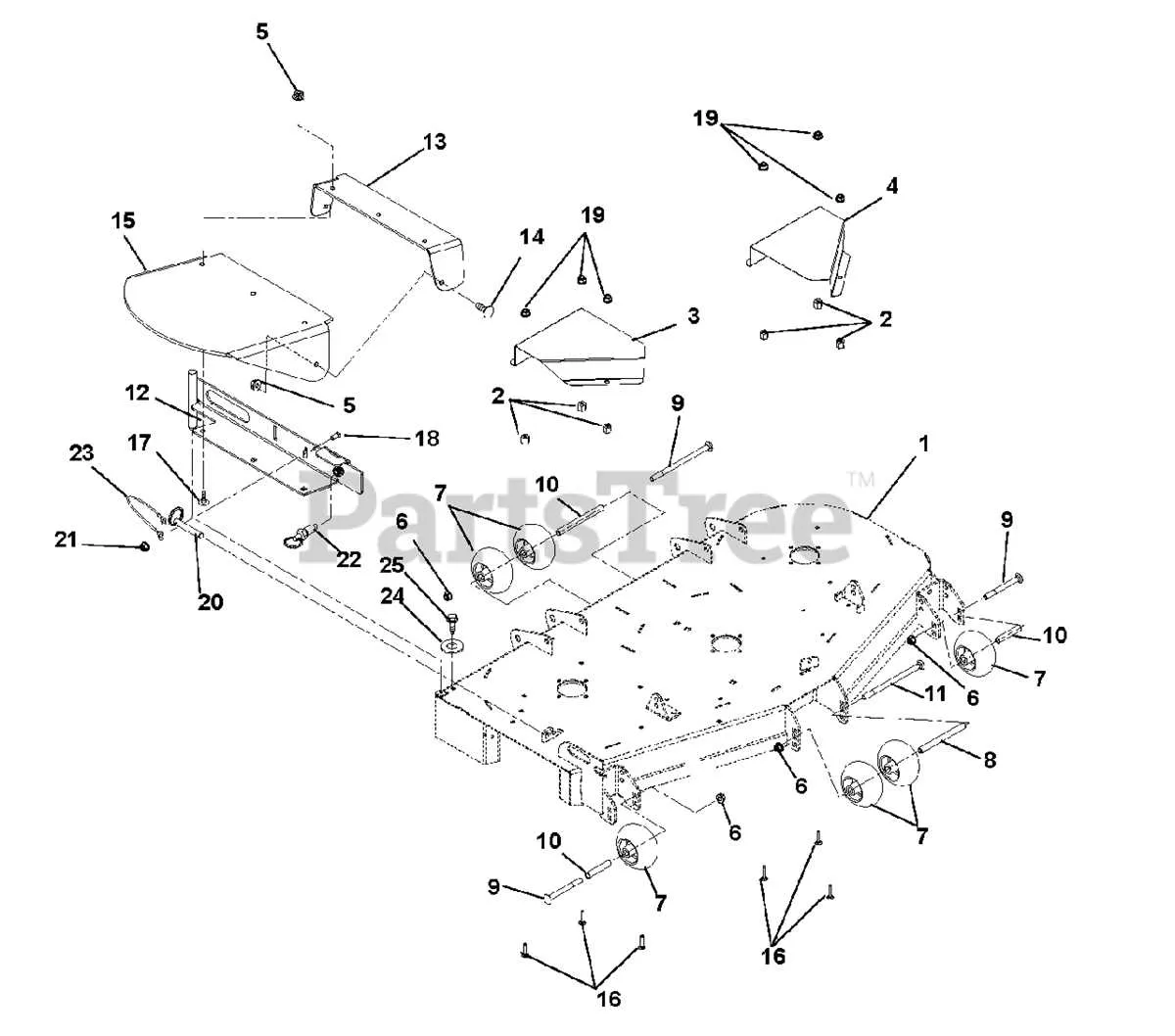

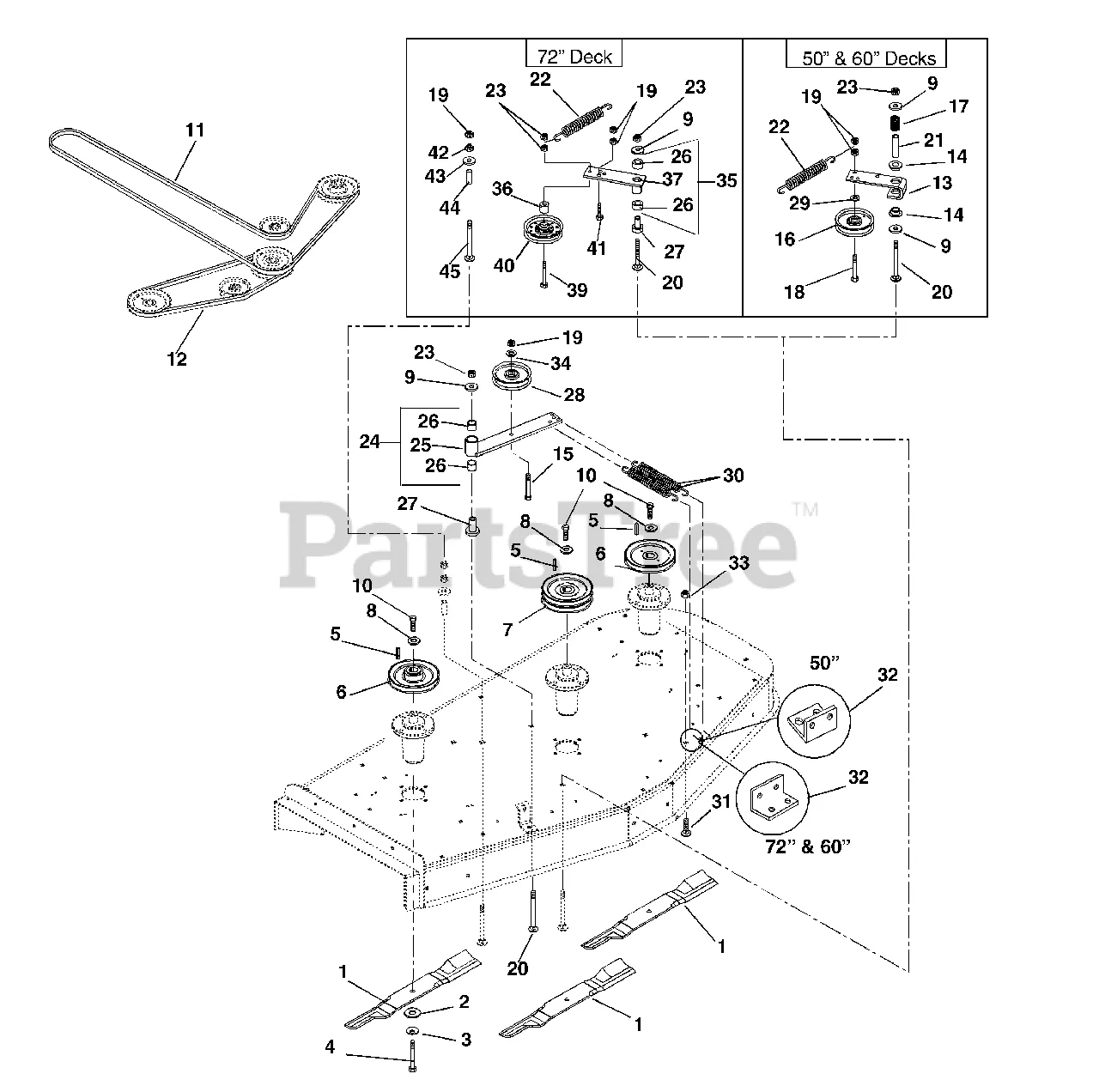

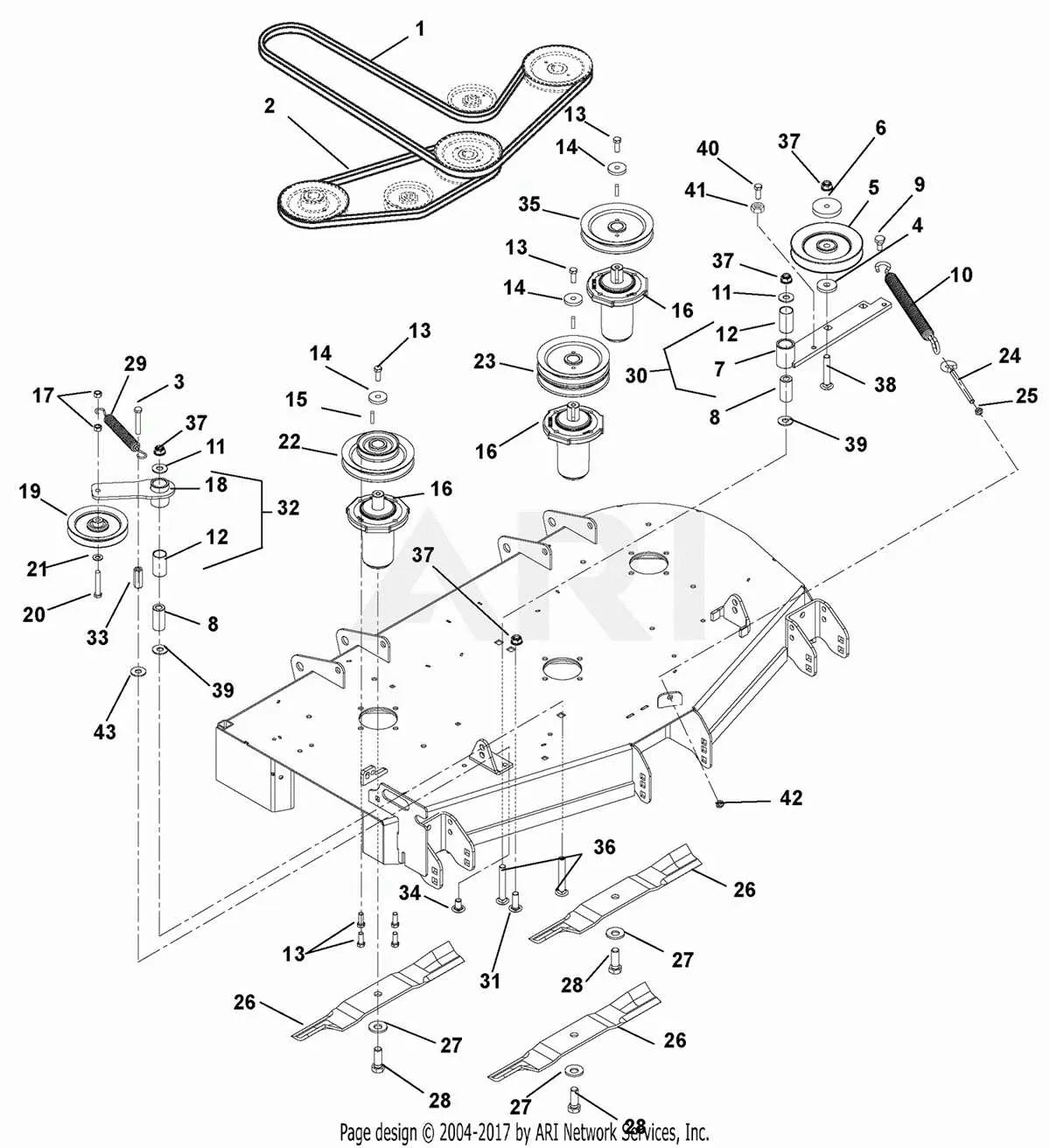

Gravely ZT 50 Belt Diagram
To ensure your Gravely ZT 50 operates smoothly, it’s important to understand the belt diagram. This will help with maintenance, troubleshooting, and belt replacement. Here’s a quick breakdown of the belt system:
- Deck Belt: The deck belt connects the engine pulley to the blades, enabling them to rotate. It is crucial to keep this belt properly tensioned to avoid slipping or premature wear.
- Drive Belt: This belt transmits power from the engine to the transmission, enabling forward and reverse motion. Check for cracks or signs of wear regularly.
- Idler Pulleys: The system includes several idler pulleys that guide the belt through the system. These need to be in good condition to maintain proper tension and alignment.
For the correct routing of the belts, follow the diagram closely. Any deviation can lead to poor performance or even belt failure. Always replace a worn or damaged belt promptly to prevent further issues.
When replacing belts, take the following steps:
- Lift the mower deck to gain access to the belt system.
- Remove the old belt carefully, noting its routing path for the new one.
- Install the new belt according to the diagram, ensuring all pulleys are aligned properly.
- Test the system by turning on the mower and observing belt movement.
Regular inspection and timely replacement will keep your Gravely ZT 50 running efficiently and extend the life of your belts.
How to Identify and Replace the Belt on the Gravely ZT 50
Start by turning off the engine and disconnecting the spark plug to prevent accidental starts. Next, raise the mower deck using the height adjustment lever to give you more room to work with.
Locate the belt, typically running from the engine pulley to the deck pulleys. Inspect the belt for signs of wear, such as cracks, fraying, or stretching. If any of these are visible, it’s time to replace the belt. Also, check for any debris that may be stuck in the pulley system, as this can cause excessive wear on the belt.
To remove the old belt, begin by loosening the tension pulley. This will relieve the tension on the belt. Carefully slide the belt off the pulleys, starting with the engine pulley and moving toward the deck pulleys. Take note of the belt’s routing to ensure proper installation of the new belt.
Install the new belt by routing it through the pulleys in the same configuration as the old one. Make sure it sits properly in each pulley groove. Once in place, use the tension pulley to apply proper tension to the belt. Verify that the belt is aligned correctly and has no slack.
Double-check the belt’s installation by manually turning the pulleys to ensure smooth movement. Lower the deck, reconnect the spark plug, and test the mower at a low speed to confirm everything is functioning correctly.
Common Belt Problems and Troubleshooting Tips for the Gravely ZT 50
If the belt on your Gravely ZT 50 is slipping, it might be due to insufficient tension. Check the tensioner pulley and adjust it if necessary to maintain proper belt tension. A loose belt can lead to reduced performance and potential damage.
Another common issue is belt wear. Inspect the belt regularly for cracks, fraying, or signs of excessive wear. Replace the belt if you notice any of these signs to prevent further damage and ensure optimal performance.
If you hear unusual noises while operating the mower, the belt may be misaligned or damaged. Inspect the belt routing and ensure it follows the correct path. If the belt is off track, reposition it and check for any worn pulleys that may be causing the issue.
Overheating can also be a problem if the belt is not properly lubricated or if the pulleys are too tight. Ensure that all components are free from debris and functioning smoothly. Regular cleaning of the deck area can help prevent these issues.
If the mower is not engaging the blades properly, the belt may be slipping on the drive system. This can be caused by a worn-out belt or misaligned pulleys. Check the belt’s condition and ensure the pulleys are correctly aligned to restore proper functionality.
Lastly, check for any loose or damaged components that might be contributing to belt problems. Tighten or replace any faulty parts to prevent further issues and ensure the longevity of the belt and the mower.
Understanding the Belt Routing for the Gravely ZT 50
For proper belt routing on the Gravely ZT 50, begin by ensuring the engine is off and the parking brake is engaged. The drive belt should be routed through the correct path to avoid premature wear or failure. Follow the path shown in the belt diagram to ensure the correct alignment.
Start with the main drive pulley, which is located on the engine shaft. The belt should loop around this pulley before heading to the transmission pulleys. Make sure the belt sits snugly in the grooves of the pulleys to prevent slippage. The tension should be consistent across all components to avoid uneven wear.
The deck belt follows a separate routing path. It loops through the deck pulleys and idler pulleys, ensuring that the blades receive power from the engine. Pay attention to the direction of the idler pulley, as improper routing can lead to insufficient tension or misalignment, which could result in belt damage or loss of cutting power.
Check the routing for any obstructions or damage to the pulleys and ensure there is no excessive slack in the belt. This ensures smooth operation, as a loose belt may slip or come off, while a tight one can cause unnecessary stress on the engine or pulleys.
Always refer to the manufacturer’s belt diagram for specific details on routing and installation. If the belt is old or worn, replacing it with an OEM part will ensure proper fit and performance.
