Serpentine Belt Diagram for 2001 Ford Taurus and Its Components Overview

The serpentine belt on a 2001 Ford Taurus is responsible for powering multiple accessories, including the alternator, power steering pump, water pump, and air conditioning compressor. Understanding the correct routing and tensioning of the belt is crucial for smooth operation and avoiding unnecessary wear. If you’re looking for a diagram, here’s the one you need to get started with the replacement or inspection.

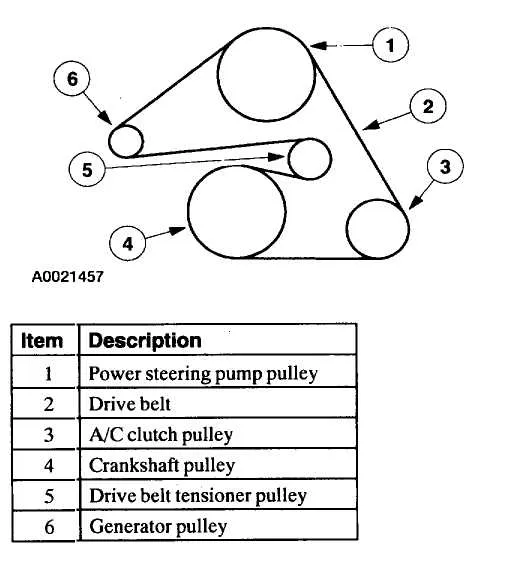

The diagram illustrates the proper alignment of the belt around various pulleys and components under the hood. The tensioner pulley plays a key role in maintaining correct belt tension. Make sure the belt is routed over the crankshaft pulley first, followed by the alternator, water pump, power steering pump, and any additional components your model might have. Check that the belt’s grooves align with the pulleys for proper contact and efficiency.

Before replacing the serpentine belt, inspect each pulley for wear or damage. If a pulley is misaligned or damaged, it may cause the belt to slip, wear unevenly, or even break prematurely. Use a ratchet tool to relieve the tension on the belt, allowing for easy removal and installation of the new belt.

Serpentine Belt Diagram for a 2001 Ford Taurus

For the 2001 Ford Taurus, the serpentine belt should be routed in the following way to ensure proper operation. Begin by placing the belt around the crankshaft pulley. Then, route the belt over the idler pulley, followed by the alternator pulley, power steering pump, air conditioning compressor, and tensioner pulley. Make sure the belt fits snugly in each groove and does not slip off during operation.

Here’s a quick breakdown of the pulley routing order for the 2001 Ford Taurus serpentine belt:

• Crankshaft pulley
• Idler pulley
• Alternator pulley
• Power steering pump pulley
• Air conditioning compressor pulley
• Tensioner pulley

Ensure that the belt is aligned properly on each pulley. After installation, check the belt tension. It should have a slight deflection but should not be too loose. Use the tensioner pulley to adjust the belt’s tightness. A correctly tensioned belt will prevent slippage and ensure smooth operation of the vehicle’s systems.

How to Read the Serpentine Belt Diagram for the 2001 Ford Taurus

First, locate the diagram, which is typically found on the underside of the hood or near the front of the engine bay. The diagram shows the path the serpentine belt follows around pulleys, tensioners, and components like the alternator and power steering pump.

Start by identifying the components in the diagram. Each pulley and accessory is labeled clearly, either with the part name or a symbol representing it. Pay attention to the belt routing path. The belt must wrap around each pulley in the correct sequence for the engine to function properly.

Notice the tensioner in the diagram. This component applies the necessary tension to the belt. It’s typically shown with a spring or a hydraulic mechanism. If you’re replacing the belt, ensure you move the tensioner correctly to release tension before removing the old belt.

Double-check the rotation direction of the belt. The arrows on the diagram indicate which direction the pulleys should turn. Incorrect routing can lead to damage or premature wear on the belt and related components.

For any specific details, consult your car’s service manual to confirm pulley sizes or any additional components that might affect the routing. If you’re not sure about the tensioner’s position or need to replace any parts, you can look for part numbers or labels on the components themselves.

Once the diagram is understood, you can follow the path to replace or inspect the serpentine belt accurately, ensuring the system works smoothly. Keep the diagram handy during the process for quick reference.

Step-by-Step Guide to Replacing the Serpentine Belt on a 2001 Ford Taurus

First, gather the necessary tools: a ratchet wrench, a serpentine belt tool or socket wrench, and a new serpentine belt. Ensure you have access to the car’s front end and that it’s securely lifted if needed.

Next, locate the tensioner pulley. Use a serpentine belt tool or a ratchet wrench to relieve tension on the belt by turning the tensioner pulley clockwise. This will loosen the belt. Carefully slide the belt off the pulleys and remove it.

Before installing the new belt, check the condition of all pulleys and the tensioner. If any pulleys feel rough or show signs of wear, replace them before proceeding. It’s also a good idea to note the belt routing by either referring to the diagram under the hood or using a printed guide.

Place the new belt over the pulleys in the exact same configuration as the original one. Be sure that the belt is seated properly in all the grooves of the pulleys. Avoid twisting or misaligning the belt during installation.

Once the belt is in place, use the serpentine belt tool to relieve the tensioner and allow it to tighten the belt. Check that the belt sits correctly on all pulleys and moves freely. You may want to manually rotate the pulleys to ensure proper alignment.

Lastly, double-check the belt’s tightness. It should feel snug but not too tight. Start the engine and observe the belt while the car is running. If it appears to be slipping or making noise, turn off the engine and adjust the tension as necessary.

Troubleshooting Common Serpentine Belt Issues on a 2001 Ford Taurus

If your 2001 Ford Taurus has a squealing or slipping serpentine belt, start by checking for wear or cracks along the belt’s surface. A worn belt is usually the main cause of noise and can affect performance. Inspect the belt for any visible damage, such as fraying or missing ribs, and replace it if necessary.

Next, ensure the belt is properly tensioned. A loose belt can slip off or cause poor performance, especially at higher speeds. The Taurus uses an automatic tensioner, but it can wear out over time. If the tensioner isn’t maintaining adequate pressure, replace it to prevent further issues.

Misalignment of the belt pulleys is another common issue. Over time, pulleys can become misaligned due to worn bearings or improper installation. Check the alignment of the pulleys and inspect for any damage. If misalignment is found, you may need to replace the affected pulley or adjust its position.

If the serpentine belt is still slipping after checking for wear, tension, and alignment, inspect the components driven by the belt. Common culprits include the alternator, power steering pump, and air conditioning compressor. If any of these components are malfunctioning or requiring more power than usual, it can put extra strain on the belt, causing slippage or wear.

Occasionally, a foreign object or debris can get caught in the belt path, creating friction and causing noise. Inspect the area surrounding the belt for anything that might interfere with its movement, and clean out any debris that could be causing issues.

If you continue to experience problems after troubleshooting the belt and its components, consider seeking professional assistance to check the alternator, pulley system, or other related parts for deeper mechanical issues.
