Serpentine Belt Diagram for 2005 Ford Taurus and Routing Information

If you’re replacing or inspecting the serpentine belt on your 2005 Ford Taurus, having a clear diagram can make the process much smoother. This belt is responsible for driving multiple engine components, such as the alternator, air conditioning compressor, and power steering pump. A precise understanding of its routing will save you time and effort, especially when you need to get it back in place properly.

The 2005 Ford Taurus uses a serpentine belt system that runs across the front of the engine, connected to a series of pulleys and tensioners. It’s important to note the correct belt tension and routing before removal to avoid complications during reinstallation. A common mistake is misaligning the belt, which can lead to engine damage or failure of critical components. Refer to the manufacturer’s diagram to verify the exact route of the belt.

The tensioner, located near the center of the system, is designed to maintain the correct tension on the belt. Make sure it’s in good condition and not too worn out, as it can affect the overall performance. Regularly checking the condition of the serpentine belt, along with its pulleys and tensioner, will help avoid unexpected breakdowns.

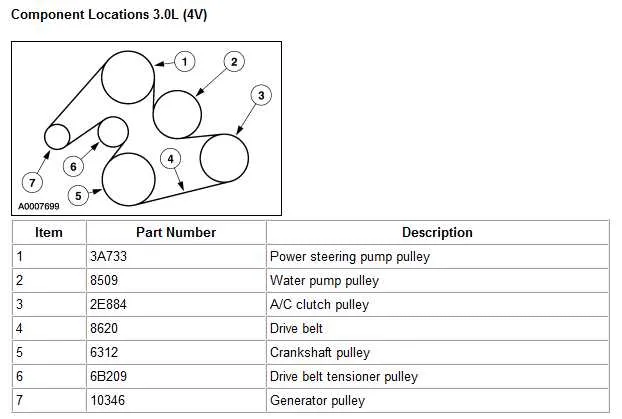

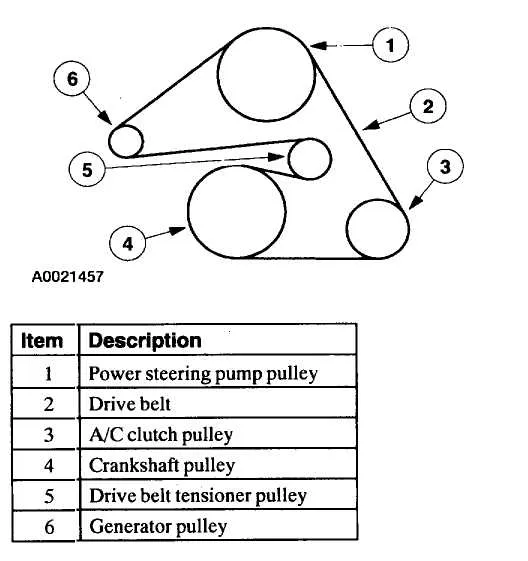

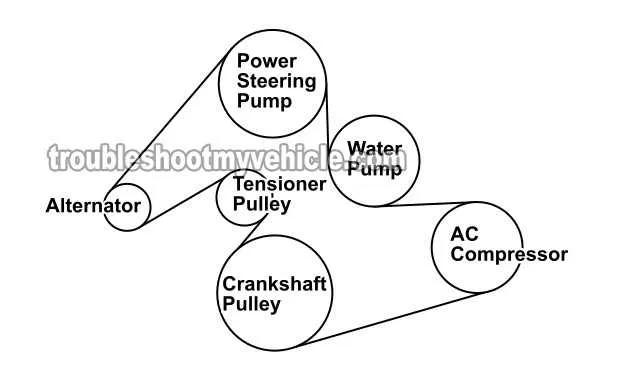

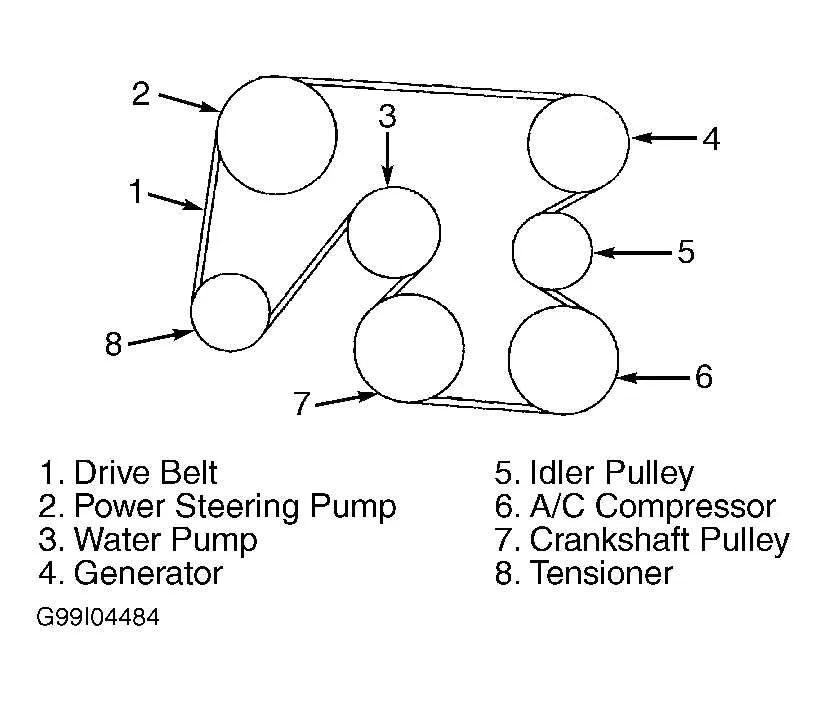

Serpentine Belt Diagram for 2005 Ford Taurus

For the 2005 Ford Taurus, the serpentine belt system plays a key role in driving various engine components. To correctly replace or inspect the serpentine belt, it’s important to follow the proper routing. The diagram for this vehicle typically shows a single belt that powers the alternator, power steering pump, water pump, and air conditioning compressor.

The belt routing on a 2005 Ford Taurus starts from the crankshaft pulley and loops around multiple components. Ensure the belt follows the specific sequence of pulleys to prevent damage. The tensioner pulley maintains proper tension to avoid slippage. If the belt is loose or damaged, it can cause multiple issues like overheating or electrical problems. Always check the belt for wear signs such as cracks or fraying and replace it if necessary.

Here’s a basic overview of the components involved in the serpentine belt system for this model:

• Crankshaft Pulley
• Alternator Pulley
• Power Steering Pump Pulley
• Water Pump Pulley
• Air Conditioning Pulley
• Belt Tensioner Pulley

Refer to the vehicle’s manual for any model-specific details and diagrams. Keeping the serpentine belt in good condition ensures all these systems work efficiently and reliably. Always replace the belt when it’s near the end of its service life to avoid unexpected failures.

Step-by-Step Guide to Locating Serpentine Belt on 2005 Ford Taurus

Begin by opening the hood of your 2005 Ford Taurus. Stand in front of the engine and locate the front of the engine block. The serpentine belt is situated near the front of the engine, connecting various components like the alternator, power steering pump, and air conditioning compressor.

Look for the belt running across these components. It should be visible from the top of the engine. Check for any worn sections, cracks, or fraying along the belt’s surface.

If you need a closer view, remove any engine covers or components blocking the belt’s path, such as the plastic engine cover. This will make it easier to access and inspect the serpentine belt.

To confirm the belt’s path, refer to the diagram located on the radiator support or under the hood. This diagram outlines how the belt should route through various pulleys, making it easier to spot any issues with alignment or tension.

If the belt tensioner is not clearly visible, look for a spring-loaded pulley on the engine. This pulley helps maintain the proper tension on the serpentine belt and will be adjustable to remove or tighten the belt.

Common Issues and Troubleshooting with Serpentine Belt in 2005 Ford Taurus

Inspect the serpentine belt for visible wear, cracks, or glazing. If you notice these signs, it’s time to replace the belt. A squealing noise from the engine could indicate a loose or worn-out belt. This noise typically happens when the belt slips over the pulleys, especially in cold weather. Check the tensioner and idler pulleys for proper alignment and smooth rotation.

If the belt is intact but still squeaks, it might be misaligned or improperly tensioned. Ensure the tensioner is applying enough pressure to keep the belt tight. If the belt seems too tight, the tensioner spring may be faulty, and the spring should be replaced.

• Check the alignment of the pulleys. Misaligned pulleys can cause the belt to wear unevenly.
• Examine the belt’s routing. A wrong routing can lead to increased friction, causing excessive wear.
• If the belt has visible damage or if the engine’s performance is off (such as overheating), inspect the water pump and alternator pulleys. A seized pulley can create additional strain on the belt.

Another common issue is belt slippage. This often occurs when the belt is too loose or stretched out. Tighten the tensioner or replace it if the issue persists. If your car starts to overheat or the alternator warning light turns on, check the belt’s condition and the operation of the pulleys.

Before replacing the serpentine belt, it’s important to check for any signs of oil or coolant leakage onto the belt, as this can cause it to deteriorate prematurely.

If replacing the serpentine belt doesn’t resolve your issue, you may need to examine other components like the alternator or the power steering pump for any issues that could affect the belt’s performance.

Replacing the Serpentine Belt: What You Need to Know for 2005 Ford Taurus

Replace the serpentine belt on your 2005 Ford Taurus every 60,000 to 100,000 miles, depending on the belt’s condition and your driving habits. Inspect the belt for cracks, fraying, or visible damage before each replacement. If you hear squealing sounds from the engine, it’s time to replace the belt.

Before you start, make sure to disconnect the car battery to avoid any electrical issues. Use a wrench to relieve tension from the belt by rotating the tensioner pulley clockwise. This will allow you to remove the old belt. Pay attention to the belt routing diagram, located on the engine bay or in the owner’s manual, as improper routing can lead to severe engine damage.

Once the old belt is off, check all pulleys and accessories for damage or wear. If necessary, replace pulleys, tensioners, or idler pulleys to ensure smooth operation. Install the new belt by following the diagram carefully and ensuring it’s snug but not overly tight. After installation, check the belt’s alignment and make sure it moves freely across all pulleys.

After everything is in place, rotate the engine by hand to ensure the belt is seated properly. Reconnect the battery and start the engine. Listen for unusual noises and inspect the belt again after a short drive to ensure it’s functioning correctly.
