Ford Serpentine Belt Diagram and Its Key Components

The serpentine belt is a critical component in your Ford vehicle’s engine system. It powers several essential accessories such as the alternator, air conditioning, power steering, and the water pump. To understand its proper installation and function, it’s vital to refer to the specific serpentine belt diagram for your Ford model.

Start by locating the serpentine belt diagram, typically found under the hood, often on a sticker or in the owner’s manual. The diagram shows the belt’s route and path around pulleys and tensioners, ensuring the correct installation. Double-checking this diagram before replacing the belt can save time and effort in the long run.

When replacing the serpentine belt, make sure to inspect the belt for any signs of wear, cracks, or fraying. If the belt appears damaged, replacing it promptly will prevent further damage to engine components. Follow the diagram closely to avoid incorrect routing that could cause damage to the belt or engine parts.

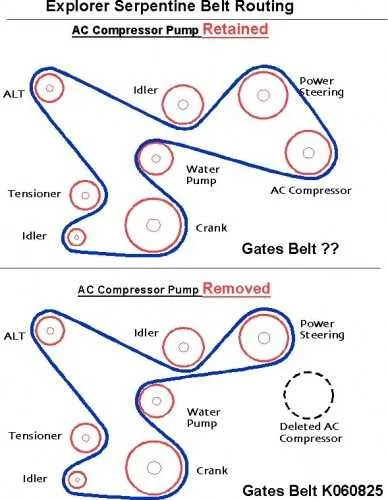

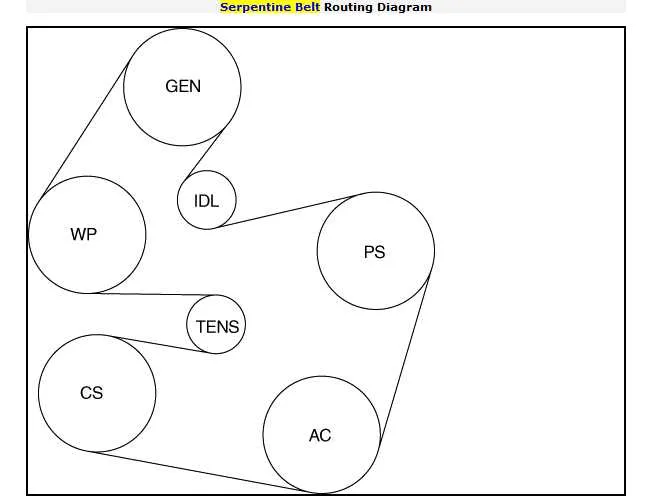

Ford Serpentine Belt Diagram

The serpentine belt in Ford vehicles plays a key role in powering multiple components like the alternator, power steering pump, air conditioning compressor, and water pump. Proper understanding of its routing and tension is crucial for ensuring the vehicle runs smoothly.

Refer to the Ford serpentine belt diagram for accurate routing information. This diagram typically outlines how the belt loops around various pulleys and tensioners. Make sure to follow the specific diagram for your vehicle model to avoid issues such as incorrect belt tension, which can cause premature wear or failure.

Start by identifying the components connected by the serpentine belt. The diagram will clearly indicate each part, such as the alternator and AC compressor, to ensure proper installation. Pay close attention to the direction of the belt, as incorrect installation can lead to inefficiency or damage.

Always verify the belt’s condition before replacing it. Look for cracks, fraying, or signs of wear. If any damage is visible, replace the belt immediately to prevent further engine issues.

Use a belt tension gauge to ensure proper tension. The Ford serpentine belt diagram may also specify tensioning tools required for your vehicle. An improperly tensioned belt can lead to slippage, causing loss of power to essential components.

• Inspect the belt regularly to avoid unexpected failures.
• Ensure that the tensioner is functioning properly, as it maintains the right tension on the belt.
• Check that the belt is aligned correctly with the pulleys to prevent misalignment and excessive wear.

How to Read the Ford Serpentine Belt Diagram for Your Model

To read the Ford serpentine belt diagram accurately, identify key components such as the pulleys, tensioner, and alternator in the diagram. These elements are typically labeled, and their positions relative to one another are crucial for understanding the belt’s path.

Next, observe the direction of the arrows or lines that indicate the belt’s route. These lines show how the belt should be routed over the various pulleys. For specific models, ensure you compare the diagram with your vehicle’s actual configuration. Misinterpreting the diagram could lead to installation errors, affecting the engine’s performance.

Check the number of grooves on the pulleys. This helps verify the proper belt size for your vehicle, ensuring the belt will fit correctly. The diagram will also highlight the belt’s path, including whether it crosses over or under specific pulleys.

Pay attention to the tensioner mechanism. In most Ford models, the tensioner pulley maintains the correct tension on the belt. Follow the diagram to ensure it’s positioned correctly. If the diagram suggests adjusting the tensioner, note the recommended amount of tension to apply during installation.

Finally, confirm the model year and engine type, as the serpentine belt setup can vary. Use the correct diagram version for your vehicle to avoid any confusion and ensure accurate belt routing.

Common Issues with Ford Serpentine Belts and How to Fix Them

If your Ford’s serpentine belt shows signs of wear, replacing it immediately will save you from more serious engine problems. One of the most common issues is belt slippage. This occurs when the belt becomes loose and starts to slide over the pulleys, causing inefficient performance of components like the alternator, water pump, and air conditioning. To fix this, inspect the tensioner. If it’s worn out, replace it, as it is responsible for maintaining the correct tension on the belt.

Another common problem is belt cracking. Over time, the rubber in the belt can deteriorate, especially if exposed to extreme temperatures. Cracks can reduce the belt’s ability to properly engage with pulleys. In this case, it’s best to replace the belt as soon as possible. Check the condition of the pulleys as well, as misalignment can contribute to premature cracking.

Misalignment of the belt is a serious issue. If you hear squealing noises when starting the engine, it’s likely that the belt or pulleys are misaligned. This can be caused by a failing tensioner or damaged pulleys. To resolve this, visually inspect all pulleys to ensure they are aligned properly. If you notice any damage, replace the affected components immediately.

Excessive wear and fraying can also signal a problem. This typically occurs when the belt is exposed to contamination, such as oil or coolant. Check for any leaks that may be dripping onto the belt. If the belt is visibly frayed, replace it without delay. Keep your engine clean and free of contaminants to prolong the life of the serpentine belt.

Finally, if the belt begins to squeak during engine operation, it could indicate that the belt is loose or the tensioner is malfunctioning. Tightening the tensioner or replacing it if it’s faulty should resolve the issue. Always verify that the belt is correctly routed according to the manufacturer’s diagram, as improper routing can also lead to issues.

Steps for Replacing the Serpentine Belt on a Ford Vehicle

1. Park the vehicle on a flat surface and apply the parking brake. Open the hood and locate the serpentine belt.

2. Identify the belt routing using the vehicle’s diagram. This will guide the installation of the new belt.

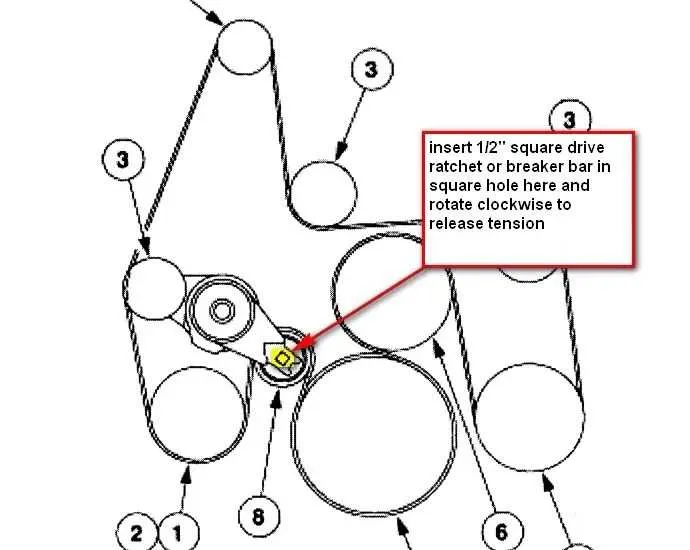

3. Use a ratchet or wrench to relieve tension from the tensioner pulley. This will loosen the belt, making removal easier.

4. Carefully remove the belt, starting with the tensioner pulley and moving around the other pulleys.

5. Inspect the new belt for proper size and condition. If it shows any damage, replace it before installation.

6. Install the new belt by following the routing instructions from the diagram. Ensure the belt sits evenly in the grooves of all pulleys.

7. Use the ratchet or wrench to release the tensioner, tightening the new belt in place.

8. Check that the belt is properly aligned and that it moves freely on all pulleys.

9. Start the engine to verify that the belt operates smoothly without slipping or making any unusual noises.

10. Close the hood and perform a final check to ensure the new belt is functioning correctly.
