Ford Ranger 2.2 Fan Belt Diagram and Maintenance Guide

Understanding the fan belt system of your Ford Ranger 2.2 is critical for maintaining engine performance. The fan belt ensures proper circulation of coolant and air through the engine, which helps to prevent overheating. When inspecting the fan belt, always check for wear, cracks, or fraying that could lead to failure.

The fan belt diagram for the Ford Ranger 2.2 is designed to simplify the process of replacing or adjusting the belt. The diagram outlines the correct routing path for the belt around the pulleys, ensuring smooth operation. Having the diagram on hand makes it easier to troubleshoot or perform maintenance without confusion.

For proper installation, align the belt according to the diagram’s specifications. Ensure the belt is not too tight or too loose, as both conditions can cause premature wear. If you notice abnormal sounds or overheating, inspect the belt immediately. A replacement fan belt should match the specifications provided in your owner’s manual for optimal performance.

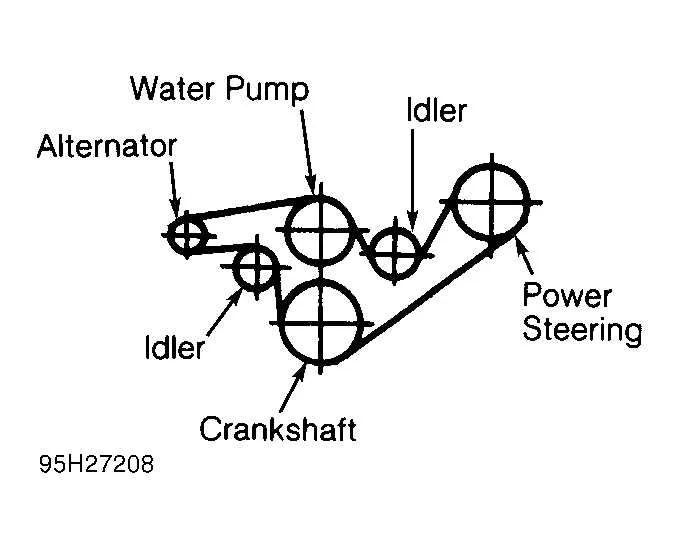

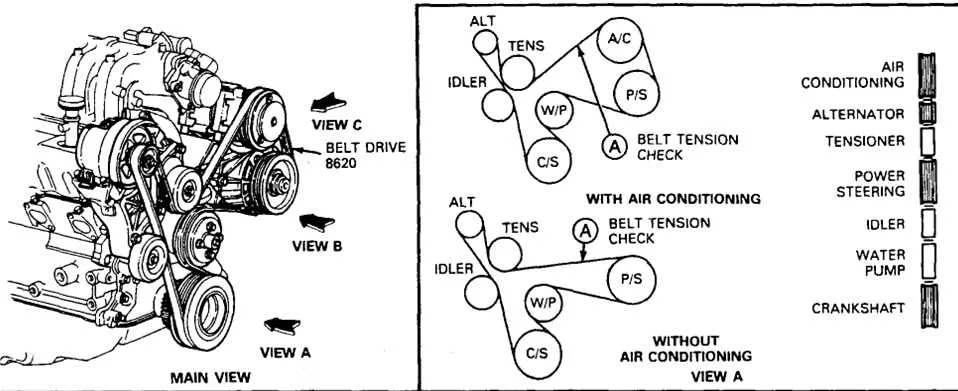

Ford Ranger 2.2 Fan Belt Diagram

The fan belt diagram for the Ford Ranger 2.2 is crucial for correct installation and maintenance. To begin, locate the alternator, power steering pump, and air conditioning compressor as these components are directly involved in the routing of the fan belt. Ensure that the belt is positioned around each pulley as per the diagram specifications to maintain optimal function and avoid excessive wear.

The diagram outlines the path the fan belt takes across multiple pulleys. Pay close attention to the tensioner pulley and its role in maintaining proper belt tension. Without sufficient tension, the belt may slip, causing poor performance or even damage to the engine components. It’s recommended to inspect the belt for wear and tear during routine maintenance checks and replace it if any signs of damage are evident.

For proper alignment, refer to the specific markings on the diagram to ensure the belt runs smoothly without misalignment. This will help prevent the belt from coming loose or misfiring during operation, leading to further complications. Always follow the manufacturer’s guidelines to ensure the belt is routed in the correct configuration.

How to Identify the Correct Fan Belt Layout for the Ford Ranger 2.2

Check the vehicle’s service manual for the specific fan belt layout. This document includes diagrams showing the correct routing for the Ford Ranger 2.2’s fan belt system. The layout will depend on whether the engine is equipped with air conditioning, power steering, or other accessories.

Examine the existing belt setup. Look for any signs of wear, such as cracks or fraying, which could indicate a need for replacement. Compare the new belt with the old one to ensure proper length and alignment. The new fan belt should match the diagram in the manual precisely to avoid potential issues with the engine’s cooling and accessory systems.

If the manual is unavailable, search for a reliable diagram online or consult a dealership. The layout is relatively consistent across Ford Ranger models, but small differences may exist depending on the engine’s production year and specific model configuration.

After confirming the correct belt layout, verify that the tension is correctly set. Over-tightening or under-tightening the belt can cause premature wear or failure, so aim for the specifications outlined in the service manual. A tension gauge can be used to ensure accuracy.

Once everything is aligned and tightened, start the engine to check for smooth operation. Listen for unusual noises or vibrations that may indicate an incorrectly routed or tensioned belt.

Step-by-Step Process for Replacing the Fan Belt on a Ford Ranger 2.2

To replace the fan belt on a Ford Ranger 2.2, first ensure the vehicle is securely parked with the engine off and the ignition key removed. Use a jack to raise the front of the vehicle if needed for better access to the engine bay.

Locate the fan belt tensioner. Using a ratchet or wrench, loosen the tensioner by turning it in the direction indicated on the pulley. This will release tension from the belt, allowing you to remove it from the pulleys.

Carefully remove the old fan belt, taking note of the belt routing. You can refer to the belt diagram located under the hood or in the vehicle manual to ensure proper installation of the new belt.

Before installing the new fan belt, compare it with the old one to confirm the correct size and specifications. Place the new belt over the pulleys, ensuring it fits snugly and follows the same path as the old one.

Once the new belt is in place, use the ratchet or wrench to reapply tension on the tensioner pulley. Make sure the belt is tight enough to avoid slippage but not overly tight.

Double-check the alignment of the belt on all pulleys to ensure it is seated properly. Start the engine and observe the belt’s movement to confirm that it is operating smoothly and correctly.

Finally, lower the vehicle if it was raised and close the hood. The replacement is now complete.

Troubleshooting Common Issues with the Ford Ranger 2.2 Fan Belt

If you notice unusual noises, poor engine performance, or overheating in your Ford Ranger 2.2, the fan belt could be the cause. Here’s how to identify and fix common issues:

• Wear and Tear: Inspect the fan belt for visible cracks, fraying, or signs of glazing. Replace the belt if you see any damage.
• Loose Belt: A loose fan belt can cause slipping and result in inefficient cooling. Tighten the belt by adjusting the tensioner to the manufacturer’s specifications.
• Misalignment: If the belt is misaligned, it may cause uneven wear or even damage to other components. Check the pulleys for proper alignment and replace any damaged pulleys.
• Squealing Noise: A squealing or chirping sound may indicate a slipping fan belt. Tighten the belt or replace it if it’s too worn to function correctly.
• Overheating: If the fan belt is worn out or broken, it can prevent the engine’s cooling system from functioning properly, leading to overheating. Replace the fan belt immediately if it shows signs of wear.
• Electrical Issues: In some cases, the alternator’s performance can be affected by a worn fan belt. Check the voltage output of the alternator to ensure it’s charging properly.

For all issues, follow the manufacturer’s guidelines for proper belt tension and replacement intervals. Regular inspections can help prevent these problems before they impact vehicle performance.
