Ford Fusion 2006 Belt Diagram and Routing Guide

The Ford Fusion 2006 belt diagram provides crucial information on how the drive belts in your vehicle are routed. This diagram is essential for anyone replacing or inspecting the belts, as it ensures the proper alignment of the serpentine belt, which powers several components, including the alternator, power steering pump, and air conditioning compressor.

To replace or check the belt system, start by locating the tensioner. It’s important to release the tension properly before removing the old belt. Use a wrench or socket to rotate the tensioner counterclockwise. This will relieve the pressure on the belt, allowing for a smooth replacement process.

The diagram shows the exact path the belt follows around the pulleys. Pay attention to any additional components, like idler pulleys, that play a role in guiding the belt. Make sure the new belt matches the specifications of the original belt in terms of size and rib count to avoid any fitment issues.

After installing the new belt, check for proper tension. The belt should be tight enough to ensure proper operation but not so tight that it causes strain on the components. Always refer to the diagram for specific details on the routing and tension requirements to maintain optimal performance.

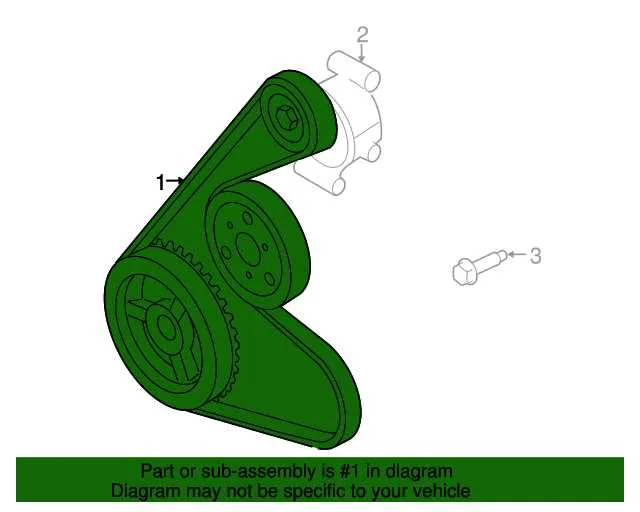

Ford Fusion 2006 Belt Diagram

To ensure proper engine operation, it is crucial to understand the correct belt routing for the Ford Fusion 2006. The drive belt plays a key role in powering various engine components, such as the alternator, air conditioning compressor, and power steering pump. Misalignment or improper routing can cause premature wear or even damage to the belt system.

The Ford Fusion 2006 typically uses a serpentine belt system. This belt is routed through multiple pulleys, each serving a different function. The belt should be routed in such a way that it maintains consistent tension and follows the correct path to avoid slipping or overheating.

Before replacing or adjusting the belt, it’s important to locate the belt tensioner. The tensioner maintains the correct belt tension and prevents slack, which could lead to belt failure. Always check the belt for signs of cracks, fraying, or glazing before installing a new one.

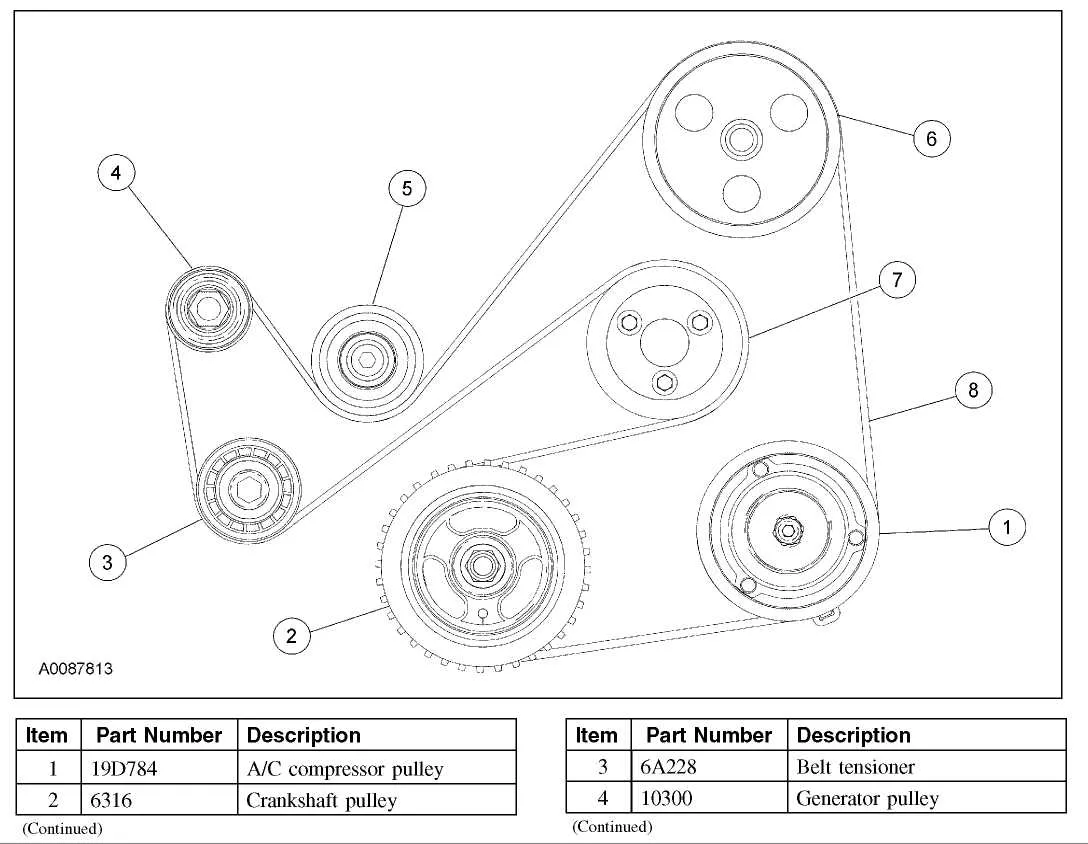

For a proper belt installation, refer to the vehicle’s specific belt routing diagram. This diagram is usually found on the engine bay or can be referenced in the owner’s manual. It will show the exact route of the belt around the pulleys, which is vital for proper engine performance.

After replacing the belt, run the engine and inspect the system for any irregular noises or movement. If everything is functioning correctly, the new belt should be quiet and run smoothly along the pulleys.

How to Identify the Components in the Belt System

First, locate the serpentine belt, the primary component in the system. It’s typically positioned at the front of the engine, running across multiple pulleys. Look for the longest belt in the system, often wrapped around the alternator, power steering pump, and air conditioning compressor.

Next, identify the tensioner pulley, which keeps the belt tight. It is spring-loaded and usually mounted on a bracket near the belt path. This component is essential for maintaining the correct belt tension.

Check the idler pulleys, which guide the belt along its route without being powered themselves. These are typically smaller and can be found between the main drive pulleys.

Inspect the crankshaft pulley, a large, heavy-duty component at the base of the engine. It’s directly connected to the engine’s crankshaft and drives the belt system.

Finally, locate the accessory pulleys, including those for the alternator, power steering, and air conditioning compressor. These pulleys receive direct power from the belt and are key to the vehicle’s functionality.

Step-by-Step Guide for Belt Routing on the Ford Fusion 2006

Begin by disconnecting the negative terminal of the battery to avoid any electrical mishaps. Next, locate the serpentine belt tensioner. Use a wrench to release the tension on the belt, making it easier to remove.

Carefully note the existing routing of the belt. The Ford Fusion 2006 model typically has a serpentine belt system with a specific path that runs around several pulleys: crankshaft pulley, alternator, power steering pump, and the air conditioning compressor.

Start by positioning the belt around the crankshaft pulley. Ensure that the belt follows the correct path as indicated by the diagram on the engine bay cover. The tensioner pulley should be placed last as it provides the necessary tension for the belt.

Once the belt is properly routed, use the wrench again to move the tensioner pulley, allowing you to slide the belt over it. Double-check that the belt sits snugly in all grooves of the pulleys and that the routing follows the factory diagram exactly.

Finally, recheck the belt tension. If the belt is too loose, the tensioner will need to be adjusted. If it’s too tight, it could cause unnecessary strain on the components. Reconnect the negative terminal of the battery and start the engine to ensure everything runs smoothly.

Common Issues with the Belt and How to Troubleshoot Them

Check for visible signs of wear, such as cracks or fraying. A worn belt can lead to slippage or failure, causing engine components to operate inefficiently.

• Belt Slippage: If the belt slips, check the tensioner for proper operation. A faulty tensioner can cause the belt to lose contact with pulleys, resulting in slippage. Tighten or replace the tensioner if necessary.
• Squealing Noise: A squealing belt may indicate insufficient tension. Inspect the belt for proper alignment and tension. If the belt appears loose, adjust or replace the tensioner.
• Cracks or Fraying: If you notice cracks or fraying, replace the belt immediately. These signs of wear can lead to a complete belt failure and engine damage.
• Pulley Misalignment: If the belt is misaligned, check the pulleys for proper positioning. Misalignment can cause uneven wear and belt damage. Ensure all pulleys are aligned and replace any damaged ones.

Inspect the belt periodically to avoid unexpected breakdowns. If the belt shows signs of damage, replace it before it compromises the vehicle’s operation.
