Ford Focus Alternator Belt Diagram and Proper Installation Guide
If you’re working on your Ford Focus and need to replace or inspect the alternator belt, understanding its layout is key. The diagram will help you ensure the belt is routed correctly, avoiding potential issues like slipping or improper tension. First, locate the alternator and examine its position in relation to the other pulleys. The diagram typically shows the belt path, including how it loops over the alternator, serpentine belt tensioner, and other essential components.
Refer to the diagram to identify the exact orientation of the belt, as incorrect installation can lead to poor performance or damage. Pay attention to the tensioner pulley, as it’s crucial for maintaining proper belt tension. In some models, you might need to use a special tool to release the tension and safely remove or install the belt. Always check the condition of the belt while working on it – cracks or fraying may indicate it needs replacing.
For clarity, here’s a general overview of what you’ll find in the diagram: the alternator sits near the engine, connected to the crankshaft via a serpentine belt that also drives the power steering, air conditioning, and other vital components. Make sure the diagram corresponds to your specific year and model of Ford Focus, as minor changes may affect the layout.

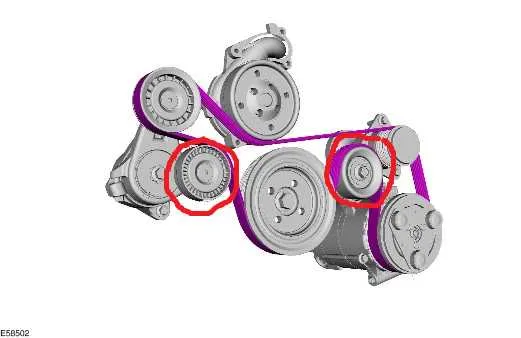

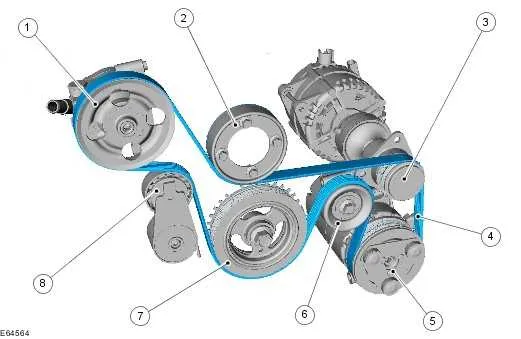

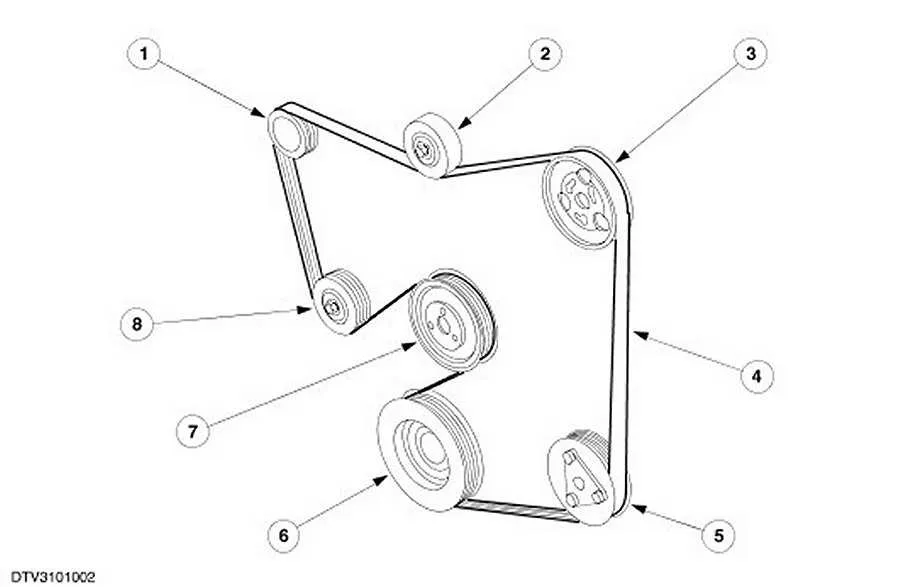

Ford Focus Alternator Belt Diagram
When replacing or servicing the alternator belt on a Ford Focus, the diagram is crucial for accurate installation. The alternator belt typically routes over pulleys on the crankshaft, alternator, and sometimes the air conditioning compressor or power steering pump. Always verify the belt size and routing before beginning work.
For most models, the alternator belt follows a simple path: from the crankshaft pulley, it loops around the alternator pulley and then routes back to the tensioner pulley. The diagram will show the exact placement of each component, including the tensioner, which should be adjusted for proper belt tension.
To ensure proper alignment, check that the belt sits snugly on each pulley without excessive slack. Misalignment can cause premature wear or slippage. In some cases, a service tool may be required to release tension from the belt to safely remove or install it.
Consult the vehicle’s service manual for a diagram specific to your Ford Focus model year. This will give you exact details for the belt routing, pulley positions, and any additional components that might be involved. Always double-check the belt for wear and replace it if there are any visible cracks or damage.
How to Locate the Alternator Belt on a Ford Focus
Locate the alternator belt on your Ford Focus by first opening the hood and securing it in place. The belt is typically located on the front of the engine, running around the alternator pulley and several other engine components.
Follow these steps to pinpoint the alternator belt:
- Stand in front of the vehicle and locate the engine block.
- Look for the alternator, which is a compact, cylindrical component typically positioned near the top of the engine.
- The belt wraps around the alternator pulley, connecting it to other pulleys like the crankshaft pulley and power steering pump.
- Check for tension on the belt. If it’s loose or worn, it may need adjustment or replacement.
For some models, you may need to remove components like the engine cover to get a clearer view of the belt. If the alternator is difficult to access, consider consulting a repair manual or mechanic for further guidance.
Step-by-Step Guide to Replacing the Alternator Belt
Begin by disconnecting the negative terminal of the car battery. This ensures safety and prevents accidental shorts while working on the alternator belt.
Locate the alternator and inspect the tensioner pulley. Depending on the vehicle model, you may need to loosen the tension using a wrench or socket. Some cars require a specific tool to adjust the tensioner, so check your Ford Focus manual for the exact method.
Loosen the tensioner by rotating it counterclockwise, relieving pressure on the alternator belt. Once the tension is released, slide the belt off the pulleys carefully. Take note of how the belt is routed around the pulleys to make reinstallation easier.
Inspect the new alternator belt for correct size and alignment. Before installing, make sure the belt matches the old one in width and length. Place the new belt onto the pulleys, following the same routing pattern as the original belt.
Once the belt is in place, use the tensioner to apply pressure and tighten it. Verify that the belt is taut by checking that there is no slack. A properly installed belt should have a slight amount of play but shouldn’t feel loose.
Recheck the belt alignment and ensure it sits properly on each pulley. Tighten any bolts or fasteners that were loosened during the procedure.
Reconnect the negative terminal of the battery. Start the car and let it run for a few minutes to ensure the new belt is functioning correctly and that the alternator is charging as expected.
Troubleshooting Common Alternator Belt Issues on Ford Focus
If you notice unusual sounds, flickering dashboard lights, or frequent battery issues, the alternator belt might be the culprit. Inspect the belt for visible signs of wear like cracks, fraying, or glazing. These can all cause the belt to slip or lose tension, impacting the alternator’s performance.
First, check the tension of the belt. A loose belt may cause poor alternator charging. You can test the tension by pressing down on the belt with your thumb. If it moves more than 1/2 inch, it likely needs adjustment. Tighten the belt by adjusting the tensioner pulley. If the tensioner is damaged or worn out, it should be replaced to ensure proper belt tension.
Next, inspect the pulleys. Misaligned or damaged pulleys can lead to premature wear on the belt. Ensure that the pulleys are free from debris and spin smoothly. Any wobble or irregular movement should be addressed by replacing the pulley or realigning it properly.
Examine the belt for damage. Over time, belts degrade due to heat and friction. If the belt appears brittle, cracked, or worn, replace it immediately. A worn belt won’t grip the pulleys properly, leading to inefficient alternator operation and potential engine power loss.
If the alternator belt is squealing, it might be due to moisture or an overly tight belt. Clean the belt and pulleys to remove any debris or buildup. If the squealing persists, check the belt tension and adjust it accordingly. A high-pitched squeal can also be a sign of a misaligned pulley or a worn bearing.
Lastly, keep an eye on the battery voltage. If the belt isn’t working properly, the alternator won’t charge the battery efficiently. You can check the battery voltage with a multimeter. A reading below 13.8 volts indicates that the alternator might not be functioning at full capacity, suggesting belt-related issues.
