Ford Escape Serpentine Belt Diagram and Installation Guide
To avoid any hassle when working on your Ford Escape, having a reliable belt diagram is a must. The belt system ensures your vehicle runs smoothly, and knowing the exact routing of belts can save time during repairs or maintenance. Always refer to the correct diagram for your specific model year to avoid any confusion.
The Ford Escape uses a serpentine belt system that drives multiple components like the alternator, power steering pump, and air conditioning compressor. A proper belt routing ensures these components receive the correct power. Inaccurate installation can cause poor performance or damage to engine parts.
Before you begin, make sure your car is turned off and the battery is disconnected. For quick reference, most models feature a sticker under the hood with the belt diagram, but having a detailed one on hand can help during the installation or troubleshooting process. Check your specific model year as the routing may differ slightly depending on engine type.

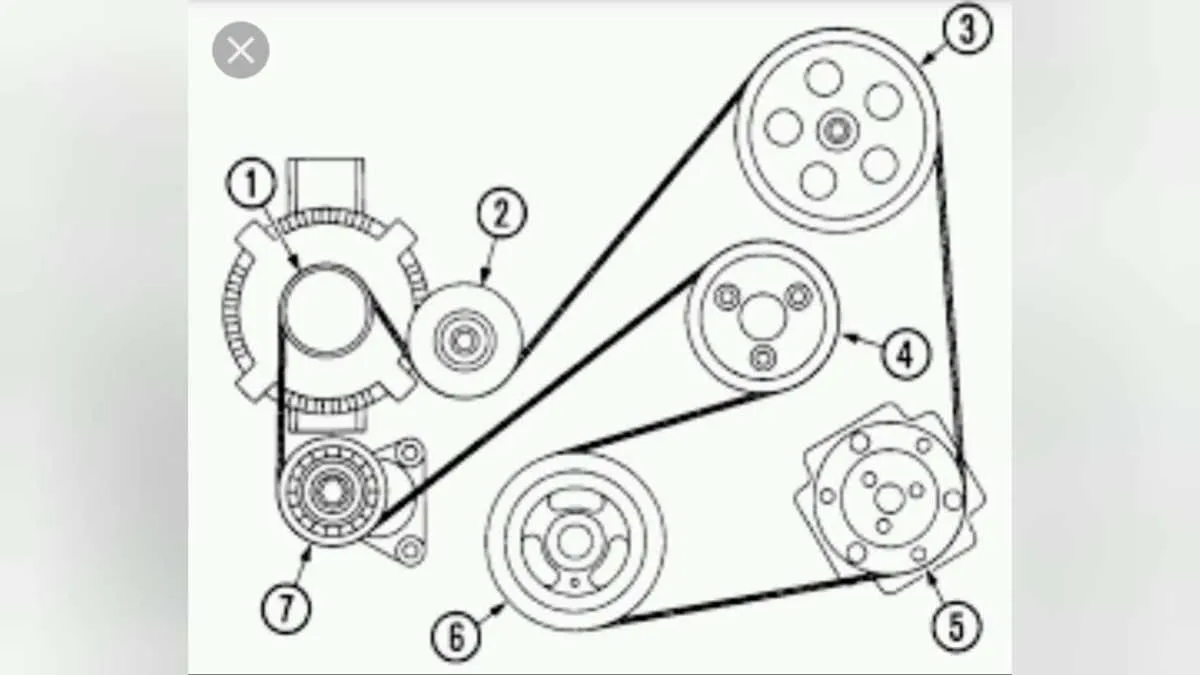

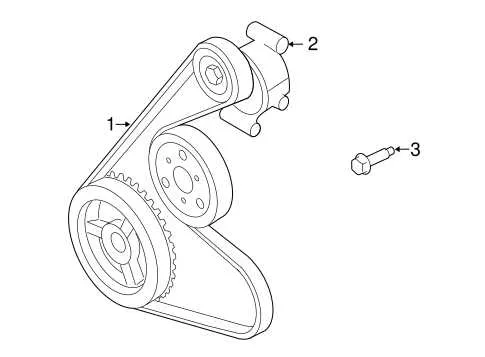

Ford Escape Belt Diagram
If you’re replacing or adjusting the belts on your Ford Escape, use the belt diagram as a reference to ensure proper routing. This diagram is critical for aligning the serpentine belt and other accessory belts correctly, avoiding costly mistakes and preventing engine damage.
The Ford Escape features a serpentine belt system that drives multiple accessories such as the alternator, power steering pump, and air conditioning compressor. It’s crucial to verify the belt routing to keep all systems functioning smoothly. Misrouting can cause tension issues or misalignment, leading to premature belt wear or failure.
The diagram typically shows the positioning of each pulley and the direction the belt should travel. Pay attention to the tensioner pulley, as it automatically adjusts the belt’s tightness. If the belt is loose, it may indicate an issue with the tensioner or wear on the belt itself.
For quick identification, belts are often color-coded or marked with part numbers on the diagram, making it easier to choose the correct replacement part. Always double-check the specific year and model of your Ford Escape, as belt configurations can vary slightly between models.
To avoid complications, consider using a belt tension gauge after installation to ensure the correct tightness. If you’re unsure about belt replacement, having a professional mechanic review your work can save you from future headaches.
How to Read the Ford Escape Serpentine Belt Diagram
Identify the components listed in the diagram, such as the alternator, power steering pump, air conditioning compressor, and crankshaft pulley. These are the key parts the serpentine belt connects, and each is typically labeled for easy reference.
Next, locate the path the belt takes. It will loop around these components in a specific sequence. The diagram shows the routing, usually starting from the crankshaft pulley and moving in a circular motion around the other components.
The arrows indicate the direction the belt should move. Check the orientation of the arrows carefully to ensure the belt is positioned correctly in relation to each pulley. Incorrect placement can lead to slippage, damage, or system failure.
Pay attention to the tensioner pulley. This component adjusts the belt’s tightness and may have a spring-loaded mechanism. The diagram will usually indicate the proper direction to rotate the tensioner to release or tighten the belt.
Examine the alignment of the pulleys. The diagram helps visualize whether the belt sits flat or at an angle on the pulleys, ensuring smooth rotation. Misalignment can lead to premature wear.
For replacing the belt, follow the reverse of the diagram’s routing, ensuring you carefully position the new belt on each pulley as shown.
When in doubt, compare the diagram with your current setup. If components like the alternator or tensioner look different from what’s in the diagram, consult your vehicle’s manual or contact a professional for further guidance.
Steps for Replacing the Serpentine Belt on a Ford Escape
Replacing the serpentine belt on your Ford Escape is straightforward with the right tools and steps. Here’s how to do it:
- Gather Tools and Materials
You’ll need a new serpentine belt, a wrench or ratchet set, a socket set, a belt tensioner tool, and a jack with jack stands (if required). - Lift the Vehicle (if needed)
For easier access, lift the front of the vehicle using a jack and secure it with jack stands. This is optional but can provide better clearance for working underneath. - Locate the Serpentine Belt and Tensioner
Find the serpentine belt routing diagram, often located on the engine bay or in the owner’s manual. Identify the tensioner pulley–it will be the one used to release the belt’s tension. - Release Tension from the Belt
Using a belt tensioner tool or a ratchet, rotate the tensioner pulley counterclockwise to relieve tension from the serpentine belt. Keep the tensioner held in place while you remove the belt from the pulleys. - Remove the Old Belt
Once the tension is released, carefully slide the serpentine belt off the pulleys, starting from the last pulley. Take note of how the belt is routed, as you’ll need to install the new belt in the same pattern. - Install the New Serpentine Belt
Thread the new belt around the pulleys according to the routing diagram. Ensure the belt fits snugly into each pulley groove without twisting. - Reapply Tension
Using the belt tensioner tool, rotate the tensioner pulley back into position to apply the correct tension to the belt. Double-check that the belt is properly aligned and seated in all pulleys. - Test the New Belt
Start the engine and observe the new belt in operation. Make sure the belt runs smoothly and doesn’t slip off the pulleys. Listen for any unusual noises that may indicate improper installation. - Lower the Vehicle
If you lifted the vehicle, lower it back down and make sure the work area is cleared.
Once these steps are complete, your new serpentine belt should be good to go! Always double-check the belt’s condition during regular maintenance intervals to keep your Escape running smoothly.
Troubleshooting Common Belt-Related Issues in Ford Escape
If you notice unusual noises or loss of engine performance in your Ford Escape, it’s time to check the serpentine belt. Start by inspecting for cracks or fraying along the belt’s surface. A worn belt can slip or break, leading to overheating or power steering failure. If the belt looks damaged, replace it immediately to avoid more significant engine issues.
Another common issue is a squealing noise. This can occur if the belt is misaligned or if a pulley is malfunctioning. Check the belt tensioner to ensure it’s properly applying tension. If the tensioner is weak, it won’t keep the belt tight, leading to slippage and noise. Replace the tensioner if needed.
A slipping belt can also reduce the efficiency of your alternator, causing battery issues. If your dashboard lights flicker or the battery warning light comes on, inspect the belt for proper alignment. Misalignment often happens if the pulleys are damaged or have accumulated debris. Clean the pulleys or replace them if necessary.
Keep an eye on belt wear, especially if you frequently drive in stop-and-go traffic or on rough terrain. These conditions put extra stress on the belt and pulleys. Regularly check the belt every 30,000 to 50,000 miles and replace it as needed to prevent unexpected breakdowns.
Lastly, if you experience a sudden loss of power steering, this could indicate a problem with the belt driving the power steering pump. Inspect the belt for slack or signs of wear. Replacing the belt can restore power steering functionality quickly and safely.
