Ford 6.2 Belt Diagram Overview and Key Maintenance Tips
The correct belt diagram for the Ford 6.2 engine is crucial for ensuring optimal engine performance. A misaligned belt or incorrect routing can lead to unnecessary wear and potential failure of vital engine components. Start by carefully inspecting the engine’s accessory drive system, paying attention to the routing of each belt. A well-maintained belt will prevent premature damage and ensure that all systems–such as the alternator, power steering, and air conditioning–operate smoothly.
When troubleshooting a Ford 6.2 belt diagram, focus on identifying common issues such as belt tension or wear. Over time, belts may stretch or show signs of cracking, which could cause them to slip or even break. Replace any worn-out belts and verify their correct alignment using the diagram to prevent further damage to the system.

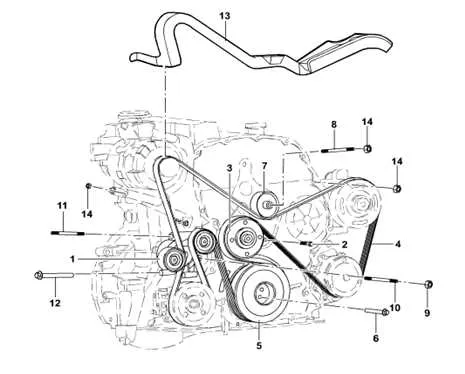

Referencing the Ford 6.2 belt diagram helps pinpoint the exact placement of each accessory belt. This detailed visual guide will allow you to follow the correct route, ensuring that each component receives the power it requires. Pay close attention to the pulleys, tensioners, and guides, as incorrect positioning can lead to friction, noise, or component failure.
Ford 6.2 Belt Diagram

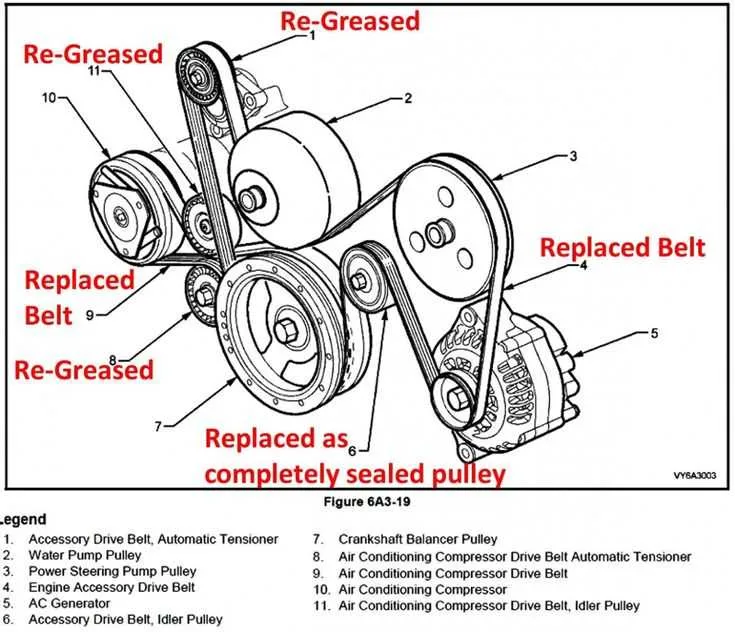

The Ford 6.2 belt diagram illustrates the precise routing of the serpentine belt, which drives various engine components. To ensure proper functioning, follow this diagram exactly when replacing or inspecting the belt. Misalignment can lead to premature wear and failure of connected parts.
For the Ford 6.2 engine, check that the belt is properly tensioned. A loose belt can slip, causing overheating or loss of power to crucial systems like the alternator and water pump. Use a tension gauge to verify the correct tension and adjust it if necessary.
Pay close attention to the direction of the belt. Each pulley has specific grooves that match the belt’s ridges. Installing the belt in the wrong direction can lead to uneven wear and damage. Additionally, check for any signs of cracking or fraying before reinstallation to avoid future issues.
During installation, route the belt in accordance with the diagram, ensuring it is fully seated in the pulleys. After securing the belt, rotate the crankshaft by hand to verify smooth movement and proper alignment before starting the engine.
Regular inspection of the belt is recommended to prevent potential breakdowns. Look for any signs of wear, and replace the belt every 60,000 to 100,000 miles, depending on your driving conditions. Neglecting maintenance can result in a snapped belt, causing significant engine damage.
Understanding the Belt Routing for Ford 6.2 Engine
The belt routing for the Ford 6.2 engine is crucial for proper function and longevity. Follow the diagram closely to ensure each component operates smoothly. The serpentine belt drives various accessories like the alternator, power steering pump, and air conditioning compressor, while the timing chain handles critical engine synchronization.

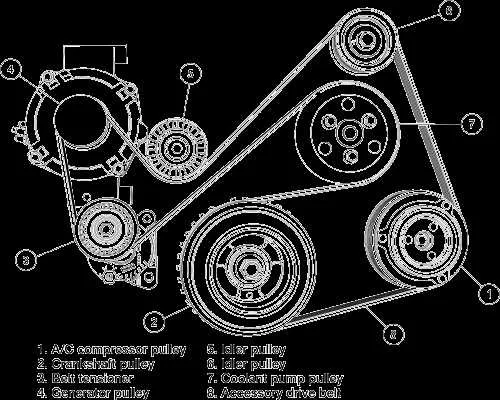

Start by locating the tensioner pulley. This component keeps the belt tight and ensures efficient operation. The belt should loop over the crankshaft pulley first, followed by the water pump, alternator, power steering pump, and air conditioning compressor. Ensure the belt’s path follows the specified pattern in the diagram, as incorrect routing can lead to wear or failure.
- Crankshaft pulley: This is the starting point of the belt route.
- Water pump: It follows the crankshaft, directing coolant flow through the engine.
- Alternator: Positioned after the water pump, it generates electricity for the vehicle’s electrical system.
- Power steering pump: Provides hydraulic pressure to the steering system.
- Air conditioning compressor: Located at the end of the belt route, responsible for cooling the vehicle’s interior.
Ensure the belt sits properly in the pulleys. A misaligned belt can cause friction, which accelerates wear. If the tensioner doesn’t maintain the required pressure, replace it immediately. Over time, belts stretch and lose their effectiveness, so it’s advisable to check the belt condition regularly.
Refer to the manufacturer’s manual for precise details on the correct belt type and replacement intervals. A proper setup ensures optimal performance, preventing unnecessary breakdowns and repairs.
Common Issues and Solutions in Ford 6.2 Belt System
One of the common issues with the Ford 6.2 belt system is belt misalignment. This can happen if the pulleys are damaged or the tensioner is faulty. To fix this, inspect the pulleys for wear and replace them if necessary. Ensure the tensioner is properly adjusted to avoid slippage and ensure smooth operation.
Another issue is belt wear due to improper tension. A loose or overly tight belt can cause excessive friction, leading to premature wear. To address this, check the tensioner and adjust it according to manufacturer specifications. If the belt is too worn, replace it with a new one that meets OEM standards.
Engine noise can also be a sign of problems with the belt system. Squealing or chirping noises typically indicate that the belt is slipping or misaligned. Inspect the belt for cracks, and check the alignment of the pulleys. If necessary, replace the belt and make sure the pulleys are aligned correctly to prevent further issues.
Sometimes, the tensioner itself can become faulty over time. A failing tensioner can cause inconsistent belt tension, leading to slippage or damage. If you notice that the tensioner is not holding proper tension, replace it with a new one designed for the Ford 6.2 engine.
Lastly, belt contamination can occur if oil or coolant leaks onto the belt. This can cause the belt to lose its grip and slip. If you suspect fluid contamination, find the source of the leak and repair it. Afterward, replace the contaminated belt to restore proper functionality.
Step-by-Step Guide for Replacing the Ford 6.2 Serpentine Belt
Start by disconnecting the vehicle’s battery. This prevents any electrical accidents while you’re working with components connected to the engine.
Locate the serpentine belt tensioner. Using a socket wrench, rotate the tensioner to relieve pressure on the belt. This will allow you to easily remove the old belt from the pulleys.
Take note of the belt routing before removing it. You can refer to the Ford 6.2 diagram for guidance or take a photo for reference. This ensures the new belt will be installed correctly.
Remove the old serpentine belt by gently lifting it off the pulleys. Check the belt for signs of wear, such as cracking or fraying, as this could indicate issues with your engine components.
Inspect the pulleys and tensioner for any signs of damage or excessive wear. Replace any worn-out components before installing the new belt.

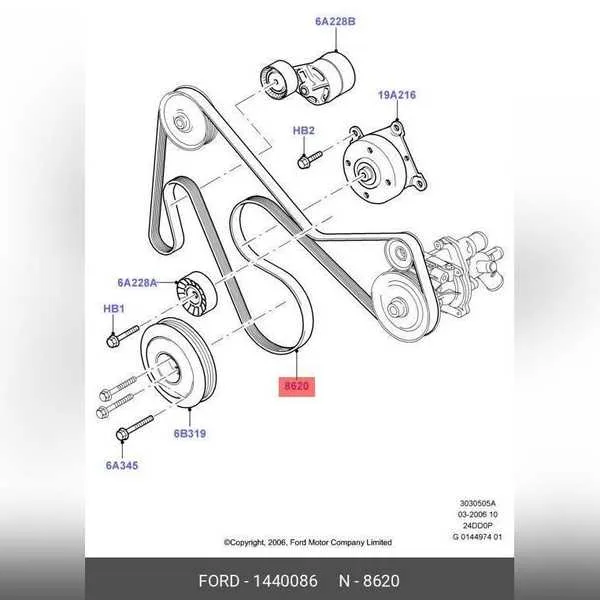

Install the new serpentine belt following the routing diagram. Start with the idler pulleys, then work your way around the crankshaft and alternator. Be sure the belt sits properly in all the grooves.
Once the belt is in place, rotate the tensioner again to ensure the belt is taut. Double-check the belt’s alignment on each pulley to make sure it’s correctly installed.
Reconnect the battery and start the engine to check for proper belt operation. Listen for any unusual noises and observe the belt movement to ensure everything is running smoothly.
If everything looks good, you’ve successfully replaced the serpentine belt on your Ford 6.2 engine.
