2017 Ford Fusion Serpentine Belt Routing and Diagram

If you need to replace or inspect the serpentine belt on your 2017 Ford Fusion, refer to the correct belt diagram to ensure a proper fit and smooth operation. This diagram will help you identify the exact path the belt follows, along with the components it interacts with, such as the alternator, power steering pump, and air conditioning compressor.

Start by locating the belt tensioner. It is crucial to release the tension before removing or installing the belt. Use a socket wrench to move the tensioner, which will allow you to slip the belt off or back on. Make sure to check the belt for any signs of wear, such as cracks or fraying, which might indicate it’s time for a replacement.

Refer to the specific diagram for your model, as the belt routing can vary depending on the engine type and configuration. For the 2017 Ford Fusion, the 2.5L engine typically uses a specific routing pattern, which should be followed exactly to avoid any misalignment or strain on engine components. Once the belt is properly routed, ensure it’s seated securely on all pulleys and reapply tension using the tensioner.

Tip: Always double-check the belt for correct placement before tightening the tensioner to prevent any damage to the components or unnecessary wear on the new belt. Regular maintenance, such as inspecting the belt every 30,000 miles or so, can help you avoid unexpected breakdowns and keep your vehicle running smoothly.

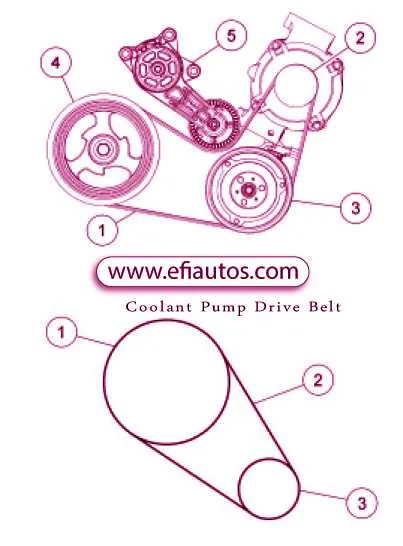

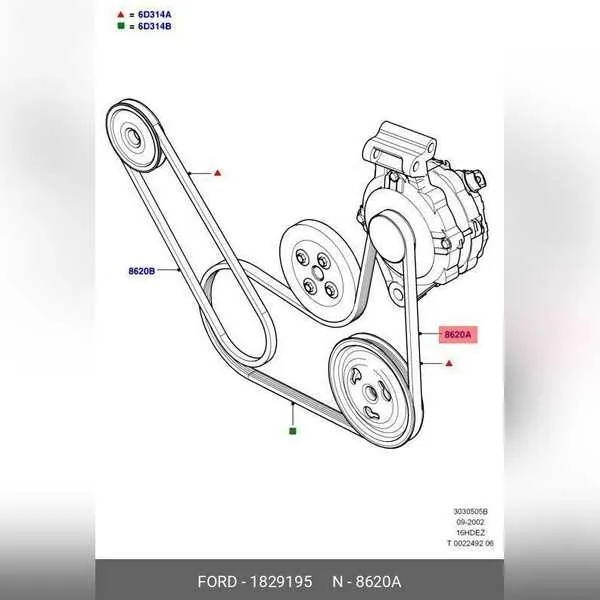

2017 Ford Fusion Belt Diagram

The 2017 Ford Fusion utilizes a serpentine belt system to power various engine accessories like the alternator, power steering pump, and air conditioning compressor. For proper maintenance, it’s important to regularly inspect the belt for signs of wear, cracks, or fraying. If any issues are found, replace the belt immediately to avoid engine malfunctions.

To locate the belt diagram, check the engine compartment on the front-facing radiator support, near the top of the engine bay. The diagram will clearly show the routing of the serpentine belt around various pulleys and tensioners.

When replacing the belt, make sure to follow the diagram exactly to ensure proper belt tension and alignment. Over-tightening or misalignment can lead to premature wear and engine damage. Be sure to check the tensioner to make sure it’s functioning correctly, as a faulty tensioner can lead to belt slippage or failure.

If you’re not familiar with serpentine belt replacements, consider consulting the owner’s manual for more detailed instructions or seeking professional assistance to avoid errors.

How to Locate and Identify the Belt Routing on a 2017 Ford Fusion

To find the belt routing on your 2017 Ford Fusion, start by opening the hood and locating the serpentine belt. The routing diagram is typically attached near the engine bay, often on the front or side of the radiator support, or on the underside of the hood itself. Look for a sticker or metal plate with a diagram showing how the belt loops around the pulleys.

If you cannot find the diagram in the engine bay, refer to the owner’s manual. The manual contains a detailed diagram, making it easy to identify the correct routing path for the belt system.

Ensure that the belt is positioned correctly over the pulleys. Double-check the alignment with the diagram to confirm that it is in the right place, especially around components like the alternator, tensioner, and idler pulleys. A properly routed belt ensures the engine’s accessories, like the power steering pump and air conditioning compressor, operate smoothly.

• Check the routing of the belt around the crankshaft pulley, which is the starting point of the system.
• Follow the belt’s path to the tensioner pulley, which keeps the belt tight, and ensure it follows the correct alignment.
• Look at how the belt wraps around the alternator, ensuring it loops in the proper direction to drive the component.
• Check the path around the water pump and the air conditioning compressor, ensuring the belt sits properly over their pulleys.

If you’re replacing the belt, make sure to route the new belt exactly as shown in the diagram. Improper routing can lead to a malfunction in the vehicle’s systems.

Step-by-Step Guide to Replacing the Serpentine Belt on a 2017 Ford Fusion

1. First, locate the serpentine belt tensioner. It’s on the front of the engine, near the belt, and typically features a pulley with a bolt in the center.

2. Use a 3/8-inch ratchet or breaker bar to rotate the tensioner counterclockwise. This will relieve the pressure on the belt, allowing you to remove it easily.

3. Carefully slide the belt off the pulleys, starting with the tensioner pulley. Keep track of the belt’s routing to ensure you install the new one correctly.

4. Inspect the new serpentine belt for any signs of wear or damage. It should match the old one in size, length, and rib pattern.

5. Begin routing the new belt around the pulleys. Start with the crankshaft pulley, followed by the other pulleys, following the same path as the old belt.

6. Use the ratchet to move the tensioner pulley again, allowing you to slip the belt over the pulley. Make sure the belt is securely seated on all pulleys.

7. Double-check the belt’s alignment. It should sit evenly in the grooves of the pulleys without being twisted.

8. Once the belt is in place, turn the engine by hand to ensure proper belt movement and tension. If the belt moves smoothly and without obstruction, you’re done.

9. Close the hood, and you’re ready to go. Your serpentine belt is now replaced on your 2017 Ford Fusion!

Common Issues and Troubleshooting Tips for the 2017 Ford Fusion Belt System

Check for any unusual noise coming from the engine, such as squealing or chirping. This often indicates a worn-out or loose serpentine belt. Inspect the belt for cracks, fraying, or missing sections. If you spot any damage, replace the belt immediately to avoid further engine complications.

If the air conditioning or power steering stops working, the serpentine belt may have slipped off or broken. Ensure that the belt is correctly aligned on all pulleys. Misalignment can lead to unnecessary wear and poor performance. Reinstalling or replacing the belt might resolve the issue.

Look out for the check engine light. In some cases, a malfunction in the belt system, like a misaligned tensioner or pulley, can trigger this warning. Run a diagnostic check to confirm the source and take action accordingly. Often, replacing the faulty component is enough to clear the light.

A common issue is belt slippage, especially if the tensioner is worn out. Test the tensioner by pressing down on the belt. If it moves excessively or feels loose, replacing the tensioner will restore proper belt tension and prevent slipping.

If your vehicle experiences engine overheating, inspect the belt system for any damage. A broken or slipping belt might prevent the water pump from circulating coolant effectively. In such cases, replace the belt and verify all pulleys are functioning correctly to ensure proper engine cooling.

For long-term reliability, regularly inspect the tensioner, idler pulleys, and the belt itself. Replacing the belt and related components every 60,000 to 100,000 miles will help maintain system performance and prevent unexpected failures.
