2017 Ford Escape Belt Diagram and Maintenance Guide

The 2017 Ford Escape’s belt system plays a key role in keeping the engine components running smoothly. To avoid breakdowns or misalignments, it’s important to know exactly how to read and understand the belt diagram. The diagram outlines the proper routing for the drive belts, including the serpentine belt and accessory belts, and ensures all parts are working in sync.

First, identify the location of the tensioner pulley, as it will be used to adjust belt tension. The diagram will show the correct path of the belt, from the crankshaft pulley to the various components such as the alternator, air conditioning compressor, and power steering pump. Make sure the belt follows the specific routing pattern shown, as an incorrect setup can lead to damage or reduced efficiency.

Check the belt’s condition regularly for signs of wear, such as cracks, fraying, or glazing. If the belt shows any of these signs, replace it immediately to prevent further damage to the engine components. Regular inspection and knowing how to refer to the belt diagram will keep your Ford Escape running smoothly.

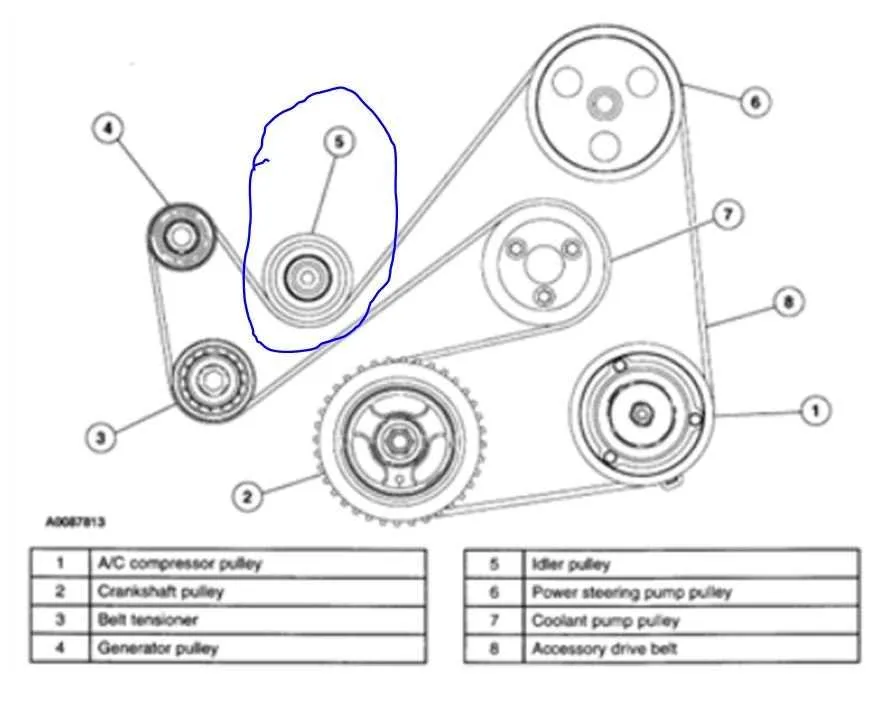

2017 Ford Escape Belt Diagram

The 2017 Ford Escape utilizes a serpentine belt system that drives various engine components, including the alternator, power steering pump, air conditioning compressor, and water pump. Proper alignment and tensioning of the belt are key to ensuring the system operates smoothly and efficiently.

For replacement, begin by identifying the belt routing. The diagram, typically found on the front of the engine bay, shows how the belt should be installed. It’s important to follow the exact path indicated to avoid damage to components or improper operation.

When inspecting the belt, check for signs of wear such as cracks, fraying, or glazing. A worn belt can slip or break, leading to engine performance issues. If the belt appears damaged or worn, replace it promptly to prevent further complications.

Ensure that the pulleys are in good condition. Misaligned or worn pulleys can cause the belt to wear unevenly, reducing its lifespan. If any pulleys are faulty, replace them before installing a new belt to avoid repeating the issue.

After installing the new belt, verify the tension. Too tight or too loose a belt can lead to premature wear or failure. Use a tension gauge to check if the belt tension meets manufacturer specifications. Tighten or loosen the tensioner if needed.

How to Identify Belt Components on the 2017 Ford Escape

Start by locating the serpentine belt, which powers various accessories like the alternator and air conditioning compressor. The belt runs across several pulleys, including the crankshaft pulley, idler pulley, and tensioner pulley. The tensioner is a spring-loaded device designed to maintain proper belt tension. Look for the tensioner pulley, typically located near the top of the engine, which adjusts automatically to keep the belt tight.

Next, identify the alternator and power steering pulleys. These components are attached to the engine’s serpentine system and are driven directly by the belt. The alternator pulley is often at the front of the engine, while the power steering pulley can be found closer to the side of the engine bay.

Check the air conditioning compressor pulley, which is typically located near the front of the engine. This component is critical for regulating the cooling system and is driven by the serpentine belt.

Use the diagram for reference to match each pulley with its corresponding part. Ensure that the belt is routed correctly through each component to prevent any malfunction or premature wear. Regular inspection of the belt and pulleys helps avoid issues such as slipping or breakage.

Steps to Replace the Drive Belt on 2017 Ford Escape

To replace the drive belt on your 2017 Ford Escape, follow these steps:

1. Prepare the Vehicle

Park the vehicle on a flat surface and engage the parking brake. Open the hood and disconnect the negative battery terminal to ensure safety during the procedure.

2. Locate the Drive Belt

Find the drive belt on the front of the engine. The 2017 Ford Escape typically uses a serpentine belt, which powers various accessories such as the alternator, air conditioning compressor, and power steering pump.

3. Remove the Belt Tensioner

Using a ratchet and appropriate socket, rotate the tensioner clockwise to relieve pressure on the belt. This will allow you to remove the belt from the pulleys.

4. Remove the Old Belt

Carefully slide the belt off the pulleys. Take note of the belt’s routing as you remove it, as you will need to install the new belt in the same configuration. Refer to the vehicle’s belt diagram for guidance.

5. Inspect the Pulleys

Before installing the new belt, check the pulleys for wear or damage. Ensure that they spin freely and smoothly. Replace any worn pulleys to avoid issues with the new belt.

6. Install the New Belt

Place the new belt over the pulleys, following the correct routing based on the vehicle’s belt diagram. Ensure the belt is seated correctly on all pulleys, and avoid any twists or misalignments.

7. Reapply Tension

Use the ratchet to rotate the tensioner again and apply tension to the belt. Ensure the belt is tight and secure. The tensioner should return to its resting position once the proper tension is applied.

8. Reconnect the Battery

Reconnect the negative battery terminal and tighten it securely.

9. Test the Belt

Start the engine and observe the new belt in operation. Ensure that it runs smoothly and that no unusual noises are present. Verify that all accessories powered by the belt are functioning correctly.

Replacing the drive belt is straightforward, but make sure to follow each step carefully to avoid issues with the vehicle’s performance.

Common Issues with the Belt System and How to Resolve Them

Check for visible wear and tear on the drive belt. Fraying, cracking, or glazing is a sign the belt needs replacement. If you notice these issues, replace the belt with a new one that matches the vehicle’s specifications.

Another common issue is improper tension. If the belt is too loose or too tight, it can cause poor performance and wear down other components. Use a belt tension gauge to verify the proper tension and adjust the tensioner accordingly.

Listen for squealing or chirping noises while the engine is running. These sounds often indicate that the belt is slipping, usually because of a worn-out tensioner. Inspect the tensioner for proper operation and replace it if necessary.

Inspect the pulleys regularly for damage or misalignment. Misaligned pulleys can cause the belt to rub, leading to premature wear. Ensure that the pulleys are correctly aligned, and replace any damaged pulleys.

If the belt system is squeaking after replacement, it could be due to a misaligned or worn idler pulley. Check the idler pulley for smooth movement and replace if needed.

Another issue arises when the belt system has accumulated dirt or debris. Clean the pulleys and belt with a damp cloth, making sure nothing interferes with the smooth running of the system.

In some cases, you may notice poor performance of accessories like the alternator or air conditioning due to a failing belt. If the belt is worn or broken, replace it immediately to restore proper functionality.

Check for oil leaks that may come in contact with the belt. Oil can deteriorate the rubber, leading to cracks or damage. If there’s an oil leak, repair it before replacing the belt to prevent further damage.

If the belt appears too shiny or smooth, it’s likely a sign of slippage, caused by too much friction. Replace the belt and ensure proper tension to avoid future issues.
