2017 Ford Escape 1.5 Belt Diagram and Routing Information

To maintain your 2017 Ford Escape 1.5, understanding the serpentine belt layout is key. The belt drives multiple components in the engine, including the alternator, power steering pump, and air conditioning compressor. If you’re tackling a repair or replacement, having a clear diagram will save time and prevent mistakes.

The diagram for the 1.5L engine is fairly straightforward but should be followed precisely. Start by ensuring the belt is routed through the correct pulleys, following the path shown in the factory diagram. It’s crucial that the tensioner pulley is correctly positioned to avoid belt slippage or premature wear.

For an easy reference, you’ll typically find the belt routing diagram either on a sticker under the hood or in the vehicle’s service manual. If it’s not immediately visible, it’s a good idea to print out a diagram for your reference when replacing or adjusting the belt.

For repairs, be mindful of pulley alignment. Even slight misalignments can cause premature wear or failure of the belt, leading to costly repairs. Always replace the belt at the first sign of cracks or fraying to avoid engine damage.

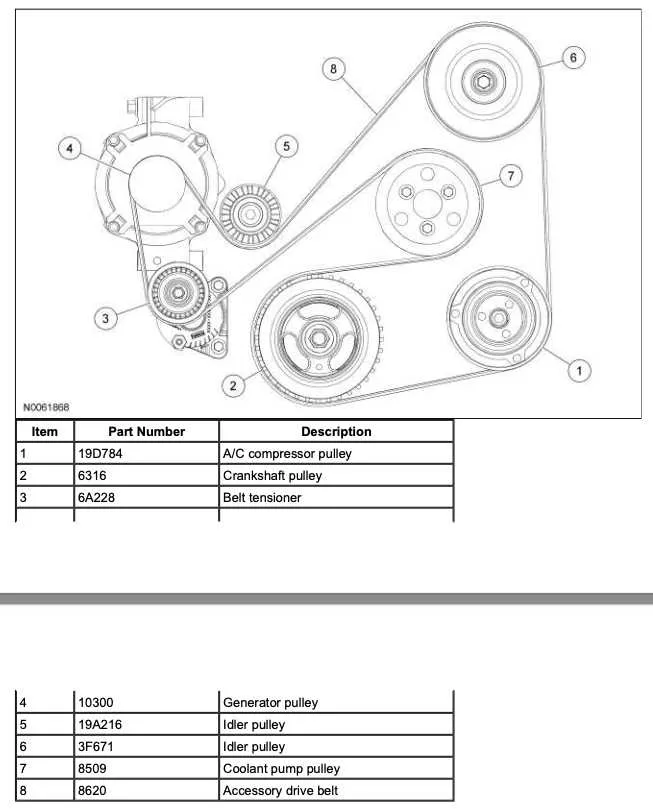

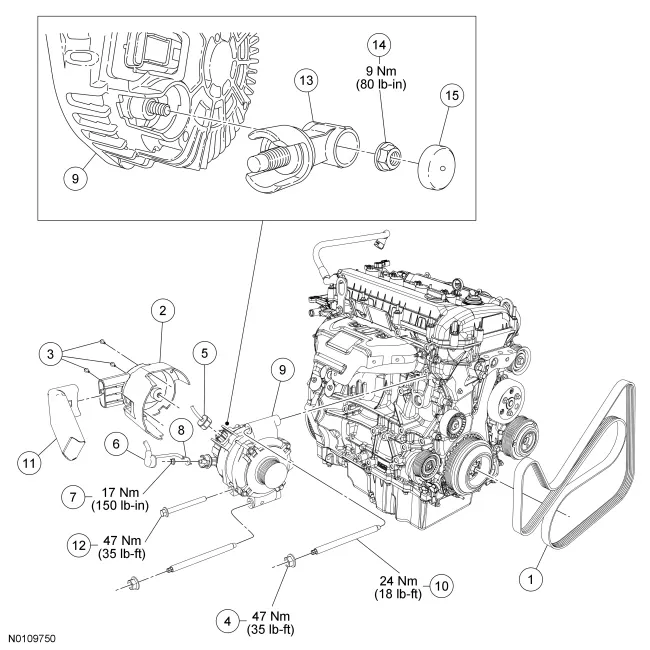

2017 Ford Escape 1.5 Belt Diagram

The 2017 Ford Escape 1.5L uses a serpentine belt system that drives multiple engine components. Here’s a step-by-step guide to understanding the belt routing and its components.

• Alternator: The belt powers the alternator, which generates electricity for the vehicle’s electrical system and charges the battery.
• Power Steering Pump: The belt also runs the power steering pump, ensuring smooth and responsive steering.
• Water Pump: The water pump is driven by the serpentine belt, which circulates coolant through the engine to maintain proper temperature.
• Air Conditioning Compressor: The compressor is powered by the serpentine belt to keep the air conditioning system running.
• Crankshaft Pulley: The belt loops around the crankshaft pulley, which is the central driver of the entire system.

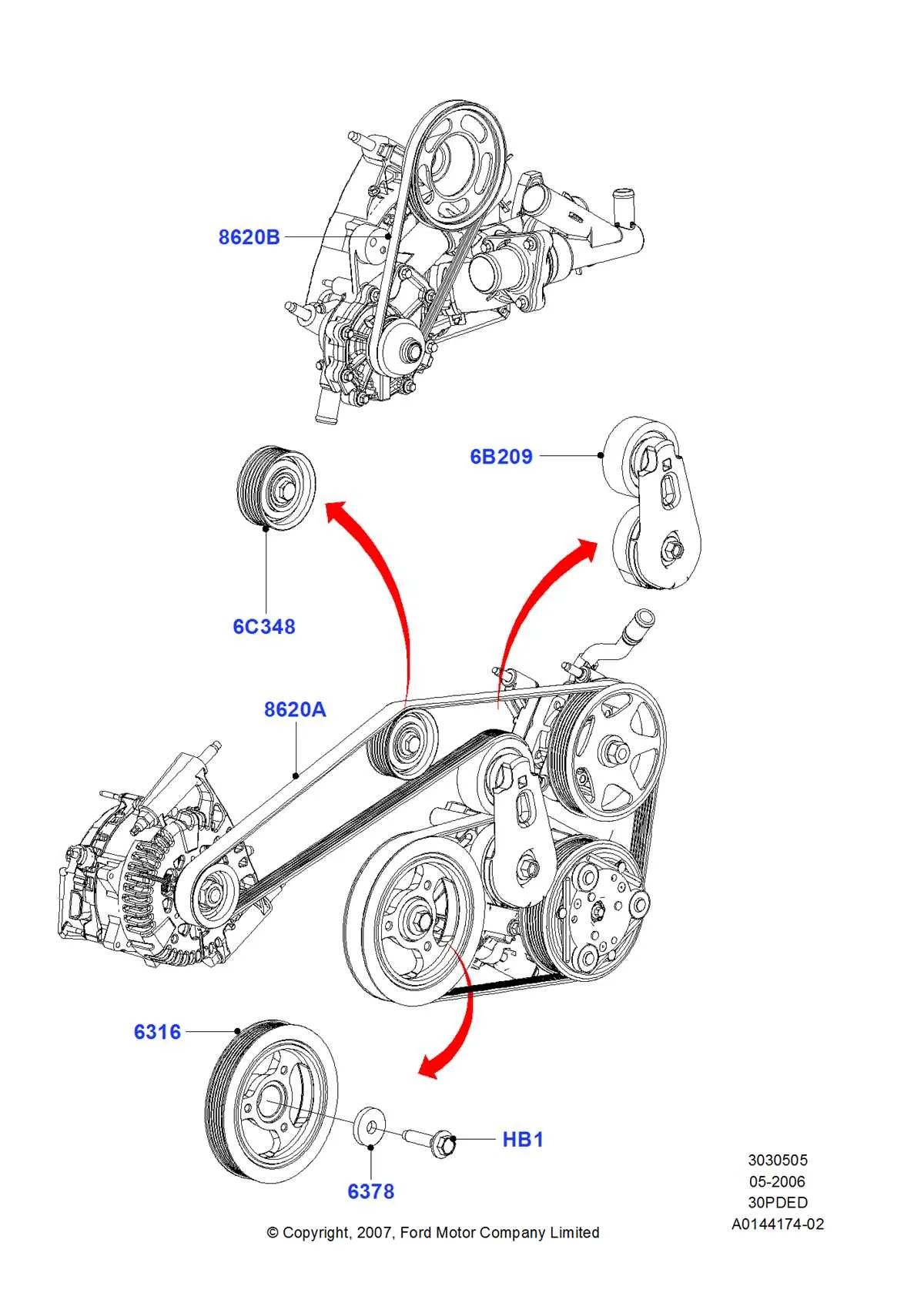

The belt routing starts from the crankshaft pulley, passing over the alternator, power steering pump, water pump, and A/C compressor. Ensure the belt is properly tensioned to avoid slipping and ensure all components are powered efficiently.

If you’re replacing the serpentine belt, make sure to check for any signs of wear like cracks, fraying, or glazing. A worn-out belt can lead to poor performance or even engine overheating.

Consult your vehicle’s manual for the precise belt tensioning specifications, or use a tension gauge to ensure it’s correctly adjusted. Regularly inspect the belt for proper alignment and condition to keep your Escape running smoothly.

How to Locate and Identify the Serpentine Belt on a 2017 Ford Escape 1.5

To locate the serpentine belt on your 2017 Ford Escape 1.5, open the hood and look towards the front of the engine. The serpentine belt is typically positioned near the engine’s front pulley system, which includes components like the alternator, air conditioning compressor, and power steering pump.

The belt itself runs in a continuous loop around these components. The tensioner pulley, usually located at the top or side of the system, keeps the belt tight. This tensioner is an important feature to look for when inspecting the belt for wear or damage.

For a clear view of the belt path, you may need to remove the engine cover if equipped. Use a flashlight to check for cracks, frays, or signs of wear along the belt. If the belt appears damaged, it’s advisable to replace it to prevent further engine issues.

The belt diagram for your vehicle is usually located on a sticker or decal near the engine bay. It provides a visual reference for the proper routing of the serpentine belt, ensuring you can reinstall it correctly if needed.

Step-by-Step Guide to Replacing the Serpentine Belt in the 2017 Ford Escape 1.5

To replace the serpentine belt in your 2017 Ford Escape 1.5, follow these steps to get the job done efficiently and safely.

1. Gather Your Tools: You’ll need a serpentine belt tool or a 3/8-inch drive ratchet, a new serpentine belt, gloves, and safety glasses.

2. Locate the Belt Routing Diagram: Check the engine bay for the serpentine belt routing diagram. This diagram shows how the belt runs around the pulleys and must be followed when installing the new belt. If you can’t find the diagram, refer to the vehicle manual.

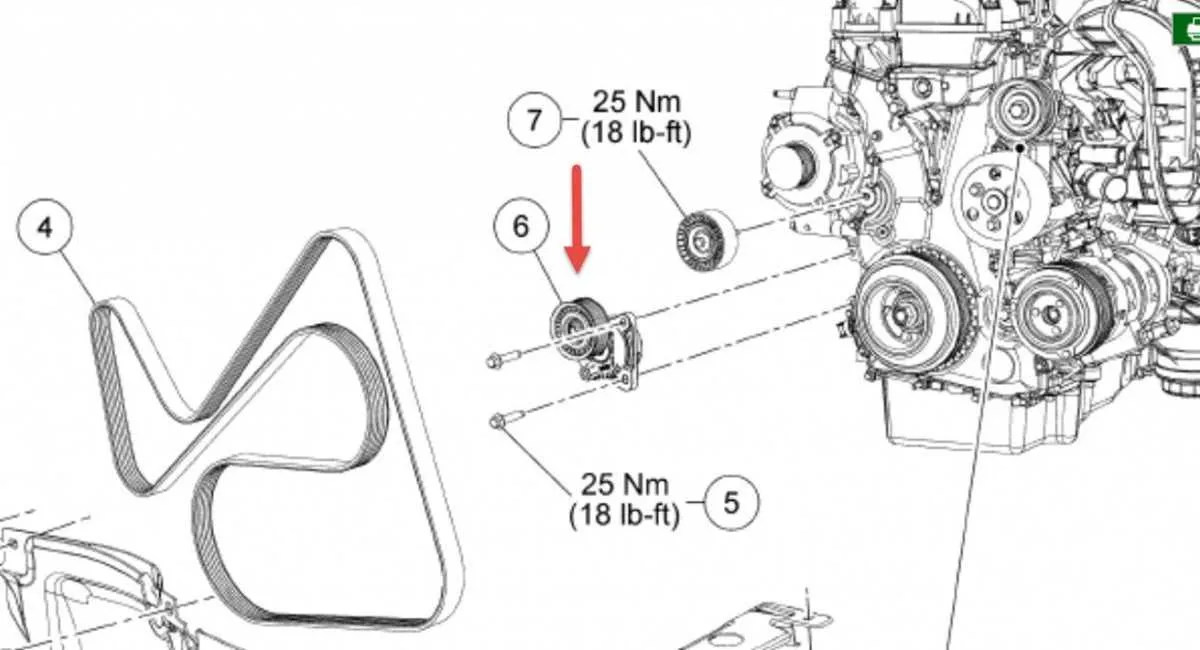

3. Release Tension from the Belt: Use the serpentine belt tool or ratchet to rotate the tensioner pulley counterclockwise. This will relieve the tension on the belt, allowing you to remove it easily. Be careful to maintain control of the ratchet or tool to avoid injury.

4. Remove the Old Belt: Once the tension is released, slide the belt off the pulleys. Take note of the belt’s routing before fully removing it for reference when installing the new one.

5. Inspect the Pulleys: Before installing the new belt, check the pulleys for any signs of damage or wear. Spin each pulley by hand to ensure they move freely and quietly. Replace any damaged pulleys before continuing.

6. Install the New Belt: Begin by routing the new serpentine belt around the pulleys, following the routing diagram. Ensure the belt is properly seated in all the grooves of the pulleys. Take your time to make sure it is aligned correctly.

7. Apply Tension: Use the tensioner tool or ratchet again to rotate the tensioner pulley counterclockwise and allow it to apply tension to the belt. Make sure the belt is tight and properly aligned on all pulleys.

8. Check Belt Alignment: After the belt is installed, visually inspect it to ensure it’s running straight and correctly aligned with the pulleys. If it appears off-track, recheck the routing and make adjustments.

9. Test the Engine: Start the engine and let it run for a few minutes. Watch for any unusual noises or belt movement. If everything sounds normal and the belt is running smoothly, you’ve successfully replaced the serpentine belt.

10. Clean Up: Double-check all tools are accounted for and clean the area. Dispose of the old belt properly.

Troubleshooting Common Issues with the Belt System in the 2017 Ford Escape 1.5

If you notice unusual sounds like squealing or grinding coming from the engine area, it’s often a sign of a worn or misaligned belt. Start by inspecting the serpentine belt for cracks or signs of wear. If the belt appears damaged, replacing it is the most straightforward fix.

Another common issue is belt slippage, which can cause power steering or alternator malfunctions. Check the tensioner and idler pulley for proper tension. If the belt is loose, adjust or replace the tensioner. A weak or failing tensioner won’t maintain the correct tension, leading to belt slip and possible engine overheating.

If the engine stalls or starts misfiring, it could be due to a faulty alternator or water pump driven by the belt. Inspect the belt’s alignment to ensure it’s correctly routed according to the diagram. A misalignment can cause excessive strain on the belt, leading to premature failure or damage to connected components.

Sometimes, the pulleys or tensioner might be the issue. Over time, pulleys can wear down and create friction that prevents the belt from functioning properly. Spin each pulley by hand to check for resistance or wobbling. If you notice either, the pulley likely needs replacing.

If your Ford Escape has been in a high-temperature environment, the belt might show signs of glazing or excessive wear. Check for a shiny or smooth surface on the belt, which indicates that it’s slipping on the pulleys. A replacement belt or pulley could be required in this case.

In rare cases, belt noise can also be attributed to an incorrectly installed belt, which can rub against other engine components. Refer to the belt diagram specific to your 2017 Ford Escape 1.5 to ensure everything is routed properly and secure.
