2014 Ford Fusion Belt Diagram and Component Overview

To identify the correct belt routing for your 2014 Ford Fusion, begin by locating the serpentine belt diagram. This diagram, typically found near the engine bay, clearly outlines the path the belt takes over the pulleys. Ensure that you compare the diagram to the actual setup in your vehicle before replacing the belt.

When replacing the serpentine belt, start by loosening the tensioner pulley using the appropriate tool to relieve pressure on the belt. Remove the old belt, making note of the routing as per the diagram, and install the new belt in the same manner. Double-check that the belt is seated properly on each pulley to avoid future issues.

If you notice any damage to the belt or pulleys, replace them immediately to prevent engine performance problems. Keep the tensioner pulley in good condition, as it plays a crucial role in maintaining the proper tension for the belt.

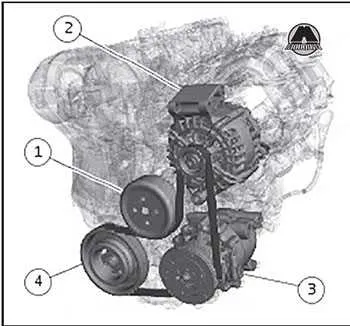

2014 Ford Fusion Belt Diagram

The 2014 Ford Fusion uses multiple belts to operate various engine components, including the serpentine belt and timing belt. The serpentine belt is responsible for powering key accessories such as the alternator, power steering pump, air conditioning compressor, and water pump. Understanding the belt routing is important for maintaining your vehicle’s performance and preventing unnecessary breakdowns.

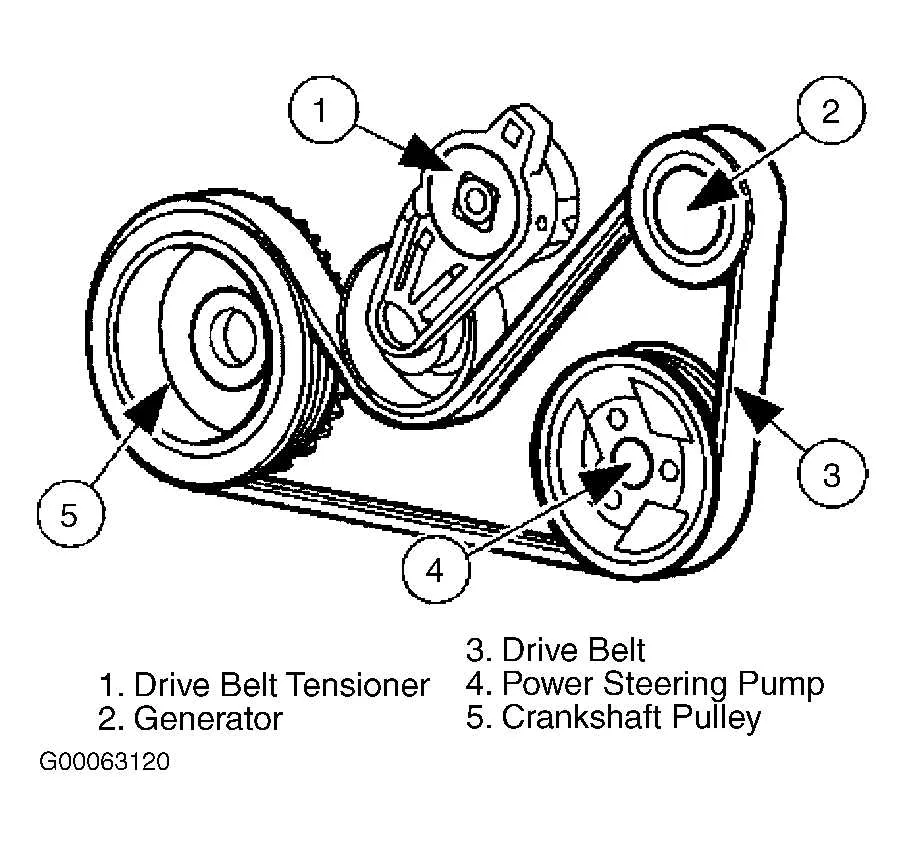

The serpentine belt route in the 2014 Ford Fusion is straightforward, running across the pulleys in a specific pattern. To replace it, first, locate the tensioner pulley and release its pressure. This will allow you to remove the belt from the pulleys. Ensure that the new belt is properly aligned according to the manufacturer’s diagram to avoid misalignment and premature wear.

For vehicles equipped with the 2.5L engine, the timing belt plays a critical role in synchronizing the rotation of the crankshaft and camshaft. This belt should be inspected regularly for signs of wear, such as cracking or fraying. If necessary, replace it according to the manufacturer’s recommendations to prevent serious engine damage.

Always use OEM (original equipment manufacturer) belts for replacements, as they are designed to match the exact specifications required for optimal performance. Be sure to check the belts periodically for signs of damage and replace them if needed to avoid costly repairs.

How to Identify and Locate the Serpentine Belt on a 2014 Ford Fusion

To locate the serpentine belt on a 2014 Ford Fusion, follow these steps:

• Open the hood and secure it in place.
• Locate the engine bay’s front section, where the serpentine belt runs across several pulleys.
• Look for the accessory drive system, which includes components like the alternator, air conditioning compressor, and power steering pump.

The serpentine belt is a long, continuous belt that loops around these components. It runs from the crankshaft pulley to the alternator, tensioner, air conditioning compressor, and power steering pump.

Use a flashlight to get a clearer view if the belt is hard to see due to engine parts obstructing the view. The belt should be visible near the front of the engine, often beneath a plastic engine cover.

To confirm its condition, check for cracks, wear, or fraying. If the belt is damaged, it’s crucial to replace it promptly to avoid engine performance issues.

Step-by-Step Instructions for Replacing the Serpentine Belt on 2014 Ford Fusion

Begin by ensuring the engine is off and cool. Disconnect the negative battery terminal to prevent accidental electrical shorts.

Locate the serpentine belt tensioner, which is typically near the front of the engine. Use a wrench or ratchet to turn the tensioner counterclockwise. This will relieve tension on the belt, allowing you to remove it from the pulleys.

Note the routing of the belt before removal. Take a photo or sketch the belt’s path to help with the installation of the new one.

Carefully remove the serpentine belt from all pulleys. Avoid forcing the belt off as it could damage surrounding components.

Compare the new belt with the old one to ensure they are the same size and type. Install the new belt following the same routing as the original. Start by threading it around the pulleys, ensuring it sits properly in the grooves.

Use the wrench to rotate the tensioner again, allowing enough slack to fit the belt over the last pulley. Slowly release the tensioner to apply the necessary tension to the belt.

Double-check that the belt is correctly aligned and seated on all pulleys. The grooves of the belt should match up with the grooves on the pulleys.

Reconnect the negative battery terminal and start the engine. Observe the belt’s operation to ensure there are no unusual noises or misalignments.

If the belt runs smoothly and without issue, the replacement is complete. If there are any signs of improper routing or tension, stop the engine and adjust accordingly.

Troubleshooting Common Issues with the Belt System on a 2014 Ford Fusion

Slipping Serpentine Belt: A common issue with the belt system is slipping. If the serpentine belt does not have proper tension, it can slip, causing squealing noises. Check the tensioner pulley for wear or malfunction. If the belt is loose, replace the tensioner and the belt to restore proper function.

Cracking or Fraying of the Belt: Over time, the serpentine belt can crack or fray. Inspect the belt regularly for visible signs of wear, including cracks, fraying, or missing ribs. Replace the belt if you notice any of these issues to avoid a complete failure.

Noisy Belt: A noisy belt can be caused by a worn tensioner or idler pulley. Listen for squeaks or squeals when the engine is running. If the noise persists, inspect the pulleys for any signs of damage or wear. Replacing the faulty pulley can often eliminate the noise.

Pulley Misalignment: Misalignment of the pulleys can cause the serpentine belt to wear unevenly or come off. Inspect the alignment of all pulleys and check for any that may be bent or damaged. If necessary, replace the pulleys to ensure proper alignment and function of the belt system.

Overheating of the Belt: Excessive heat can cause the belt to become brittle and crack. Make sure that the engine cooling system is working properly and that the belts are not exposed to overheating components. If the belt is showing signs of heat damage, it may need to be replaced.

Worn Belt Tensioner: A failing belt tensioner can lead to a loose or improperly tensioned belt. If the tensioner is weak, it may fail to maintain the correct tension, leading to belt slippage. Replace the tensioner if it does not provide sufficient tension or if it appears worn.
