Complete belt routing diagram for 2013 Ford Transit Connect engine components
Check the belt routing for your 2013 Ford Transit Connect using the official diagram to avoid misalignment and premature wear. The serpentine belt powers the alternator, water pump, and air conditioning compressor, so precise installation is critical for smooth engine operation.
Locate the tensioner pulley on the upper right of the engine and use a 3/8-inch ratchet to release tension before removing the old belt. Follow the diagram carefully, ensuring the belt wraps around each pulley exactly as shown, including the crankshaft, idler, and accessory pulleys.
Inspect all pulleys for signs of wear, cracks, or wobble while the belt is removed. Replacing any damaged components before installing the new belt prevents unexpected breakdowns and extends the belt’s lifespan.
Once the belt is properly routed and tensioned, rotate the engine by hand for two full revolutions to confirm alignment and smooth movement. Misrouting or skipping this step can cause squealing, overheating, or loss of accessory function.

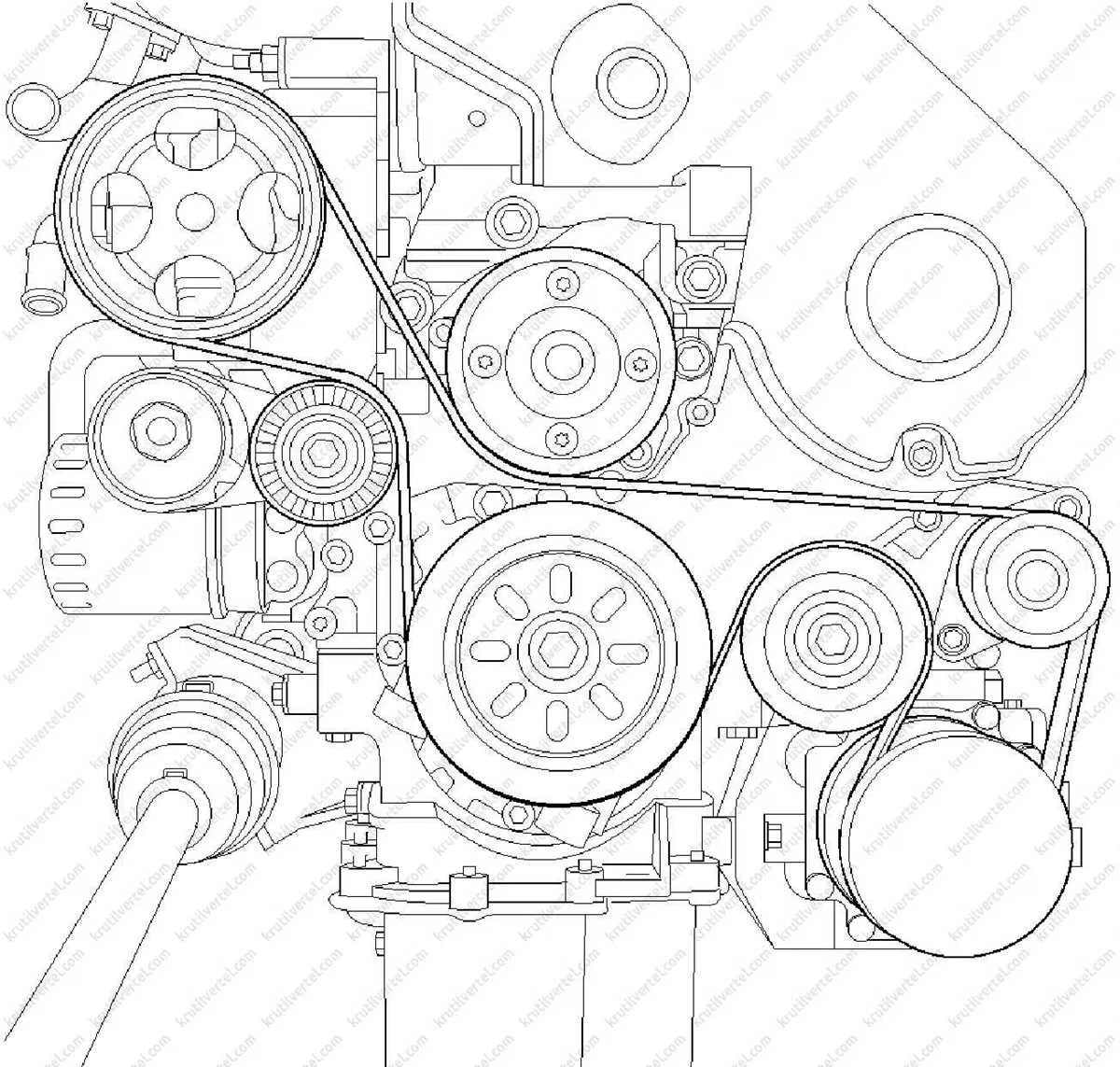

2013 Ford Transit Connect Belt Diagram
Locate the serpentine belt routing immediately on the engine’s front side, starting from the crankshaft pulley. The belt loops around the alternator, power steering pump, and A/C compressor before returning to the tensioner pulley. Identify the tensioner at the upper right, which maintains proper belt tension automatically, reducing slippage and wear.
For accurate installation, follow the diagram printed on the vehicle’s under-hood label or the service manual. Ensure each pulley groove aligns with the belt ribs, particularly on the A/C compressor, as misalignment can cause squealing and premature failure. Inspect all pulleys for wear or wobble while replacing the belt to prevent repeated issues.
Replace the belt with a Ford OEM part or a high-quality equivalent of the correct length and rib count. Use a wrench or serpentine belt tool to release tension at the tensioner, loop the belt along the prescribed path, and slowly release the tensioner to secure the belt. Double-check routing to avoid reversing the belt path, which can lead to mechanical damage.
Regularly inspect the belt for cracks, fraying, or glazing every 15,000 miles, and replace it at the manufacturer’s recommended interval of 60,000 miles. Proper alignment and tension extend the lifespan of both the belt and connected accessories, keeping the Transit Connect running smoothly without unexpected interruptions.
Locating the Serpentine Belt on a 2013 Ford Transit Connect
Open the hood and stand in front of the engine. The serpentine belt wraps around the front of the engine, connecting the crankshaft pulley to the alternator, power steering pump, and air conditioning compressor. On the 2013 Transit Connect, the belt sits slightly to the passenger side, near the top of the engine bay.
Look for a long, continuous rubber belt with visible ribs running along one side. The tensioner pulley keeps it tight and is usually positioned just above or to the side of the crankshaft pulley. You can identify the tensioner by its smooth surface and spring-loaded arm that presses against the belt.
Follow the belt from the crankshaft pulley upward to the alternator pulley. From there, trace it around the other accessories, including the power steering pump and A/C compressor. The routing diagram is often stamped on a sticker inside the engine compartment or embossed on the plastic engine cover. If no diagram is visible, take a photo of the existing belt layout before removal to ensure accurate reinstallation.
Ensure the engine is cool and the vehicle is off before touching the belt. Check for proper alignment on all pulleys, avoiding any misplacement that can cause slipping or premature wear. Adjust or replace the belt only after confirming the correct routing and tension.
Step-by-Step Guide to Reading the Belt Routing Diagram
Locate the belt routing diagram on the engine compartment or in the owner’s manual. This diagram shows the exact path of the serpentine belt around each pulley.
- Identify pulleys: Match each pulley on the diagram with its physical counterpart. Look for labels such as crankshaft, alternator, power steering, and A/C compressor.
- Trace the path: Follow the line connecting each pulley, noting the direction the belt moves over or under each one. Some pulleys may have arrows indicating rotation.
- Check tensioner position: Find the tensioner pulley on the diagram. Its location dictates how the belt is routed and where to apply pressure when installing.
- Confirm belt size: Verify the belt length against the diagram to prevent slack or overstretching. Measure the existing belt or check the part number.
- Visualize routing sequence: Mentally map the belt’s continuous loop from the crankshaft to each accessory. This reduces mistakes during installation.
- Compare diagram with vehicle layout: Ensure no obstacles block the belt path and that pulleys align correctly. Adjust your approach if any misalignment is observed.
- Mark or photograph: Take a picture of the belt before removal or mark pulleys with tape. This provides a reference to match the diagram during reassembly.
Use the diagram as a constant reference during installation. Confirm each pulley position and belt tension after the belt is in place, making sure it sits properly on every groove and avoids slipping.
Replacing the Serpentine Belt Using the Diagram
Locate the serpentine belt diagram on the engine cover or inside the hood. Compare it with the belt routing on your 2013 Ford Transit Connect to confirm each pulley’s position. Use a wrench or serpentine belt tool to release tension from the tensioner pulley.
Slide the old belt off carefully, noting the path it follows around the alternator, water pump, power steering, and crankshaft pulleys. Align the new belt according to the diagram, starting at the crankshaft pulley and working clockwise, ensuring it sits properly in each pulley groove.
Double-check that the belt wraps correctly around the tensioner and idler pulleys. Slowly release the tensioner, allowing it to apply pressure evenly on the new belt. Rotate the engine manually using a socket on the crankshaft pulley to verify smooth movement and correct alignment.
Inspect the belt for twists, misalignment, or uneven seating before running the engine. Test the system under idle for a few minutes and listen for any unusual noises. Proper alignment according to the diagram ensures the belt operates quietly and maintains full accessory performance.
