2013 Ford F150 Serpentine Belt Diagram and Maintenance Tips
For optimal performance, maintaining the serpentine belt in your 2013 Ford F150 is critical. The belt is responsible for driving multiple engine components, including the alternator, water pump, and power steering pump. Regular inspection helps prevent unexpected failures that could lead to costly repairs.
Check the belt for signs of wear such as cracks, fraying, or glazing. If any of these are present, it’s time to replace the belt. Following the correct procedure will not only extend the lifespan of your vehicle but also improve its overall efficiency.
Refer to the diagram of the 2013 Ford F150 to correctly identify the belt routing. Ensure the belt is aligned properly to avoid unnecessary strain on the engine components. Tightening the tensioner to the correct specifications is essential to avoid slippage or breakage.

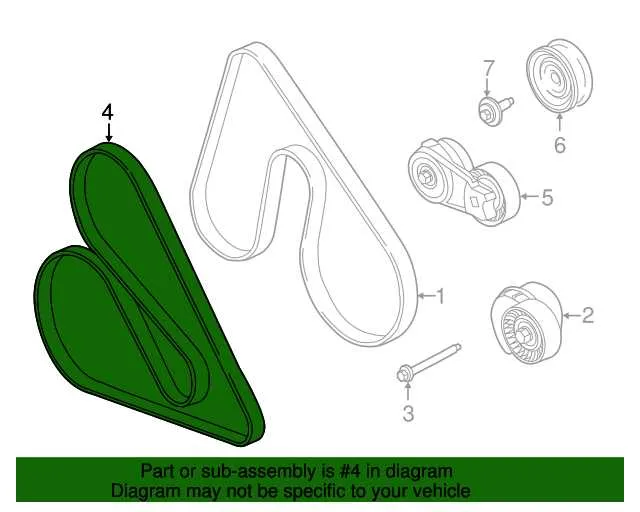

2013 Ford F150 Belt Diagram
Refer to the following steps to locate and understand the belt configuration for the 2013 Ford F150. The serpentine belt system in this vehicle powers various components like the alternator, power steering pump, and air conditioning compressor. It’s important to follow the correct path for proper functionality and maintenance.

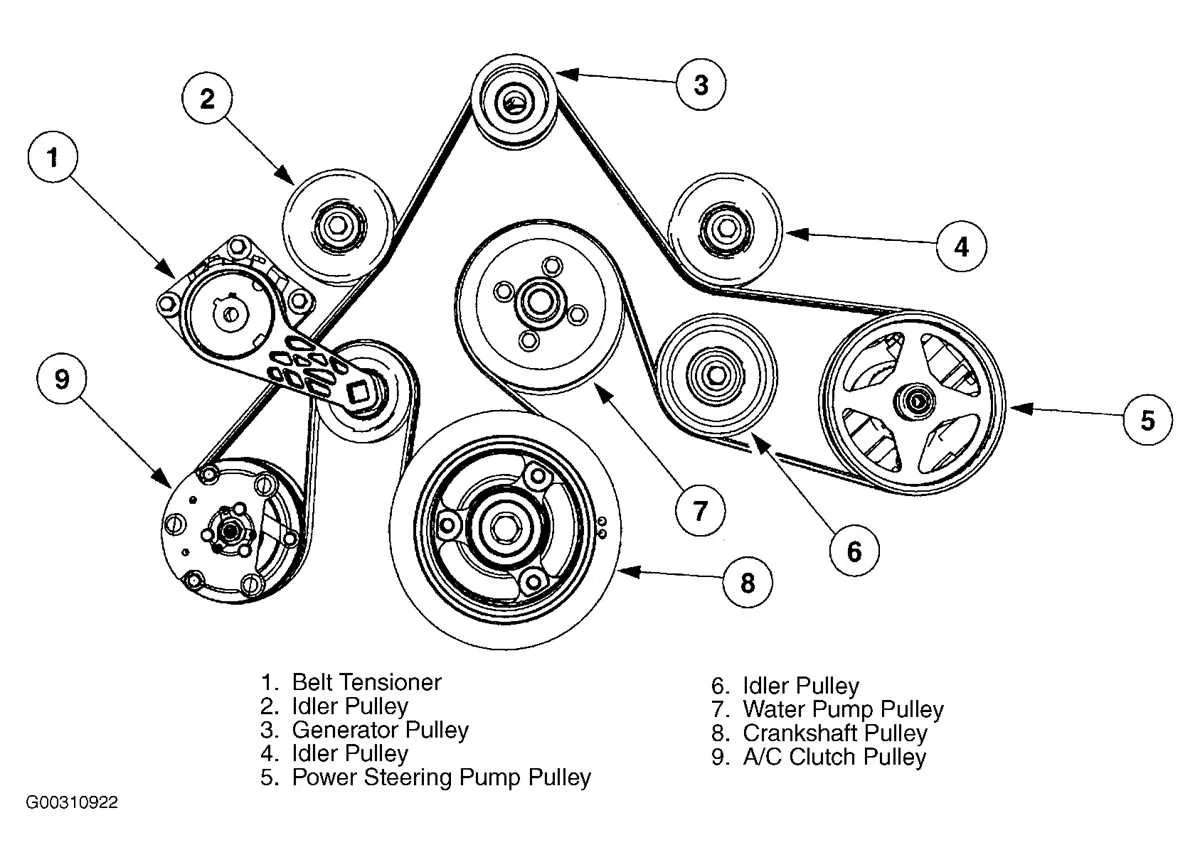

The main belt layout consists of a single serpentine belt that loops around several pulleys. Here’s how to understand the diagram:
- Start by identifying the tensioner pulley, which is typically spring-loaded. This allows for easy removal and reinstallation of the belt.
- The crankshaft pulley serves as the anchor point, guiding the belt across the other components.
- Ensure that the belt runs over the alternator pulley, as this is the main source of power generation for the electrical system.
- Other pulleys, such as the power steering and AC compressor pulleys, must be in correct alignment to avoid slipping or wear on the belt.
To replace or inspect the belt, follow the diagram closely. The tensioner should be released to remove the belt, but take note of the direction in which the belt loops to ensure proper installation. Check for any wear or damage before reinstallation.
For a quick guide:
- Locate the tensioner pulley and release tension to remove the old belt.
- Check the belt for cracks or fraying and ensure the new belt matches the size and configuration.
- Install the new belt in the same path as indicated in the diagram, making sure it runs over all pulleys correctly.
- Re-tighten the tensioner to apply the appropriate tension to the belt.
- Test the vehicle by starting the engine and confirming the belt is functioning properly without squealing or slipping.
Understanding the Serpentine Belt Configuration
The serpentine belt in the 2013 Ford F150 plays a critical role in powering various engine components. It runs across multiple pulleys, connecting the alternator, power steering pump, water pump, and air conditioning compressor. Proper belt alignment and tension are vital to ensure these components function smoothly.
Examine the diagram closely to identify the belt’s path. Pay attention to the direction of the belt’s rotation and make sure it follows the correct routing, as specified by the manufacturer. If the belt deviates from its intended path, it may lead to malfunctioning components or belt wear.
If you notice squealing noises, it might be an indication that the belt is slipping or has become loose. Checking the tension and replacing worn pulleys can prevent further damage. Inspecting the condition of the belt regularly will help catch any signs of cracking or fraying before they cause issues.
When replacing the serpentine belt, ensure that the new belt matches the old one in size and material. Use a belt tensioner tool to apply the correct tension, which is necessary for the efficient operation of the engine. Keep in mind that even small deviations from the correct tension can lead to performance problems or early belt failure.
Steps for Inspecting and Diagnosing Belt Issues
Inspect the serpentine belt by visually checking for cracks, frays, or signs of wear. A worn belt often appears cracked or glazed, indicating it may need replacement.
Next, check for belt tension. If the belt is too loose, it will slip, leading to engine performance issues. Use a tension gauge or press down on the belt with your fingers to test its tightness. A properly tightened belt should have minimal movement.
Inspect the pulleys for misalignment. A pulley that’s off-center can cause the belt to wear unevenly or slip. Rotate each pulley by hand and listen for unusual noises, which may indicate worn bearings.
Check the condition of the belt’s idler pulley and tensioner. These components help maintain the belt’s tension. If they’re not working properly, the belt will not maintain the correct tension, leading to premature wear or failure.
Finally, listen for any squealing noises while the engine is running. A squealing serpentine belt often points to excessive friction or an issue with the belt’s alignment.
How to Replace the Serpentine Belt on a 2013 Ford F150
Begin by locating the serpentine belt tensioner. Use a ratchet wrench to relieve tension on the belt by turning the tensioner clockwise. Carefully remove the belt from the pulleys.
Next, inspect the belt for any signs of wear or damage. If the belt is cracked or frayed, replace it. Before installing the new belt, verify the correct routing pattern. Refer to the diagram on the radiator support or the vehicle’s manual for guidance.
Install the new serpentine belt by following the same path as the old one. Make sure the belt sits properly in the grooves of the pulleys. After positioning the belt, release the tensioner to apply tension to the new belt.
Double-check the alignment of the belt. Start the engine and observe the belt’s movement. Ensure it operates smoothly without any slipping or noise.
