2011 Ford Focus Serpentine Belt Diagram and Routing Guide for Quick Reference
If you’re working on your 2011 Ford Focus, understanding the serpentine belt routing is key to maintaining the engine’s accessory drive system. The serpentine belt connects various components like the alternator, power steering pump, and air conditioning compressor. When it’s time for replacement, having a clear diagram will save you time and prevent unnecessary mistakes.
The serpentine belt in the 2011 Ford Focus is designed to fit a specific route around pulleys and tensioners. Incorrect routing can lead to belt wear, squeaking, or even failure. Ensure you follow the diagram carefully when installing the new belt. To make things easier, there’s a diagram located on the engine compartment’s fan shroud or the underside of the hood. If the diagram is missing or hard to read, don’t worry; we’ve included a detailed representation of the correct routing for your convenience.
Check the belt’s condition before starting your work. Look for any signs of cracks, fraying, or glazing. A worn-out serpentine belt can lead to engine overheating or power loss in accessories. If your Focus has higher mileage, it’s a good idea to replace the belt as part of routine maintenance. With the correct diagram and proper installation, your car will continue to run smoothly.

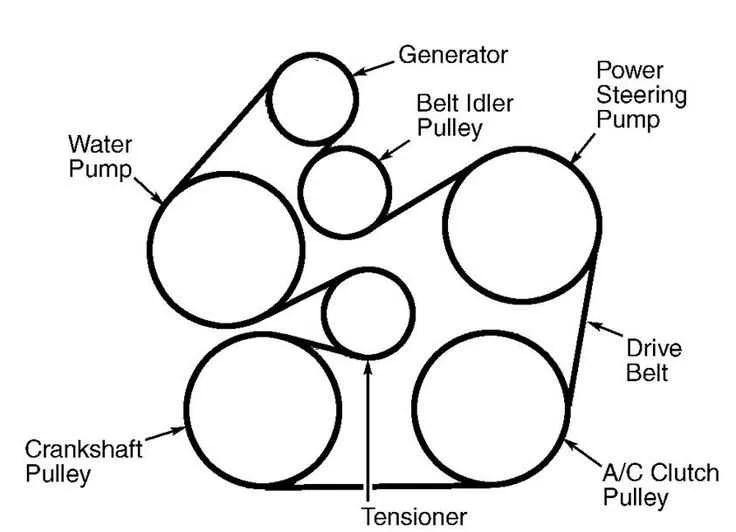

2011 Ford Focus Serpentine Belt Diagram
For a smooth and reliable engine performance, it’s important to install the serpentine belt correctly on your 2011 Ford Focus. The diagram below shows the precise routing for the serpentine belt, ensuring that all components are driven efficiently, from the alternator to the power steering pump.
The serpentine belt in the 2011 Ford Focus follows a specific route over the engine pulleys. Start by looping the belt over the crankshaft pulley, ensuring it passes through the tensioner pulley. The belt should then move around the alternator and power steering pulleys. Make sure the belt aligns properly with the idler pulley, preventing any unnecessary wear or slippage.
When replacing the serpentine belt, it’s recommended to use a belt tensioner tool for proper tension. The belt should be tight but not overly so. If the belt feels too loose or too tight, it could lead to premature wear or failure.
It’s important to periodically inspect the belt for any cracks, fraying, or glazing, which are signs that it might need replacing. Regular inspection can prevent unexpected breakdowns and extend the life of your engine components.
For visual assistance, refer to the diagram provided below to ensure the correct positioning of each pulley. This will help you avoid mistakes during installation, saving both time and potential repair costs.
Identifying the Correct Serpentine Belt Routing for 2011 Ford Focus
For the 2011 Ford Focus, the serpentine belt routing is straightforward, but getting it right is key to ensuring proper engine operation. The belt should be routed around the crankshaft pulley, water pump, alternator, and other components in a specific sequence to maintain tension and efficiency.
The routing starts at the crankshaft pulley, looping around the alternator and then moving towards the power steering pump. The next part of the belt travels around the water pump, ensuring that it keeps the engine cool during operation. The belt then wraps around the idler pulley before looping back to the crankshaft pulley.
Check the belt’s orientation carefully, making sure the smooth side faces the pulleys with grooves, and the grooved side is against the smooth pulleys. This helps to ensure proper grip and function across all components.
Ensure that the belt is installed with the correct tension. A loose belt may cause slippage, while an overly tight one can strain the components, leading to wear. Use a tensioner tool to adjust the belt to the recommended tension level, or inspect the automatic tensioner for wear if it’s not providing enough force.
For reference, many 2011 Ford Focus models have a diagram on the engine bay to guide the belt routing. If you don’t see one, check the owner’s manual for a detailed diagram to assist with installation.
Step-by-Step Guide to Replacing the Serpentine Belt on 2011 Ford Focus
Replacing the serpentine belt on a 2011 Ford Focus requires attention to detail and the right tools. Follow these steps to complete the task efficiently.
- Gather Tools and Equipment:
- New serpentine belt
- Socket set
- Ratchet wrench
- Wrench or belt tensioner tool
- Jack and jack stands
- Torque wrench
- Lift the Vehicle: If you need more room to work, jack up the front of the car and secure it with jack stands. Ensure the vehicle is stable before proceeding.
- Locate the Serpentine Belt: The serpentine belt on the 2011 Ford Focus runs across several components, including the alternator, power steering pump, and air conditioning compressor. It’s located at the front of the engine. Inspect the routing diagram to familiarize yourself with the belt’s path.
- Release the Tension on the Belt: Use a wrench or belt tensioner tool to relieve tension from the serpentine belt. Rotate the tensioner pulley clockwise to loosen the belt. Once it’s loose, remove the belt from the pulleys.
- Remove the Old Belt: Carefully slide the old serpentine belt off the components it loops around. Make sure to note the belt’s routing for the installation of the new belt.
- Install the New Belt: Refer to the routing diagram and install the new serpentine belt. Ensure it is seated properly on all pulleys and that the tensioner pulley is in its resting position without too much slack.
- Check Alignment: Inspect the belt to make sure it’s running correctly along the pulleys. The belt should be tight but not overly stretched.
- Test the Tension: Rotate the tensioner pulley to check the belt’s tension. It should be snug but have a slight give when pressed. Re-tighten any bolts if necessary.
- Lower the Vehicle: If you’ve jacked up the car, carefully lower it back to the ground.
- Start the Engine: Run the engine for a few minutes and check the new belt for any irregular noises or slipping. If everything is running smoothly, you’ve completed the replacement.
Once the job is finished, the serpentine belt should function like new, ensuring all engine accessories operate correctly. It’s always a good idea to double-check the belt’s condition every few months to avoid unexpected issues down the road.
Common Issues with Serpentine Belt System in 2011 Ford Focus
The serpentine belt in the 2011 Ford Focus is crucial for powering various engine accessories. It can experience several issues over time that affect its performance.
1. Belt Wear and Cracking: Over time, the serpentine belt naturally wears down due to constant friction and exposure to heat. Look for visible cracks, fraying, or glazing. These signs indicate that the belt may need to be replaced before it breaks and causes damage to other components.
2. Belt Slippage: If the belt isn’t tight enough, it may slip over pulleys, causing poor engine performance or a battery that isn’t charging properly. This can happen if the tensioner is worn out or if the belt is stretched.
3. Tensioner Failure: The belt tensioner maintains the correct tension on the serpentine belt. If the tensioner malfunctions, it can lead to belt slippage or excessive wear. A faulty tensioner may also make a squealing noise when the engine starts.
4. Misaligned Pulleys: If any pulleys are misaligned due to damage or wear, the belt will not sit properly, causing it to wear unevenly or slip. This can be particularly problematic if the pulleys are not properly lubricated or are damaged.
5. Squealing or Chirping Sounds: If you hear squealing or chirping noises from the engine compartment, it’s often a sign of a worn or loose serpentine belt. This can also indicate a failing pulley or tensioner that should be addressed promptly.
Regular inspection of the serpentine belt system helps prevent issues and ensures smooth engine operation. Make sure to replace worn-out belts and faulty components promptly to avoid more costly repairs.
