2011 Ford Focus Belt Diagram Detailed Guide and Troubleshooting Tips
If you’re working on the 2011 Ford Focus and need a quick reference for its belt system, the diagram below will guide you through the correct routing of the serpentine belt. Make sure to double-check the belt’s condition before installation to prevent unnecessary wear or slippage.
The 2011 Ford Focus uses a serpentine belt system, which is responsible for powering multiple components like the alternator, power steering pump, and air conditioning compressor. Understanding the correct belt routing ensures smooth operation and avoids costly repairs down the road.
Pay close attention to the direction of the grooves and how the belt interacts with the pulleys. The diagram will show the most efficient path the belt should follow, allowing you to avoid common installation mistakes. Ensure all pulleys are properly aligned before tightening the belt to the correct tension.
Consult the belt’s tension specifications for your model and check that the idler pulleys are in good working condition. A properly maintained serpentine belt will improve the longevity and performance of your vehicle’s engine system.

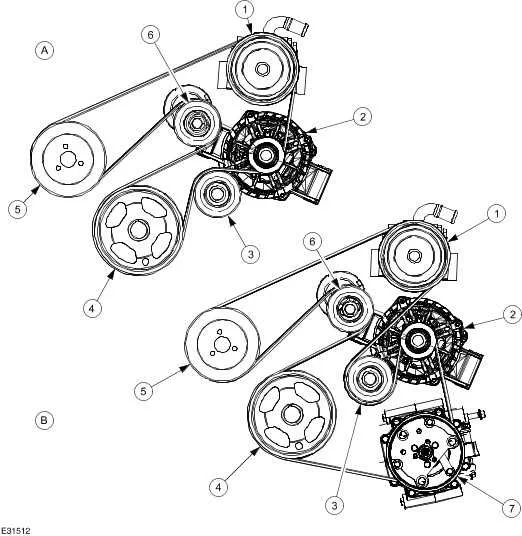

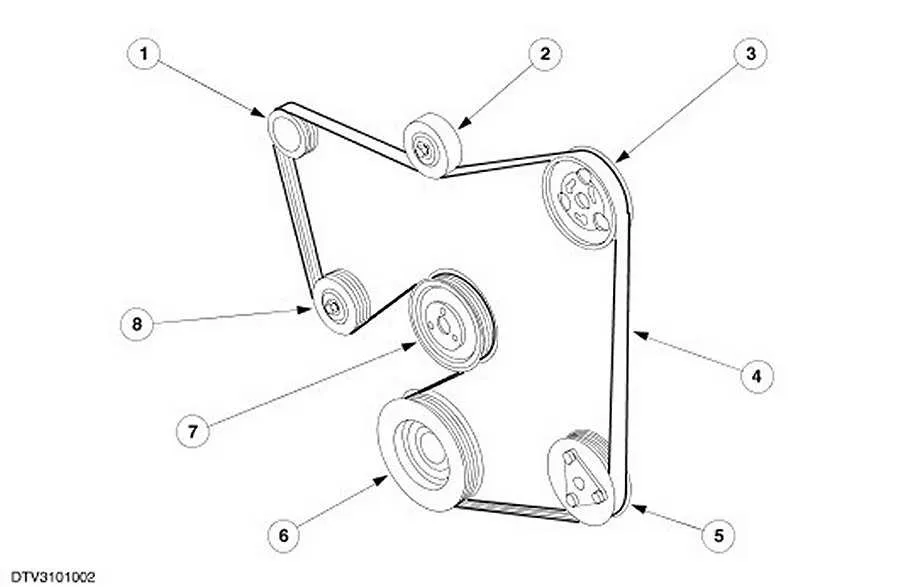

2011 Ford Focus Belt Diagram
To ensure your 2011 Ford Focus is running smoothly, it’s important to check the belt diagram for proper routing and alignment. The diagram shows how the serpentine belt connects the alternator, power steering pump, water pump, and air conditioning compressor, making it easy to identify potential problems.
First, locate the belt tensioner, which keeps the belt tight. It should be placed near the front of the engine and will have a pulley that applies pressure to keep the belt in place. Make sure the belt is routed around the alternator, power steering pump, and the other components shown in the diagram. Check the diagram carefully to avoid any mistakes during installation or maintenance.
If you’re replacing the belt, be sure to use a new one of the correct length and size. A worn belt can lead to slipping or squealing noises, so it’s vital to replace it as needed. Use a wrench or socket to release tension from the tensioner pulley and remove the old belt before installing the new one according to the diagram.
Double-check the alignment after installation. If the belt isn’t properly aligned, it can cause premature wear on your engine components. If you’re unsure, consult the manual or a professional for additional help.
Step-by-Step Guide to Replacing the Serpentine Belt on a 2011 Ford Focus
To replace the serpentine belt on a 2011 Ford Focus, follow these straightforward steps:
- Lift the Hood: Secure the hood in the open position, and ensure you have enough space to work around the engine.
- Locate the Serpentine Belt: The serpentine belt runs through various pulleys on the engine. It’s on the front of the engine, and you’ll find it easily by looking for a long, rubber belt connected to multiple components like the alternator, power steering pump, and air conditioning compressor.
- Release Tension: Use a 3/8-inch drive ratchet or a serpentine belt tool to move the tensioner pulley. Rotate it clockwise to relieve tension and free the belt from the pulleys.
- Remove the Belt: With the tension released, slide the serpentine belt off the pulleys carefully. Take note of the belt routing or refer to the belt diagram under the hood to ensure you install the new belt correctly.
- Inspect the New Belt: Before installing the new belt, compare it to the old one to ensure it’s the right size and fits properly. If it doesn’t, you may need to reorder the correct part.
- Install the New Belt: Begin by placing the new serpentine belt on the pulleys following the belt diagram. Make sure the belt is seated properly in the grooves of each pulley.
- Reapply Tension: Use the ratchet or serpentine belt tool again to move the tensioner pulley and allow the new belt to slide into place.
- Check the Alignment: Before closing the hood, ensure the belt is correctly aligned on all pulleys and there are no obstructions or misalignments.
- Start the Engine: Turn on the engine and listen for any unusual noises. If the belt is running smoothly and quietly, you’ve successfully replaced it.
After replacing the serpentine belt, always check the tension and ensure everything is running smoothly after a short test drive. Replacing a serpentine belt doesn’t require extensive tools or experience, making it a manageable DIY task.
Understanding the Role of Each Component in the Belt System of the 2011 Ford Focus
The 2011 Ford Focus relies on its belt system to maintain the proper operation of various engine components. Each element in the system plays a specific role in ensuring the engine runs smoothly and efficiently. Let’s break down how these components interact.
The serpentine belt is the main drive belt in the system. It connects the engine crankshaft to components like the alternator, power steering pump, water pump, air conditioning compressor, and the tensioner. This belt is critical for providing power to these parts. If the serpentine belt fails, it can cause several accessories to stop functioning, impacting the car’s performance.
The tensioner maintains the correct tension in the serpentine belt. It ensures that the belt remains tight enough to transfer power to the accessories without slipping. The tensioner typically features a spring-loaded mechanism that adjusts based on the belt’s wear and tension level. If the tensioner malfunctions, it can lead to a loose or slack belt, causing noise or wear on other components.
The idler pulley supports the serpentine belt by providing an additional point of contact for smooth belt movement. It helps guide the belt along its path and can also be responsible for maintaining proper belt alignment. If the idler pulley wears out, it can lead to inefficient belt movement or even cause the belt to slip off its designated track.
The alternator, powered by the serpentine belt, plays a major role in recharging the car’s battery and powering electrical systems while the engine is running. If the belt connected to the alternator wears out or breaks, the battery will not recharge, and the vehicle’s electrical systems could fail.
Next is the power steering pump. This pump is essential for assisting in steering the car, making it easier for the driver to turn the wheel. A failure in this system can result in difficult steering, especially at lower speeds. The belt ensures that the power steering pump remains operational as long as the engine is running.
The water pump circulates coolant throughout the engine to maintain a stable temperature. This process is critical for preventing engine overheating. If the water pump ceases to function due to a problem in the belt system, it can lead to engine overheating and potentially severe damage.
The air conditioning compressor, another key part of the system, is powered by the serpentine belt. It compresses refrigerant and pumps it through the A/C system to provide cooling inside the cabin. Any disruption in this power delivery can lead to an inoperative A/C system, especially during the summer months.
Each of these components is interconnected, relying on the serpentine belt for proper functioning. Keeping the belt and related components in good condition ensures your engine’s performance and longevity. Regular inspection of the belt and its components is recommended to catch early signs of wear and prevent unexpected failures.
Troubleshooting Common Belt-Related Issues in the 2011 Ford Focus
Start by checking for visible wear or damage on the serpentine belt. Cracks, fraying, or shiny spots on the belt are signs it needs replacement. A worn belt often causes squealing or grinding noises, especially during startup. If you hear such sounds, inspect the belt closely.
If the engine’s performance starts to degrade, or if electrical components malfunction, the issue could be a loose or slipping belt. Tighten the belt if it feels loose or check the tensioner. The tensioner may wear out over time and fail to keep the proper tension on the belt, leading to slippage.
In some cases, a misaligned belt can cause excessive friction, leading to rapid wear. Check the pulleys and ensure they are aligned correctly. Misalignment is often caused by a faulty pulley or a worn-out bearing in the alternator or power steering pump.
If you notice a sudden loss of power steering or overheating, the issue could be related to the serpentine belt failing to drive the power steering pump or the water pump. In these instances, inspect the belt for breaks or severe wear.
Lastly, always inspect the idler pulleys and the tensioner assembly. A noisy or failing idler pulley can create a wobbling belt, which will lead to premature belt wear and potential damage to other engine components.
