2011 Ford Escape 2.5 Serpentine Belt Diagram and Routing Guide
To replace or inspect the serpentine belt on your 2011 Ford Escape 2.5, start by identifying the belt routing. The belt diagram is crucial for understanding how the serpentine belt loops around various components. Incorrect installation can lead to poor performance or even damage to the engine.
The serpentine belt on the 2011 Ford Escape 2.5 drives multiple accessories, including the alternator, power steering pump, air conditioning compressor, and water pump. Make sure to follow the diagram closely to ensure proper tension and alignment. If the belt shows signs of wear such as cracks or fraying, it’s best to replace it immediately to avoid further complications.
Before starting the replacement, use a socket or wrench to relieve tension on the belt tensioner. This will allow you to remove the belt with ease. If you’re unsure about the belt condition, inspect it for any signs of glazing or damage. Always use high-quality replacement belts that match the original specifications for optimal performance.

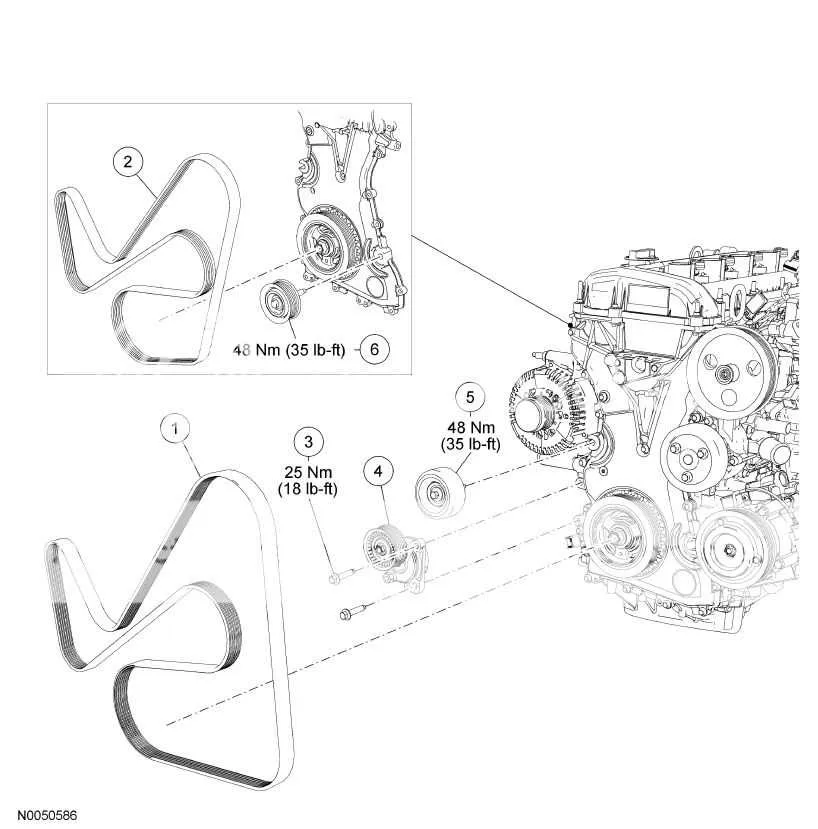

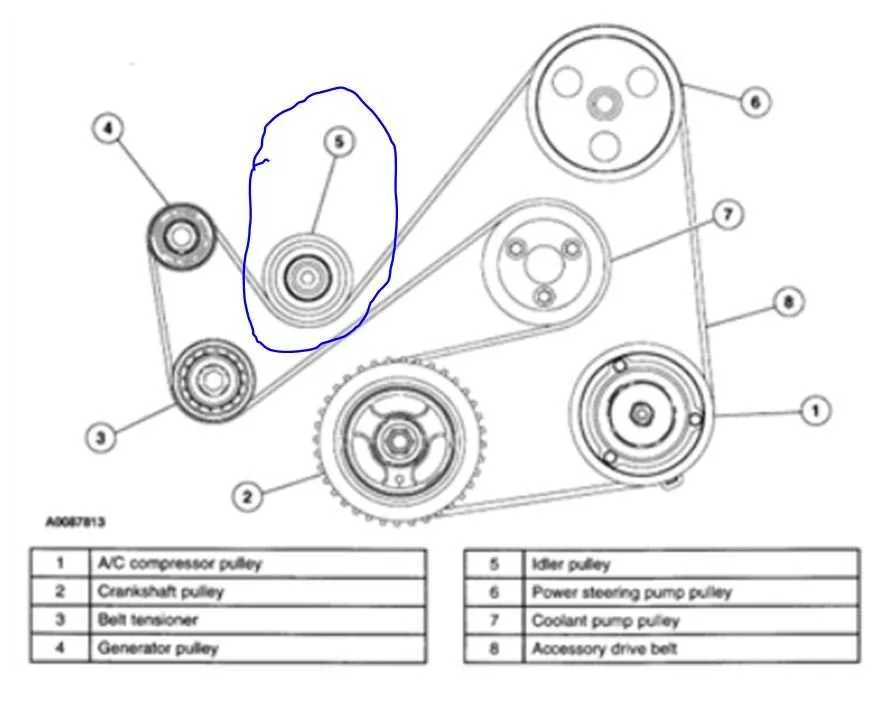

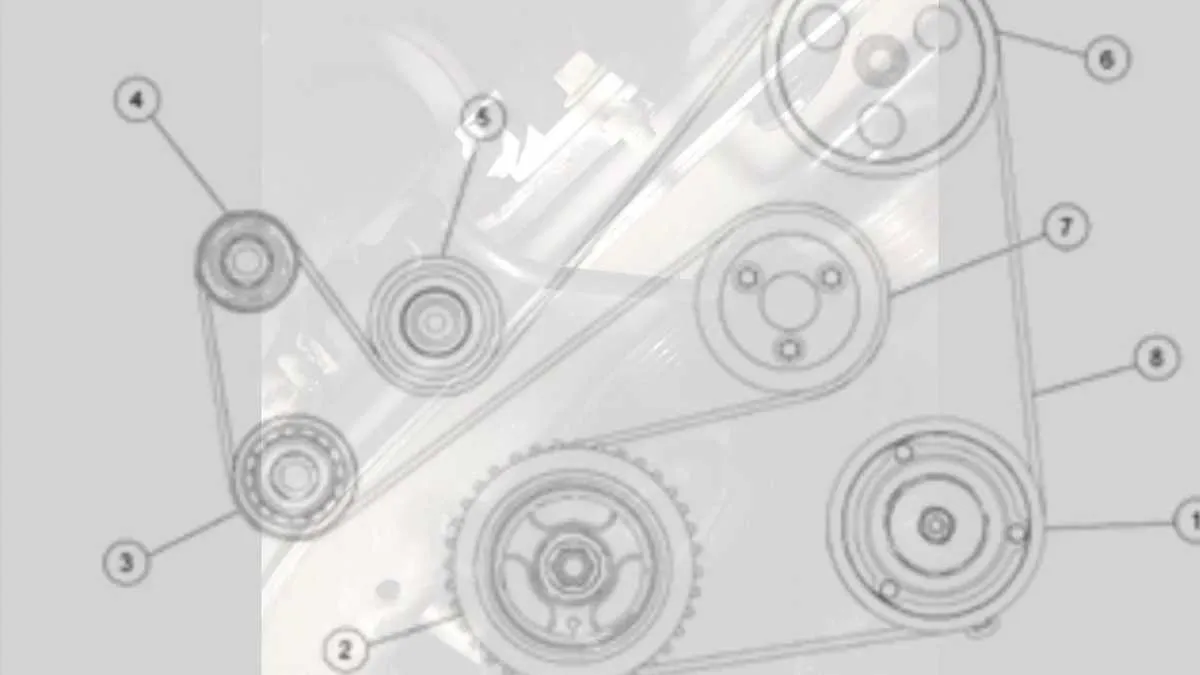

2011 Ford Escape 2.5 Serpentine Belt Diagram
To replace the serpentine belt on the 2011 Ford Escape 2.5, follow the correct routing pattern shown in the diagram. This belt is responsible for driving several components like the alternator, power steering pump, and air conditioning compressor. A correct installation ensures all components work smoothly and reduces strain on the engine.
The serpentine belt in the 2011 Ford Escape 2.5 follows a specific path around the pulleys. The tensioner pulley is responsible for keeping the proper tension on the belt. Make sure the belt is routed through the pulleys as shown in the diagram, ensuring the belt is properly aligned and tensioned. Pay close attention to the direction of rotation for each pulley, as incorrect installation can cause belt wear or damage.
Inspect the condition of the serpentine belt during installation. Look for signs of wear, cracking, or fraying. If the belt is in poor condition, replacing it during installation is advised. The replacement belt should match the size and type specified by the manufacturer for optimal performance.
Be sure to release the tensioner correctly to allow for easy removal and installation of the belt. This is typically done using a ratchet or wrench on the tensioner pulley. Always ensure the belt is fully seated on all pulleys before testing the vehicle to confirm the installation is correct.
How to Identify the Correct Serpentine Belt for Your 2011 Ford Escape
To ensure optimal performance of your 2011 Ford Escape, selecting the correct serpentine belt is critical. Follow these steps to identify the right one:
- Check the vehicle’s specifications: The 2011 Ford Escape 2.5L engine requires a specific belt length and width. Refer to the owner’s manual or the vehicle’s service manual for details on the belt’s dimensions.
- Inspect the current belt: If you are replacing an old belt, measure its length, width, and the number of ribs. You can use a tape measure or caliper for accuracy. Compare these measurements with the new belt options available for your vehicle model.
- Consider the type of belt: The serpentine belt for your 2011 Ford Escape typically comes in various materials such as EPDM (Ethylene Propylene Diene Monomer) or rubber. Choose a belt made from high-quality, durable material to avoid frequent replacements.
- Verify the part number: Every serpentine belt has a part number unique to the manufacturer. Cross-reference this part number with reputable suppliers to ensure compatibility.
- Consult with a professional: If you are unsure about the specifications or want an expert’s opinion, visit an automotive parts store or mechanic. They can verify the correct belt for your vehicle.
By following these steps, you can be confident that the serpentine belt you select will match the requirements for your 2011 Ford Escape 2.5L engine.
Step-by-Step Guide for Installing the Serpentine Belt on a 2011 Ford Escape 2.5
First, gather the necessary tools: a 15mm socket, a ratchet wrench, and a serpentine belt tool or a breaker bar. Make sure the engine is cool before starting.
1. Locate the serpentine belt tensioner on the engine. It’s positioned on the driver’s side near the alternator and power steering pump. Use a serpentine belt tool or a breaker bar to relieve tension from the belt by rotating the tensioner counterclockwise.
2. Once the tension is released, carefully slide the old belt off the pulleys. Make a note of the belt routing for reinstallation. You can refer to the diagram on the hood of the vehicle or the service manual for proper routing.
3. Compare the new belt with the old one to ensure it matches in length and width. If they differ, the new belt might not fit correctly.
4. Start threading the new belt around the pulleys, following the correct routing. Ensure it sits properly in each groove and is not twisted.
5. Once the belt is in place, use the serpentine belt tool or breaker bar to move the tensioner again and slip the belt over the last pulley. Slowly release the tensioner to apply tension to the new belt.
6. Double-check that the belt is properly aligned and seated in all pulleys. Rotate the engine by hand a few times to ensure the belt moves smoothly without slipping or misaligning.
7. Finally, start the engine and observe the belt’s movement to ensure it is operating smoothly without any unusual noises.
Troubleshooting Common Serpentine Belt Issues on the 2011 Ford Escape
If you notice squeaking or squealing noises coming from the engine bay, inspect the serpentine belt for wear or damage. The noise could indicate that the belt is slipping due to excessive tension or moisture buildup. A quick solution is to clean the belt with a damp cloth or replace it if the sound persists.
A common issue is the belt becoming loose over time. If you feel that the belt is slipping, check the tensioner. The tensioner should maintain consistent pressure to prevent slippage. If the tensioner is worn or malfunctioning, replacing it will restore proper tension and prevent belt failure.
If the serpentine belt shows signs of cracks, fraying, or glazing, it’s likely past its service life. Inspect the belt thoroughly for these signs, as continued use can lead to more serious engine issues. Replacing the belt promptly will help avoid damage to other components driven by the belt, such as the alternator or power steering pump.
Another issue to look out for is if the belt has come off its pulleys. This can happen if the pulley alignment is incorrect or if the belt is damaged. Check for any misalignment between the belt and pulleys. If the pulleys appear worn or damaged, they should be replaced to prevent the belt from slipping off again.
Examine the belt routing against the diagram in the vehicle’s manual. Incorrect routing during installation can lead to the belt skipping over pulleys or misaligning. Reinstall the belt according to the exact diagram to avoid this problem.
Finally, if your vehicle experiences frequent overheating or electrical issues, inspect the serpentine belt for any signs of wear. A malfunctioning belt may prevent the alternator from charging the battery properly, or the water pump may not be operating at the correct efficiency. Replacing a worn belt will help restore the system’s performance.
