2010 Ford Fusion Serpentine Belt Diagram and Installation Guide
The serpentine belt system in a 2010 Ford Fusion plays a vital role in driving several key components like the alternator, power steering pump, and air conditioning compressor. It’s important to regularly inspect the belt for wear, as a damaged or loose belt can lead to a variety of issues including overheating or a loss of power steering assistance.
To replace or troubleshoot the serpentine belt, start by referring to the specific belt diagram for your vehicle. The diagram provides a clear path showing how the belt should be routed around the pulleys. It also helps identify the exact tension the belt should be under, ensuring optimal function. Make sure to use the correct tools and follow safety procedures to avoid damaging the components or causing further issues.
Understanding the layout and routing of the serpentine belt is essential when performing any maintenance or repair on your Ford Fusion. If the belt appears worn, frayed, or cracked, it’s time for a replacement. Consult your owner’s manual or the belt diagram for precise instructions on routing and tensioning to keep the engine running smoothly.

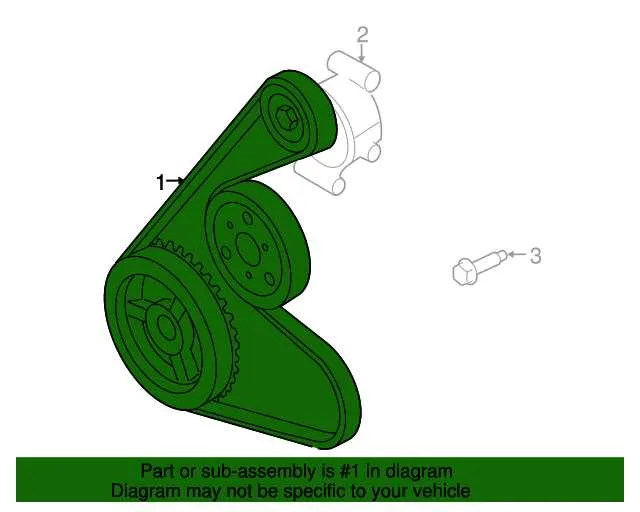

2010 Ford Fusion Belt Diagram
The 2010 Ford Fusion uses a serpentine belt system that powers several engine components. Understanding the layout of the belt can simplify maintenance, such as belt replacement or troubleshooting. Follow the correct routing to ensure optimal performance.
The belt routing for the 2010 Ford Fusion is straightforward but requires attention to detail. Here is a general breakdown:
- The serpentine belt connects the crankshaft pulley, alternator, power steering pump, air conditioning compressor, and water pump.
- The tensioner pulley maintains the correct tension, preventing the belt from slipping or becoming too loose.
- It’s crucial to check the belt for signs of wear, such as cracks, fraying, or glazing, which can reduce its lifespan.
For replacement, follow these steps:
- Locate the tensioner pulley and use a wrench to release the tension.
- Remove the old serpentine belt carefully, noting the routing path.
- Install the new belt, ensuring it’s routed according to the diagram.
- Check the belt’s tension and make sure the pulleys align properly.
Be sure to inspect all pulleys for wear, and replace any that show signs of damage. A malfunctioning pulley can lead to premature belt failure and may cause engine damage.
Step-by-Step Guide to Replacing the Serpentine Belt on a 2010 Ford Fusion
Begin by securing the vehicle. Park it on a flat surface and engage the parking brake. Disconnect the negative terminal of the battery to prevent any accidental electrical shorts during the process.
Next, locate the serpentine belt. It runs across the front of the engine and is visible near the alternator, power steering pump, and other accessories. Use a belt routing diagram for reference, usually found on the radiator support or under the hood.

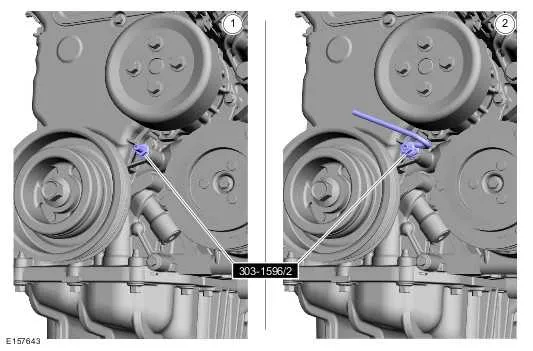

Use a 3/8-inch drive ratchet to rotate the tensioner pulley and relieve tension on the serpentine belt. This will allow you to remove the belt easily. Make sure to observe the direction of the tensioner pulley to avoid damaging it.
Carefully slide the belt off the pulleys. As you remove it, inspect the belt for signs of wear such as cracks, fraying, or glazing. If the belt shows signs of damage, replacing it is necessary to avoid future issues.
Before installing the new belt, check the pulleys for any signs of damage or debris. Ensure the tensioner pulley is functioning properly by manually rotating it. If it feels stiff or makes unusual noises, it may need to be replaced.
Route the new serpentine belt according to the diagram. Start from the bottom and work your way up, ensuring the belt sits correctly on all pulleys. Double-check the belt’s path before proceeding to the next step.
Once the belt is in place, use the ratchet to rotate the tensioner pulley again, allowing the belt to be tightened. Ensure the belt is properly aligned and seated in the grooves of all pulleys.
Reconnect the negative battery terminal and start the engine to check for any unusual noises. Ensure the new belt runs smoothly and does not slip off any pulleys. If everything appears correct, your serpentine belt replacement is complete.
How to Identify and Diagnose Common Issues with the Serpentine Belt System
Check for visible signs of wear and tear on the serpentine belt. Look for cracks, fraying, or glazing on the surface, which may indicate that the belt is old or damaged. A belt that is too loose can cause slipping, leading to reduced performance of the accessories it drives. Tighten the belt if necessary, ensuring that it is aligned properly on the pulleys.
If you hear squeaking or squealing noises coming from the engine, it may be a sign of a worn-out or misaligned serpentine belt. Inspect the belt tensioner and pulleys for any damage or malfunction. A defective tensioner can cause the belt to loosen, leading to slippage and excessive wear.
Monitor the operation of the alternator, power steering, and other components driven by the serpentine belt. If any of these systems exhibit poor performance, such as the engine stalling or difficulty steering, it could be due to insufficient power delivery from a faulty belt or tensioner.
Check for belt misalignment. A serpentine belt that’s running off-center or wobbling on the pulleys may indicate that the alignment is off. This misalignment can cause the belt to wear unevenly and may lead to premature failure.
Inspect the pulleys for any signs of wear, rust, or damage. Worn-out pulleys can cause the belt to slip or become misaligned, leading to more severe problems in the belt system.

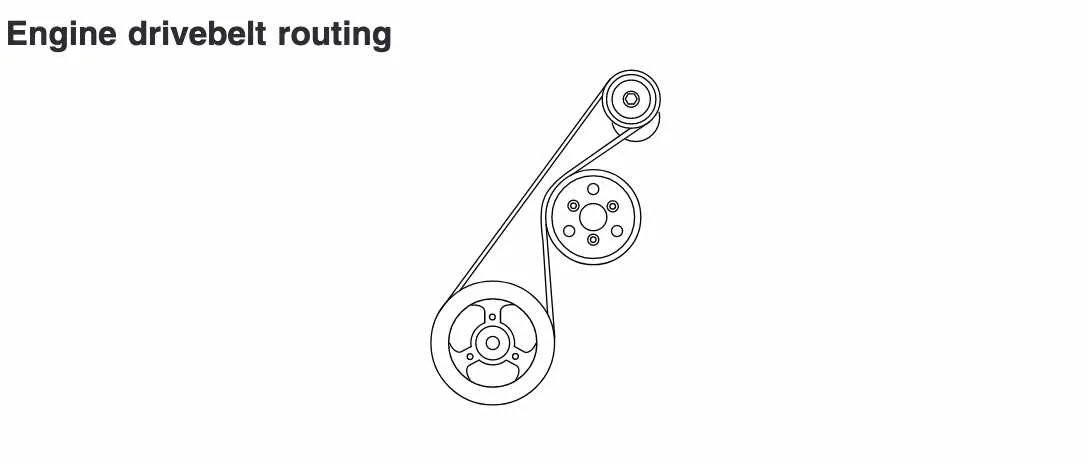

Understanding the Serpentine Belt Routing for the 2010 Ford Fusion
The serpentine belt routing for the 2010 Ford Fusion plays a key role in driving multiple engine components, including the alternator, power steering pump, and air conditioning compressor. It is critical to follow the correct routing pattern to ensure proper functioning and avoid damage.
To begin, locate the tensioner pulley, which keeps the serpentine belt tight. The belt routes through the crankshaft pulley, the alternator, the power steering pump, and the A/C compressor. Be sure to check for any wear or damage to these components before replacing the belt.
The routing path runs clockwise around the components. The belt should be positioned on the tensioner pulley last, ensuring it is properly tensioned. If the tensioner is not aligned correctly or shows signs of wear, replace it immediately to prevent the belt from slipping or becoming loose.
When replacing the belt, start by releasing tension from the tensioner pulley using a wrench or special tool. Once the tension is released, remove the old belt and carefully route the new one following the original pattern. Check the alignment of the belt after installation to make sure it sits evenly on each pulley.
Regularly inspect the belt for signs of cracking, fraying, or glazing. A damaged belt can cause engine performance issues, such as poor charging or power steering loss. If you notice any of these issues, replace the serpentine belt and ensure the routing follows the diagram to prevent future problems.
