Detailed Diagram and Layout of 2009 Ford Focus Belt System for Accurate Reference
Locate the serpentine belt routing quickly using a clear diagram specific to the 2009 Ford Focus. The belt connects the alternator, power steering pump, water pump, and air conditioning compressor, ensuring smooth engine operation. Following the correct routing prevents tension issues and premature wear.
Identify each pulley precisely before removing the old belt. The tensioner pulley sits near the front of the engine and must be released carefully using a wrench or breaker bar. Confirm the orientation of the belt on the crankshaft, idler, and accessory pulleys to avoid misalignment that can cause noise or slippage.
Check belt condition during installation. Look for cracks, fraying, or glazing. A worn belt reduces efficiency and increases the risk of engine overheating. Replace the tensioner if it shows resistance or unusual movement. Tighten the belt following the recommended tension specifications in the diagram to maintain proper function.
Keep the diagram accessible during future maintenance. Storing a printed or digital copy near the engine bay allows for quick reference when performing oil changes, accessory replacements, or belt inspections. Accurate routing ensures the system runs smoothly and extends the lifespan of the components.

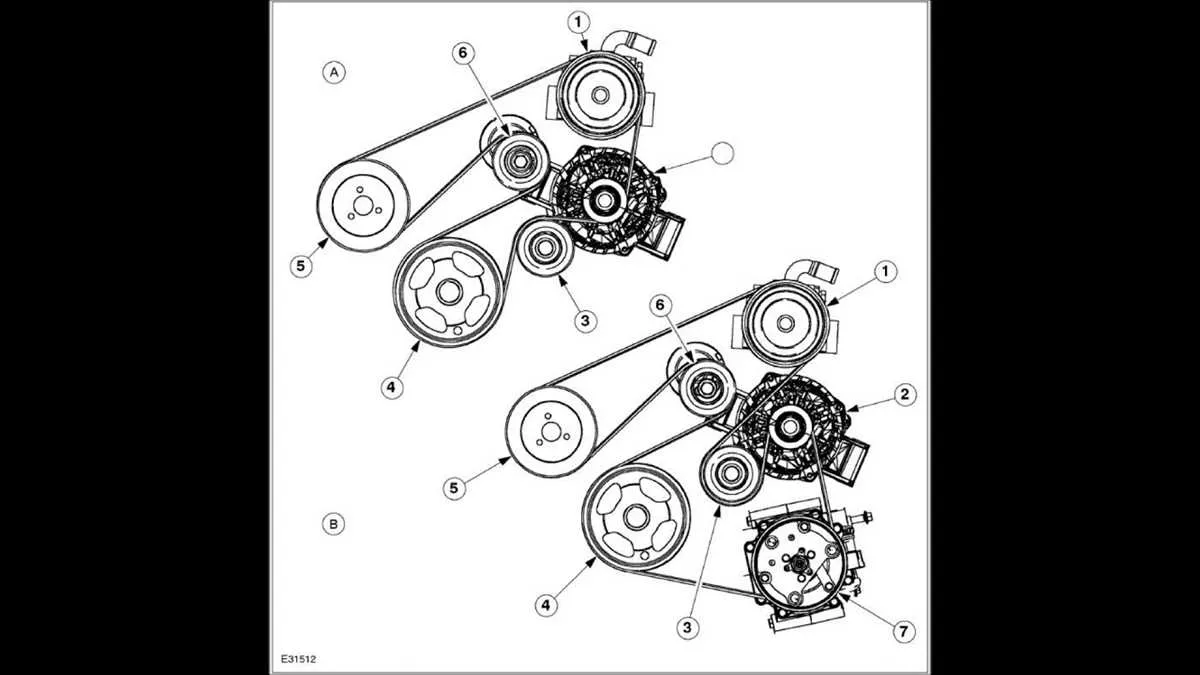

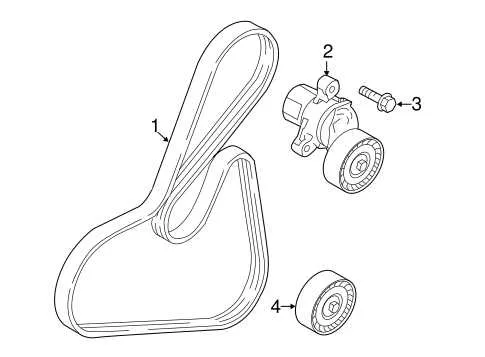

2009 Ford Focus Belt Diagram
Locate the serpentine belt routing above the engine, starting at the crankshaft pulley. The belt wraps clockwise around the alternator, tensioner, water pump, and A/C compressor. Use the tensioner pulley to release pressure when removing or installing the belt. Ensure the belt sits fully in each pulley groove to prevent slipping or premature wear.
Check the belt for cracks, fraying, or glazing before installation. Align the belt according to the factory diagram: the crankshaft drives the water pump first, followed by the alternator, then the tensioner, and finally the A/C compressor. Confirm the belt routing matches the diagram stamped on the radiator support or under the hood.
Replace the tensioner if it shows excessive play or fails to maintain proper tension. Tighten all mounting bolts to manufacturer torque specifications. After installation, rotate the engine by hand to verify smooth movement and proper tracking across all pulleys.
Use a quality replacement belt matching the OEM part number to ensure compatibility with the 2009 Ford Focus engine layout. Double-check pulley alignment and belt tension after the initial run, and inspect periodically to extend belt lifespan and maintain engine performance.
Identifying Each Belt and Its Function
Check the serpentine belt first–it drives the alternator, power steering pump, and air conditioning compressor. Ensure it sits correctly on all pulleys to maintain proper tension and prevent slipping.
- Serpentine Belt: Runs multiple accessories. Inspect for cracks or fraying. A worn belt reduces charging efficiency and steering response.
- Timing Belt: Synchronizes the crankshaft and camshaft. Replace according to the manufacturer’s interval, usually around 60,000–100,000 miles. Failure leads to severe engine damage.
- Accessory Belt: Powers components like the water pump and alternator in older models with separate belts. Check alignment and tension regularly.
Follow the belt routing diagram under the hood or in the owner’s manual to identify each belt precisely. Note any tensioner pulleys–they maintain proper belt pressure and prevent slippage. Replace tensioners showing wear alongside belts.
- Locate the belt routing diagram near the radiator or engine bay. Compare each belt visually with the diagram.
- Identify pulleys by shape and location: alternator at the top, water pump in the center, tensioner to the side.
- Check for smooth operation by rotating each pulley by hand. A rough or noisy pulley indicates a need for replacement.
Mark each belt with a label or colored tape if multiple belts exist. This prevents confusion during removal or replacement and ensures each belt returns to its correct path.
Regular inspection keeps engine performance stable, prevents unexpected breakdowns, and extends the lifespan of connected components.
Step-by-Step Routing for Serpentine Belt Replacement
Loosen the tensioner pulley using a 3/8-inch ratchet and rotate it clockwise to release belt tension. Slide the old belt off each pulley, noting the routing path for reference. Avoid forcing the belt over pulleys to prevent damage to bearings.
Compare the new serpentine belt with the old one to confirm matching length and rib pattern. Begin installation by looping the belt around the crankshaft pulley first, ensuring it sits securely in the grooves. Follow the routing diagram closely to loop the belt around the alternator, water pump, and power steering pulleys in sequence.
Keep the belt taut over stationary pulleys while guiding it onto the tensioner pulley last. Rotate the tensioner again to allow the belt to seat fully. Inspect each pulley to confirm the belt rests evenly in all grooves without twisting.
Turn the engine by hand using the crankshaft bolt for two full revolutions to verify alignment. Recheck tension and belt position. Any misalignment can cause squealing or premature wear, so adjust immediately before running the engine.
Test-drive the vehicle briefly, listening for unusual noises. A properly routed and tensioned serpentine belt maintains consistent contact with all pulleys and ensures smooth operation of the alternator, AC compressor, and power steering system.
Common Belt Issues and Troubleshooting Tips
Check your serpentine belt for cracks or fraying at least every 10,000 miles. A worn belt can slip or snap, affecting the alternator, power steering, and air conditioning.
Listen for squealing noises on startup or during acceleration. High-pitched squeals often indicate misalignment or insufficient tension, which can be corrected by adjusting the belt tensioner or replacing a worn pulley.
Inspect the belt for glazing, a shiny surface that reduces grip. Glazing occurs from overheating or excessive slippage and usually requires full belt replacement rather than temporary adjustments.
Monitor vibrations or jerking from accessories. Uneven wear patterns may signal a failing tensioner or pulley bearing, which should be swapped out immediately to prevent belt damage.
Maintain proper routing using the 2009 Ford Focus belt diagram. Incorrect installation can cause rapid wear or noise, making routine visual checks critical during any maintenance session.
Replace the belt on a 60,000 to 100,000-mile schedule depending on driving conditions and exposure to heat, oil, or debris. Early replacement reduces risk of sudden failure and associated repair costs.
Keep pulleys and tensioners clean and free of oil. Contaminants reduce friction and accelerate belt degradation, so wipe down surfaces during regular inspections.
