2008 Ford Focus Serpentine Belt Diagram and Installation Guide
For accurate serpentine belt installation or replacement on your 2008 Ford Focus, refer to the belt routing diagram provided in this guide. The serpentine belt is responsible for driving multiple components such as the alternator, air conditioning compressor, and power steering pump. Correct routing ensures proper functionality and reduces wear on the belt and components.
To begin, make sure you have the correct belt length and tension before installation. Use a belt tensioner tool to relieve tension on the old belt, making the replacement process smoother. The belt diagram is crucial for ensuring that the belt is routed through each pulley in the correct order.
If your Focus has accessories like the air conditioning or power steering, the diagram will clearly show how to route the belt around these components. Always double-check the routing against the diagram before starting the engine to avoid damage to the belt or pulleys.

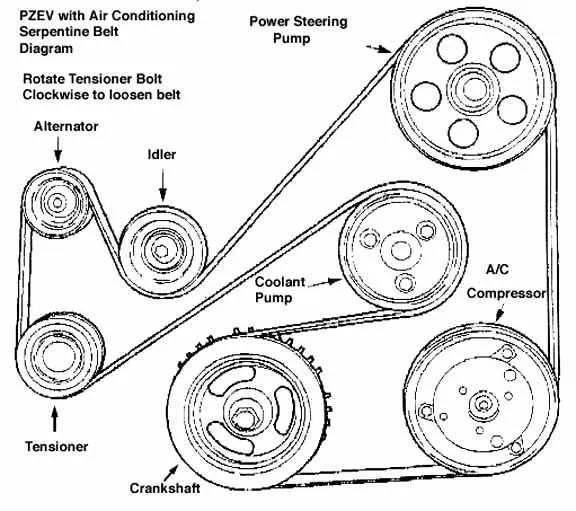

2008 Ford Focus Belt Diagram
The 2008 Ford Focus uses a serpentine belt system that powers several components of the engine. This system includes the alternator, power steering pump, air conditioning compressor, and water pump. Ensuring the belt is properly aligned and tensioned is crucial to avoid any performance issues.
To replace the serpentine belt on your 2008 Ford Focus, start by inspecting the belt for wear and tear. Cracks, fraying, or glazing on the belt indicate it’s time for a replacement. When installing the new belt, refer to the belt routing diagram to ensure it follows the correct path around all pulleys.
Use a serpentine belt tool to relieve tension from the tensioner pulley before removing the old belt. Make sure the new belt is tightly secured, but not over-tensioned, as this could lead to premature wear on the belt and pulleys. The tensioner should maintain the proper tension automatically.
It’s recommended to check the belt regularly for signs of wear, especially after 30,000 to 40,000 miles. If you hear squeaking noises or experience difficulty steering or loss of power from electrical components, it may be time to check the belt.
How to Read the 2008 Ford Focus Serpentine Belt Diagram
Locate the belt routing diagram, usually found on the radiator support or under the hood cover. Compare each pulley on the diagram with the engine components to identify their positions accurately.
Follow these steps to interpret the diagram:
- Identify the pulleys: The diagram labels each pulley, including the crankshaft, alternator, power steering pump, AC compressor, and tensioner. Match the symbols to the actual components.
- Trace the belt path: Starting from the crankshaft, follow the continuous line connecting each pulley. Ensure the belt wraps around the pulleys in the correct sequence, maintaining proper contact with grooves.
- Check the tensioner: The tensioner is marked on the diagram with an arrow indicating the direction to relieve tension. Confirm you understand which way to move it for installation or removal.
- Verify alignment: Ensure the belt sits fully in each pulley groove. Misalignment can cause squealing or premature wear.
- Double-check routing: Compare the installed belt to the diagram visually. Each loop and twist must match exactly.
Use the diagram as a reference for replacements or maintenance. Accurate reading prevents errors and keeps the belt running smoothly, avoiding damage to engine components.
Step-by-Step Guide to Replacing the Serpentine Belt on a 2008 Ford Focus
Locate the serpentine belt routing diagram under the hood or in the owner’s manual to confirm the correct belt path. This ensures proper installation and prevents engine damage.
Use a wrench or serpentine belt tool to rotate the tensioner pulley clockwise, releasing tension on the belt. Carefully slide the belt off the pulleys while holding the tensioner in position.
Inspect all pulleys, including the idler and tensioner, for wear, damage, or misalignment. Replace any components showing signs of cracks, glazing, or wobble.
Compare the new serpentine belt with the old one to verify length and rib configuration. A correct match prevents slipping or premature wear.
Route the new belt according to the diagram, starting with the crankshaft pulley and then threading it around accessory pulleys. Leave the tensioner pulley for last.
Rotate the tensioner again to slip the belt over its pulley. Slowly release the tensioner to apply proper tension on the belt, ensuring it seats correctly on all grooves.
Double-check the belt alignment and path on every pulley. Misalignment can cause squealing or rapid belt wear.
Start the engine and observe the belt in motion. Listen for unusual noises and inspect for proper tracking. Turn off the engine and recheck tension after the first few minutes of operation.
Troubleshooting Common Issues with the Serpentine Belt in a 2008 Ford Focus
Inspect the serpentine belt for visible cracks, fraying, or glazing across the ribs. A worn belt often produces a high-pitched squealing noise, especially during startup or while turning on the AC. Replace the belt immediately if damage is present.
Check belt tension using a belt tension gauge or by applying moderate pressure at the midpoint of the longest span. The belt should deflect approximately 1/2 inch under firm pressure. Excessive slack can cause slippage, while overtightening stresses the alternator and water pump bearings.
Examine the pulleys for misalignment, wear, or damage. Misaligned pulleys can cause uneven wear patterns on the belt and generate noise. Use a straightedge or laser alignment tool to verify pulley alignment and replace any worn idlers or tensioners.
Listen for squealing or chirping noises during engine operation. If noises persist after replacing the belt, inspect the tensioner and idler pulleys for seized bearings. Lubricate or replace pulleys as needed to eliminate friction points.
Inspect for oil, coolant, or other fluid contamination on the belt. Fluids reduce friction, causing the belt to slip and wear prematurely. Clean the pulley surfaces and address leaks before installing a new belt to prevent repeated failures.
Verify proper routing using the factory belt diagram. Incorrect routing can cause accessory malfunction, excessive tension, and premature belt failure. Always follow the diagram stamped under the hood or in the service manual.
Replace the serpentine belt every 60,000–100,000 miles, or sooner if signs of wear appear. Regular inspection and timely replacement maintain proper accessory function and prevent unexpected breakdowns on a 2008 Ford Focus.
