2004 Ford Taurus Serpentine Belt Routing Diagram and Maintenance Tips

Replacing or servicing the serpentine belt on a 2004 Ford Taurus requires a solid understanding of its routing and tensioning system. First, locate the belt diagram, which is usually found on a label near the engine bay. This diagram provides a clear visual of how the belt wraps around the various pulleys, ensuring the smooth operation of essential components such as the alternator, power steering pump, and air conditioning compressor.

Proper tensioning is key when installing or adjusting the serpentine belt. A loose belt may slip, causing poor performance, while an overly tight belt can damage the engine components. Using a tension gauge, check the belt tension regularly to maintain optimal function. Make sure to inspect the belt for any signs of wear, cracks, or fraying, as these could lead to premature failure.

Before starting the installation, double-check that the belt’s routing matches the diagram. Incorrect routing could cause serious damage to the engine or accessories. Follow the steps in the service manual for proper installation and tensioning. If in doubt, consulting a professional mechanic can ensure that everything is properly aligned and functioning correctly.

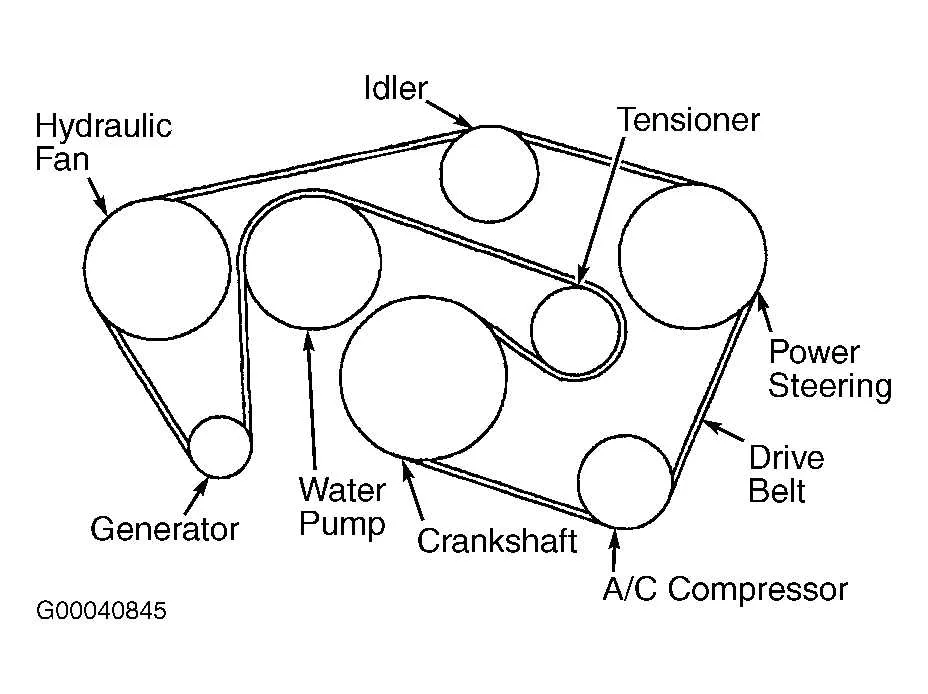

2004 Ford Taurus Serpentine Belt Diagram

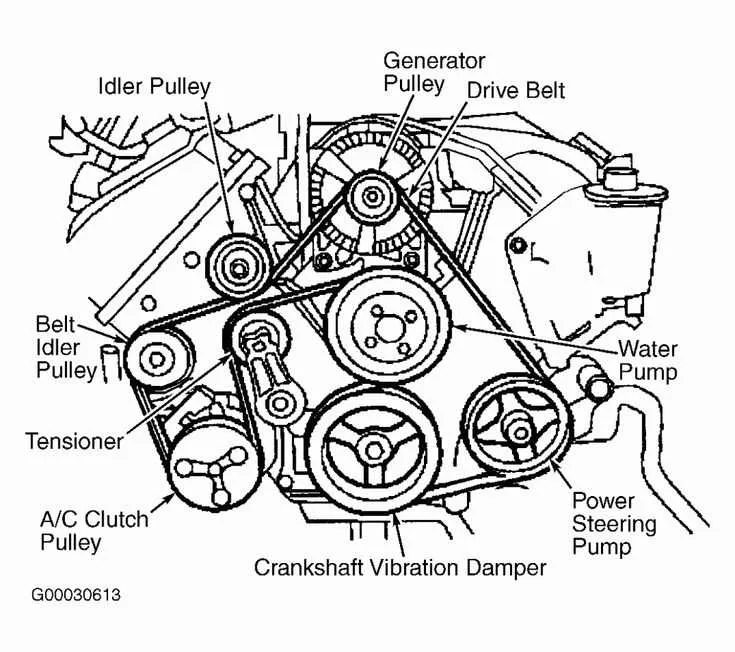

To properly maintain the serpentine belt on a 2004 Ford Taurus, ensure the belt is routed correctly. The serpentine belt powers critical components like the alternator, air conditioning compressor, and power steering pump. Incorrect routing can cause damage to the belt or components. Refer to the diagram for a precise view of the belt path.

• The belt should pass over the alternator pulley and around the tensioner.
• Ensure it loops around the air conditioning compressor and power steering pump pulley.
• The water pump is driven by the serpentine belt, so ensure it is properly routed to avoid overheating.

If you are replacing the belt, use a tension tool to release the belt tension from the tensioner pulley. This will allow you to remove the old belt and install the new one. Double-check the belt’s position before starting the engine to avoid any misalignment.

Consult the service manual for the exact belt size and specific torque values to ensure optimal performance. Regular inspection is crucial to detect any signs of wear, cracks, or fraying, which could lead to unexpected belt failure.

How to Read the 2004 Ford Taurus Serpentine Belt Diagram

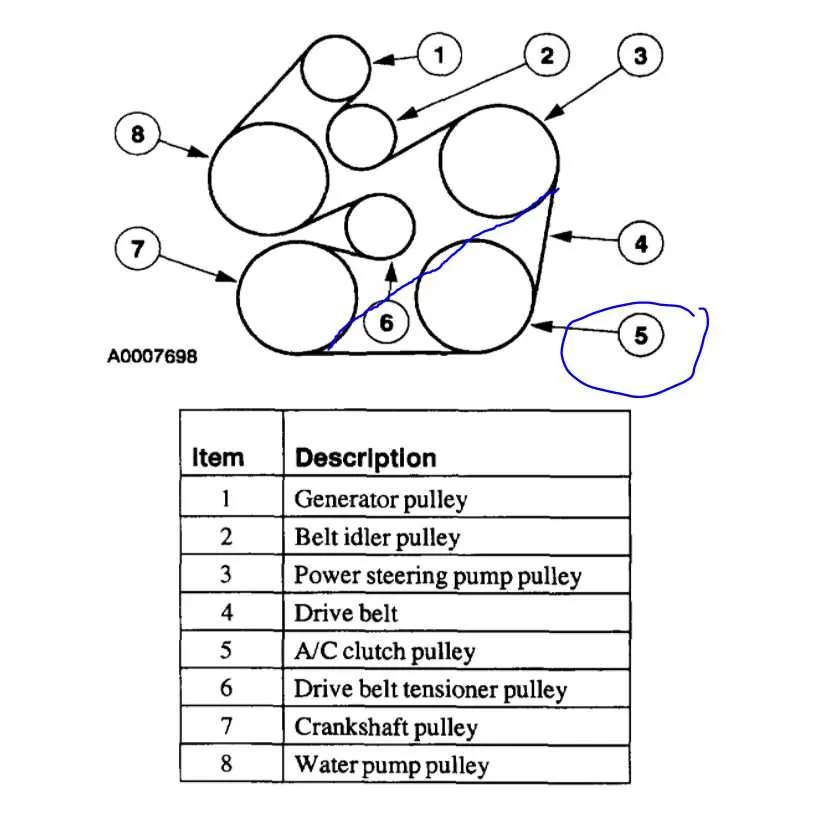

To read the serpentine belt diagram for the 2004 Ford Taurus, begin by identifying the components listed on the diagram. Each component, such as the alternator, power steering pump, and air conditioning compressor, will be represented by a symbol or label.

Next, observe the path of the serpentine belt. It will typically be a single, continuous line showing how the belt loops around various pulleys. The diagram will indicate the direction of rotation for each pulley, ensuring proper alignment of the belt.

Pay attention to the tensioner pulley, which is crucial for maintaining proper belt tension. The diagram will show how the belt interacts with the tensioner, ensuring it stays tight enough to drive the components but not too tight to cause damage.

Finally, note any special instructions for routing the belt, such as the order in which it should be installed or removed. This will help avoid mistakes when replacing or adjusting the belt.

Step-by-Step Guide to Replacing the Serpentine Belt on a 2004 Ford Taurus

Before starting, make sure you have the correct replacement serpentine belt for your 2004 Ford Taurus. Refer to your vehicle’s owner manual or the diagram under the hood for the exact size and routing of the belt.

1. Disconnect the battery: Always disconnect the battery to avoid accidental electrical short circuits while working under the hood.

2. Locate the serpentine belt: The serpentine belt is typically located at the front of the engine, looping around multiple components such as the alternator, power steering pump, and air conditioning compressor. Identify the tensioner pulley.

3. Relieve tension on the belt: Use a socket wrench or a serpentine belt tool to rotate the tensioner pulley. This will release the tension on the belt. While holding the tensioner in place, remove the belt from the pulleys.

4. Remove the old serpentine belt: Once the tension is relieved, carefully remove the old belt from the remaining pulleys. Take note of the routing pattern to ensure the new belt is installed correctly.

5. Compare the new belt: Check the new serpentine belt against the old one to ensure they match in length and width. If the new belt is different, you may need to adjust the routing or use a different size belt.

6. Install the new serpentine belt: Start by placing the belt around the pulleys in the same order as the old one. Ensure the belt sits securely in the grooves of each pulley.

7. Tighten the tensioner: Rotate the tensioner pulley again with the tool to apply tension to the new belt. Ensure the belt is tight and properly aligned on all pulleys.

8. Check the installation: Double-check the routing and tension. If the belt is too loose or misaligned, adjust the tensioner or routing as needed.

9. Reconnect the battery: Reconnect the negative terminal of the battery and test the new belt by running the engine for a few minutes. Listen for any unusual noises or vibrations that might indicate improper installation.

Common Issues with the Serpentine Belt and How to Troubleshoot Them

If the serpentine belt on your 2004 Ford Taurus starts to show signs of wear or malfunction, address the issue before it leads to more significant damage. A slipping or worn belt can affect various engine components, including the alternator, power steering pump, and air conditioning compressor.

One of the most common problems is a cracked or frayed belt. Inspect the belt for visible damage, such as cuts, splits, or missing ribs. A worn belt will lose its grip, causing squealing or slipping sounds. If you notice this, replace the belt immediately to prevent further engine strain.

Another frequent issue is belt misalignment. This can occur if the pulleys are damaged or if the tensioner is not functioning correctly. Misalignment can lead to uneven wear and belt slippage. Ensure that all pulleys are properly aligned and the tensioner is applying the correct pressure. If the tensioner feels weak or doesn’t move smoothly, replace it to avoid damaging the belt and surrounding components.

Over-tightening or under-tightening the belt can cause problems as well. If the belt is too tight, it can put excess stress on the bearings and cause premature wear. If it’s too loose, the belt may slip or even fall off. Adjust the tensioner according to the manufacturer’s specifications to maintain proper tension.

Check the pulleys for any signs of wear, rust, or damage. A worn pulley can cause the belt to wear unevenly. Make sure the pulleys spin freely and don’t make any grinding noises. If any pulley is out of alignment or damaged, replace it to ensure proper belt function.

If the serpentine belt is repeatedly failing, it may be due to an underlying issue such as a faulty alternator or power steering pump. In this case, replace or repair the faulty component before replacing the belt.
