2004 Ford F150 Serpentine Belt Routing Diagram and Installation Guide

For owners of a 2004 Ford F150, understanding the serpentine belt layout is crucial when it’s time to replace or inspect the belt. A serpentine belt powers multiple accessories in the engine, such as the alternator, power steering pump, air conditioning compressor, and water pump. If your belt is worn out, cracked, or making noise, replacing it promptly can prevent more significant engine issues.

Start by locating the belt tensioner, which keeps the serpentine belt tight. To relieve tension, use a wrench or socket to rotate the tensioner counterclockwise. Once the tension is released, carefully remove the belt from all the pulleys. When installing the new serpentine belt, follow the exact routing depicted in the diagram to ensure that all components are powered correctly.

The diagram for the 2004 F150 can help you identify the exact path the belt should follow. The belt typically runs from the crankshaft pulley to the alternator, power steering pump, air conditioning compressor, and other accessories. Be sure to check the pulleys for wear and replace them if necessary before installing the new belt to ensure proper function.

Knowing the correct route and understanding how to replace the serpentine belt properly ensures your F150 will continue running smoothly. If you’re unsure or unfamiliar with the process, it’s a good idea to refer to your vehicle’s manual for a more detailed guide or seek professional assistance.

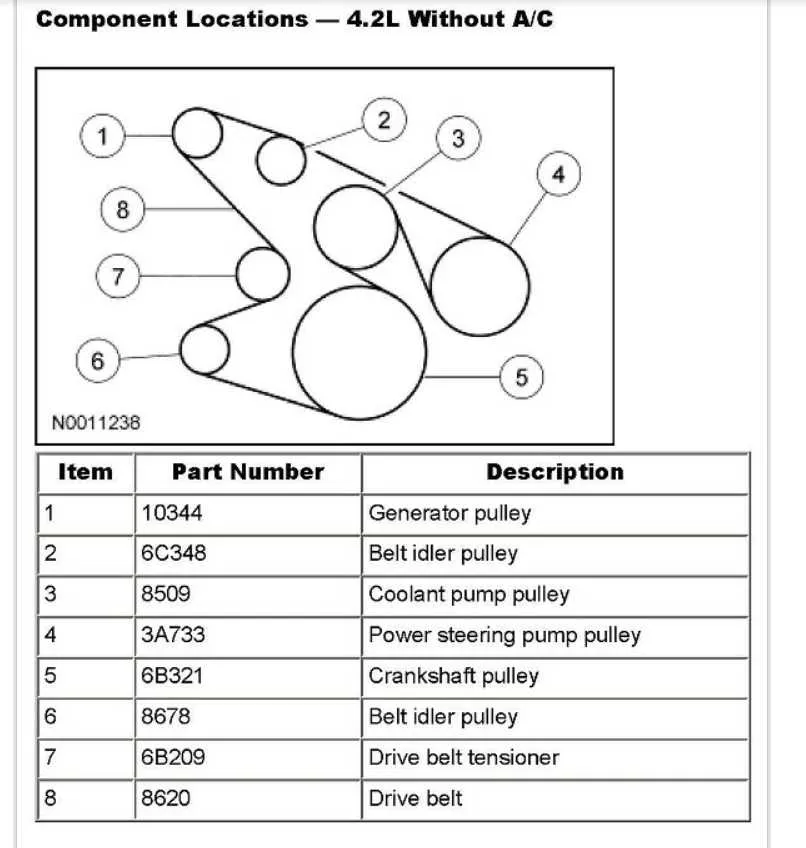

2004 Ford F150 Serpentine Belt Diagram

To replace or inspect the serpentine belt on a 2004 Ford F150, follow this specific routing pattern for a proper installation. The belt runs across several components, including the alternator, power steering pump, air conditioning compressor, and the water pump. Use the diagram below to help guide the process.

The belt path should start at the top, with the belt looping over the alternator pulley. From there, it should go down to the power steering pump. Continue by looping it around the air conditioning compressor and then down to the water pump. The last part of the routing connects to the crankshaft pulley at the bottom, completing the circuit. The tensioner pulley will be placed between the crankshaft and power steering pump to ensure proper tension is applied to the belt.

Ensure the correct belt length and part number (5K800) for the 2004 Ford F150 to avoid installation issues. Always double-check the routing before starting the engine to confirm that the belt is seated properly in all grooves.

Use the provided diagram to verify the serpentine belt placement before completing the installation. This step helps ensure smooth operation and prevents premature wear or damage to the engine components.

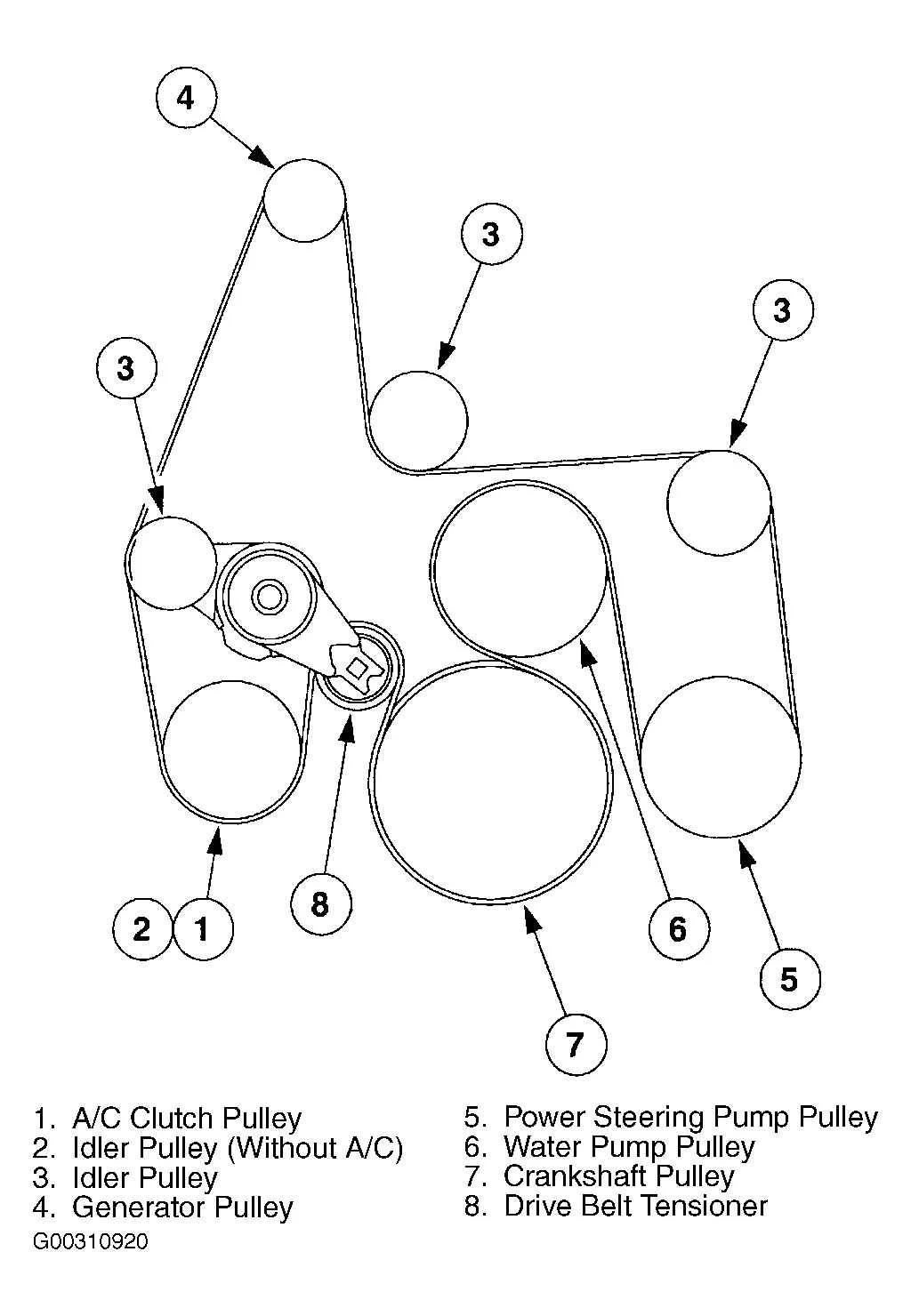

Understanding the Serpentine Belt Routing on 2004 Ford F150

To ensure smooth engine performance, make sure the serpentine belt on your 2004 Ford F150 is routed correctly. The belt powers multiple components like the alternator, power steering pump, and air conditioning compressor, so an accurate routing is essential for all systems to function properly.

The serpentine belt routing on the 2004 F150 follows a specific pattern. Start with the crankshaft pulley at the bottom, which drives the belt. From there, the belt loops around the power steering pump pulley, moving up toward the alternator pulley. The belt then moves downward again to wrap around the air conditioning compressor pulley. Be mindful of the tensioner pulley, which is located above the alternator and ensures the belt stays tight. Lastly, the belt returns to the crankshaft pulley, completing the loop.

Before reinstalling or replacing the belt, always check the condition of all pulleys and the tensioner. Worn-out components can cause improper belt routing or lead to premature wear. Use a diagram specific to your vehicle to confirm the correct path.

If the belt slips off or shows signs of wear, it can affect the performance of various engine components. Regular inspection is recommended to catch issues early, especially if you hear unusual noises like squealing, which often points to a loose or damaged serpentine belt.

When in doubt, consult the vehicle’s service manual for further guidance on belt replacement intervals or detailed troubleshooting tips.

Step-by-Step Guide to Replacing the Serpentine Belt on a 2004 Ford F150

Begin by parking your Ford F150 on a level surface and turning off the engine. Disconnect the negative battery terminal to ensure safety. Locate the serpentine belt in the engine compartment. It’s usually situated at the front of the engine, running over several pulleys. You may need to remove any engine covers or panels blocking access to the belt.

Find the tensioner pulley. This pulley keeps the serpentine belt tight and will need to be loosened to remove the belt. Use a socket wrench or a serpentine belt tool to rotate the tensioner pulley counterclockwise. This will relieve the tension on the belt, allowing you to slide it off the pulleys.

Carefully remove the serpentine belt from all the pulleys. Take note of how the belt is routed around each pulley. It’s helpful to take a picture or sketch the diagram to ensure proper reinstallation later.

Inspect the new serpentine belt before installing it. Ensure it matches the old belt in size, length, and the number of ribs. If any pulleys seem worn or damaged, replace them before proceeding.

Install the new serpentine belt by following the same routing as the old belt. Start by placing it over the pulleys, ensuring it sits properly in the grooves. Double-check that it is routed correctly around all pulleys and tensioner.

Once the belt is in place, use the socket wrench or serpentine belt tool to rotate the tensioner pulley again. This will allow you to slide the belt into position. Make sure the belt is tight and fully seated on each pulley.

Reconnect the negative battery terminal and start the engine. Watch the belt for any signs of slipping or misalignment. If everything looks good, you’re done!

Common Issues with the Serpentine Belt System in the 2004 Ford F150

The serpentine belt system in the 2004 Ford F150 can experience several common issues, leading to decreased performance or damage to vital components.

1. Belt Wear and Cracking

Over time, the serpentine belt may begin to crack or fray. This is often caused by prolonged exposure to heat, dirt, or oil. If the belt is cracked, it may slip, reducing the efficiency of the system and causing a loss of power to essential accessories like the alternator and air conditioning.

2. Tensioner Failure

The belt tensioner plays a key role in maintaining proper belt tension. A faulty tensioner can cause the belt to loosen or wear unevenly. A worn tensioner may also produce a squealing sound when the engine starts, indicating it’s no longer applying the correct pressure to the belt.

3. Misalignment

When pulleys become misaligned due to worn bearings or improper installation, the belt can slip off or wear down unevenly. This can result in squeaking noises and loss of functionality in accessories like power steering or the water pump.

4. Pulley Damage

Pulleys, especially the ones responsible for guiding the serpentine belt, can become damaged or worn out over time. If the pulleys are cracked or have worn bearings, the belt may not operate smoothly, which can lead to premature belt wear or total failure.

5. Belt Slipping

Belt slippage occurs when the serpentine belt does not grip the pulleys properly, often due to low tension or excessive moisture. This can result in poor engine performance, including dim lights, power steering failure, or overheating if the water pump isn’t functioning as it should.

6. Incorrect Belt Installation

Improper installation of the serpentine belt can lead to several issues, such as incorrect tension or misalignment. Double-check the routing diagram for proper placement, as an incorrect installation can quickly lead to belt failure.

7. Contamination

Oil, coolant, or other contaminants on the belt can accelerate wear and reduce its lifespan. Regularly inspect the belt for signs of contamination, especially if there are leaks from engine components. Clean the belt and surrounding areas as needed to prolong the system’s life.

By addressing these common issues early, you can extend the life of the serpentine belt system and prevent more serious engine problems down the line.
